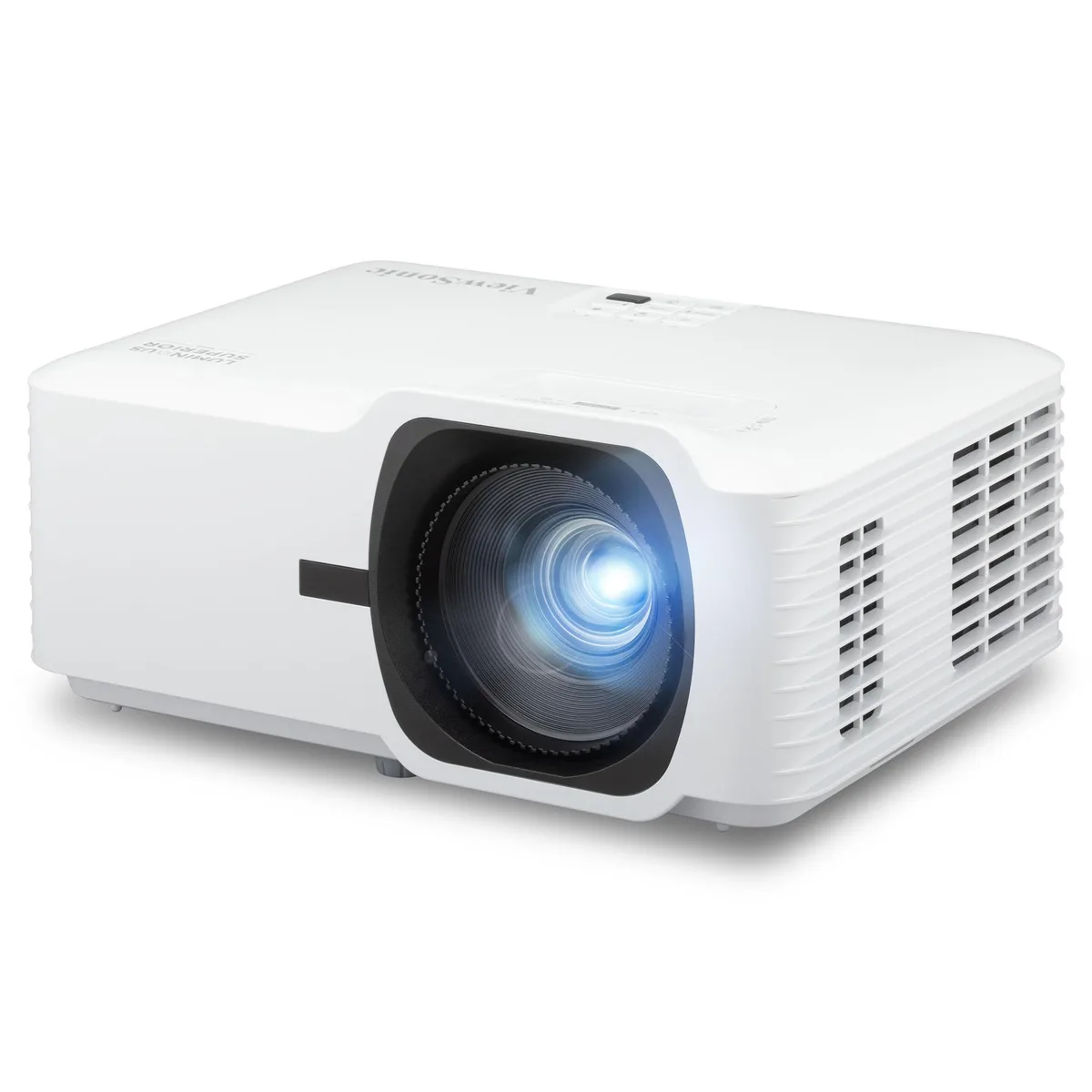

White rectangular laser projector with lens centered and front-facing controls

ViewSonic

ViewSonic LSD500HD 5500 ANSI Lumens 1080p Laser Business Projector

SKU CH-NF5J-24PZJ MPN LSD500HD

A 5500 ANSI lumen laser phosphor projector delivering 1080p images up to 300 inches with 30,000-hour lamp-free operation and 1.3x optical zoom

  • Cabinet ColorWhite
  • TypeLaser Phosphor System
  • Sports TeamNO
  • Brightness5500
  • Native Resolution1920 x 1080
  • Maximum Resolution1920x1080
  • 5500 ANSI lumens keep images vivid in fully lit rooms
  • Laser phosphor runs up to 30000 hours with zero lamp changes
  • 3× optical zoom plus 360° projection fits any room layout
  • Certified Crestron and Q‑SYS with RJ45 for central LAN management
  • 65″ DMD chip delivers 3000000:1 dynamic contrast and 1.07 billion colours

Brightness and Installation Flexibility

The ViewSonic LSD500HD is a 5500 ANSI lumen laser phosphor projector built for boardrooms, lecture halls and large commercial venues. Its lamp-free design runs up to 30000 hours with zero lamp replacements, keeping maintenance low and uptime high. Full HD 1080p resolution and a 0.65" DMD chip deliver deep contrast and crisp detail at any screen size.

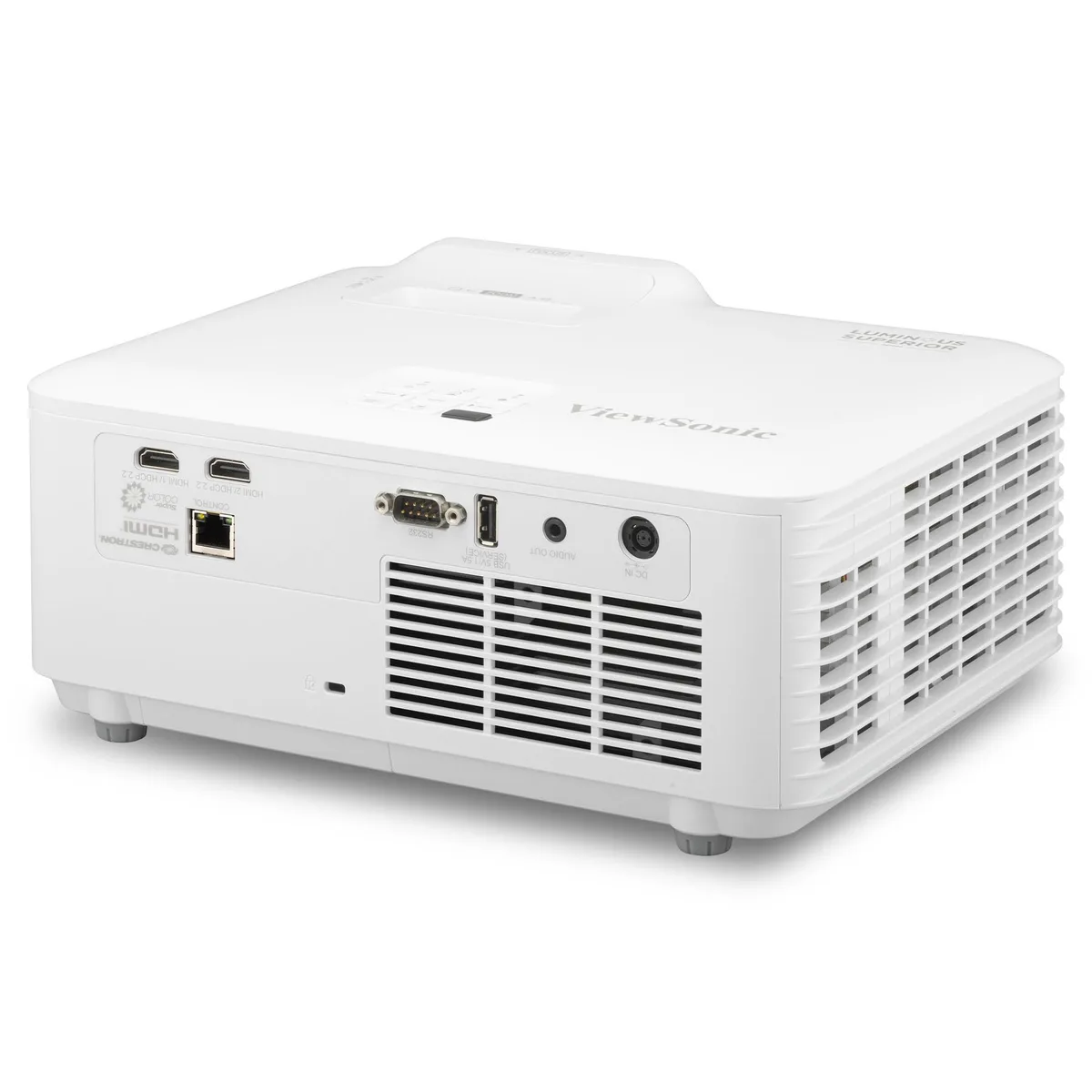

Connectivity and Control Requirements

Verify that your source devices provide HDMI 2.0 output for HDR10 and HLG content at 60 Hz. The projector includes an RJ45 network port for integration with Crestron, Q-SYS, AMX, PJ Link or Extron control systems. Ensure your installation plan accommodates a throw ratio of 1.13-1.47 and a throw distance of 0.75-9.76 metres for the desired image size.

LAN Management and Image Adjustment

Certified Crestron and Q-SYS compatibility lets AV teams monitor and manage multiple units from a single location without extra software licences. The 1.3x optical zoom, 360° projection capability and 4-corner keystone correction give installers the range to handle any room layout cleanly. Instant on and off with no warm-up or cooldown reduces downtime between sessions.

Highlights

  • 5500 ANSI lumens keep images vivid in fully lit rooms
  • Laser phosphor runs up to 30000 hours with zero lamp changes
  • 3× optical zoom plus 360° projection fits any room layout
  • Certified Crestron and Q‑SYS with RJ45 for central LAN management
  • 65″ DMD chip delivers 3000000:1 dynamic contrast and 1.07 billion colours

Specifications

BrandViewSonic
SeriesLSD Series
ModelLSD500HD
Cabinet ColorWhite
TypeLaser Phosphor System
Sports TeamNO
Brightness5500
Native Resolution1920 x 1080
Maximum Resolution1920x1080
Aspect Ratio16:9 Aspect Ratio
Contrast Ratio3,000,000:1 Dynamic Contrast Ratio
Display Size30-300
Horizontal Refresh Rate15K-102KHz
Throw Ratio1.13-1.47
Display Colors1.07 Billion
Throw Distance0.75-9.76
Lamp Life30000
Input Video CompatibilityAnalog RGB, Digital
Input Video ConnectorsHDMI
Network ConnectorsRJ45
USBYes
Built-in SpeakersYes
Power Supply100 - 240 VAC, 50/60Hz
Power Consumption165W
Dimensions286 x 216 x 129 mm
Package ContentsProjector, power cable, remote control, Quick Start Guide
Shipping weight4.60 kg
Package size400 × 280 × 155 mm

Questions about this item

Does the projector include all cables needed for HDMI and network connections, or must they be purchased separately?

The unit provides HDMI 2.0 and RJ45 ports for video and LAN control. Cables for those connections are not included and should be sourced to match the installation requirements.

Should I choose this model for a 300-inch screen in a bright room or a smaller screen in a darker space?

With 5500 ANSI lumens and a throw ratio of 1.13-1.47, this projector covers 30 to 300 inches and maintains colour accuracy in fully lit commercial spaces.

What does the 5500 ANSI lumen rating mean for everyday presentations?

It delivers full brightness instantly with no warm-up, so images stay clear and colour-accurate under normal office lighting without dimming the room.
