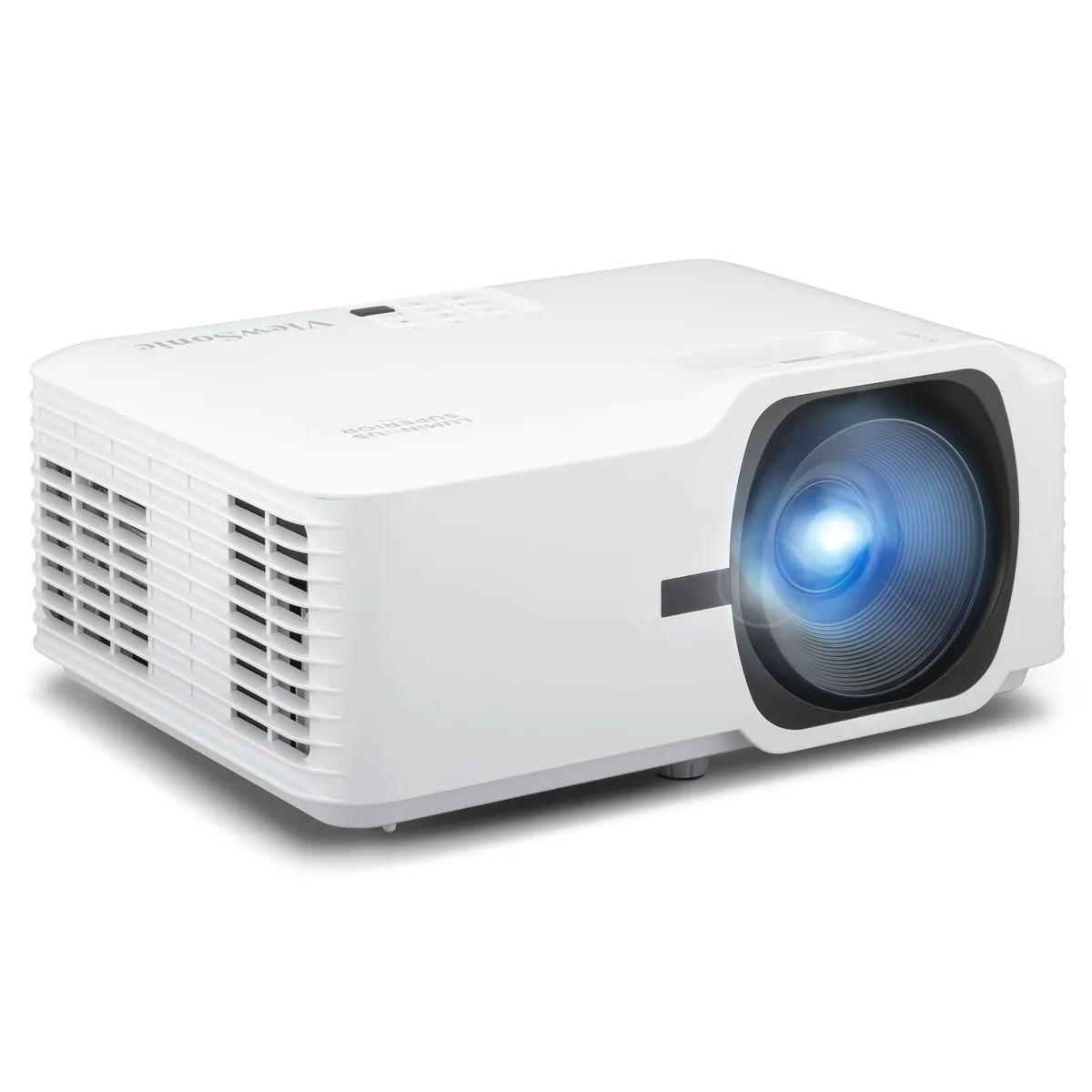

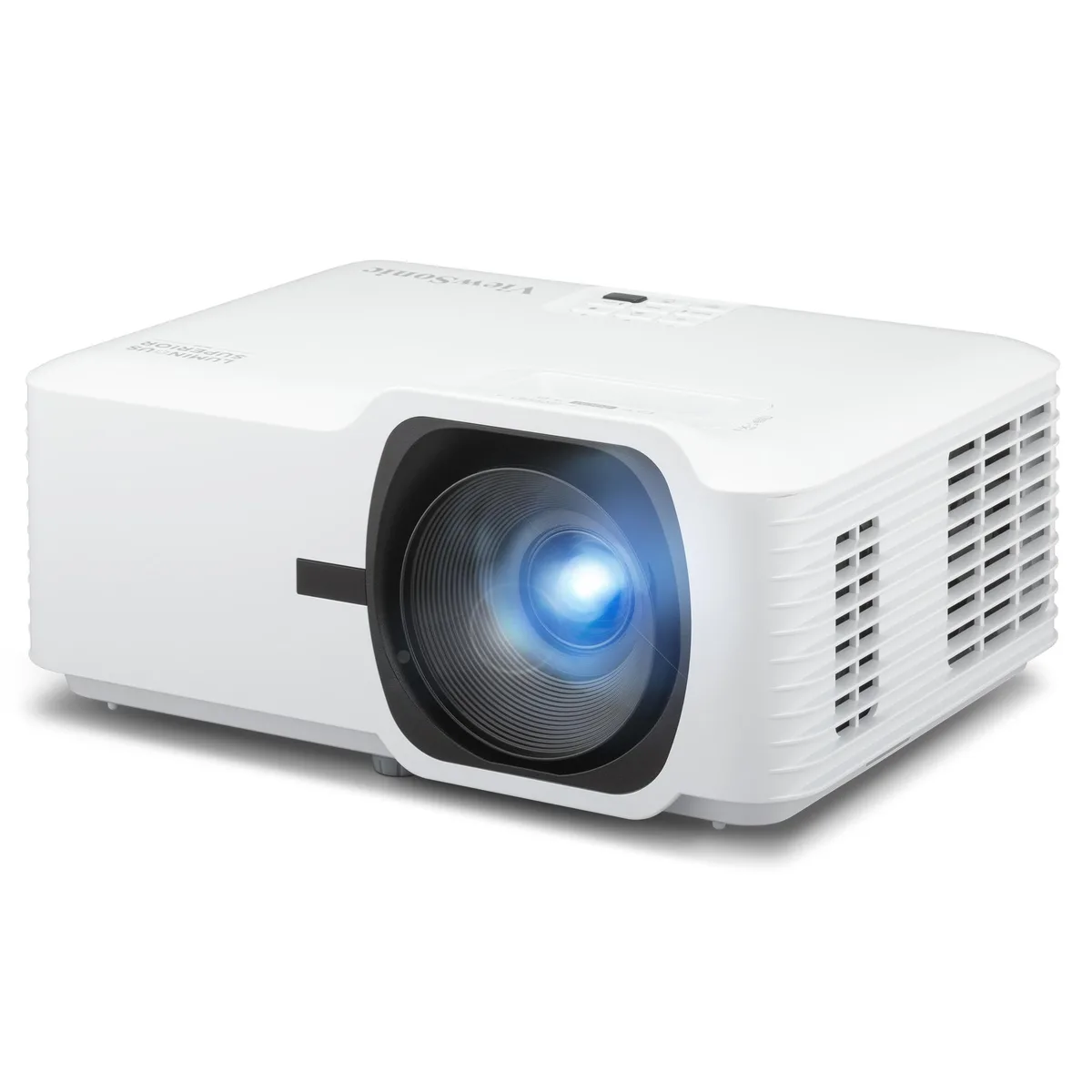

ViewSonic LSD400W 4000 Lumens WXGA Laser Business Projector
Delivers 4000 lumens WXGA images with a laser light source rated for 30000 hours and 1.1x optical zoom
- Cabinet ColorWhite
- Brightness> 3500 lumens
- Native Resolution1280 x 800
- Maximum Resolution1280x800
- Aspect Ratio16:10 Aspect Ratio
- Contrast Ratio3,000,000:1 Dynamic Contrast Ratio
- Bright 4000 lumens stay clear in lit rooms
- Laser phosphor lasts up to 30000 hours with no lamp swaps
- 1x optical zoom plus 360° projection fit ceilings, floors or portrait setups
- 3000000:1 dynamic contrast keeps text crisp and video vivid
- IP6X sealed engine blocks dust for fit-and-forget reliability
Built for Classrooms and Commercial Spaces
The ViewSonic LSD400W is a laser-phosphor business projector rated at 4000 ANSI lumens with a native 1280 x 800 resolution. Its 1.07 billion display colours and 3,000,000:1 dynamic contrast ratio keep text crisp and video vibrant in lit rooms. Designed for meeting rooms, classrooms and digital signage, it supports 360-degree orientation and portrait mode for flexible mounting on ceilings or floors.
Replacing Lamp Projectors with Lower Upkeep
The third-generation laser engine delivers up to 30000 hours of operation without lamp changes, cutting energy use by up to 49 percent versus traditional lamp models. The jump is worth it when you need fit-and-forget reliability in daily-use environments such as schools or golf simulators. Buyers who require higher native resolution or specialised colour-calibration workflows should look elsewhere.
Simple Setup with Optical Zoom and Keystone

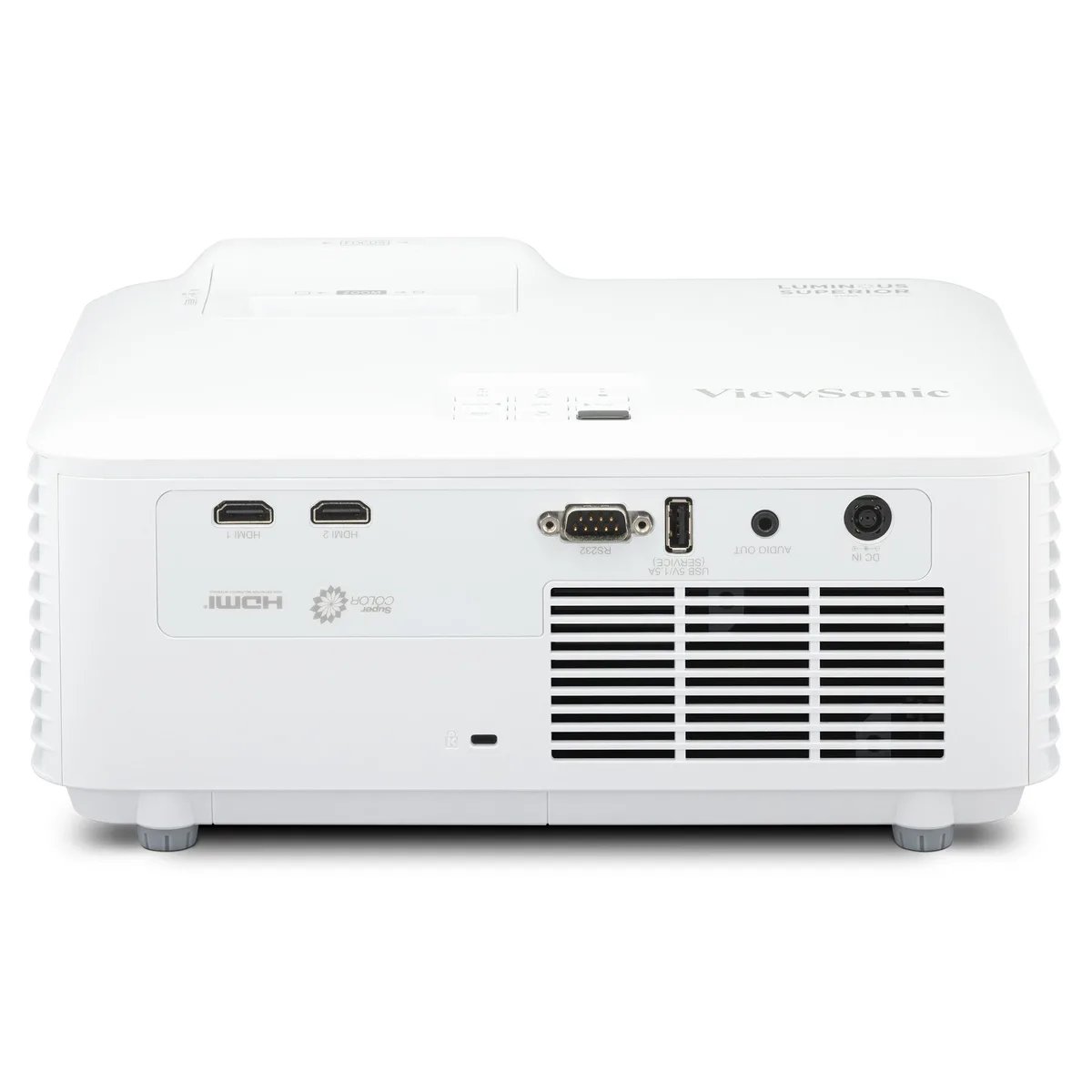

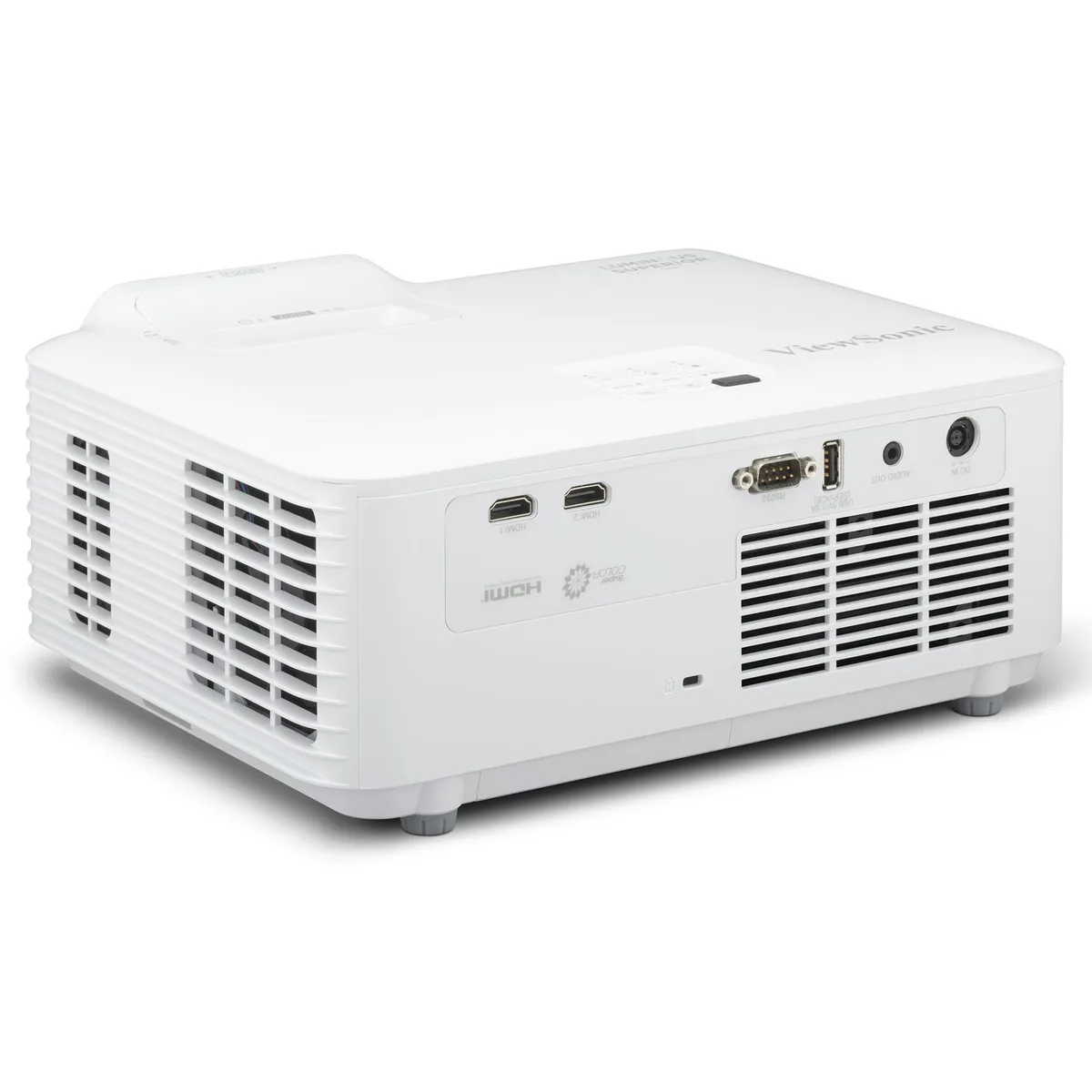

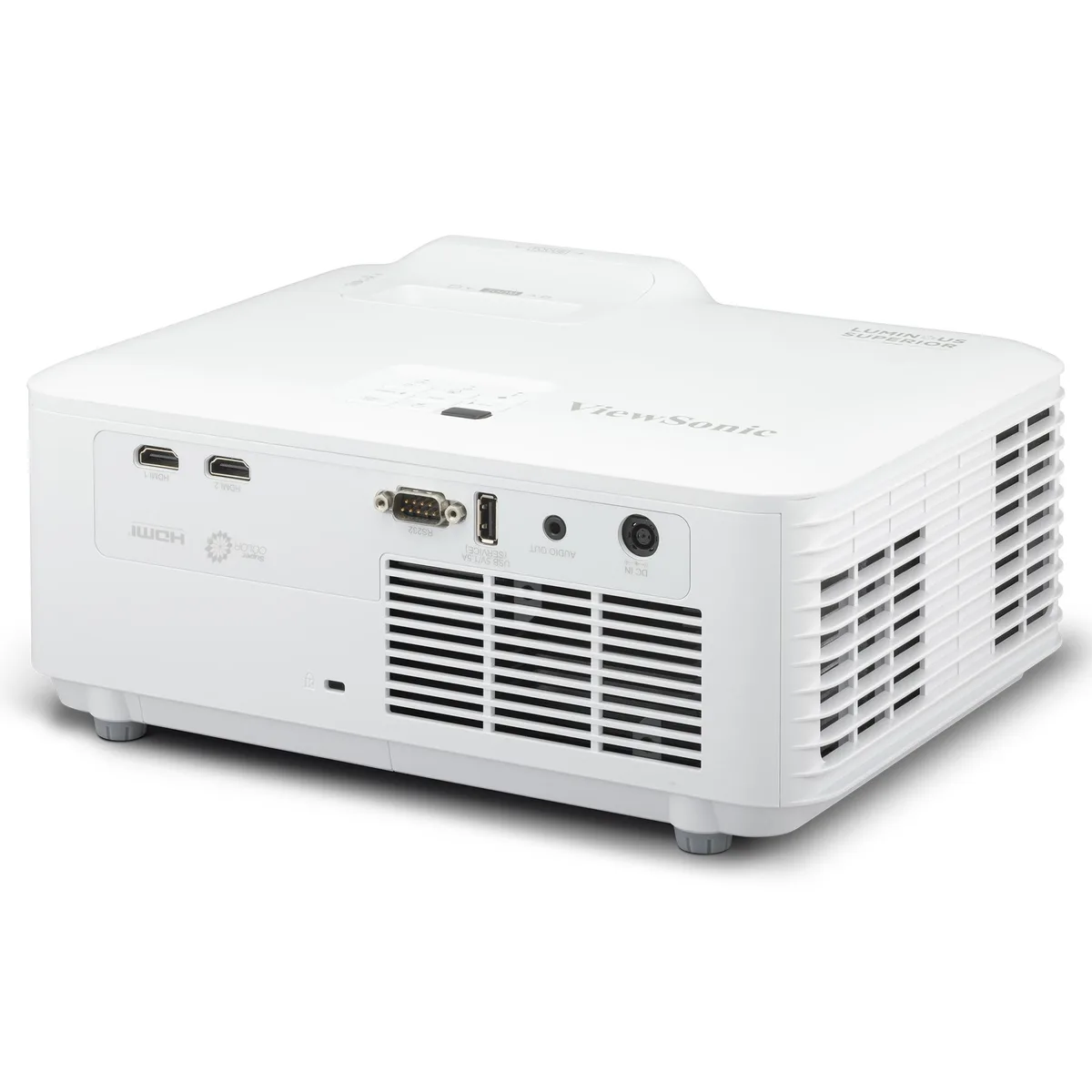

A 1.1x optical zoom and horizontal and vertical keystone correction simplify alignment across throw distances from 1.00 to 11.11 metres. Dual HDMI inputs and built-in speakers reduce external cabling for typical office installs. The sealed IP6X-rated engine resists dust, but installers must ensure adequate ventilation space around the 0.65-inch DMD chip to maintain long-term performance.
Highlights
- Bright 4000 lumens stay clear in lit rooms
- Laser phosphor lasts up to 30000 hours with no lamp swaps
- 1x optical zoom plus 360° projection fit ceilings, floors or portrait setups
- 3000000:1 dynamic contrast keeps text crisp and video vivid
- IP6X sealed engine blocks dust for fit-and-forget reliability
Specifications
| Brand | ViewSonic |
|---|---|
| Model | LSD400W |
| Cabinet Color | White |
| Brightness | > 3500 lumens |
| Native Resolution | 1280 x 800 |
| Maximum Resolution | 1280x800 |
| Aspect Ratio | 16:10 Aspect Ratio |
| Contrast Ratio | 3,000,000:1 Dynamic Contrast Ratio |
| Display Size | 30-300 |
| Throw Ratio | 1.544 - 1.72 |
| Display Colors | 1.07 Billion |
| Throw Distance | 1.00-11.11 |
| Lamp Life | 30000 |
| Built-in Speakers | Yes |
| Power Supply | 100 - 240 VAC, 50/60Hz |
| Package Contents | Projector, power cable, remote control, Quick Start Guide, |
| Shipping weight | 4.60 kg |
| Package size | 400 × 280 × 155 mm |
Questions about this item
What throw distance range does the 1.544-1.72 throw ratio cover?
The projector produces a 30 to 300 inch image from 1.00 to 11.11 metres away, so measure your room depth before choosing a mount.
How do I set up the 360-degree projection and which step is often missed?
Mount the unit in any orientation, enable the 360-degree mode in the menu, then run horizontal and vertical keystone correction — skipping the keystone step leaves a distorted picture.
When will the laser light source need attention after 30000 hours?
At 30000 hours the laser engine reaches its rated life; the sealed IP6X optical block has no user-replaceable parts, so the whole projector is replaced at that point.
