ViewSonic

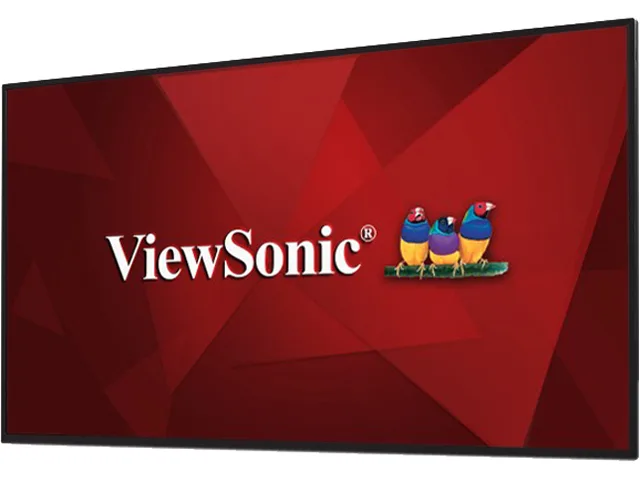

ViewSonic CDM4900R 49" commercial display 16GB quad-core media player
A 49-inch direct-lit commercial display with a built-in quad-core media player and 16GB storage for 24/7 digital signage
- Screen Size49"
- Native Resolution1920 x 1080
- Aspect Ratio16:9
- Brightness450 cd/m2
- Contrast Ratio (Typical)1100:1
- Viewing Angle178°(H) / 178°(V)
- 49-inch Full HD screen with 450 cd/m² brightness for clear visibility
- Integrated 16 GB quad-core media player handles playback and local storage
- 24/7 operation rating backed by 50,000-hour backlight life
- Landscape or portrait mounting plus 400 × 400 mm VESA for flexible installs
- Built-in Ethernet and Wi-Fi plus OSD scheduling simplify networked content delivery
49-inch commercial display
The ViewSonic CDM4900R is a 49-inch direct-lit LED commercial display designed for continuous 24/7 digital signage operation. It integrates a quad-core Cortex A9 media player with 16GB of onboard storage for local content playback. The panel delivers a 1920 x 1080 resolution at 450 cd/m² brightness with a 1100:1 contrast ratio. Wide 178-degree viewing angles ensure visibility across large spaces.
16GB quad-core media player for standalone playback
The integrated media player removes the need for an external PC by handling photo, video and web-based content directly on the display. Sixteen gigabytes of internal memory store media files locally, while the RJ45 Ethernet and Wi-Fi connectivity enable network streaming and browser-based content delivery. An on-screen scheduling interface manages time and date playback without additional software.
Suits signage installers needing all-in-one
This display fits retailers, corporate lobbies and control rooms that want a single device for content storage, scheduling and playback. It also supports 10x10 video-wall tiling via DisplayPort and DVI outputs for larger installations. Buyers who require 4K resolution, higher brightness for direct sunlight, or an open-platform OS for third-party signage software should evaluate alternative models.
Highlights
- 49-inch Full HD screen with 450 cd/m² brightness for clear visibility
- Integrated 16 GB quad-core media player handles playback and local storage
- 24/7 operation rating backed by 50,000-hour backlight life
- Landscape or portrait mounting plus 400 × 400 mm VESA for flexible installs
- Built-in Ethernet and Wi-Fi plus OSD scheduling simplify networked content delivery
Specifications
| Brand | ViewSonic |
|---|---|
| Model | CDM4900R |
| Screen Size | 49" |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m2 |
| Contrast Ratio (Typical) | 1100:1 |
| Viewing Angle | 178°(H) / 178°(V) |
| Response Time | 12ms |
| VESA Compatible | 400 x 400mm |
| Regulatory Approvals | UL/cUL, FCC, Energy Star 7.0, UL-MX-CoC, Mexico Energy |
| HDMI Port | 2 |
| DVI Port | 1 |
| USB Port | 2 x USB 2.0 |
| Ethernet Port | 1 x Ethernet LAN (RJ45) |
| Other Ports | 1 x Display Port 1 x RCA Audio 2 x Speaker Out 1 x RS232 1 x SD Card Reader |
| Power Supply | 100-240 VAC |
| Power Consumption | Consumption (max): 115W Consumption (typical): 65W Stand-by: <0.5W |
| Feature | Light Source: DLED Backlight Life (Hours): 50,000 Bezel Width (in.): Top 0.38 in / Left 0.38 in / Bottom 0.62 in / Right 0.38 in Panel Surface: 3H Anti-glare, hard-coating Operation Rating: 24/7 CPU: Quad core A9 CPU - RK3188 Interface: OSD / Remote Control On Screen Display: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU |
| Package Content | CDM4900R, Remote control, User Manual, Quick Start Guide, power cables, RS232 cable, IR sensor cable, RS232 daisy chain cable |
| Shipping weight | 19.80 kg |
| Package size | 1292 × 883 × 203 mm |
Questions about this item
How does the 450 cd/m² brightness perform in a brightly lit lobby?
The 450 cd/m² output keeps content clear under typical indoor lighting, and the 3H anti-glare coating reduces reflections from overhead fixtures.
What does the quad-core Cortex A9 media player with 16 GB storage actually run?
It plays photos and videos locally, runs the built-in web browser for cloud content, and executes the on-screen scheduling engine without an external PC.
Will the 400 × 400 mm VESA pattern fit our existing video-wall mounts?
Yes, the display uses a standard 400 × 400 mm VESA interface and weighs 41.40 lb, compatible with most commercial mounts rated for that pattern and weight.
