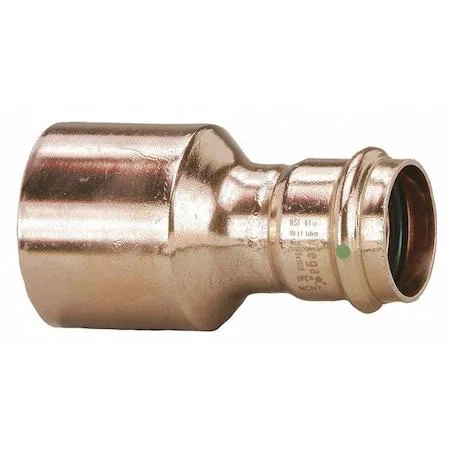

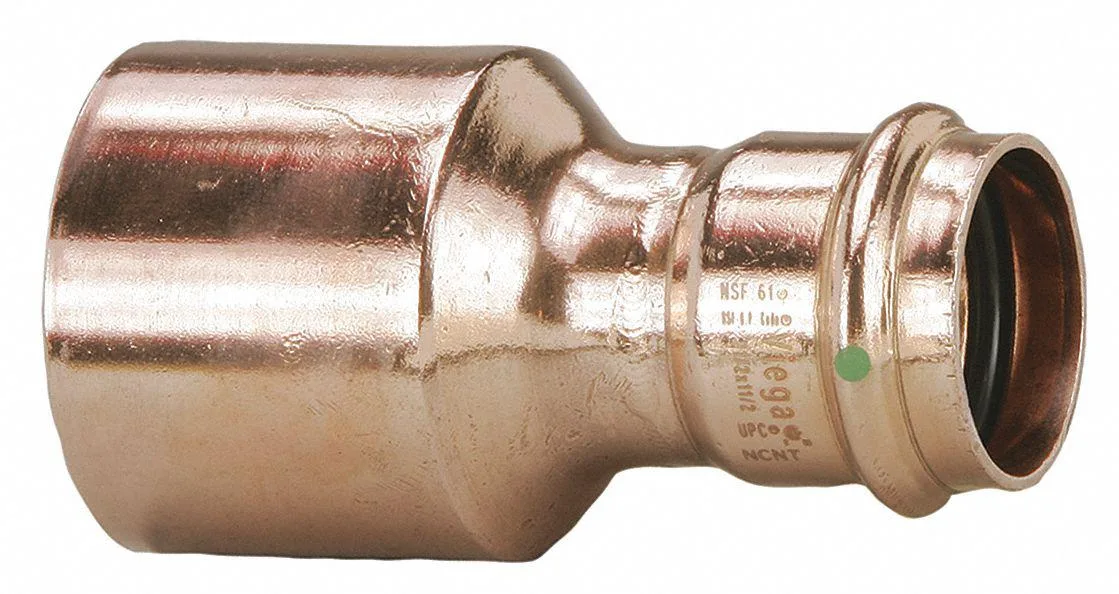

Copper ProPress XL reducer, straight reducing adapter, EPDM O-ring, 3 15/16 in length

Viega

Viega ProPress XL reducer 20758 2-1/2" x 2

SKU CH-K445-82XMF

Reduces 2-1/2" to 2" copper tubing with press-fit connection, EPDM seal, rated 200 psi and 250 °F

  • Reduces 2-1/2" to 2" copper tube sizes for system transitions
  • Copper construction with EPDM O-ring handles potable water up to 200 psi
  • Rated for 250 Degrees F maximum operating temperature in hot-water lines
  • Straight reducing adapter installs via ProPress XL press-fit connection on one end
  • 3 15/16 in overall length fits tight piping layouts

ProPress XL Reducer 20758

The Viega ProPress XL reducer 20758 connects a 2-1/2 inch FTG copper tube end to a 2 inch press-fit copper tube end. It is a straight reducing adapter made from copper with an EPDM O-ring for potable water systems. The fitting handles a maximum operating pressure of 200 psi and a maximum operating temperature of 250 Degrees F.

Suits installers joining different copper tube sizes

This reducer suits plumbers and pipefitters working on potable water installations who need to transition from a larger FTG connection to a smaller press-fit connection. It is not for applications requiring a flange connection or bolt-hole pattern. Buyers needing a different tube size combination or a threaded adapter should look at alternative fittings.

Press installation with compatible tooling

Installation uses a standard ProPress tool to create the press-fit joint on the 2 inch side while the 2-1/2 inch side fits into a matching FTG fitting. The overall length is 3 15/16 in. The most common issue is using incorrect jaw sizes or failing to fully seat the tube before pressing, which can compromise the seal.

Highlights

  • Reduces 2-1/2" to 2" copper tube sizes for system transitions
  • Copper construction with EPDM O-ring handles potable water up to 200 psi
  • Rated for 250 Degrees F maximum operating temperature in hot-water lines
  • Straight reducing adapter installs via ProPress XL press-fit connection on one end
  • 3 15/16 in overall length fits tight piping layouts

Specifications

BrandVIEGA

Questions about this item

What copper tube size must already be on my pipe for the FTG end of this 20758 reducer to connect?

The FTG end requires a 2 1/2 in copper tube size to join with your existing piping.

Will the EPDM O-ring on this 20758 reducer withstand the same 250 degrees F maximum temperature as my current copper system?

Yes, the EPDM O-ring is rated for the same 250 degrees F maximum operating temperature as the fitting body.

How can I verify the 20758 reducer is holding pressure correctly after I press it?

Pressurise the line up to the 200 psi maximum operating pressure and inspect the press joint for any leaks.
