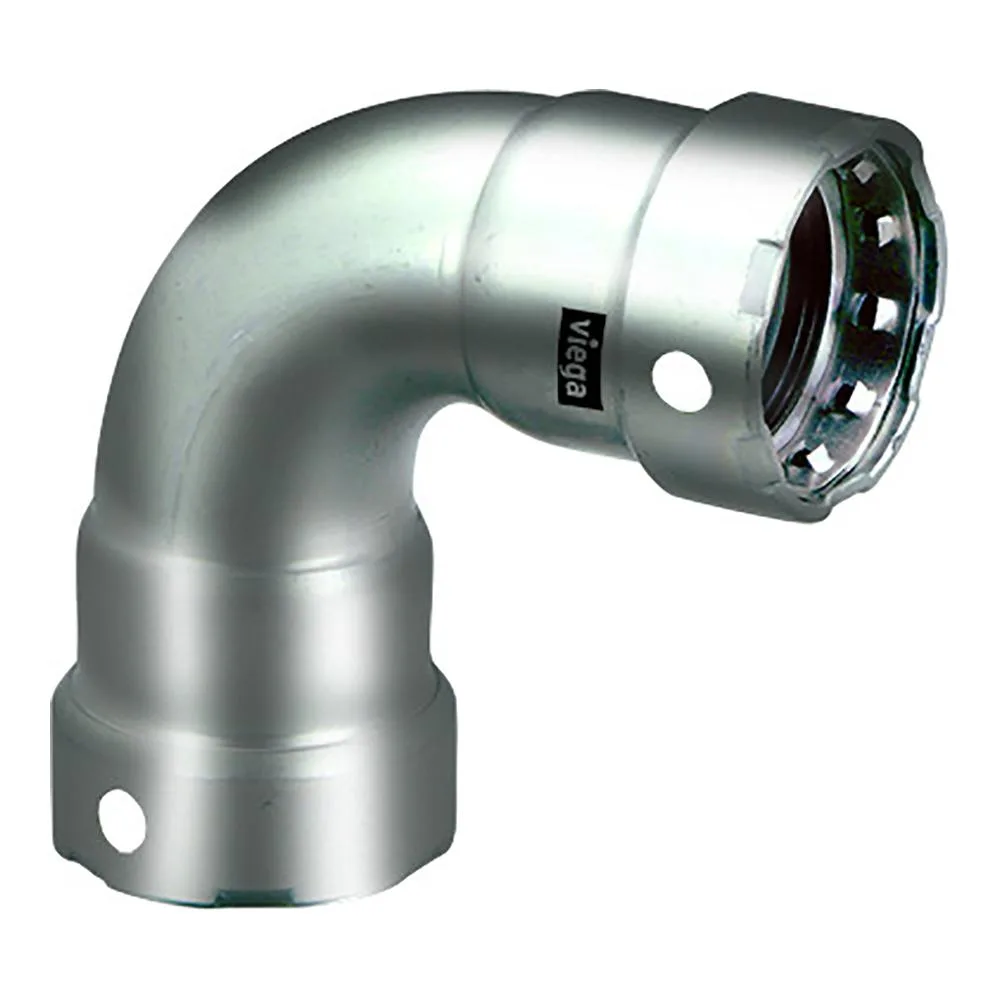

Stainless steel 90-degree press-fit elbow, 1/2 inch connections, brushed metallic finish

Viega

Viega 95005 Press-Fit Elbow 1/2" Stainless 304

SKU CH-80PQ-4RQTS

A 90-degree press-fit elbow joins two 1/2-inch pipes in stainless steel 304 rated for 200 psi and 250 degrees F

  • Press-fit design enables fast, flame-free installation
  • Stainless 304 construction resists corrosion in harsh environments
  • FKM O-ring withstands temperatures up to 250 Degrees F
  • Rated for 200 psi maximum operating pressure
  • 90-degree elbow redirects flow in tight spaces

Press-Fit Elbow for Non-Potable Water

This Viega 95005 elbow joins two 1/2-inch pipes at a 90-degree angle using press-fit connections on both ends. It is built from stainless steel grade 304 with an FKM O-ring and rated for 200 psi at up to 250 degrees Fahrenheit. The fitting serves non-potable water systems in commercial and industrial installations.

FKM O-Ring and Press-Fit Ends

The FKM O-ring provides chemical and heat resistance suited to the stated temperature and pressure limits. Dual press-fit ends remove the need for threading, welding or soldering, reducing joint count and potential leak paths. No bolt holes or flange are present, so the fitting installs inline without additional hardware.

Press Tool Required for Installation

A compatible press tool and jaw set must be used to form a permanent, leak-free seal; hand-tightening will not work. Misaligned pipe ends or debris on the sealing surface are the most common causes of joint failure. The fitting cannot be disassembled or reused once pressed.

Highlights

  • Press-fit design enables fast, flame-free installation
  • Stainless 304 construction resists corrosion in harsh environments
  • FKM O-ring withstands temperatures up to 250 Degrees F
  • Rated for 200 psi maximum operating pressure
  • 90-degree elbow redirects flow in tight spaces

Specifications

BrandViega Megapress Stainless 304

Questions about this item

Will the FKM O-ring on the 95005 elbow need replacement later?

The FKM O-ring is rated for up to 250 °F and 200 psi; plan to inspect it during routine system maintenance and replace if signs of hardening or leakage appear.

What is the first limit reached under sustained use of the 95005 elbow?

The 200 psi maximum operating pressure is the primary design limit; sustained pressure above this value risks joint failure before the 250 °F temperature limit becomes critical.

How much heat does the 95005 elbow radiate when the system runs all day at 250 °F?

Stainless 304 conducts heat efficiently, so the elbow surface will approach the fluid temperature of 250 °F; insulate the fitting if personnel contact or heat loss is a concern.
