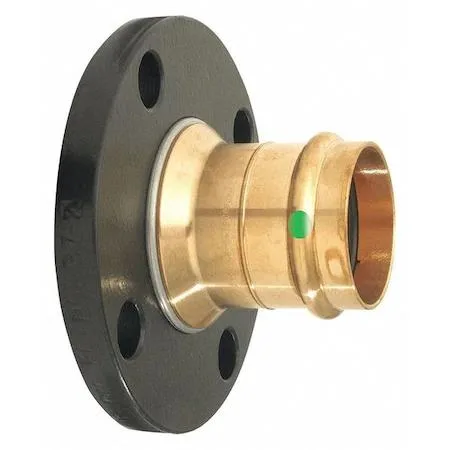

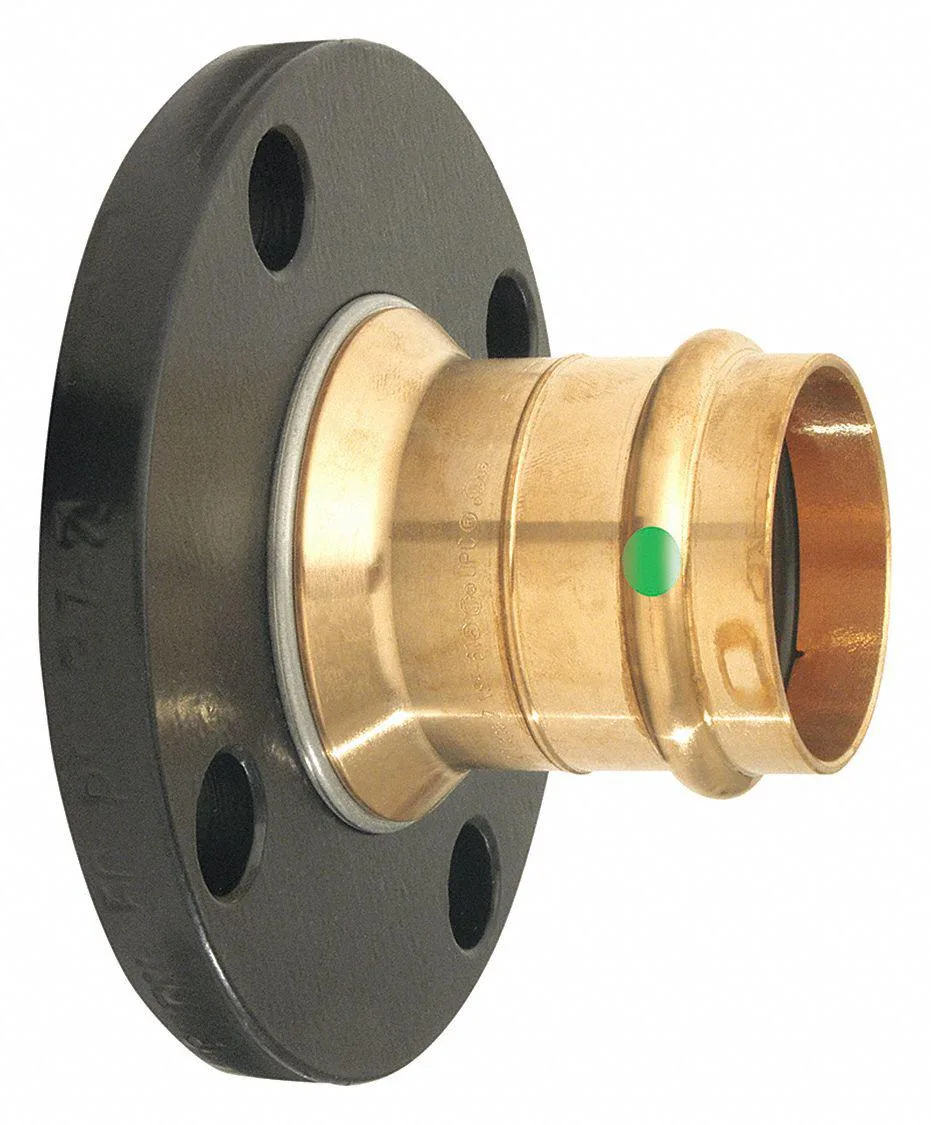

Bronze press-fit flange adapter with copper tube end and flat flange face

Viega

Viega 79695 Bronze Press-Fit Flange Adapter 2 in

SKU CH-8FFX-F6JCZ MPN 79695

A bronze press-fit flange adapter joining 2 in copper tube to a flanged connection, rated for 200 psi and 250 °F with an EPDM O-ring

  • TypeDrain Components
  • MaterialHAWA
  • Press-fit connection speeds installation without soldering
  • Bronze construction resists corrosion in potable water systems
  • EPDM O-ring seals up to 200 psi operating pressure
  • Rated for 250 Degrees F maximum operating temperature
  • Meets ASTM B75 and ASTM B88 standards

Press-Fit Bronze Flange Adapter 2 in

The Viega 79695 is a bronze press-fit flange adapter designed for potable water systems. It connects a 2 in copper tube to a flange using a press-fit joint and an EPDM O-ring. The fitting meets ASTM B75 and ASTM B88 standards for material quality. It suits installers who need a reliable transition between tube and flanged equipment.

Tool-dependent press installation

Installation requires a compatible press tool and correctly sized jaws for the 2 in copper tube size. The joint is permanent once pressed, so tube must be cut square, deburred and fully inserted before the press cycle. Misalignment or insufficient insertion depth are the most common causes of leaks or joint failure.

Pressure and temperature limits define the envelope

The adapter is rated for a maximum operating pressure of 200 psi and a maximum operating temperature of 250 degrees F. It is not intended for applications that exceed these limits or for non-potable fluids incompatible with bronze and EPDM. Installers must verify system conditions stay within this envelope.

Highlights

  • Press-fit connection speeds installation without soldering
  • Bronze construction resists corrosion in potable water systems
  • EPDM O-ring seals up to 200 psi operating pressure
  • Rated for 250 Degrees F maximum operating temperature
  • Meets ASTM B75 and ASTM B88 standards

Specifications

TypeDrain Components
MaterialHAWA
BrandViega
Model79695

Questions about this item

How can I confirm the 2 in press-fit connection is sealed correctly after installation?

Press the fitting onto the copper tube using a Viega-approved press tool until the tool completes its cycle; the EPDM O-ring inside the bronze body will form a watertight seal rated for 200 psi and 250 °F.

What components come with the 79695 adapter and what must I supply separately?

The box contains the bronze flange adapter with the EPDM O-ring already installed; you must provide the copper tubing, a compatible press tool and jaws, and any flange bolts or gaskets required by your piping layout.

Which version of this adapter should I choose for a 2 in copper potable-water line?

Select the 79695 model — it is the 2 in press-fit-to-flange adapter made from bronze with an EPDM O-ring, meeting ASTM B75 and B88 for potable-water service.
