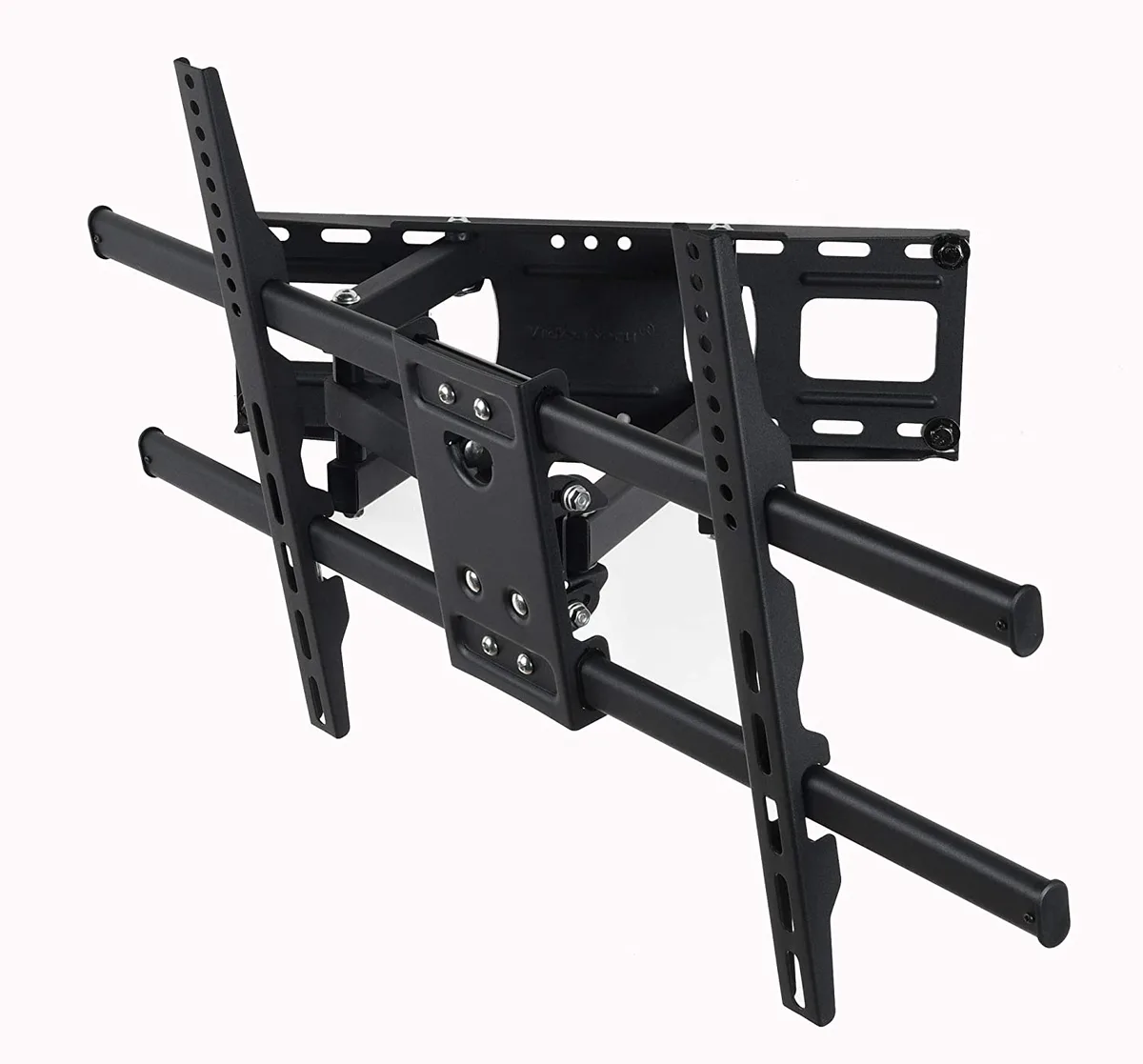

Black steel articulating TV wall mount with multi-joint arms folded flat

VideoSecu

VideoSecu MW380B5 articulating TV mount 40-70" 125lbs

SKU CH-BHNG-7FDNQ

Full-motion wall mount holds 40–70 inch TVs up to 125 lbs, tilts +5/-12°, swivels 6°, extends 14 inches and folds to under 3 inches

  • NameMW380B5
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt +5 /- 12º, Rotate 6°, Extension 14"
  • TV Size Capacity< 70"
  • TV Weight CapacityLoad capacity 125lbs
  • Supports TVs up to 70 inches and 125lbs
  • Extends 14 inches from the wall for flexible viewing
  • Tilt +5/-12 degrees and rotate 6 degrees for optimal angle

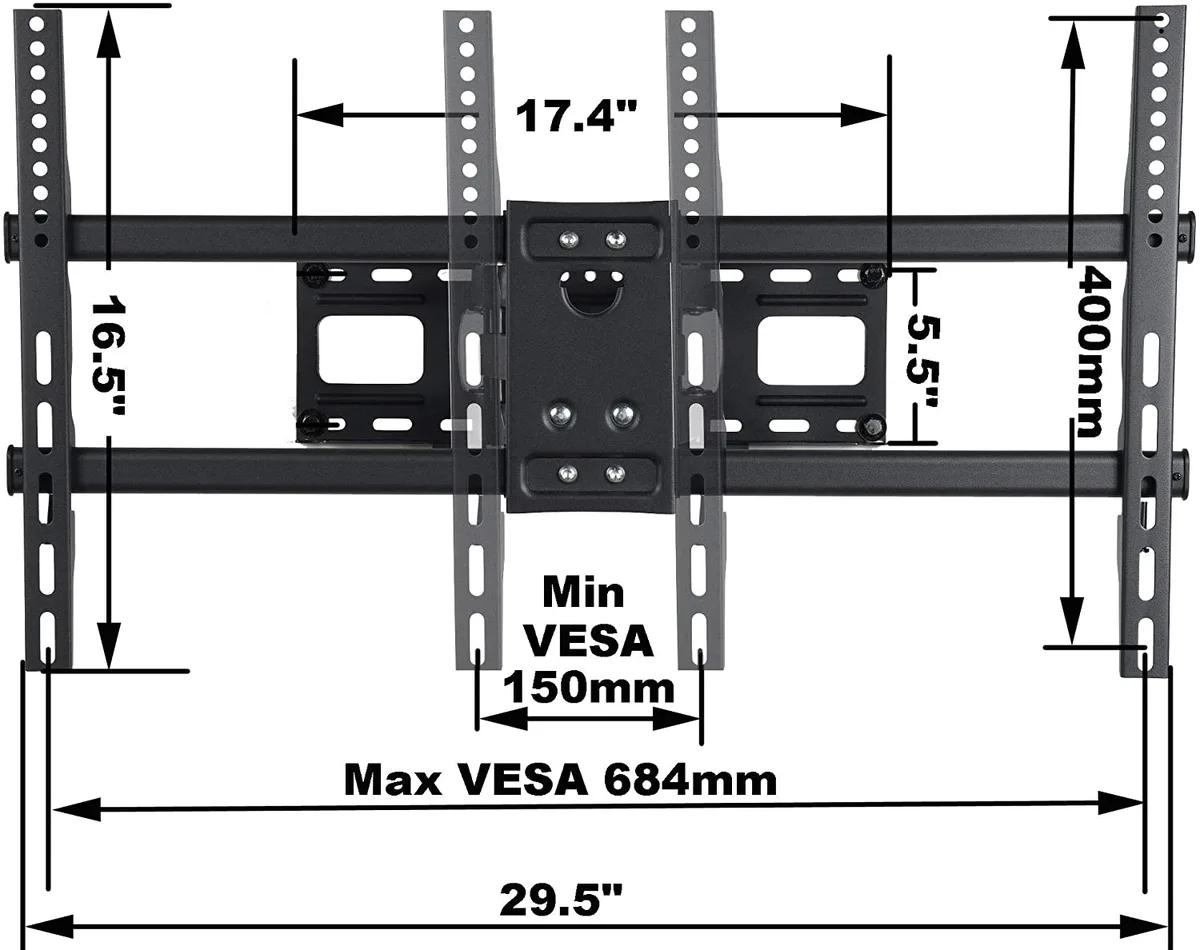

  • Fits VESA patterns 150-684mm wide and 100-400mm high
  • Folds to under 3 inches depth to save space

What the MW380B5 is and who it suits

The MW380B5 is a full-motion articulating wall mount built for flat-panel screens between 40 and 70 inches. It supports displays weighing up to 125lbs and matches VESA patterns from 150x100mm up to 684x400mm. The heavy-duty steel frame suits living rooms, bedrooms or offices where a single large TV needs flexible positioning.

Build, connectors and daily use

Thick high-grade steel with a powder-coated black finish provides the structural rigidity for the 125lb rating. The articulating arm extends up to 14 inches from the wall and folds back to less than 3 inches, saving space when the screen is not in use. Mounting hardware targets 16-inch wood stud spacing, and post-installation level adjustment allows fine rotation without remounting.

Practical limits of the VESA and weight standard

The bracket covers any hole pattern within 150-684mm wide and 100-400mm high, but screens larger than 70 inches or heavier than 125lbs fall outside the tested capacity. Displays 65 inches and above manufactured before 2013 are explicitly excluded because their mounting holes often exceed the supported pattern range. Tilt range is +5 to -12 degrees and lateral rotation is limited to 6 degrees.

Highlights

  • Supports TVs up to 70 inches and 125lbs
  • Extends 14 inches from the wall for flexible viewing
  • Tilt +5/-12 degrees and rotate 6 degrees for optimal angle
  • Fits VESA patterns 150-684mm wide and 100-400mm high
  • Folds to under 3 inches depth to save space

Specifications

BrandVideoSecu
NameMW380B5
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt +5 /- 12º, Rotate 6°, Extension 14"
TV Size Capacity< 70"
TV Weight CapacityLoad capacity 125lbs
VESA Compatible684x400/ 684x300/ 600x400/ 400x400/ 400x200/ 400x300/ 300x300/ 300x200/ 200x200/ 150x100mm or any hole patterns within 150-684mm wide and 100-400mm high
Feature*Tilt +5 /- 12º, Rotate 6°, Extension 14" *Nesting arm design allows display to be folded parallel to wall to save place *Premium quality - heavy duty steel construction with powder coated black finish *Multi-directional adjustment tilt, swivel and extend for perfect viewing angle *Post-installation level adjustment allows the TV to perfectly level

Questions about this item

What VESA hole patterns does the MW380B5 support, and what is the maximum width it covers?

The mount fits VESA patterns from 150x100 mm up to 684x400 mm, covering any hole spacing within 150–684 mm wide and 100–400 mm high.

What wall structure is required for the 16-inch stud spacing, and how far does the arm extend?

It mounts to 16-inch on-centre wood studs and extends up to 14 inches from the wall, folding back to under 3 inches.

How do you level the TV after hanging it, and which adjustment is often missed?

Use the 6-degree rotation on the wall plate for post-installation level adjustment; many people skip this step and rely only on the tilt.
