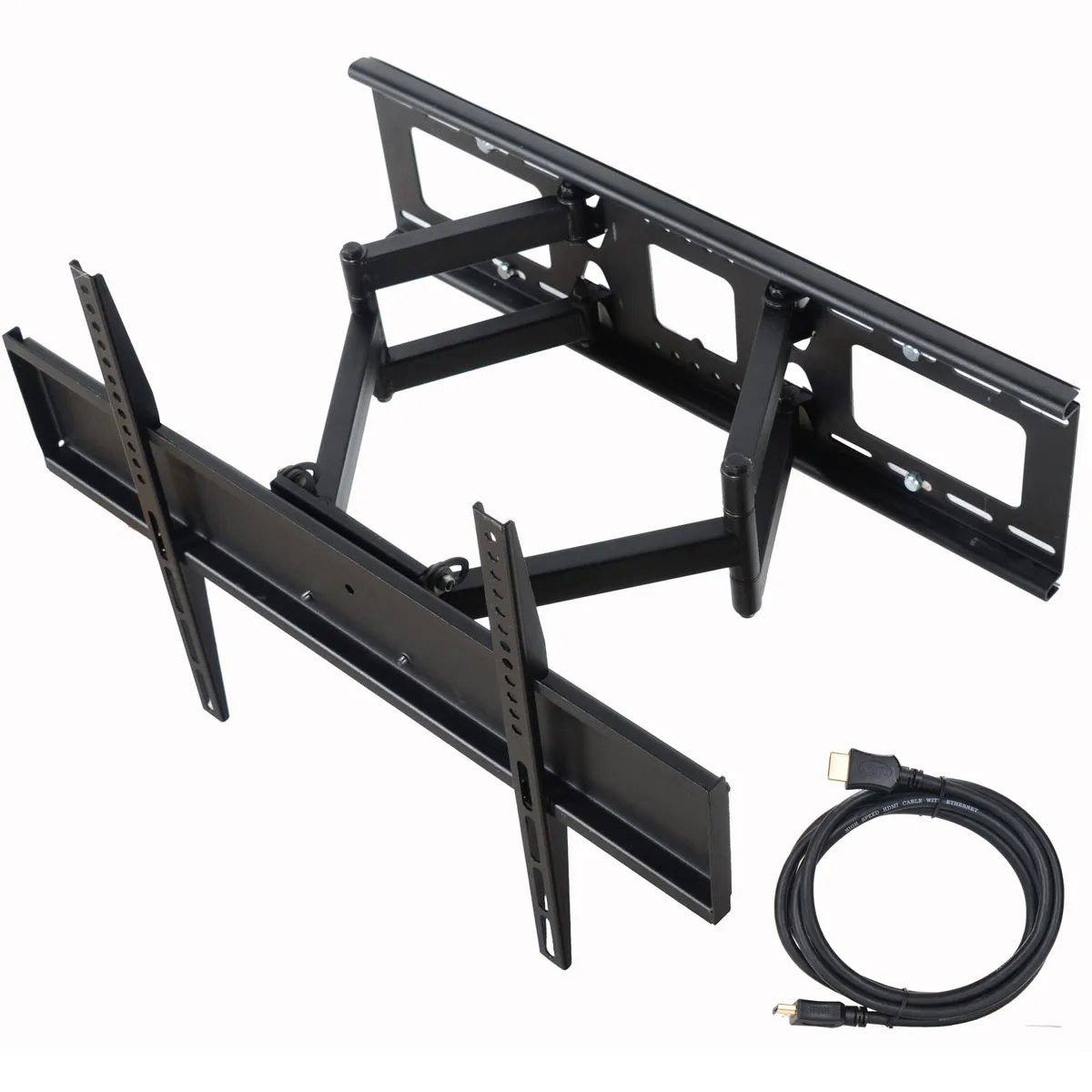

Black steel articulating TV wall mount with dual arms extended, showing tilt and swivel joints

VideoSecu

VideoSecu MW365B2H-A5 Articulating TV Wall Mount 16" Extension 135 lbs

SKU CH-0AXT-K2PT0

Full-motion TV mount holds screens up to 60 inches and 135 lbs, extends 16 inches, tilts 15 degrees forward, swivels 180 degrees, and includes post-installation level adjustment

  • NameArticulating TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Ex
  • TV Size Capacity< 60"
  • TV Weight CapacityMax. load 135 lbs.
  • Perfect TV levelling after mounting with post-installation adjustment
  • Wide VESA compatibility covers patterns from 200×100 mm to 600×400 mm

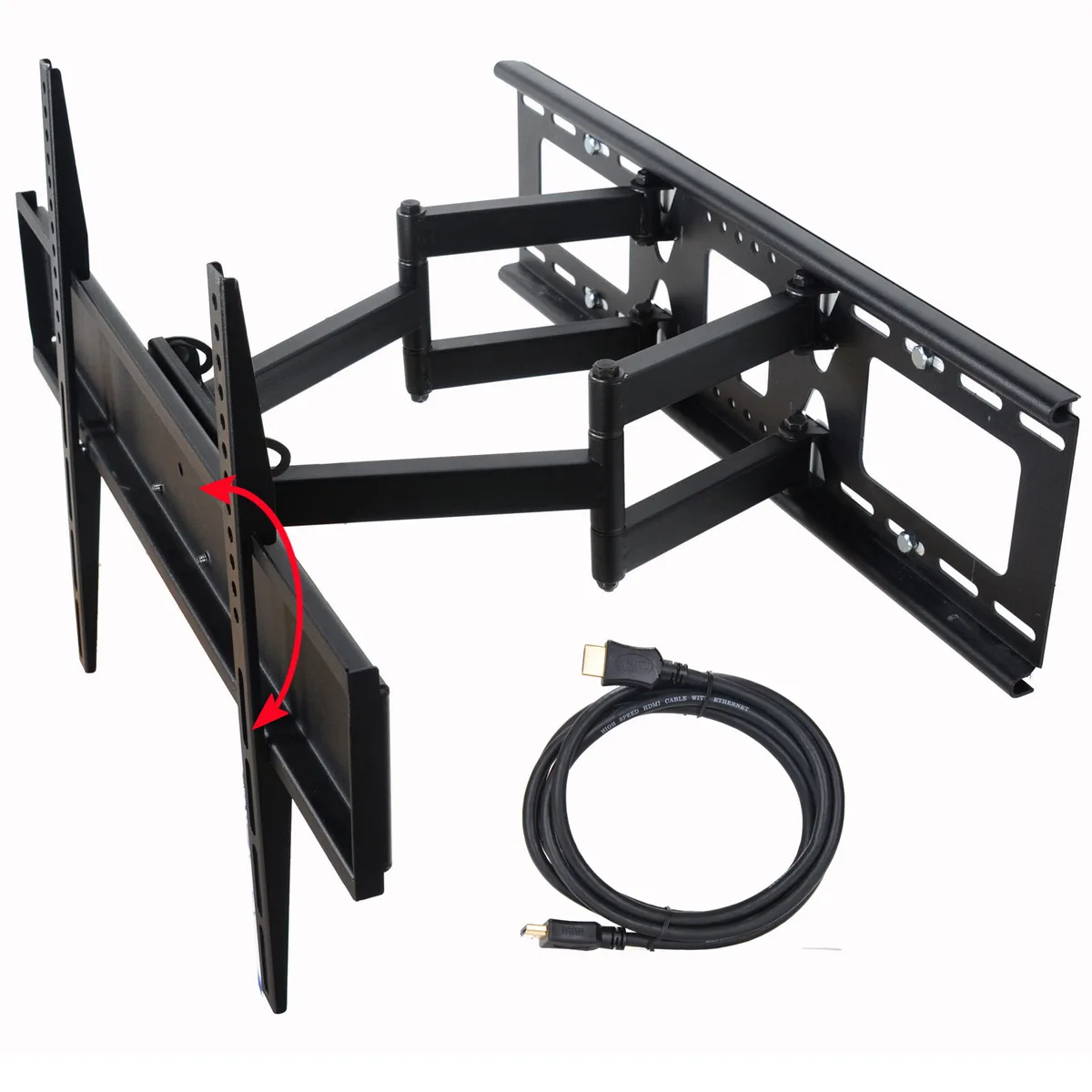

  • Full motion range: tilt 15° forward, 5° back, swivel 180°, rotate 10°
  • Extends 16 inches from wall then folds to 3-inch depth
  • Heavy-duty steel construction supports screens up to 135 lbs

TV Mount for 32–55 Inch Displays

This articulating wall mount fits most 32 to 55 inch televisions and some LED panels up to 60 inches. It supports screens weighing up to 135 lbs and matches VESA patterns from 200×100 mm up to 600×400 mm. The unit is built for living rooms, bedrooms or offices where flexible viewing angles are needed.

Heavy-Duty Steel with 16 Inch Extension

A solid steel frame carries the load while dual arms extend up to 16 inches from the wall and fold back to a 3 inch depth. Tilt ranges 15° forward and 5° backward, swivel reaches 180° and rotation allows 10° for fine levelling. Post-installation level adjustment and open cable-access holes on the wall plate simplify daily use and cable routing.

Check VESA, Weight and Pre-2013 Models

Verify that your TV’s mounting holes fall within 200–600 mm wide and 100–400 mm high and that its weight does not exceed 135 lbs. The manufacturer warns that 46 inch and larger sets made before 2013 may not fit. Ensure the wall structure can accept the supplied lag bolts and that stud spacing matches the wall plate.

Highlights

  • Perfect TV levelling after mounting with post-installation adjustment
  • Wide VESA compatibility covers patterns from 200×100 mm to 600×400 mm
  • Full motion range: tilt 15° forward, 5° back, swivel 180°, rotate 10°
  • Extends 16 inches from wall then folds to 3-inch depth
  • Heavy-duty steel construction supports screens up to 135 lbs

Specifications

BrandVideoSecu
ModelMW365B2H-A5
NameArticulating TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16"
TV Size Capacity< 60"
TV Weight CapacityMax. load 135 lbs.
VESA Compatible600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole pattern within 200 - 600mm wide and 100 - 400mm high
Feature*Heavy duty steel structure *Post-installation level adjustment *Open holes on wall plate for cable access *Nesting arm design *Tilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16", Depth 3"

Questions about this item

What VESA patterns does the MW365B2H-A5 support, and what is the maximum TV width it can accommodate?

The mount accepts VESA patterns from 200x100 mm up to 600x400 mm, covering any hole layout within 200–600 mm wide and 100–400 mm high.

What wall structure and hardware are required to hold a 135 lb TV on this mount?

The steel wall plate has open mounting holes for lag bolts into wood studs or concrete anchors; verify the wall can carry 135 lbs before drilling.

How do you level the TV after the bracket is already on the wall?

Use the post-installation level adjustment on the TV brackets — loosen the bracket screws, adjust until the display is level, then retighten.
