VideoSecu
VideoSecu MW365B2H-A11 Articulating TV Wall Mount 60" 135 lbs
Full-motion wall mount for TVs up to 60 inches and 135 lbs with VESA patterns up to 600x400mm, 16-inch extension and post-installation level adjustment
- NameArticulating TV Wall Mount
- Mount StyleArticulating/Full Motion
- ColorBlack
- MovableTilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Ex
- TV Size Capacity< 60"
- TV Weight CapacityMax. load 135 lbs.
- Full 180° swivel lets you watch from any seat
- Tilt 15° forward or 5° back reduces screen glare
- Extends up to 16″ then folds flat against the wall
- Post-install level adjustment keeps the TV perfectly straight
- Heavy-duty steel construction supports up to 135 lbs
Full-motion mount for screens up to 60

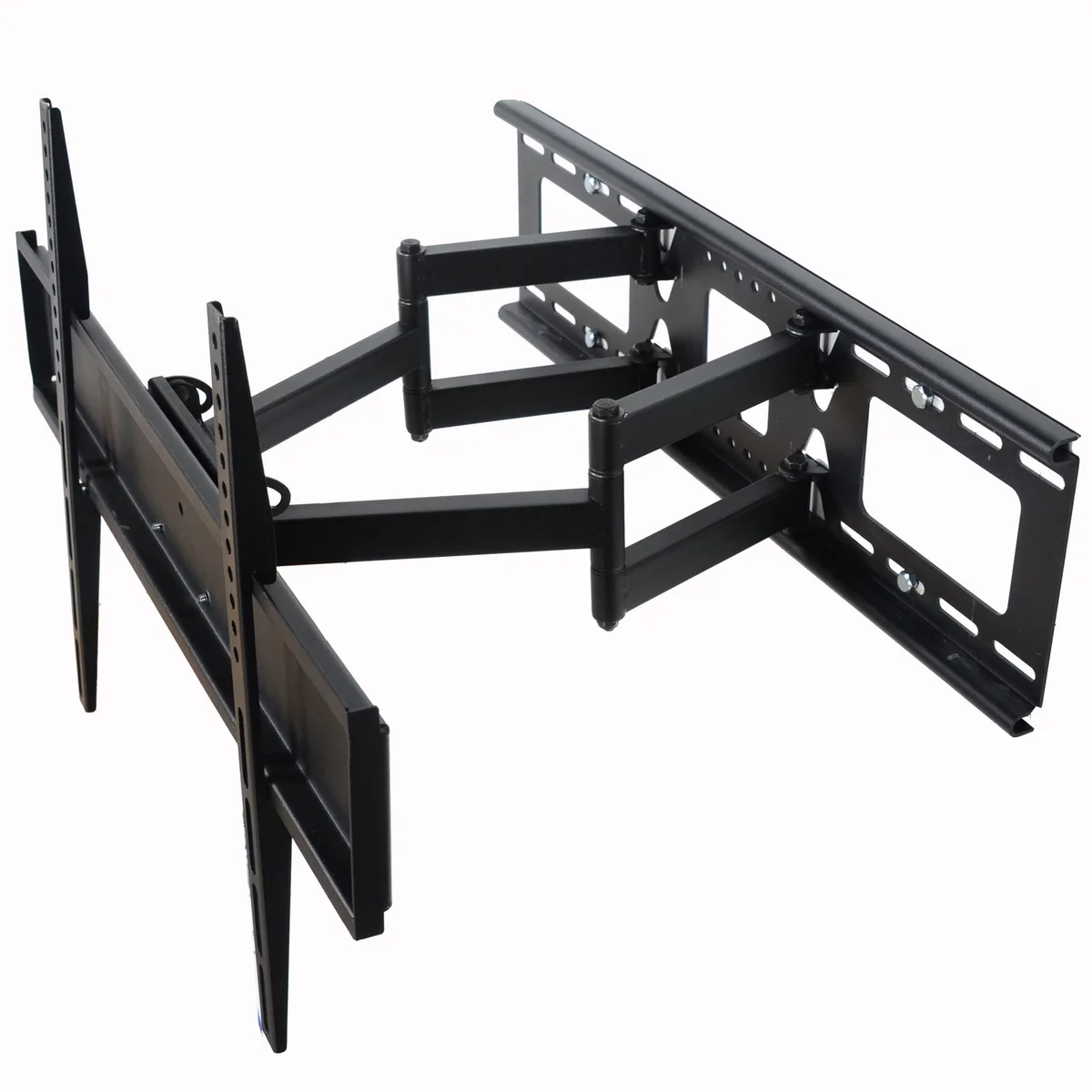

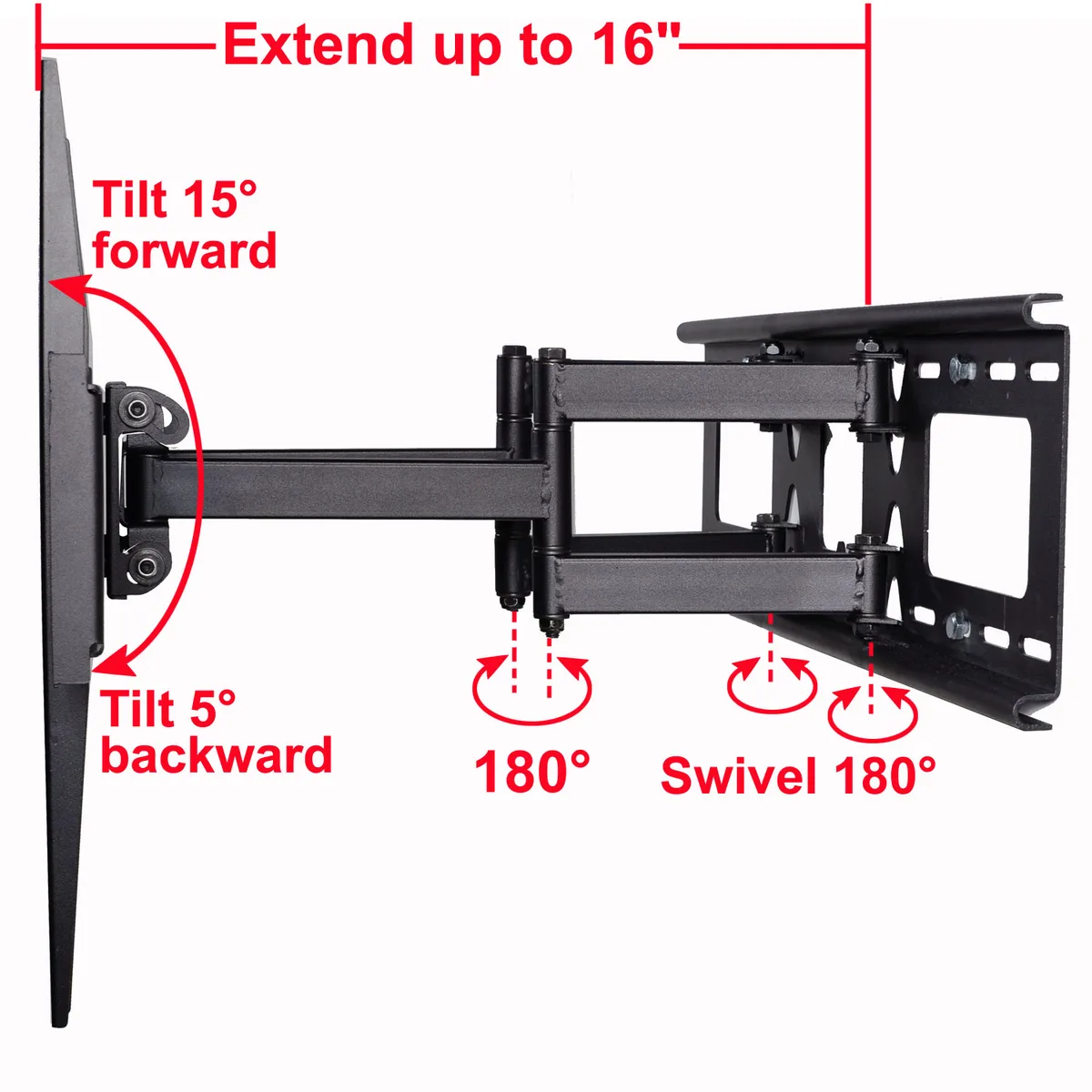

The VideoSecu MW365B2H-A11 articulates on a nesting arm that extends up to 16" and folds back to a 3" depth. It supports displays weighing up to 135 lbs and fits VESA patterns from 200x100 mm to 600x400 mm. Tilt ranges 15° forward or 5° back, swivel reaches 180°, and rotate adds 10° for fine positioning. Post-installation level adjustment corrects alignment after the mount is on the wall.
Heavy-duty steel with open cable access
The wall plate uses heavy-duty steel construction and includes open holes for routing cables behind the screen. Security screws on both arms lock the display in place once positioned. The nesting arm design keeps the TV close to the wall when not extended, saving space in smaller rooms. All movement points operate smoothly for daily repositioning without tools.
Replaces fixed or limited-swivel brackets
This mount upgrades installations that only tilt or sit flush, adding full articulation for corner seating or glare reduction. The jump is worth it when you need to pull the screen forward for ports, swivel toward a kitchen island, or level a display after studs force an off-centre mount. It does not suit screens larger than 60" or heavier than 135 lbs, nor models made before 2013 with non-standard hole spacing.
Highlights
- Full 180° swivel lets you watch from any seat
- Tilt 15° forward or 5° back reduces screen glare
- Extends up to 16″ then folds flat against the wall
- Post-install level adjustment keeps the TV perfectly straight
- Heavy-duty steel construction supports up to 135 lbs
Specifications
| Brand | VideoSecu |
|---|---|
| Model | MW365B2H-A11 |
| Name | Articulating TV Wall Mount |
| Mount Style | Articulating/Full Motion |
| Color | Black |
| Movable | Tilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16" |
| TV Size Capacity | < 60" |
| TV Weight Capacity | Max. load 135 lbs. |
| VESA Compatible | 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole pattern within 200 - 600mm wide and 100 - 400mm high |
| Feature | *Heavy duty steel structure *Post-installation level adjustment *Open holes on wall plate for cable access *Nesting arm design *Tilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16", Depth 3" |
Questions about this item
What VESA hole patterns does the MW365B2H-A11 support and what is the maximum width?
The mount accepts VESA patterns from 200x100 mm up to 600x400 mm, covering any hole spacing within 200–600 mm wide and 100–400 mm high.
What wall construction and hardware are required to hold a 60-inch, 135 lb TV on this mount?
The steel wall plate has open holes for lag bolts; secure it to wood studs or concrete with hardware rated for at least 135 lbs, and verify stud spacing matches the plate.
How do you level the TV after the mount is on the wall, and which step is often missed?
Use the post-installation level adjustment on the arms to fine-tune roll after hanging the display; the step often missed is re-tightening the security screws once level is set.
