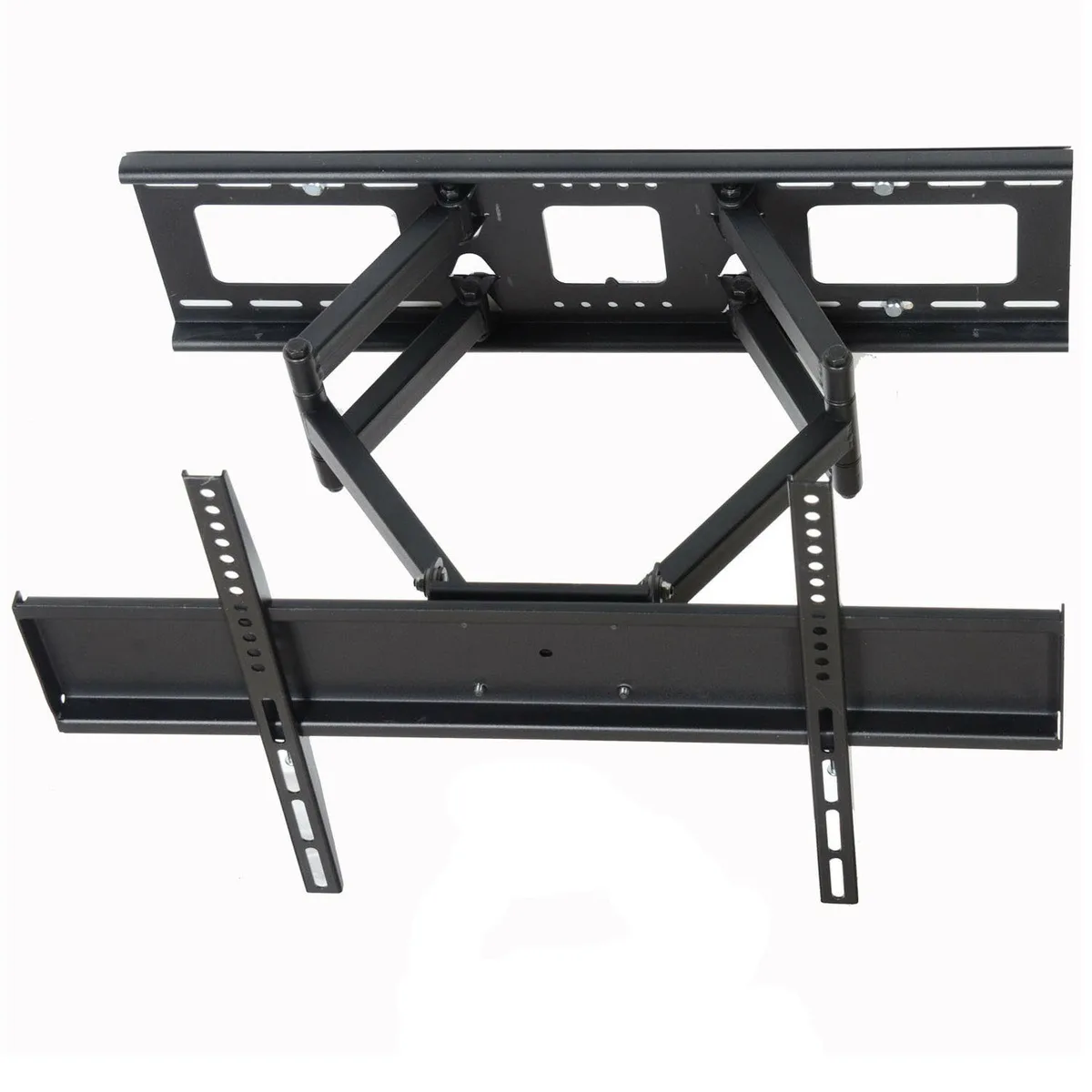

Black articulating TV wall mount with jointed arms folded flat against rectangular wall plate

VideoSecu

VideoSecu MW365B2-A2 Articulating TV Mount 16" Extension 135 lbs

SKU CH-8QB5-N4B79

Full-motion bracket holds screens up to 60 inches and 135 lbs with 16-inch extension, 180-degree swivel, tilt and post-install level adjustment

  • NameArticulating TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Ex
  • TV Size Capacity< 60"
  • TV Weight CapacityMax. load 135 lbs
  • Full motion articulation with 16" extension and 180° swivel for flexible viewing
  • Heavy-duty steel construction supports displays up to 135 lbs for secure mounting
  • Post-installation level adjustment ensures perfectly aligned screen after hanging
  • Universal VESA compatibility covers patterns from 200x100mm to 600x400mm
  • Fits most 32-55" TVs and select 60" models with compatible hole patterns

Ideal TV sizes and weight limit

This full-motion mount fits most 32 to 55 inch screens and some LED models up to 60 inches. It supports a maximum load of 135 lbs and works with VESA patterns from 200x100 mm up to 600x400 mm.

Installation flexibility and profile

The arm extends up to 16 inches from the wall and folds back to a 3 inch depth. Post-installation level adjustment lets you correct alignment without remounting the bracket.

Upgrade from fixed or tilt-only brackets

Replaces static mounts that lock the screen flat against the wall. The jump is worth it when you need 180 degree swivel, 15 degree forward tilt or the ability to pull the TV out for rear access. Not for buyers who want more storage or builders who need a second card.

Highlights

  • Full motion articulation with 16" extension and 180° swivel for flexible viewing
  • Heavy-duty steel construction supports displays up to 135 lbs for secure mounting
  • Post-installation level adjustment ensures perfectly aligned screen after hanging
  • Universal VESA compatibility covers patterns from 200x100mm to 600x400mm
  • Fits most 32-55" TVs and select 60" models with compatible hole patterns

Specifications

BrandVideoSecu
ModelMW365B2-A2
NameArticulating TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16"
TV Size Capacity< 60"
TV Weight CapacityMax. load 135 lbs
VESA Compatible600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole pattern within 200 - 600mm wide and 100 - 400mm high
Feature*Heavy duty steel structure *Post-installation level adjustment *Open holes on wall plate for cable access *Nesting arm design *Tilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16", Depth 3"

Questions about this item

How do I mount the MW365B2-A2 on a concrete wall and what is the common alignment mistake?

Use the supplied lag bolts and anchors for concrete; the step most people miss is skipping the post-installation level adjustment, which lets you fine-tune the TV to perfect level after the bracket is already fixed to the wall.

What maintenance will this articulating mount need over time?

Periodically check and tighten the pivot bolts on the nesting arms and the security screws that lock the screen; the heavy-duty steel structure has no moving parts that require lubrication or replacement.

At what extension does the 135 lbs weight limit become critical?

The 135 lbs / 61 kg maximum load applies at the full 16-inch extension; keeping the TV closer to the 3-inch folded depth reduces leverage on the wall anchors.
