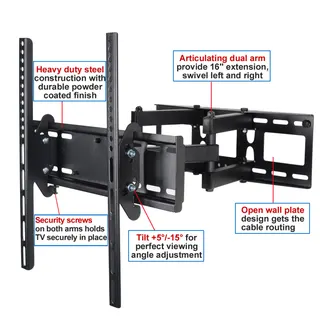

Black steel articulating TV wall mount with folding arms extended showing tilt and swivel joints

VideoSecu

VideoSecu MW340B-A3 Full Motion Articulating TV Mount 135lbs VESA 400x400mm 16" Extension

SKU CH-E99J-GRFY5

Full-motion wall bracket tilts, swivels and extends up to 16 inches for screens up to 60 inches and 135 lbs

  • NameFull Motion Articulating TV Wall Mount
  • Mount StyleTilt
  • ColorBlack
  • MovableTilt forward 15º or backward 5°. Adjustable swivel from side
  • TV Size Capacity< 60"
  • TV Weight Capacity135lbs / 61kg
  • Supports screens up to 60 inches with 135 lbs capacity
  • Extends 16 inches from wall for flexible viewing angles
  • Tilts 15° forward and 5° back plus 10° rotation
  • Fits VESA patterns 100 mm to 400 mm wide and high
  • Built-in cable management keeps wires tidy behind the display

Mount capability and target screens

The VideoSecu MW340B-A3 is a full-motion articulating wall bracket built for flat-panel televisions from 26 to 55 inches. It supports VESA hole patterns ranging from 100x100 up to 400x400 millimetres and carries a maximum load of 135 pounds. The mount suits living rooms, bedrooms or offices where flexible viewing angles are required.

Installation fit and space saved

The bracket mounts to wood studs, concrete or brick using the supplied hardware and extends up to 16 inches from the wall before folding back to a depth of 4.3 inches. An open wall-plate design routes cables neatly behind the screen while the nesting arm layout keeps the display close to the surface when not angled. Post-installation level adjustment lets you fine-tune alignment without remounting.

Daily movement and holding strength

Heavy-duty steel arms and security screws on both joints lock the television firmly at any chosen angle through repeated tilt, swivel and rotate cycles. The mechanism tilts forward 15 degrees or back 5 degrees, swivels side to side and rotates 10 degrees for glare reduction. Note that TVs 42 inches or larger manufactured before 2013 may not fit the VESA spacing.

Highlights

  • Supports screens up to 60 inches with 135 lbs capacity
  • Extends 16 inches from wall for flexible viewing angles
  • Tilts 15° forward and 5° back plus 10° rotation
  • Fits VESA patterns 100 mm to 400 mm wide and high
  • Built-in cable management keeps wires tidy behind the display

Specifications

BrandVideoSecu
ModelMW340B-A3
NameFull Motion Articulating TV Wall Mount
Mount StyleTilt
ColorBlack
MovableTilt forward 15º or backward 5°. Adjustable swivel from side to side. Rotate 10º. Extension up to 16"
TV Size Capacity< 60"
TV Weight Capacity135lbs / 61kg
VESA Compatible100x100/ 200x100/ 200x200/ 300x200/ 300x300/ 400x200/ 400x300/ 400x400mm or any hole pattern within 100 - 400mm (4-15.7 inch) wide and 100 - 400mm (4-15.7 inch) high
Cable ManagementYes
Feature*Tilt forward 15º or backward 5°, Adjustable swivel from side to side, Rotate 10º, Extension up to 16", Depth 4.3" *Constructed with heavy duty steel structure *Post-installation level adjustment *Security screws on both arms lock the screen in position for additional security *Nesting arm design *Cable management

Questions about this item

How much weight can the MW340B-A3 support before the 135lbs limit is reached under sustained use?

The mount is rated for a maximum load of 135lbs (61kg), so sustained use must stay at or below that figure.

Does the steel structure generate noticeable heat or noise when the TV stays extended at 16 inches all day?

The solid steel construction has no moving parts that produce heat or noise, so the mount remains silent and temperature-neutral during continuous use.

What VESA hole patterns must my TV already have for this bracket to fit?

Compatible patterns include 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300 and 400x400mm, or any pattern within 100–400mm wide and high.
