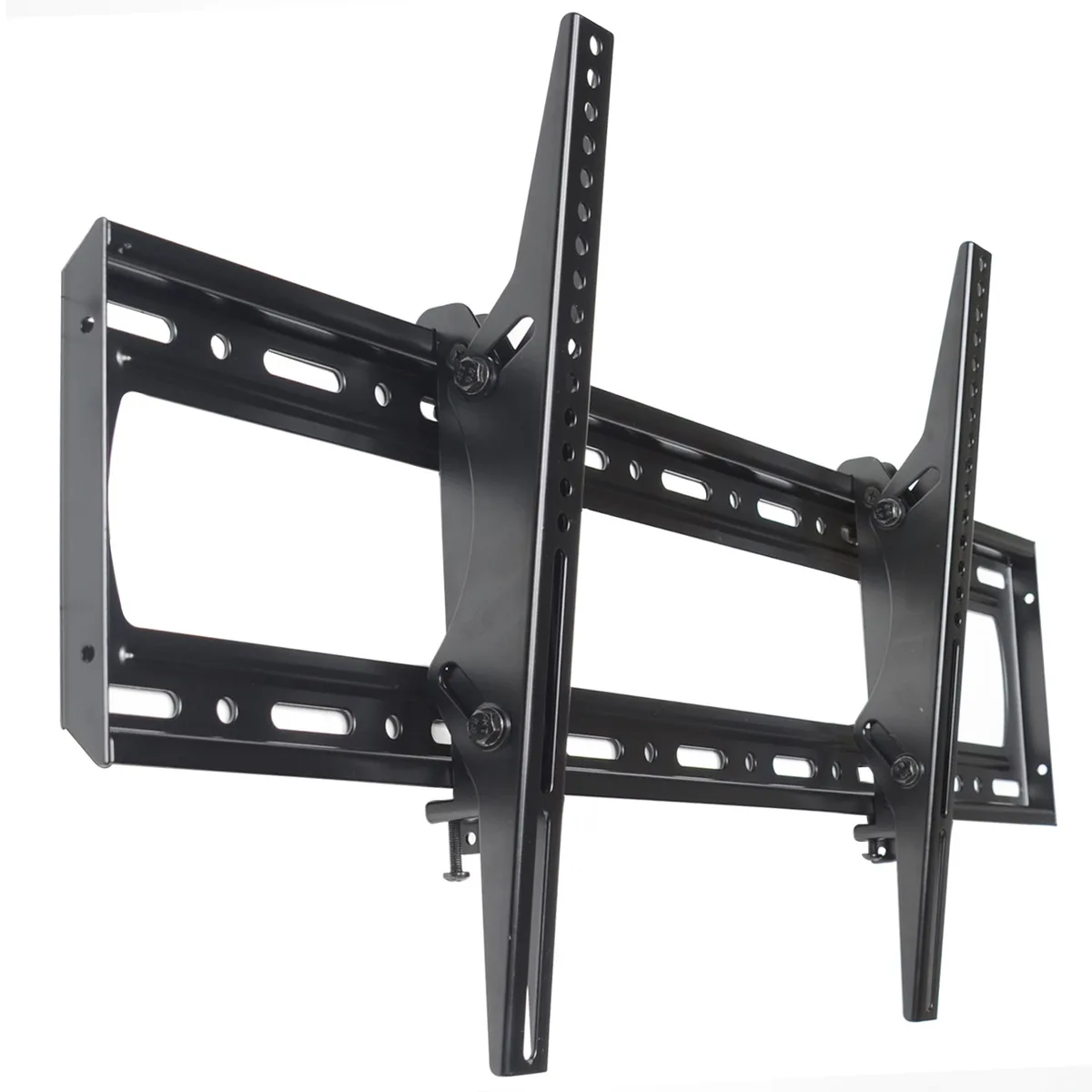

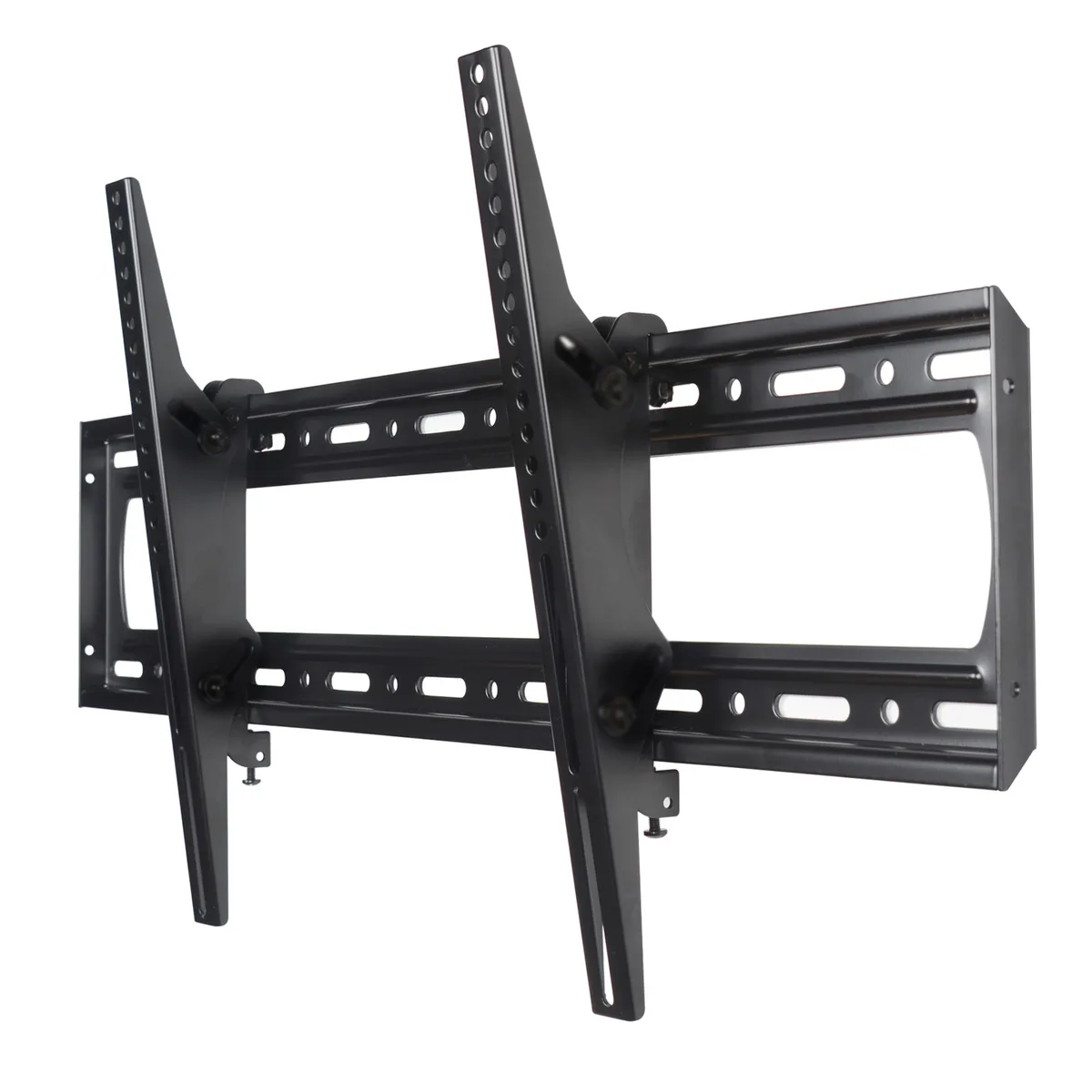

Black powder-coated steel tilt TV wall bracket with two arms and wall plate

VideoSecu

VideoSecu MP804B-D3 Tilt TV Mount 220lbs VESA 800x400

SKU CH-Z04Q-0ZTFB

Heavy-duty tilt bracket holds TVs up to 90 inches and 220 lbs with VESA patterns up to 800×400 mm

  • NameLarge Size Tilt TV Wall Mount
  • Mount StyleMounting Bracket
  • ColorBlack
  • MovableTilt +/-15º
  • TV Size Capacity< 90"
  • TV Weight Capacity220lbs
  • Supports screens up to 85 inch with VESA patterns from 200x200 to 800x400mm
  • Holds TVs weighing up to 220lbs on 2.5mm steel bracket
  • Tilts +/-15 degrees for glare-free viewing angle
  • Lift-and-lock mechanism secures display firmly to wall plate
  • Mounts to 16, 24 or up to 34 inch stud spacing

Large Tilt Mount for Screens up to 90 Inch

The VideoSecu MP804B-D3 is a heavy-duty steel bracket that holds flat-panel TVs weighing up to 220 lbs and measuring less than 90 inches diagonally. It supports VESA patterns from 200x200 mm through 800x400 mm, covering any hole spacing within 200-860 mm wide and 200-480 mm high. The mount tilts plus or minus 15 degrees for glare reduction and sits 2.5 inches from the wall.

Fixed Bracket Upgrade with Adjustable Viewing Angle

This model replaces a stationary low-profile mount when the seating position requires vertical angle adjustment. The tilt range lets viewers raise or lower the screen line of sight without remounting hardware. The lift-and-lock mechanism secures the display in place while still allowing tool-free removal for cable access or relocation.

Installers Needing Wide VESA Coverage

The bracket suits installers mounting large screens on 16 or 24 inch stud centres, with tolerance up to 34 inch spacing. Integrated cable ports keep wiring tidy behind the panel. Buyers whose displays exceed 220 lbs, need full-motion articulation, or require a VESA pattern wider than 860 mm should consider a different mounting solution.

Highlights

  • Supports screens up to 85 inch with VESA patterns from 200x200 to 800x400mm
  • Holds TVs weighing up to 220lbs on 2.5mm steel bracket
  • Tilts +/-15 degrees for glare-free viewing angle
  • Lift-and-lock mechanism secures display firmly to wall plate
  • Mounts to 16, 24 or up to 34 inch stud spacing

Specifications

BrandVideoSecu
ModelMP804B-D3
NameLarge Size Tilt TV Wall Mount
Mount StyleMounting Bracket
ColorBlack
MovableTilt +/-15º
TV Size Capacity< 90"
TV Weight Capacity220lbs
VESA CompatibleVESA 800x400/ 684x300/ 600x400/ 400x400 or any holes pattern within 200-860mm wide and 200-480mm high
Cable ManagementYes
Feature*Constructed with high quality 2.5mm thick steel with black powder-coated finish *Adjustable tilt forward or backward for perfect viewing angle *Lift and lock design secures the TV into place for additional safety *Security screws on both mounting arms lock screen in position *Cables are easily managed behind the screen with large access ports in the wall plate *Horizontal movement adjustment for perfect screen positioning *Tilt +/-15º/ Depth 2.5"/ Mounting stud 34"

Questions about this item

What wall-stud spacing does the MP804B-D3 bracket fit?

The wall plate mounts on 16" and 24" centres and spans up to 34" between studs.

Which step do installers often miss when setting the tilt?

After tilting the screen to the desired angle, the lift-and-lock tabs must be fully engaged to lock the position.

When should the 2.5 mm steel arms and mounting bolts be inspected?

Check bolt torque and arm alignment once a year or after any impact to the screen.
