VideoSecu MP804B-D22 tilt TV wall mount 60-85 inch 220lbs

Large tilt mount for 60-85 inch displays

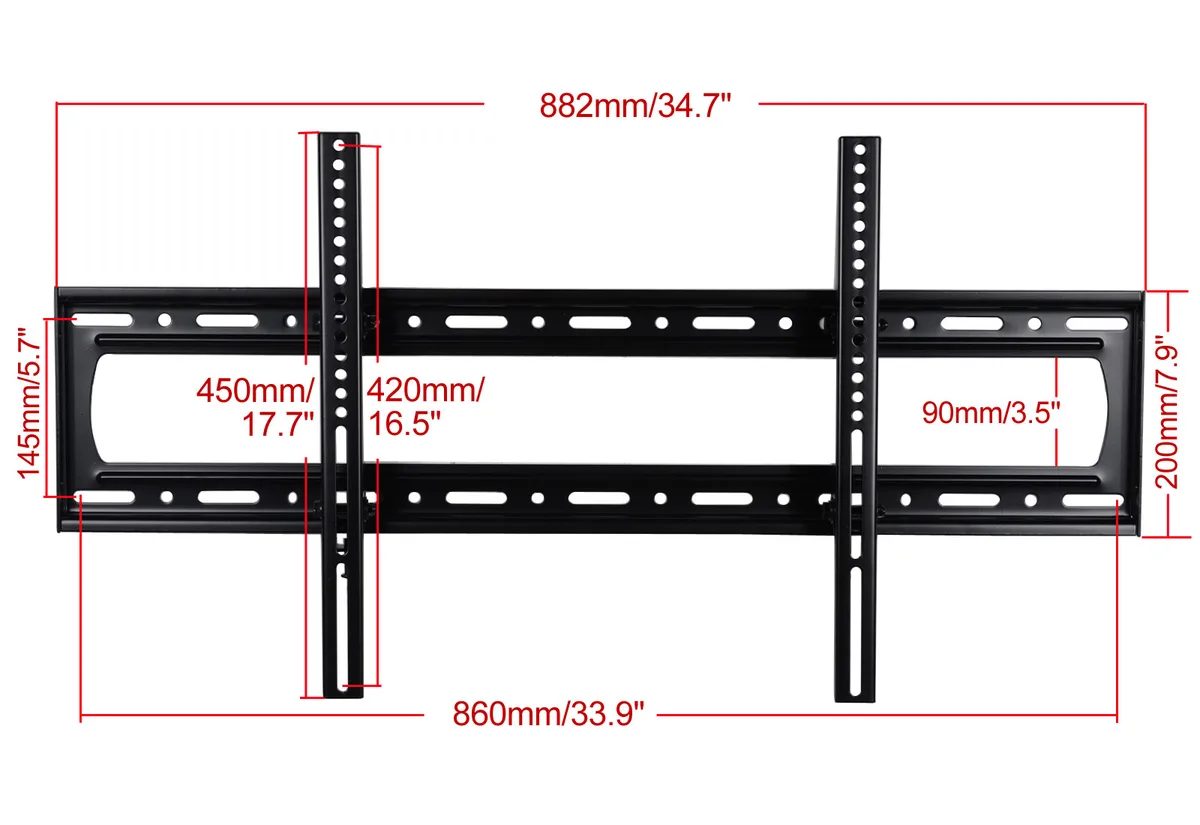

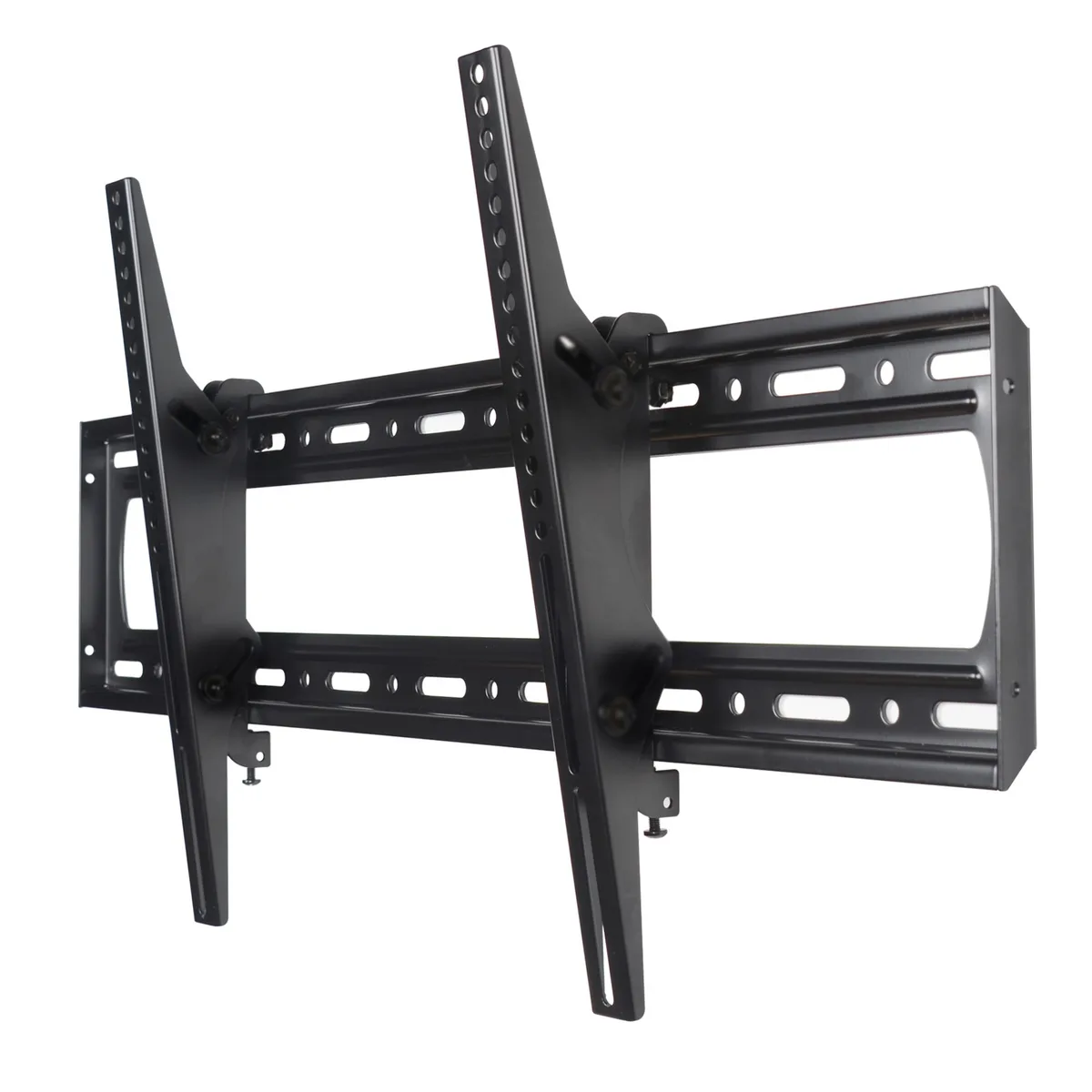

The VideoSecu MP804B-D22 is a steel bracket built for flat-panel televisions from 60 to 85 inches and weighing up to 220lbs. It tilts forward or backward by 15 degrees so viewers can reduce glare or match a seated eye line. The 2.5mm thick steel plate with black powder coating keeps the screen 2.5 inches from the wall while integrated cable ports keep wires tidy. VESA patterns from 200x200 up to 800x400mm are covered, plus any hole spacing within 200-860mm wide by 200-480mm high.

Installers wanting tilt adjustment without full

This mount suits anyone who needs a low-profile installation with vertical angle control but does not require swivel or extension. It locks the TV in place with a lift-and-lock mechanism for added security on heavy panels. Buyers whose screens fall outside the 60-85 inch range or exceed the 220lb limit should look elsewhere. Households wanting left-right articulation or pull-out reach will need a different style of bracket.

Fits 16-34 inch stud spacing for wood

The wall plate spans 16, 24 and up to 34 inch stud centres, so it anchors directly into standard timber framing or into masonry with appropriate fixings. Because it sits only 2.5 inches off the wall, it leaves minimal gap behind the screen while still allowing the tilt mechanism to operate freely. Cable management ports in the plate let power and AV leads run cleanly without extra trunking. Ensure the mounting surface can carry the combined weight before installation.
