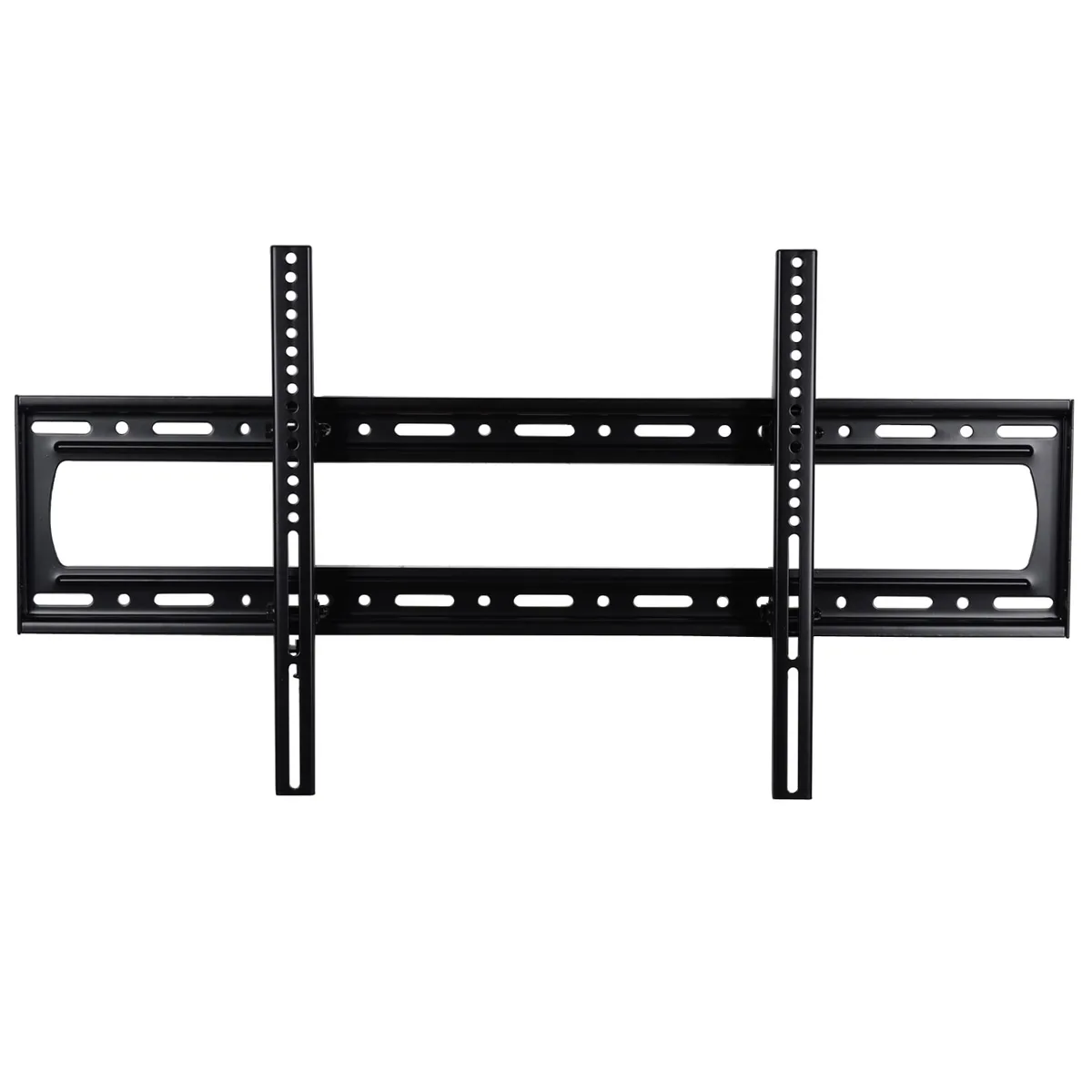

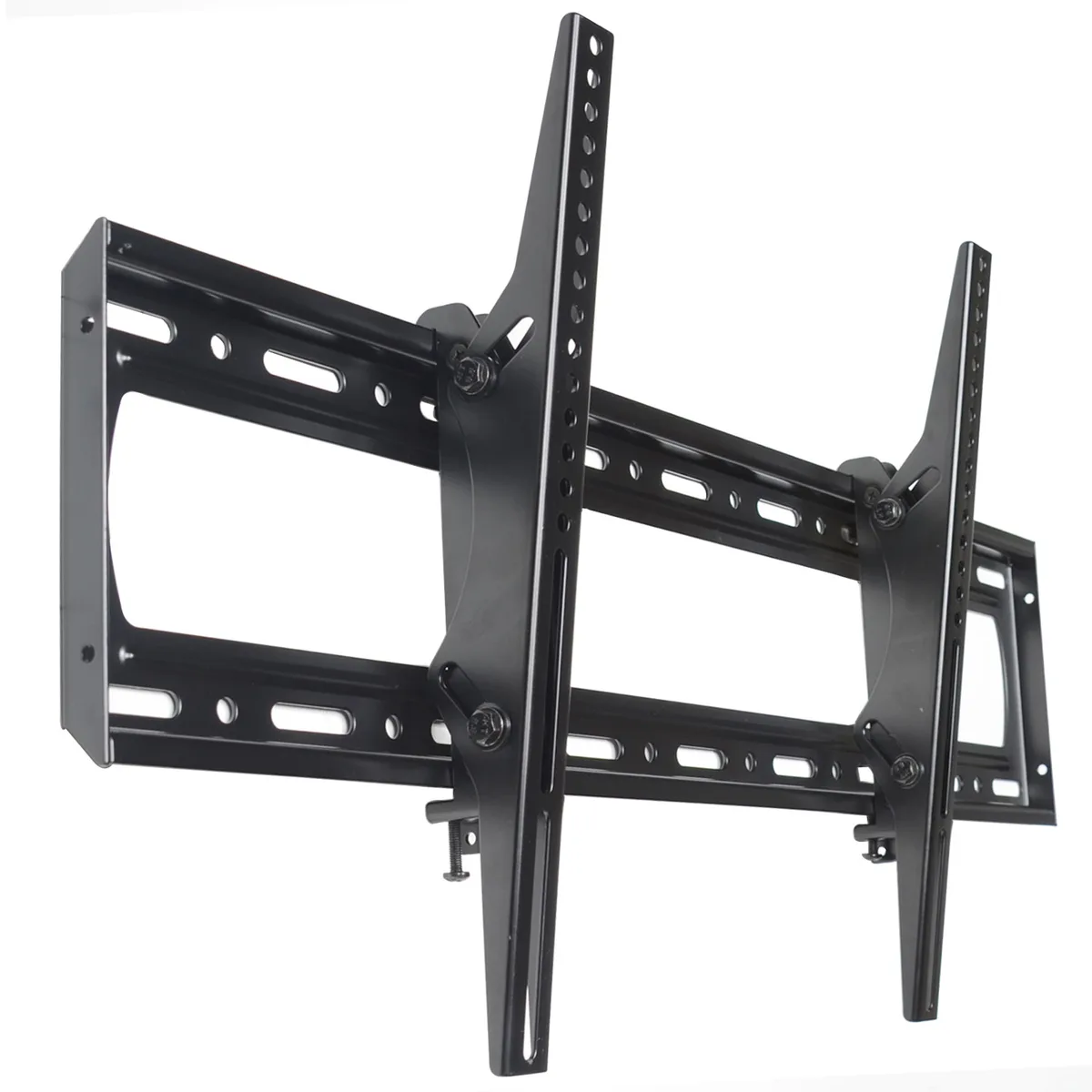

Black powder-coated steel tilt TV wall bracket with mounting arms and wall plate

VideoSecu

VideoSecu MP804B-D14 Tilt TV Wall Mount 60-85 inch 220lbs

SKU CH-Q1FD-4GETK

Holds 60–85 inch TVs up to 220 lbs with tilt adjustment of 15 degrees and VESA patterns up to 800x400mm

  • NameLarge Size Tilt TV Wall Mount
  • Mount StyleMounting Bracket
  • ColorBlack
  • MovableTilt +/-15º
  • TV Size Capacity< 90"
  • TV Weight Capacity220lbs
  • Holds TVs up to 220 lbs for secure mounting
  • Tilt adjusts ±15° to reduce glare and improve viewing
  • Fits screens 60–85 inches with VESA patterns up to 800×400 mm
  • Low-profile 2.5-inch depth keeps the display close to the wall
  • Cable-access ports in the wall plate keep cords tidy behind the screen

Large TV wall mount for 60-85 inch screens

The VideoSecu MP804B-D14 supports flat-panel televisions from 60 to 85 inches and up to 220lbs. It fits VESA patterns between 200x200mm and 860x480mm including 800x400, 700x400, 684x300, 600x400 and 400x400. The 2.5mm steel bracket has a black powder-coated finish.

Tilt mechanism and low-profile depth

The mount provides +/-15° tilt adjustment for improved viewing angles. A lift-and-lock design secures the display against accidental dislodgement. Large cable-access ports in the wall plate allow tidy routing behind the screen. Depth from the back of the TV to the wall is 2.5 inches.

Wood-stud spacing compatibility

The wall plate mounts on 16-inch, 24-inch or wider stud spacings up to 34 inches. Installers must verify that the TV’s VESA hole pattern falls within the 200-860mm wide by 200-480mm high range and that the display weight does not exceed 220lbs. It is not suitable for screens larger than 90 inches or heavier than the rated limit.

Highlights

  • Holds TVs up to 220 lbs for secure mounting
  • Tilt adjusts ±15° to reduce glare and improve viewing
  • Fits screens 60–85 inches with VESA patterns up to 800×400 mm
  • Low-profile 2.5-inch depth keeps the display close to the wall
  • Cable-access ports in the wall plate keep cords tidy behind the screen

Specifications

BrandVideoSecu
ModelMP804B-D14
NameLarge Size Tilt TV Wall Mount
Mount StyleMounting Bracket
ColorBlack
MovableTilt +/-15º
TV Size Capacity< 90"
TV Weight Capacity220lbs
VESA CompatibleVESA 800x400/ 684x300/ 600x400/ 400x400 or any holes pattern within 200-860mm wide and 200-480mm high
Cable ManagementYes
Feature*Constructed with high quality 2.5mm thick steel with black powder-coated finish *Adjustable tilt forward or backward for perfect viewing angle *Lift and lock design secures the TV into place for additional safety *Security screws on both mounting arms lock screen in position *Cables are easily managed behind the screen with large access ports in the wall plate *Horizontal movement adjustment for perfect screen positioning *Tilt +/-15º/ Depth 2.5"/ Mounting stud 34"

Questions about this item

How do I mount the MP804B-D14 to 16-inch or 24-inch studs, and what spacing mistake should I avoid?

The wall plate fits 16-inch, 24-inch and larger stud spacing up to 34 inches; use a level and confirm the centre-to-centre distance before drilling so the lag bolts hit the centre of each stud.

What upkeep will the tilt mechanism and finish need over time?

The 2.5 mm powder-coated steel resists corrosion; once a year check that the tilt tension bolts stay snug and wipe the arms with a dry cloth — no lubrication is required.

At what tilt angle does the bracket stop moving, limiting how far I can angle the screen?

The mechanism locks at +/-15 degrees forward or back; beyond that range the internal stops prevent further tilt adjustment.
