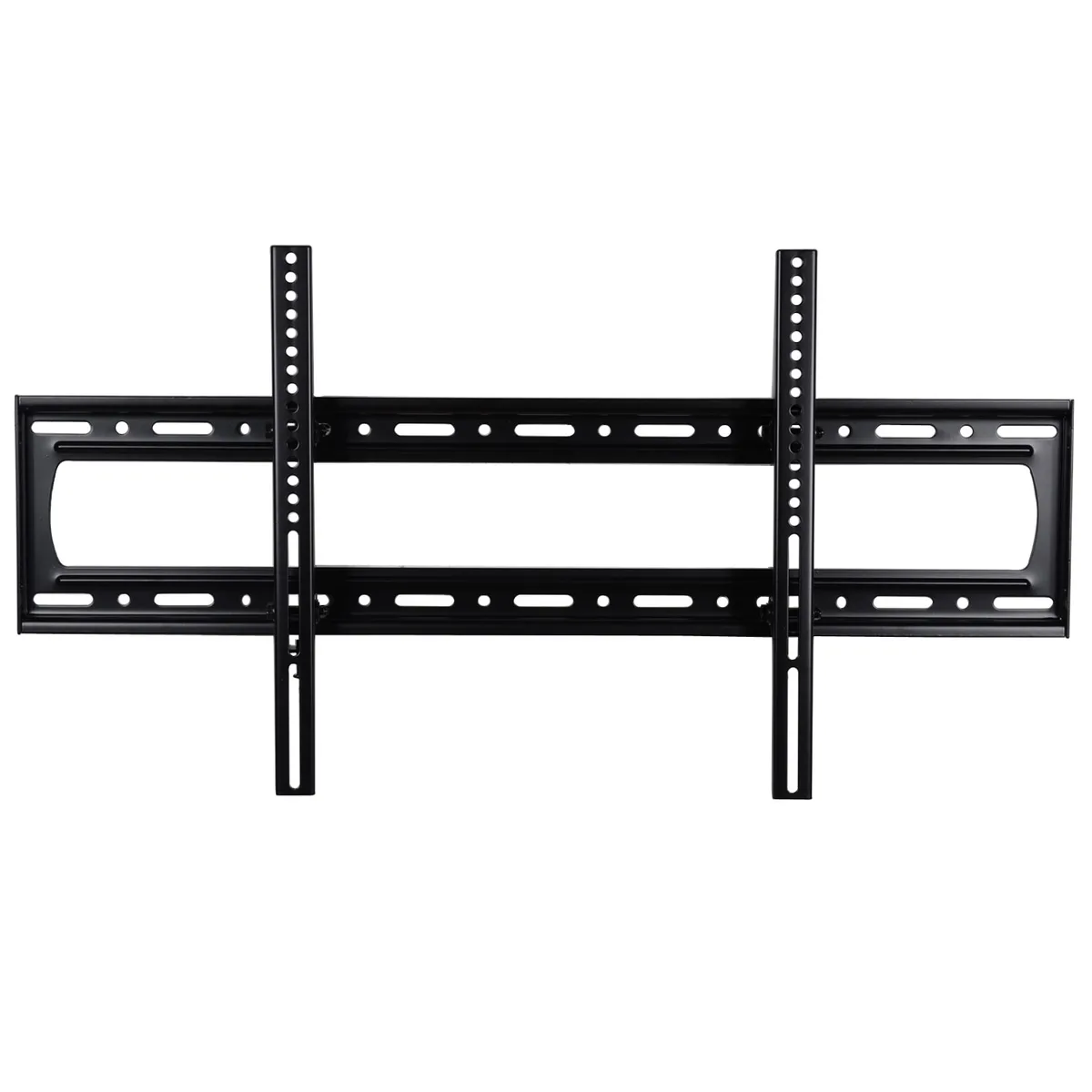

Black steel tilt TV wall mount, two arms, wall plate, low profile

VideoSecu

VideoSecu MP804B-A2 Tilt TV Wall Mount 220lbs +/-15°

SKU CH-RRVK-F6HS3

Holds TVs up to 90 inches and 220 lbs with tilt adjustment of ±15° and VESA patterns up to 800x400mm

  • NameLarge Size Tilt TV Wall Mount
  • Mount StyleMounting Bracket
  • ColorBlack
  • MovableTilt +/-15º
  • TV Size Capacity< 90"
  • TV Weight Capacity220lbs
  • Supports large screens up to 85 inches with VESA patterns from 200x200 to 860x480mm
  • Holds heavy TVs up to 220lbs using 2.5mm thick steel construction
  • Tilts plus or minus 15 degrees for glare reduction and comfortable viewing angle
  • Lift and lock mechanism secures the TV firmly in place for added safety
  • Low profile 2.5 inch depth keeps the screen close to the wall

Large tilt wall mount

The VideoSecu MP804B-A2 is a black steel bracket that tilts plus or minus 15 degrees. It accepts displays up to 90 inches and weighing up to 220lbs. The low-profile design sits 2.5 inches from the wall when mounted.

Replaces fixed low-profile brackets

Swapping a fixed mount for this model adds vertical angle adjustment without increasing depth. The upgrade is worthwhile when glare changes through the day or when the screen sits above seated eye level.

Fits 16 to 34 inch stud spacing

The wall plate spans 16, 24 and wider stud centres up to 34 inches. Large cable ports keep routing tidy behind the panel. Not for buyers who need full-motion articulation or portrait orientation.

Highlights

  • Supports large screens up to 85 inches with VESA patterns from 200x200 to 860x480mm
  • Holds heavy TVs up to 220lbs using 2.5mm thick steel construction
  • Tilts plus or minus 15 degrees for glare reduction and comfortable viewing angle
  • Lift and lock mechanism secures the TV firmly in place for added safety
  • Low profile 2.5 inch depth keeps the screen close to the wall

Specifications

BrandVideoSecu
ModelMP804B-A2
NameLarge Size Tilt TV Wall Mount
Mount StyleMounting Bracket
ColorBlack
MovableTilt +/-15º
TV Size Capacity< 90"
TV Weight Capacity220lbs

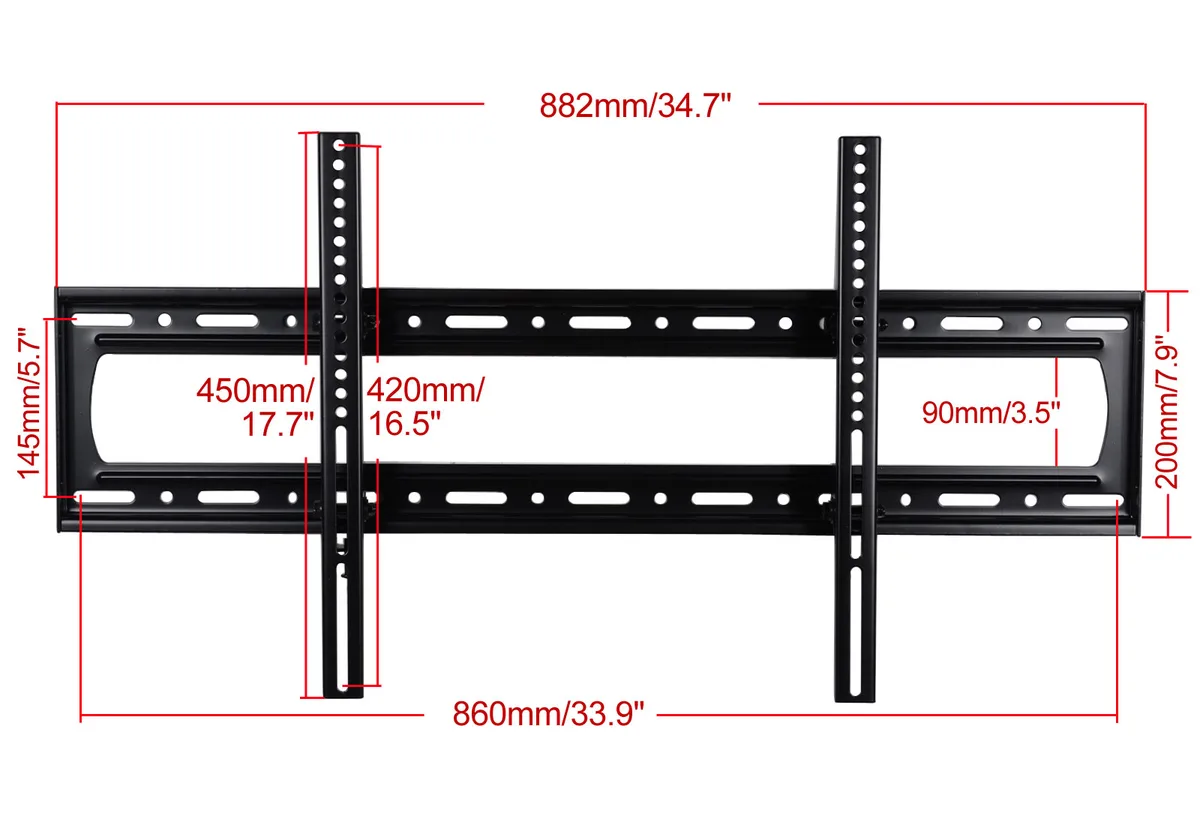

VESA CompatibleVESA 800x400/ 684x300/ 600x400/ 400x400 or any holes pattern within 200-860mm wide and 200-480mm high
Feature*Constructed with high quality 2.5mm thick steel with black powder-coated finish *Adjustable tilt forward or backward for perfect viewing angle *Lift and lock design secures the TV into place for additional safety *Security screws on both mounting arms lock screen in position *Cables are easily managed behind the screen with large access ports in the wall plate *Horizontal movement adjustment for perfect screen positioning *Tilt +/-15º/ Depth 2.5"/ Mounting stud 34"

Questions about this item

What VESA hole patterns and stud spacing does the MP804B-A2 support for mounting?

The mount fits VESA patterns from 200x200 up to 860x480 mm, including 800x400, 700x400, 684x300, 600x400 and 400x400, and attaches to 16 in, 24 in or up to 34 in stud centres.

How do I install the mount and what step is often missed?

Secure the wall plate to wood studs using the included lag bolts, hook the TV brackets onto the plate, then engage the lift-and-lock safety latch — skipping the latch leaves the TV unsecured.

What maintenance will the tilt mechanism and hardware need over time?

Re-torque the lag bolts and TV bracket bolts after the first few weeks, then check annually; the steel tilt joints need no lubrication.
