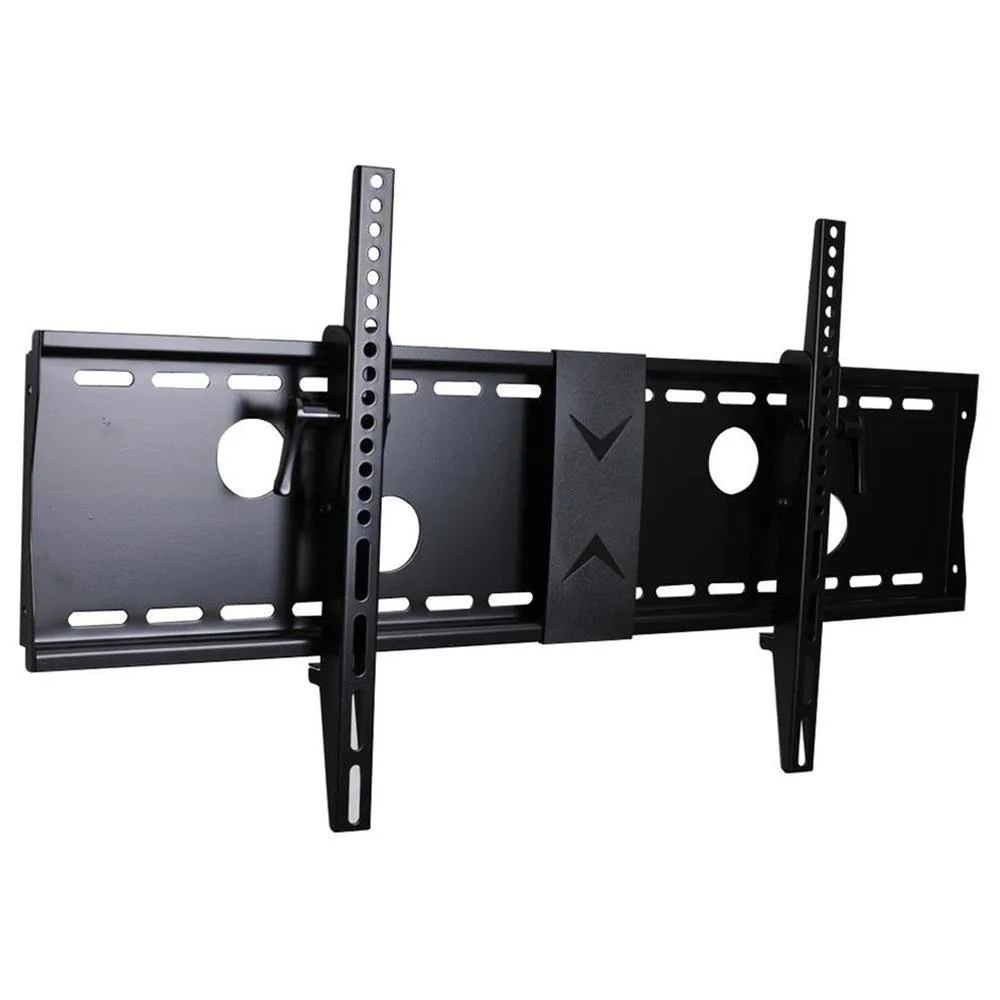

Black steel tilt TV wall mount with dual rails and low-profile bracket

VideoSecu

VideoSecu MP502B-A10 Tilt TV Mount 39-65" 165 lbs

SKU CH-49FA-2FRZ0

Tilt TV mount holds 39-65 inch screens up to 165 lbs with 15° forward tilt and 2.2 inch low profile

  • NameTilt TV Wall Mount
  • Mount StyleTilt
  • ColorBlack
  • MovableTilt forward 15°
  • TV Size Capacity< 70"
  • TV Weight Capacity165 lbs
  • Tilt up to 15° for glare-free viewing
  • Low-profile 2.2 inch depth keeps screen close to wall
  • Holds up to 165 lbs for large TVs safely
  • Fits VESA patterns from 200x200 to 700x400 mm
  • Rail design allows left-right shift for centred placement

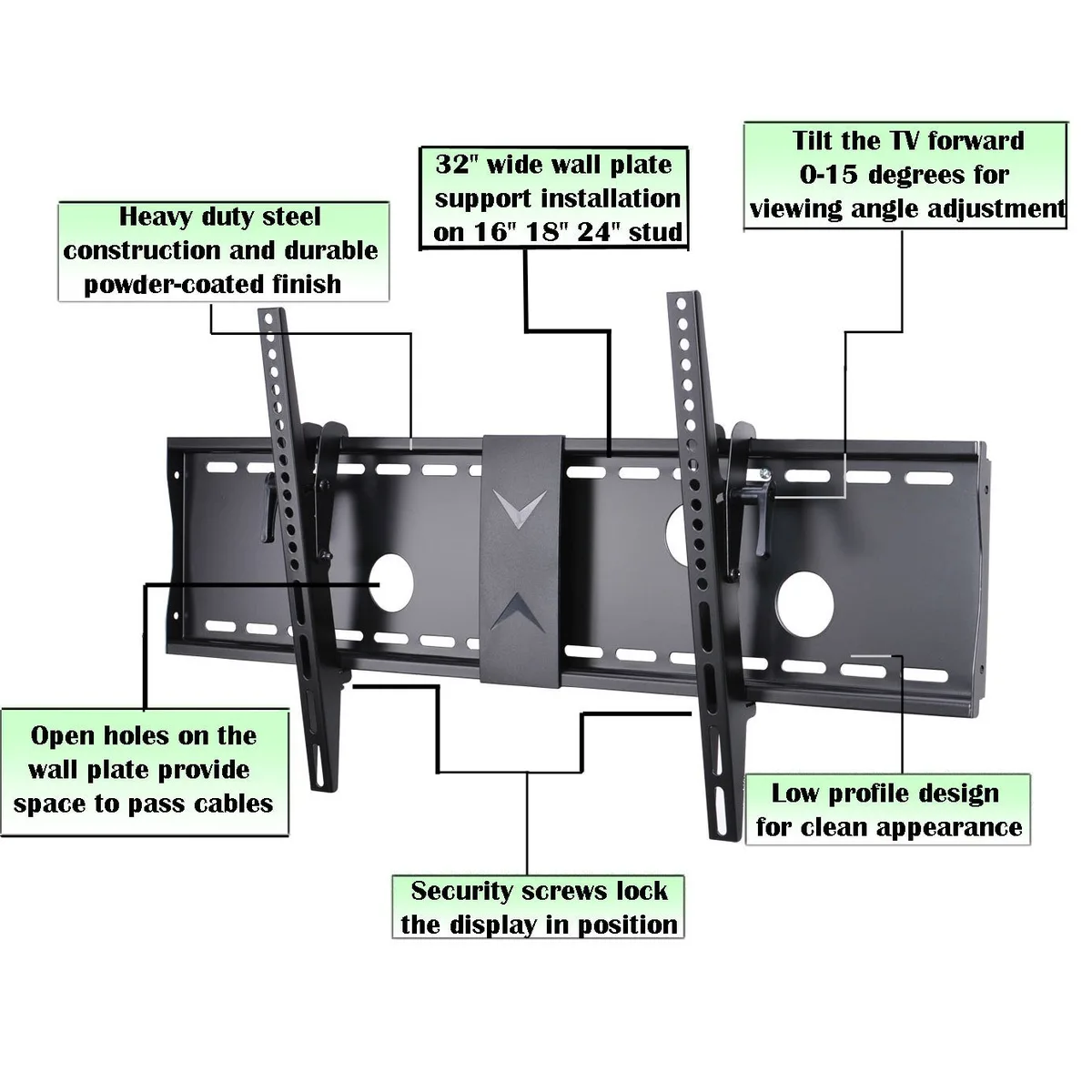

Tilt Mount for 39-65 Inch Displays

This VideoSecu tilt bracket supports flat-panel screens from 39 to 65 inches and some LED models up to 70 inches. It handles weights up to 165 lbs and fits VESA patterns ranging from 200x200 mm to 700x400 mm. The low-profile design holds the screen just 2.2 inches from the wall.

Stud Mounting and Lift-Lock Safety

The wall plate spans stud separations up to 30 inches, allowing flexible anchor points. A rail design lets the mounted TV shift left or right for fine placement. The lift-and-lock mechanism secures the display to the rails, preventing accidental dislodgement during adjustments.

Verify VESA, Weight and Stud Spacing

Confirm your screen's mounting holes fall within the 200-700 mm wide and 200-400 mm high range. Ensure the display weight does not exceed 165 lbs. Check that your wall studs are spaced no more than 30 inches apart for a secure installation.

Highlights

  • Tilt up to 15° for glare-free viewing
  • Low-profile 2.2 inch depth keeps screen close to wall
  • Holds up to 165 lbs for large TVs safely
  • Fits VESA patterns from 200x200 to 700x400 mm
  • Rail design allows left-right shift for centred placement

Specifications

BrandVideoSecu
ModelMP502B-A10
NameTilt TV Wall Mount
Mount StyleTilt
ColorBlack
MovableTilt forward 15°
TV Size Capacity< 70"
TV Weight Capacity165 lbs
VESA Compatible700x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200 or any hole patterns within 200-700mm wide and 200-400m high
Feature*Adjustable tilt forward 15° *Low-profile design of 2.2 inch *Mounts to any stud separation up to 30" *Rail design allows TV to shift left and right for TV placement adjustment *Lift and lock design secures the TV into place for additional safety *solid sturdy wall plate provides strength and durability *Assembly required *Free 7ft HDMI cable, 6" 3-Axis magnetic bubble Level

Questions about this item

How do I confirm the 15° forward tilt is set correctly after mounting my 65" TV?

Use a level on the TV frame and measure the angle from vertical; the bracket locks at any position between 0° and 15° forward tilt.

What hardware comes in the box and what must I supply for a wood-stud wall?

The package includes the wall plate, TV rails, tilt arms and mounting screws for the TV; you must provide lag bolts rated for 165 lbs to anchor the wall plate into studs.

Which VESA pattern should I choose if my TV has 400x400 mm holes and weighs 50 lbs?

The 400x400 mm pattern is listed and well within the 165 lbs capacity, so select that pattern on the adjustable rails.
