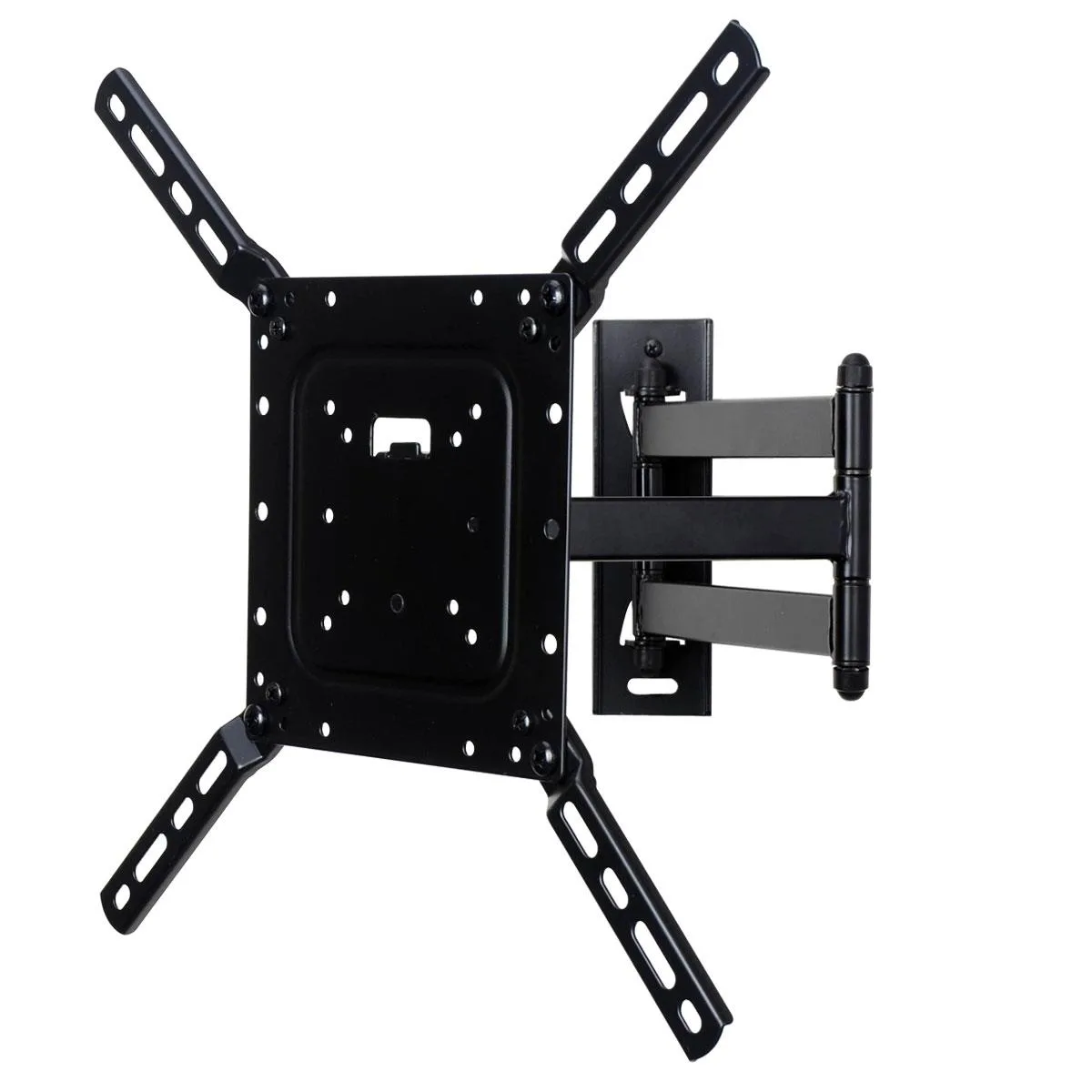

Black steel articulating TV wall mount with multiple jointed arms folded flat

VideoSecu

VideoSecu ML532B-A3 Full Motion TV Wall Mount 22-50 inch 66lbs VESA 400x400

SKU CH-QRHR-HRAQV

Full-motion wall mount holds TVs up to 50 inches and 66 lbs, tilts 15°, swivels 180° and extends 20″

  • NameFull Motion TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt +/- 15°, Swivel 180°, Extend 20", Depth 1.9"
  • TV Size Capacity< 50"
  • TV Weight CapacityLoading capacity up to 66lbs
  • Full motion articulation gives 180° swivel and ±15° tilt for flexible viewing
  • Extends 20" from wall then folds to 1.9" depth for space saving
  • Supports TVs up to 66lbs across 22-50 inch sizes
  • Compatible with VESA patterns from 100x100mm to 400x400mm

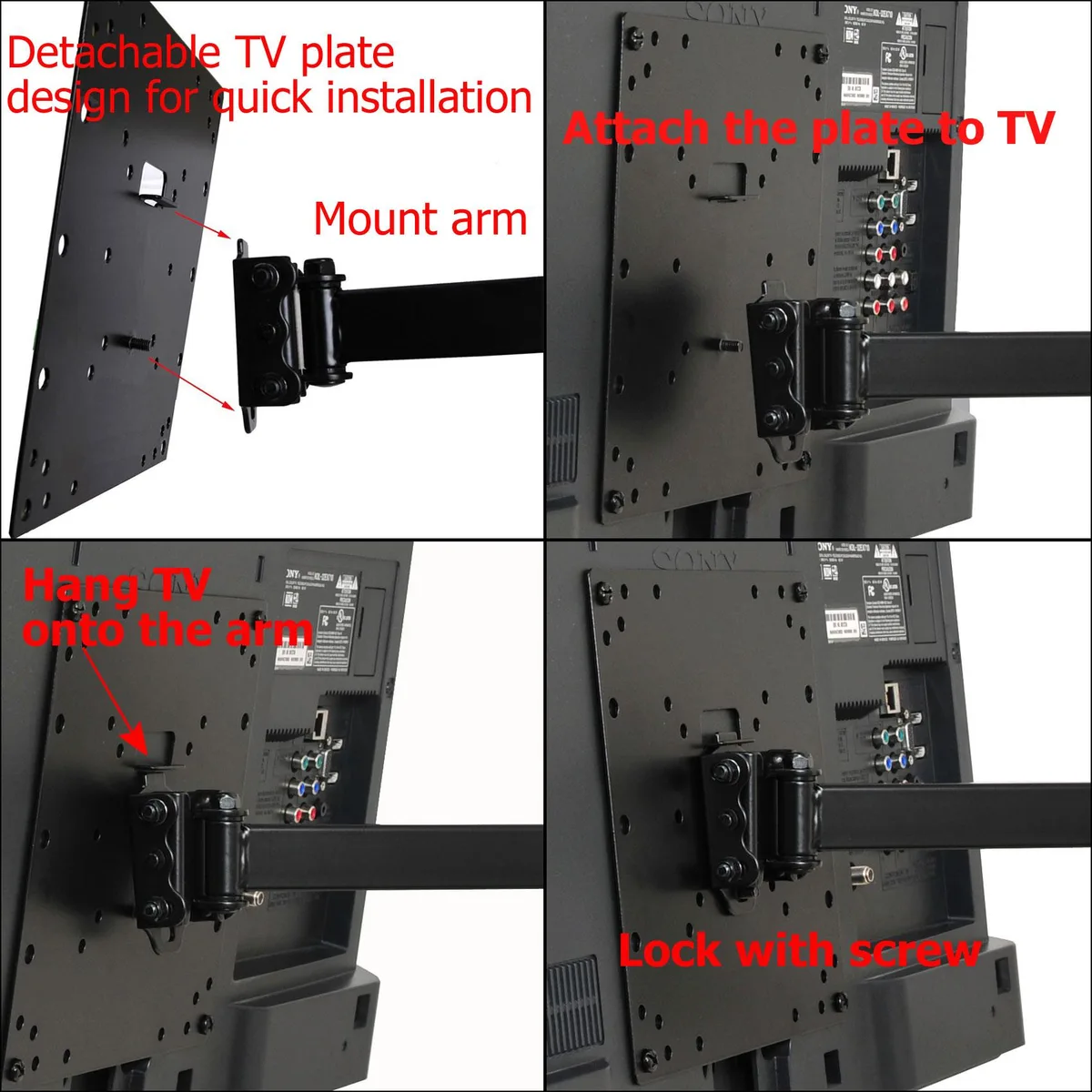

  • Post-installation level adjustment ensures perfectly aligned screen

Full-Motion TV Wall Mount ML532B-A3

The VideoSecu ML532B-A3 is a full-motion wall bracket for flat-panel screens from 22 to 50 inches. It carries up to 66 lbs and matches VESA patterns from 100x100 mm through 400x400 mm. The black powder-coated steel arm tilts ±15°, swivels 180° and extends 20 inches from the wall. Installers can level the display after mounting.

Upgrade From Fixed or Tilt-Only Brackets

A fixed mount holds the screen flat; a tilt-only mount adds vertical angle. This articulating arm adds horizontal swivel and deep extension, so the same screen serves multiple seating zones or clears a mantle. The jump is worth it when viewing positions shift daily or when cables need frequent access behind the panel.

Capacity and Headroom

The 66 lb rating and 400x400 mm maximum VESA cover most 22-50 inch panels and some 55 inch LED sets that share those hole patterns. Extension reaches 20 inches, yet the arm folds to a 1.9 inch profile when pushed back. Screens heavier than 66 lbs or with VESA patterns wider than 400 mm fall outside the tested limits.

Highlights

  • Full motion articulation gives 180° swivel and ±15° tilt for flexible viewing
  • Extends 20" from wall then folds to 1.9" depth for space saving
  • Supports TVs up to 66lbs across 22-50 inch sizes
  • Compatible with VESA patterns from 100x100mm to 400x400mm
  • Post-installation level adjustment ensures perfectly aligned screen

Specifications

BrandVideoSecu
ModelML532B-A3
NameFull Motion TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt +/- 15°, Swivel 180°, Extend 20", Depth 1.9"
TV Size Capacity< 50"
TV Weight CapacityLoading capacity up to 66lbs
VESA Compatible400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200/ 200x100/ 100x100mm
Feature*Tilt +/- 15º, Swivel 180°, Extension 20", Low profile 1.9" depth *Premium quality - constructed with thick, heavy duty durable powder-coated black steel *Post-installation level adjustment allows the TV to perfectly level *Multi-directional adjustment tilt, swivel and extend for perfect viewing angle *Nesting arm design allows display to be folded parallel to the wall to save space

Questions about this item

What wall stud spacing does the 16-inch wide VESA 400x400 plate need?

The mount plate spans 400 mm horizontally, so it requires studs on 16-inch centres or a solid backing board to hit both lag bolts.

How do I set the tilt without the TV pulling the arm down while I tighten the bolts?

Hold the screen at the desired angle, snug the tilt tension bolts, then use the post-install level adjustment to fine-tune before final torque.

Which moving parts should I lubricate after a year of daily swivelling?

Apply light lithium grease to the two pivot pins on the articulating arm and the swivel base bearing once per year.
