Beige articulating TV wall mount with folded arms against wall bracket

VideoSecu

VideoSecu ML530BFW Articulating TV Mount 22-39in 66lbs Beige

SKU CH-ZPF5-VV3MY

Articulating wall bracket holds 22 to 39 inch screens up to 66 lbs with 20 inch extension and full motion adjustment

  • NameTilt Swivel Rotate TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBeige

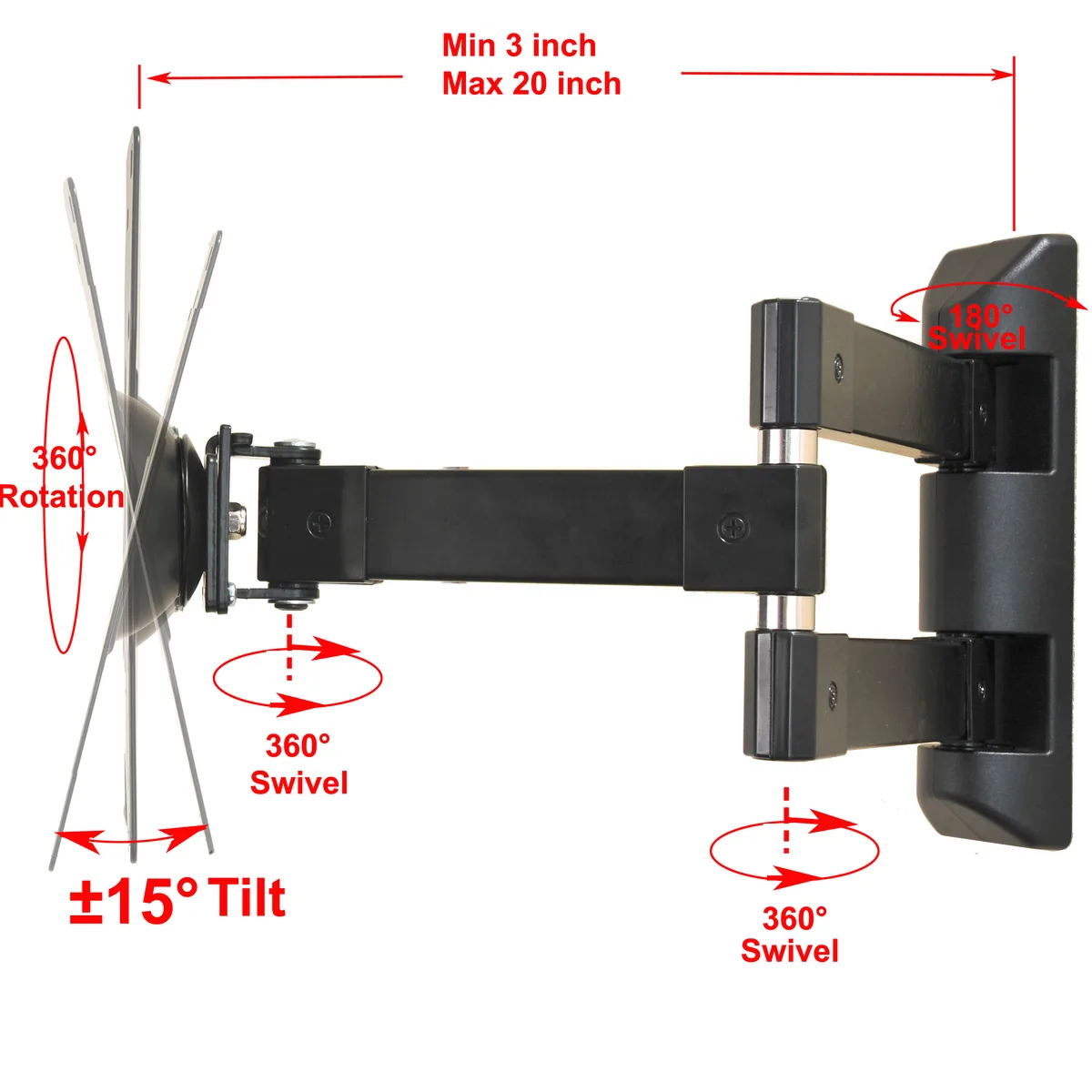

  • MovableTilt +/-15°, Rotate 360°, Extension 20", Depth 3"
  • TV Size Capacity< 40"
  • TV Weight Capacity66 lbs
  • Fits 22 to 39 inch screens with VESA 75 to 200 patterns
  • Holds up to 66 lbs on heavy-duty steel arms
  • Tilts 15 degrees up or down for glare-free viewing
  • Swivels 180 degrees side to side for wide-angle seating
  • Extends 20 inches then folds to 3 inches depth

Fits 22 to 39 inch screens

The VideoSecu ML530BFW is a beige articulating wall bracket built for flat-panel displays from 22 to 39 inches, with some models up to 42 inches accepted. It supports a maximum load of 66 lbs and mounts to VESA patterns of 75x75, 100x100, 200x100 and 200x200 mm. The arm extends 20 inches from the wall and folds to a 3 inch profile.

Suits corner or multi-angle viewing

This mount suits installations where the screen must be pulled out, tilted 15 degrees up or down, swivelled 180 degrees side to side or rotated 360 degrees for portrait orientation. A post-installation levelling feature helps align the display. Buyers who need a fixed low-profile bracket or a mount rated above 66 lbs should consider other options.

VESA pattern and weight limit decide fit

The single specification that determines compatibility is the display's VESA hole pattern combined with its weight. The bracket accepts 75x75, 100x100, 200x100 and 200x200 mm patterns up to 66 lbs. Verify both values on the screen before purchase.

Highlights

  • Fits 22 to 39 inch screens with VESA 75 to 200 patterns
  • Holds up to 66 lbs on heavy-duty steel arms
  • Tilts 15 degrees up or down for glare-free viewing
  • Swivels 180 degrees side to side for wide-angle seating
  • Extends 20 inches then folds to 3 inches depth

Specifications

BrandVideoSecu
ModelML530BFW
NameTilt Swivel Rotate TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBeige
MovableTilt +/-15°, Rotate 360°, Extension 20", Depth 3"
TV Size Capacity< 40"
TV Weight Capacity66 lbs
VESA Compatible200x200/ 200x100/ 100x100/ 75x75

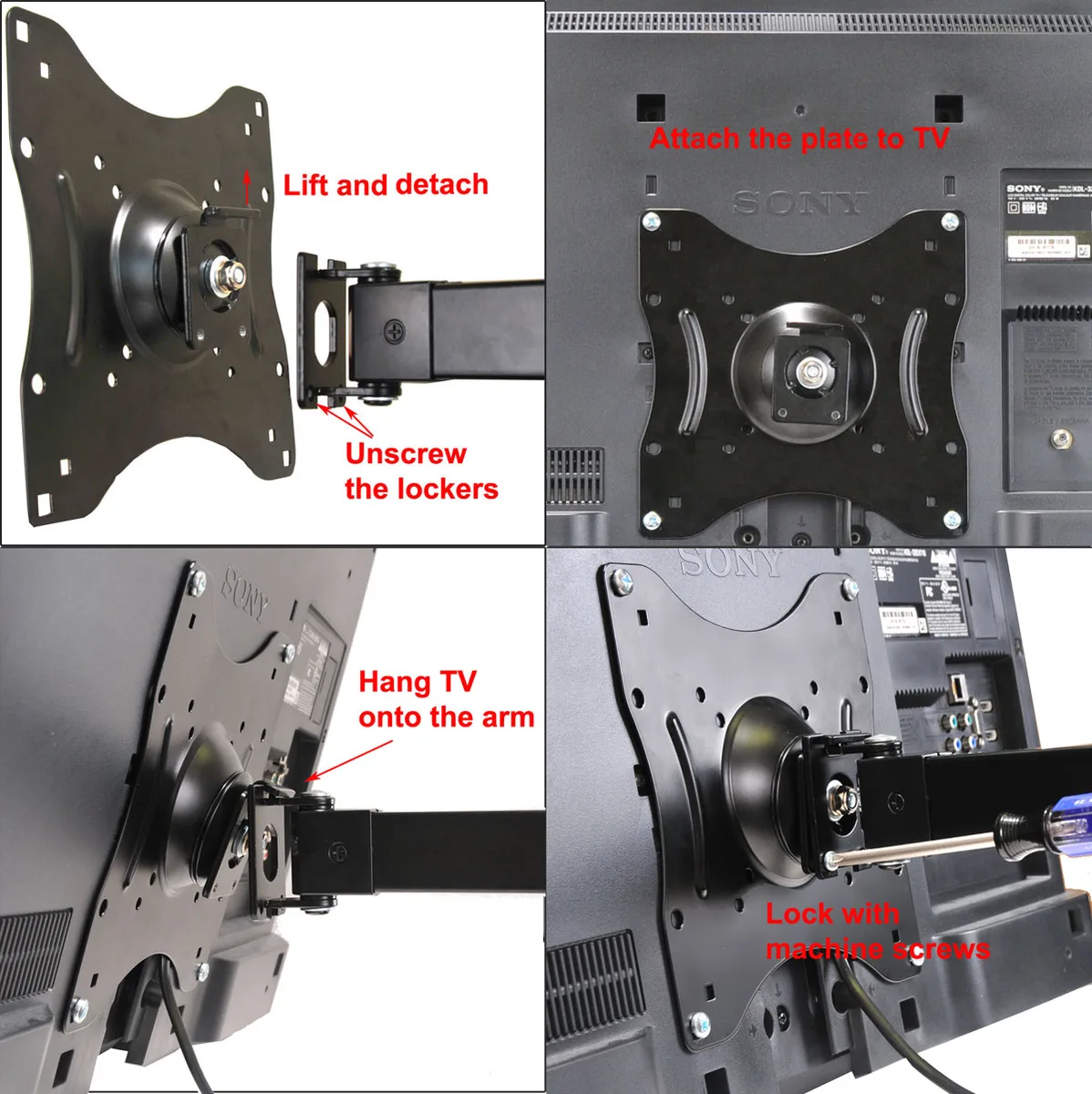

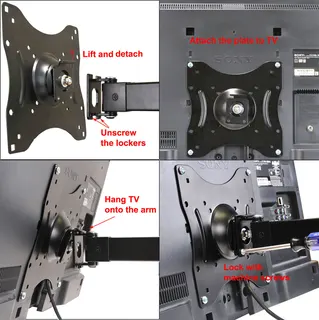

Feature*Multi-directional tilt swivel rotate provides perfect TV positions *Post-installation level adjustment allows the TV to perfectly level *Nesting arm design allows the display to be folded parallel to the wall to save space *Removable TV plate designed for single-person installation *Constructed with thick, heavy duty durable steel with powder-coated black finish *Single stud mounting for quick and easy installation *Tilt +/-15°, Rotate 360°, Extension 20", Depth 3"

Questions about this item

Should I pick the 22-37 inch or the up-to-42 inch fit for my screen?

The mount fits most 22-37 inch TVs and some up to 42 inch models; verify your TV's VESA pattern (75x75, 100x100, 200x100 or 200x200) and ensure its weight is 66 lbs or less.

What does the 66 lbs capacity mean when the bracket is fully extended?

The 66 lbs rating applies at the full 20 inch extension; the steel arm and removable VESA plate are designed to hold that weight without sagging when tilted, swivelled or rotated.

How far can the arm swivel side to side and what limits it?

The arm swivels 180 degrees left or right; the range is set by the wall-plate hinge and stops when the TV edge approaches the wall surface.
