Black steel full-motion TV wall mount with articulated arms extended showing tilt swivel and 14 inch reach

VideoSecu

VideoSecu ML510B-A9 Full Motion TV Mount 14" Extension 44lbs VESA 200x200

SKU CH-ASYX-A0WVA

Full-motion wall mount holds TVs up to 44 lbs with 14-inch extension, 180-degree swivel and 15-degree tilt

  • NameFull Motion TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack

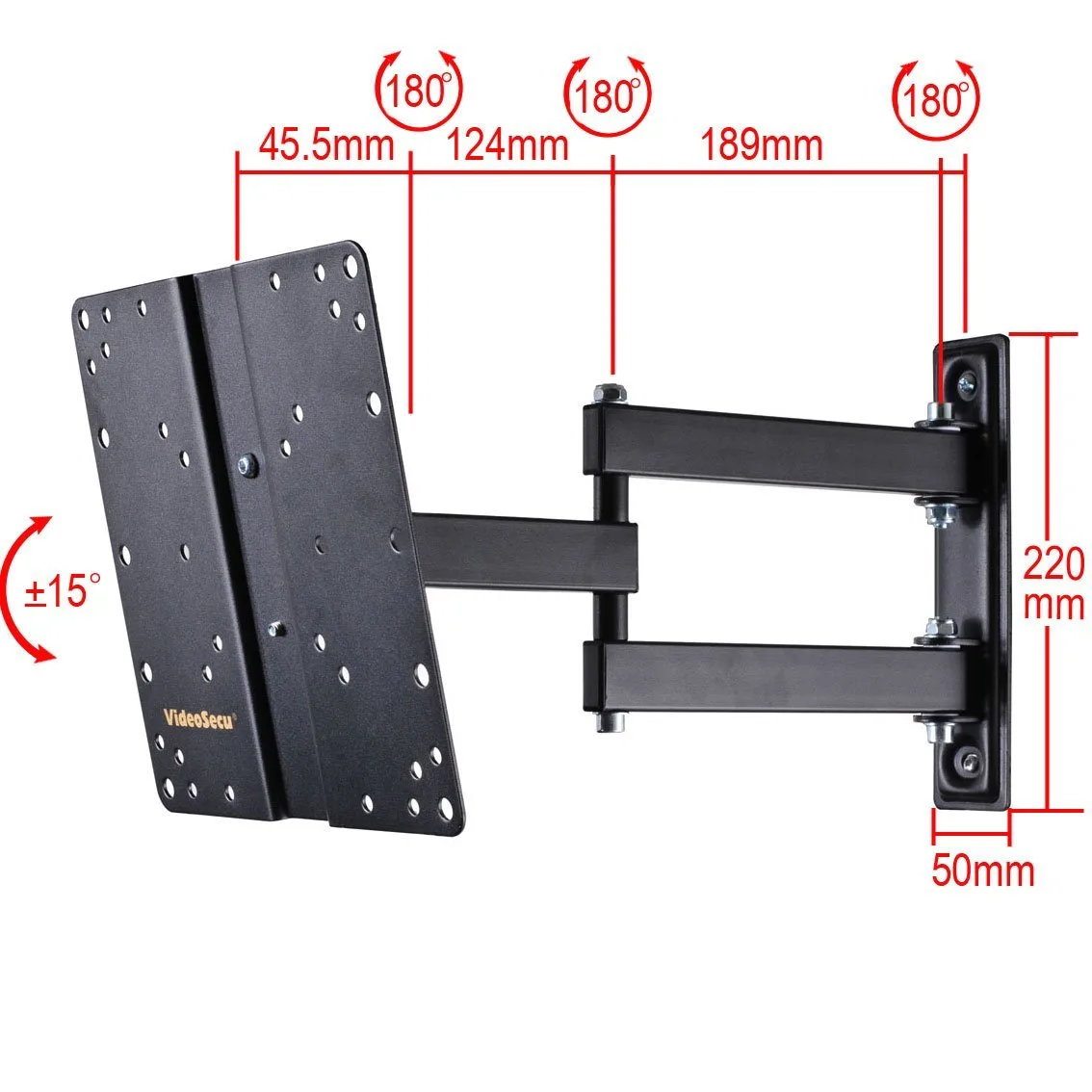

  • MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
  • TV Size Capacity< 40"
  • TV Weight Capacity44lbs/20kg
  • Optimal viewing angles with 180-degree swivel and 15-degree tilt
  • Extends 14 inches from the wall for flexible positioning
  • Supports displays up to 44 lbs with durable steel construction

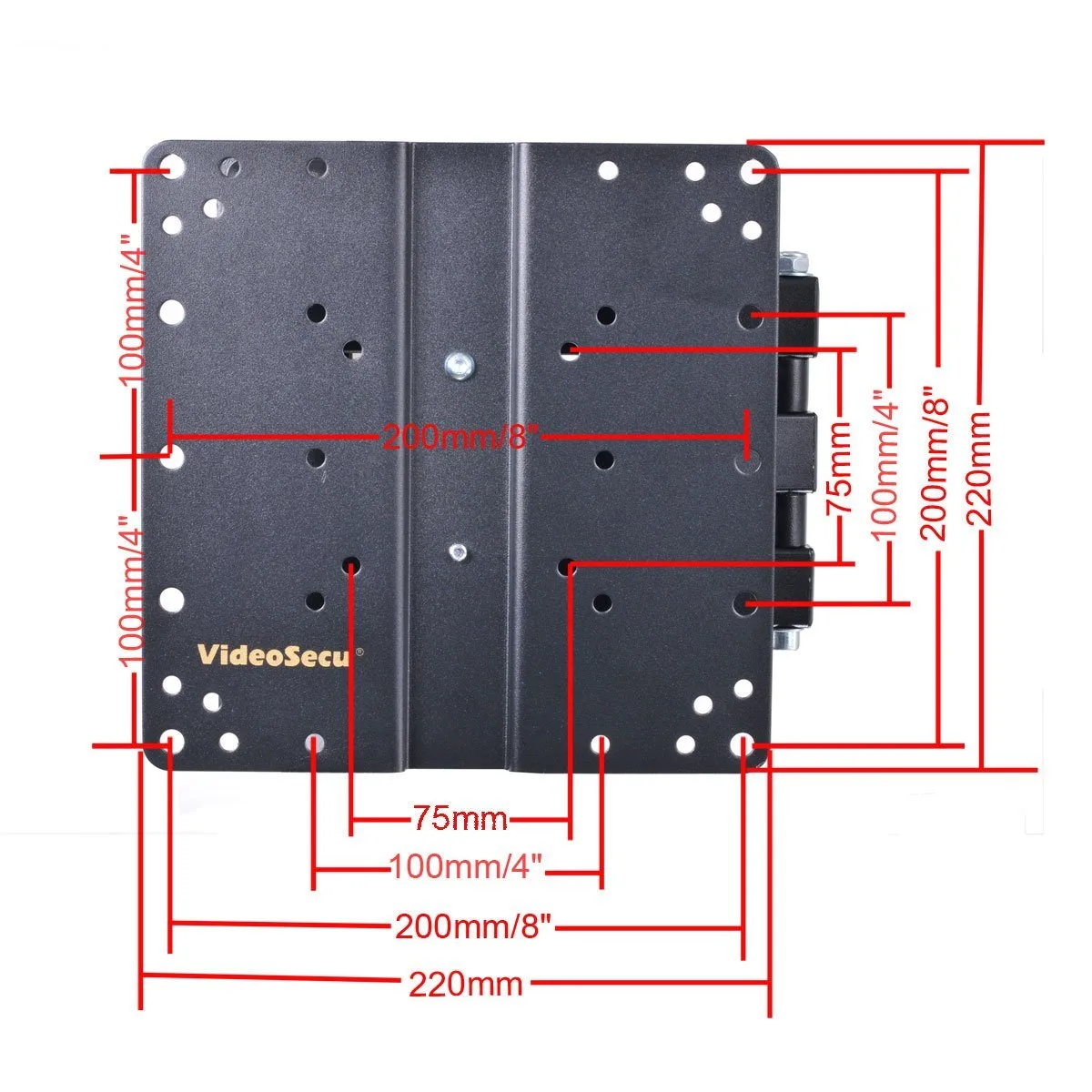

  • Fits VESA patterns 75x75, 100x100, 200x100, and 200x200mm
  • Post-installation level adjustment ensures a perfectly level screen

VideoSecu ML510B-A9 Full Motion Mount

The VideoSecu ML510B-A9 is an articulating wall mount built for screens under 40 inches weighing up to 44lbs. It supports VESA patterns from 75x75 through 200x200mm. The black powder-coated steel arm extends up to 14 inches and retracts to a 2 inch profile. Installers get post-installation level adjustment and a removable TV plate for easier mounting.

Upgrade from Fixed or Tilt-Only Brackets

A fixed bracket holds the screen flush and a tilt-only unit adds vertical angle; this mount adds 180 degree swivel and 14 inch extension for corner seating or glare reduction. The jump is worth it when the viewing position shifts daily or the screen must clear a mantle or furniture. It is not for buyers who need more than 44lbs capacity or VESA patterns larger than 200x200mm.

Build Integration: Stud Mounting and Clearance

The arm anchors to a single wood stud and includes hardware for concrete installation. Its nesting design folds the display parallel to the wall when not extended, freeing floor space in tight rooms. The 15 degree tilt range lets you angle the panel down from a high mount without extra spacers. Ensure the wall cavity can accept the supplied lag bolts before starting.

Highlights

  • Optimal viewing angles with 180-degree swivel and 15-degree tilt
  • Extends 14 inches from the wall for flexible positioning
  • Supports displays up to 44 lbs with durable steel construction
  • Fits VESA patterns 75x75, 100x100, 200x100, and 200x200mm
  • Post-installation level adjustment ensures a perfectly level screen

Specifications

BrandVideoSecu
ModelML510B-A9
NameFull Motion TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
TV Size Capacity< 40"
TV Weight Capacity44lbs/20kg
VESA Compatible75x75, 100x100, 200x100, 200x200mm
Feature*Durable high-gauge steel construction with black powder coated finish *Post-installation level adjustment allows the TV to perfectly level *Nesting arm design allows display to be folded parallel to wall *Single stud mounting for quick and easy installation *Tilt +/- 15º, Swivel 180º, Extends up to 14", Depth 2"

Questions about this item

What VESA patterns does the ML510B-A9 wall plate support?

The wall plate accepts 75x75, 100x100, 200x100 and 200x200mm hole patterns.

Which step is most often missed when securing the arm to the wall?

Installers sometimes forget to anchor the wall plate into a single wood stud before attaching the TV.

What should be checked periodically after the mount is installed?

Verify that the lag bolts into the stud and the TV-plate screws remain tight over time.
