Black steel articulating TV wall mount with folding arms and removable plate

VideoSecu

VideoSecu ML510B-A8 Full Motion TV Mount 22-42" VESA 200x200

SKU CH-65K8-J5HDA

Full-motion wall bracket holds 22 to 42 inch screens up to 44 lbs, swivels 180 degrees, tilts 15 degrees, extends 14 inches and includes post-install level adjustment

  • NameFull Motion TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
  • TV Size Capacity< 40"
  • TV Weight Capacity44lbs/20kg
  • Perfect viewing angle with 180° swivel and 15° tilt
  • Extends 14" from wall for flexible positioning
  • Fits 22–42" screens with VESA 75–200mm patterns
  • Holds up to 44 lbs on durable steel frame
  • Post-install level adjustment keeps screen perfectly straight

Full Motion Mount for 22-42 Inch Displays

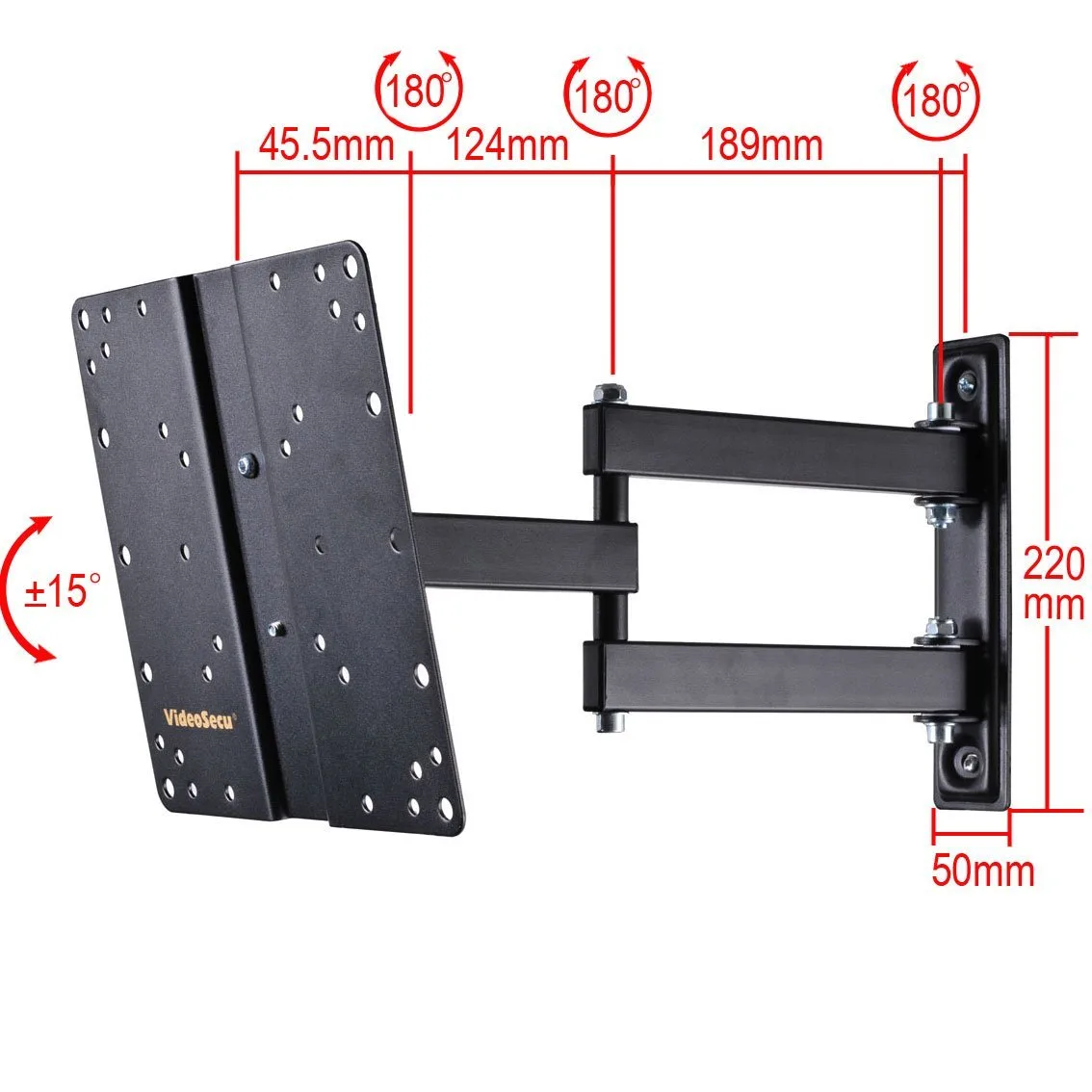

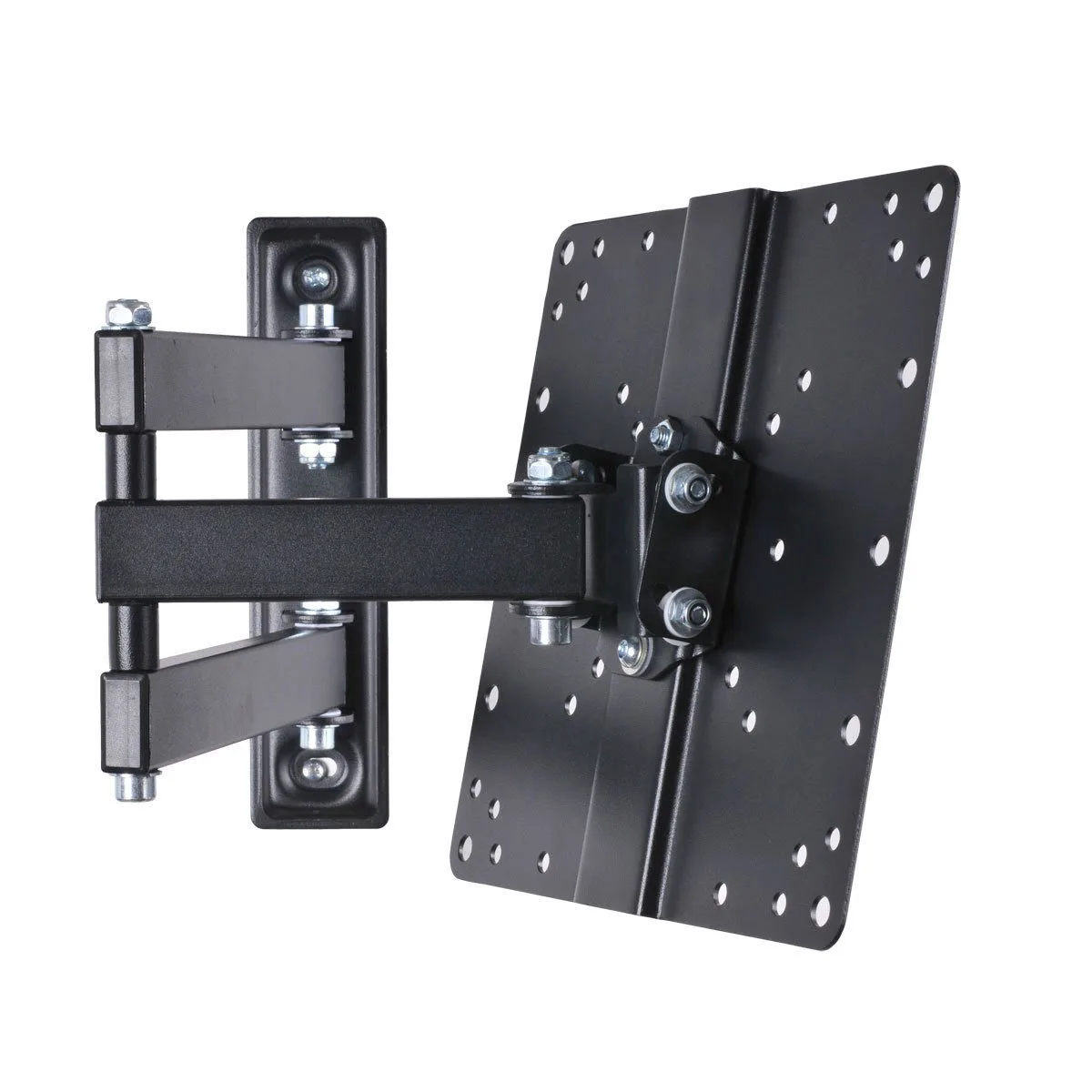

The VideoSecu ML510B-A8 is a black articulating wall bracket designed for screens from 22 to 42 inches weighing up to 44lbs. It supports VESA patterns 75x75, 100x100, 200x100 and 200x200mm. The arm extends up to 14 inches, swivels 180 degrees and tilts 15 degrees up or down for flexible viewing angles.

Installation Notes and Common Issues

The mount includes a removable TV plate and post-installation level adjustment so the screen can be levelled after the bracket is fixed to the wall. A nesting arm design lets the display fold back to a 2 inch depth. The supplier warns that this mount does not fit 32 inch or larger TVs manufactured before 2013, so verify the production date on older panels.

VESA Pattern and Weight Limit

The single specification that decides compatibility is the combination of VESA hole spacing and the 44lb load rating. Your display must match one of the four listed patterns and weigh 44lbs or less; otherwise the bracket cannot be used safely.

Highlights

  • Perfect viewing angle with 180° swivel and 15° tilt
  • Extends 14" from wall for flexible positioning
  • Fits 22–42" screens with VESA 75–200mm patterns
  • Holds up to 44 lbs on durable steel frame
  • Post-install level adjustment keeps screen perfectly straight

Specifications

BrandVideoSecu
ModelML510B-A8
NameFull Motion TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
TV Size Capacity< 40"
TV Weight Capacity44lbs/20kg
Feature*Durable high-gauge steel construction with black powder coated finish *Post-installation level adjustment allows the TV to perfectly level *Nesting arm design allows display to be folded parallel to wall *Single stud mounting for quick and easy installation *Tilt +/- 15º, Swivel 180º, Extends up to 14", Depth 2"

Questions about this item

How do I verify the mount is level after installation?

Use the post-installation level adjustment feature to fine-tune the TV until the screen is perfectly level.

What hardware is included and what must I supply?

The mount includes the articulating arm, wall plate, removable TV plate and mounting screws for the display; you must supply lag bolts or anchors rated for a single wood stud or concrete wall.

Which VESA pattern should I choose for my 37 inch TV?

Measure the horizontal and vertical hole spacing on the back of your TV; this bracket supports 75x75, 100x100, 200x100 and 200x200 mm patterns.
