Black steel articulating TV wall mount with multi-joint arms folded flat against the wall plate

VideoSecu

VideoSecu ML510B-A5 Full Motion TV Wall Mount B65

SKU CH-AT1K-0P2GD

Full-motion bracket tilts 15°, swivels 180° and extends 14″ for screens up to 40″ and 44 lbs

  • NameFull Motion TV Wall Mount
  • Mount StyleArticulating/Full Motion
  • ColorBlack
  • MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
  • TV Size Capacity< 40"
  • TV Weight Capacity44lbs/20kg
  • Full motion articulation gives 180° swivel plus 15° tilt for flexible viewing angles
  • Extends up to 14 inches from the wall and retracts to 2 inches for low-profile storage
  • Supports TVs up to 44 lbs with VESA patterns 75×75, 100×100, 200×100 and 200×200 mm
  • Post-installation level adjustment lets you fine-tune screen alignment after mounting
  • Durable high-gauge steel with black powder-coat finish and nesting arm design for strength and neat folding

VideoSecu ML510B-A5 full-motion mount

The VideoSecu ML510B-A5 is a black articulating wall bracket built for flat-panel displays up to 40 inches and 44 lbs. It suits living rooms, bedrooms or offices where the viewer wants to pull the screen out, swivel it side to side or tilt it for glare reduction. The mount accepts VESA patterns 75×75, 100×100, 200×100 and 200×200 mm.

Extension and articulation limits

The arm extends up to 14 inches from the wall and retracts to a 2-inch profile when folded flat. Swivel reaches 180 degrees left to right, while tilt provides 15 degrees up or down. Heavier panels near the 44 lb limit may reduce smoothness at full extension, and the single-stud anchor point caps the practical load below the rated maximum.

Installation notes and common issues

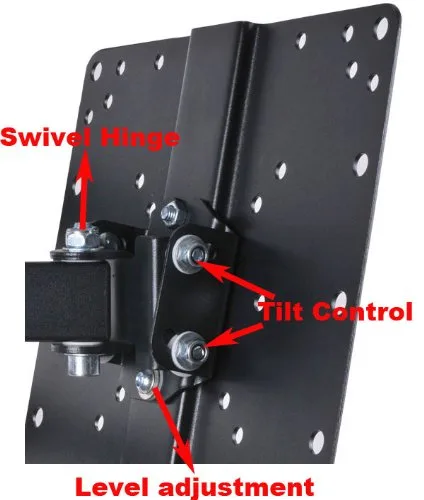

A removable TV plate lets you attach the display before hanging the arm on the wall bracket. Post-installation level adjustment corrects minor drilling errors without remounting. The kit requires a single wood stud or solid masonry; drywall-only fixes will fail. Cable routing is not integrated, so plan wire management before final tightening.

Highlights

  • Full motion articulation gives 180° swivel plus 15° tilt for flexible viewing angles
  • Extends up to 14 inches from the wall and retracts to 2 inches for low-profile storage
  • Supports TVs up to 44 lbs with VESA patterns 75×75, 100×100, 200×100 and 200×200 mm
  • Post-installation level adjustment lets you fine-tune screen alignment after mounting
  • Durable high-gauge steel with black powder-coat finish and nesting arm design for strength and neat folding

Specifications

BrandVideoSecu
ModelML510B-A5
NameFull Motion TV Wall Mount
Mount StyleArticulating/Full Motion
ColorBlack
MovableTilt +/- 15º, Swivel 180º, Extends up to 14"
TV Size Capacity< 40"
TV Weight Capacity44lbs/20kg
VESA Compatible75x75, 100x100, 200x100, 200x200mm
Feature*Durable high-gauge steel construction with black powder coated finish *Post-installation level adjustment allows the TV to perfectly level *Nesting arm design allows display to be folded parallel to wall *Single stud mounting for quick and easy installation *Tilt +/- 15º, Swivel 180º, Extends up to 14", Depth 2"

Questions about this item

Which VESA pattern should I pick for my TV?

Check the back of your TV for the mounting hole spacing — this bracket supports 75x75, 100x100, 200x100 and 200x200mm patterns, so match the one your display uses.

What does the 44lbs weight rating mean when the mount is fully extended?

The 44lbs/20kg limit applies at any extension up to 14 inches; the steel arms and single-stud design are rated to hold that load throughout the full range of motion.

How far from the wall does the 180-degree swivel actually reach?

The arm extends up to 14 inches from the wall, letting you pull the TV out and swivel it 180 degrees side-to-side for corner or wide-angle viewing.
