Black steel tilt TV wall mount with dual arms and wall plate

VideoSecu

VideoSecu MF608B-A20 Tilt TV Wall Mount 32-70" 165lbs

SKU CH-JWY2-8M1JM

Tilt wall bracket holds 32 to 70 inch screens up to 165 lbs with tool-free ±15° adjustment and VESA patterns from 200x100 to 600x400 mm

  • NameTilt TV Wall Mount
  • Mount StyleMounting Bracket
  • ColorBlack
  • MovableOne touch tilting +/- 15º
  • TV Size Capacity< 70"
  • TV Weight CapacityMax. load 165 lbs.
  • One-touch tilt up to 15 degrees for glare-free viewing
  • Holds screens up to 70 inches and 165 lbs
  • Fits VESA patterns from 200x100mm to 600x400mm
  • 13-gauge dual steel frames with powder-coated finish
  • Includes 10ft HDMI cable and magnetic bubble level

Ideal for 32 to 70 inch flat panels

This tilt wall mount fits most 32 to 65 inch LCD, LED and plasma screens and some LED models up to 70 inch. Heavy duty dual steel frames constructed from 13 gauge steel support a maximum load of 165 lbs. One touch tilting adjusts the screen plus or minus 15 degrees without tools for a comfortable viewing angle. A lift and lock design secures the television in place for added safety.

VESA patterns from 200x100mm to 600x400mm

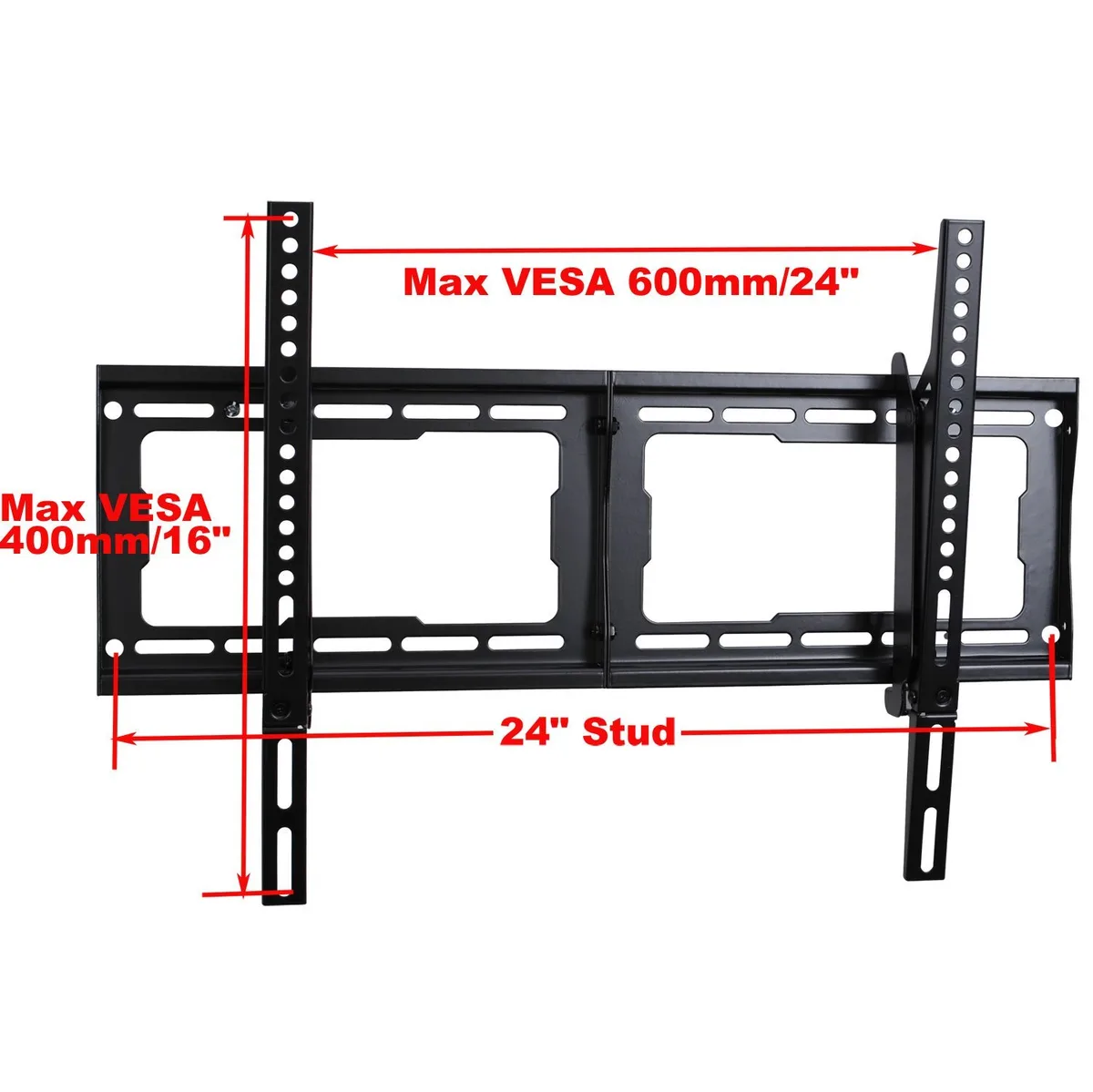

The bracket accepts VESA hole patterns ranging from 200x100mm through 600x400mm, including common sizes such as 200x200mm, 300x300mm, 400x400mm and 600x300mm. Any pattern within 200 to 600mm wide and 100 to 400mm high will mount. Large cable access ports in the wall plate keep cords organised behind the screen. Horizontal rails allow the display to slide sideways for precise centring.

Check your TV weight, VESA and wall type

Verify that your screen weighs no more than 165 lbs and its mounting holes fall within the supported VESA range before ordering. The mount requires solid wood studs, concrete or masonry for safe installation; drywall alone is not sufficient. Ensure the chosen wall location provides enough clearance for the tilt movement and cable routing. Assembly is required and a 10ft HDMI cable plus a 6 inch magnetic bubble level are included.

Highlights

  • One-touch tilt up to 15 degrees for glare-free viewing
  • Holds screens up to 70 inches and 165 lbs
  • Fits VESA patterns from 200x100mm to 600x400mm
  • 13-gauge dual steel frames with powder-coated finish
  • Includes 10ft HDMI cable and magnetic bubble level

Specifications

BrandVideoSecu
ModelMF608B-A20
NameTilt TV Wall Mount
Mount StyleMounting Bracket
ColorBlack
MovableOne touch tilting +/- 15º
TV Size Capacity< 70"
TV Weight CapacityMax. load 165 lbs.
VESA Compatible600x400 /600x300 /500x300 /400x400 /400x300 /400x200 /300x300 /300x200 /200x200 /200x100mm or any holes patterns within 200-600mm wide and 100-400mm high

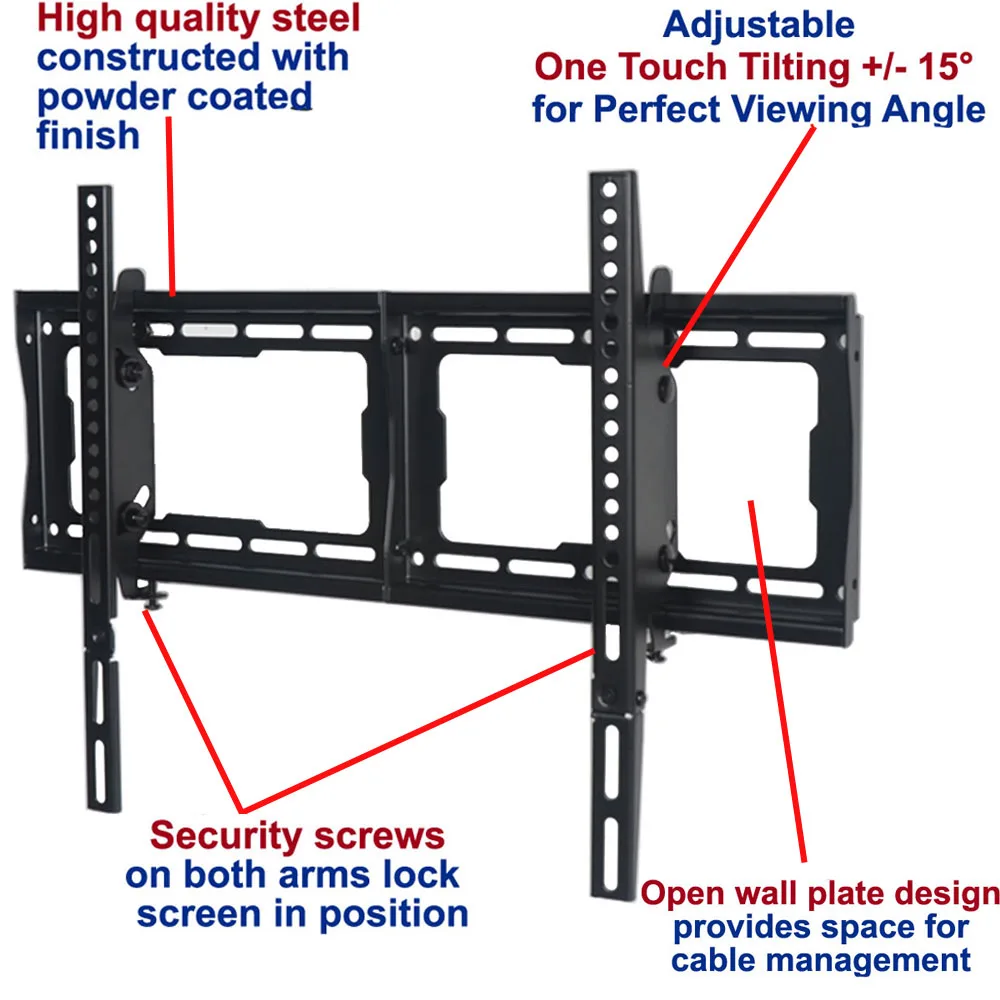

FeatureAdjustable one touch tilting for perfect viewing angle without the use of tools • Premium quality- constructed with 13 gauges strong and high quality dual steel frames, with durable black powder-coated finish • Free HDMI cable, and 6" 3-axis magnetic bubble level for accurate and easy installation

Questions about this item

Does the MF608B-A20 fit my 55-inch TV?

Yes, the mount supports most 32-65 inch TVs and some LED models up to 70 inches, provided the VESA pattern falls between 200x100mm and 600x400mm and the weight does not exceed 165 lbs.

What does the 165 lbs capacity mean when the TV is tilted?

The 165 lbs rating is the maximum load the dual 13-gauge steel frames can hold at any tilt angle within the +/-15° range; the lift-and-lock mechanism keeps the TV secured in the chosen position.

Which VESA patterns are covered and what is the practical limit?

The wall plate accepts any hole pattern from 200x100mm up to 600x400mm, so the practical limit is a 600 mm wide by 400 mm high rectangle.
