Silver aluminium-frame CNC router kit on bakelite base, spindle mounted vertically, manual axis knobs visible

VEVOR

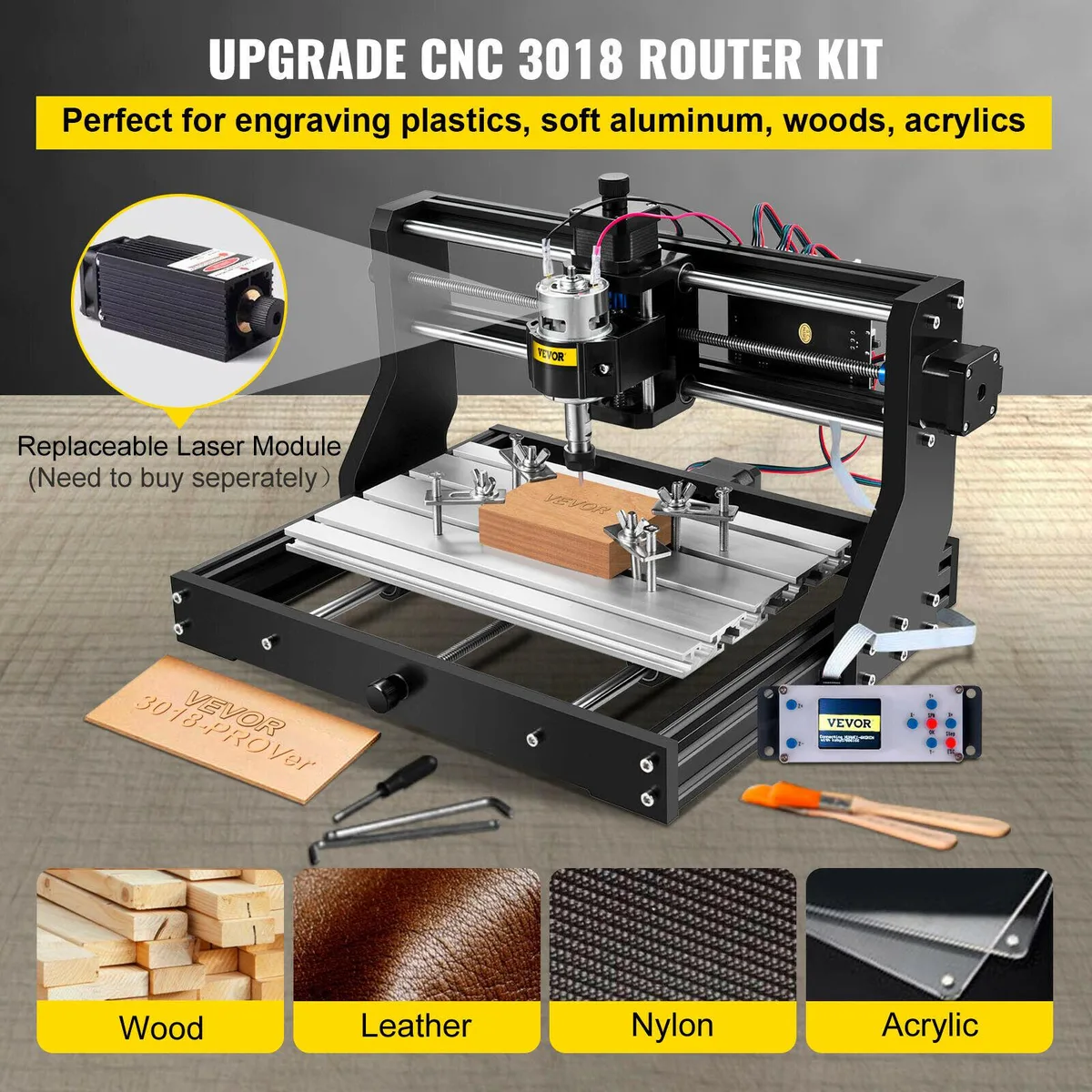

VEVOR VG-S3018 CNC 3018 PRO Router Kit 10000rpm

SKU CH-BWW9-8AZ5Z MPN VG-S3018

Desktop CNC router kit with a 300 × 180 × 45 mm work area, 10 000 rpm spindle and GRBL offline control

  • 300 × 180 × 45 mm engraving area for larger projects
  • 10000 rpm 775 spindle motor cuts plastics and soft aluminium
  • GRBL USB control board enables computer-driven precision
  • Aluminium profile and Bakelite frame give 0.08 mm positioning accuracy
  • Manual axis knobs and offline control simplify setup and operation

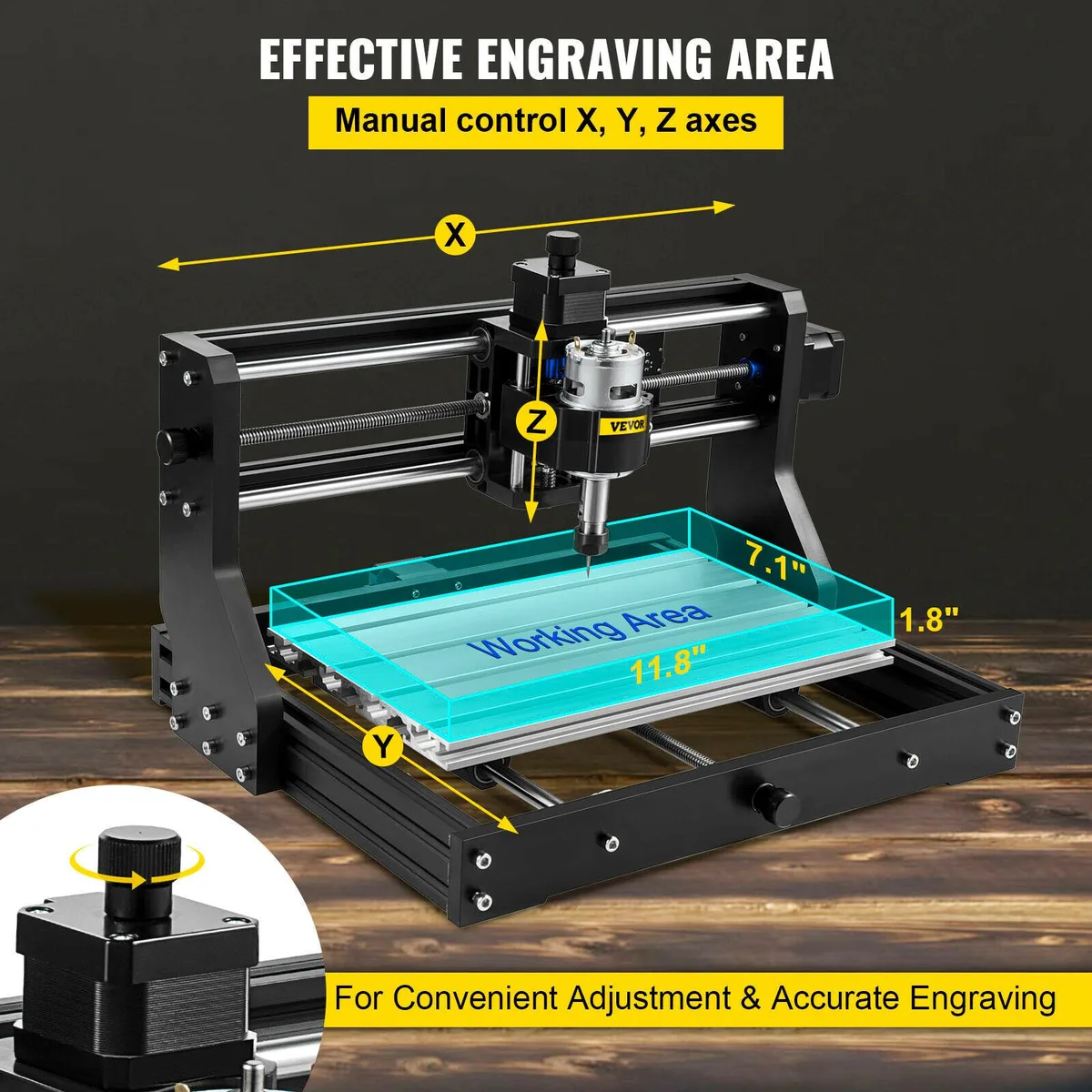

300 × 180 × 45 mm engraving area

The VEVOR VG-S3018 CNC 3018 PRO Router Kit offers a 11.8 × 7.1 × 1.8 inch effective engraving area for plastics, soft aluminium, acrylics, PVC and PCB work. Three stepper motors drive each axis with 0.25 N·m torque for smooth movement. The 775 DC spindle reaches 10000 rpm for precise material removal. GRBL control software runs on the included board for offline or USB-connected operation.

Aluminium alloy and Bakelite frame

Constructed from aluminium profile and Bakelite, the machine provides a rigid structure that resists vibration during long jobs. Stainless steel screw rods with double copper nuts reduce backlash and improve positional repeatability. Manual axis knobs allow quick tool setting without software commands. A 24 V 5 A DC input powers the spindle and control electronics through a single supply.

0.08 mm positioning accuracy

The control board delivers 0.08 mm (0.003 inch) positioning accuracy, the key figure that determines whether fine detail work is achievable. This tolerance suits engraving, light milling and PCB isolation routing within the stated work envelope. Buyers needing tighter tolerances or larger Z-axis travel for deeper cuts should consider other machines.

Highlights

  • 300 × 180 × 45 mm engraving area for larger projects
  • 10000 rpm 775 spindle motor cuts plastics and soft aluminium
  • GRBL USB control board enables computer-driven precision
  • Aluminium profile and Bakelite frame give 0.08 mm positioning accuracy
  • Manual axis knobs and offline control simplify setup and operation

Specifications

No published specifications for this item yet.

Questions about this item

How does the USB GRBL control board limit data transfer in practice?

The USB link to the GRBL board streams G-code from the computer; throughput is bounded by the 10000 rpm spindle and 0.08 mm positioning accuracy, so complex toolpaths run at the machine's mechanical ceiling rather than the bus speed.

What bench space and clearance does the 17.7 x 14.4 x 10.9 inch frame need to fit and mount?

The assembled unit occupies 17.7 by 14.4 inches footprint and stands 10.9 inches tall; allow extra room on all sides for the manual axis knobs, cable routing to the 24 V 5 A supply, and workpiece clamping within the 11.8 x 7.1 inch travel.

How is the kit assembled, and which step do builders most often get wrong?

Follow the included manual and video to mount the three stepper motors, stainless steel lead screws with double copper nuts, and 775 DC spindle on the aluminum profile frame; the common error is skipping the grub-screw alignment on the coupler between motor and lead screw, which causes lost steps.
