Black steel under-dash creeper, 40 inches long, padded cushion, six height positions, four casters

VEVOR

VEVOR Under Dash Creeper 40 in 330 lbs 6 Height Adjustable

SKU CH-BW8C-E9ZRS

Elevated single-side support creeper reaches under dashboards, adjusts 20.3 to 27.4 inches in six positions and holds 330 lbs on a 40-inch carbon-steel frame

  • TypeOther Appliances
  • Width4.29
  • Elevated single-side frame clears dashboards for comfortable under-dash access
  • Six pin-hole positions adjust cushion height from 20.3 to 27.4 inches for different vehicles
  • Carbon steel construction rated for 330 lbs load capacity with welded joints
  • 40-inch padded platform supports full back length during extended repairs
  • Folds flat to 11 lbs for compact storage and easy transport

Under-Dash Creeper, 40 in

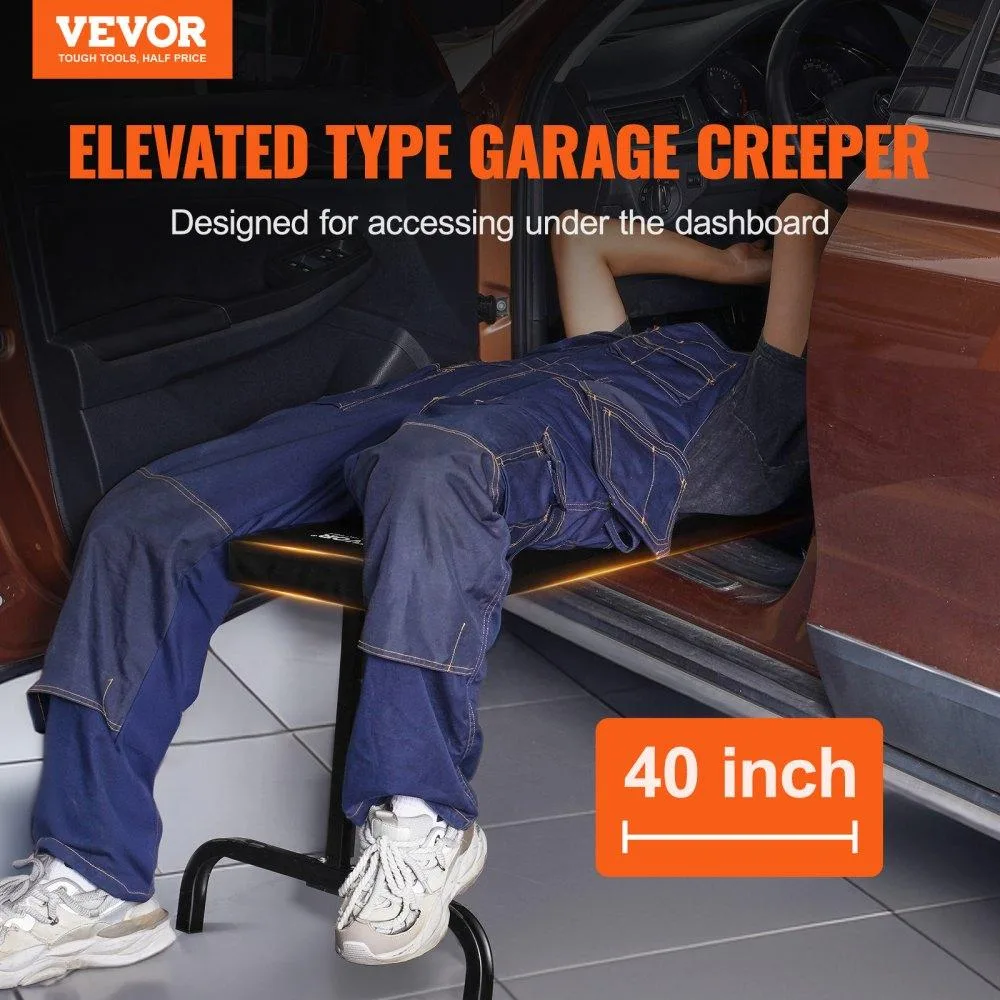

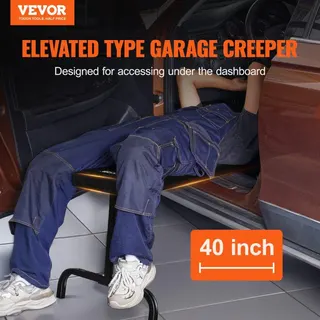

This mechanic creeper is built for working under the dashboard or steering wheel of cars and SUVs. Its elevated single-side support holds the full length of the back while avoiding lower-back pressure. The 40-inch frame fits a wide range of vehicle interiors.

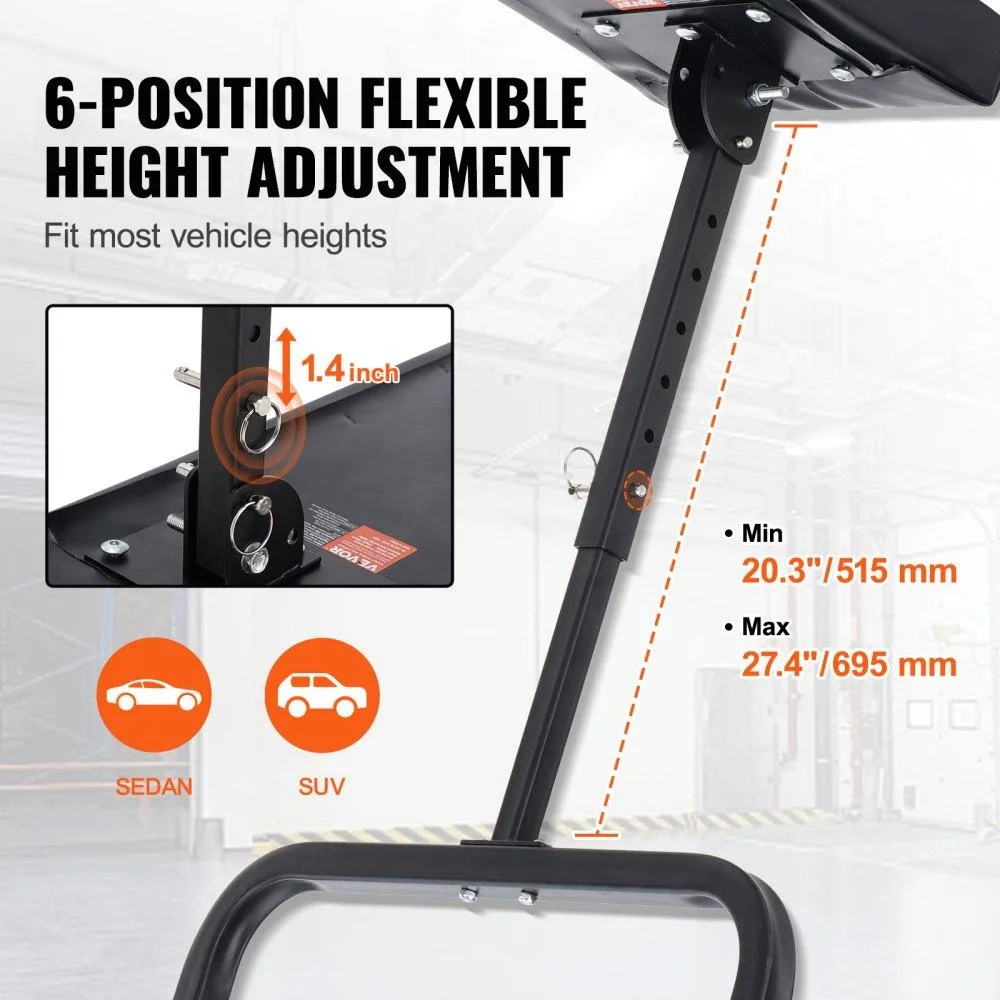

Single-Leg Frame with Six Height Settings

The unit uses a single-leg design with a regulating rod and adjusting seat made from square steel tubing. Six pin holes spaced 1.4 in apart let you set the cushion height between 20.3 in and 27.4 in without tools. The base and welded joints keep the platform stable on shop floors.

330 lbs Capacity on Q235B Steel

The carbon-steel construction carries up to 330 lbs of static or dynamic load without deformation. The seat cushion measures 39.0 x 10.4 in and the whole assembly weighs 11.0 lbs. Builders needing a traditional flat creeper or a wider seat profile will need a different style.

Highlights

  • Elevated single-side frame clears dashboards for comfortable under-dash access
  • Six pin-hole positions adjust cushion height from 20.3 to 27.4 inches for different vehicles
  • Carbon steel construction rated for 330 lbs load capacity with welded joints
  • 40-inch padded platform supports full back length during extended repairs
  • Folds flat to 11 lbs for compact storage and easy transport

Specifications

TypeOther Appliances
Width4.29

Questions about this item

How much weight can the 40 in under-dash creeper hold before the frame reaches its rated limit?

The Q235B steel frame is rated for 330 lbs (149.7 kg) of static and dynamic load without deformation.

Does the single-leg design stay stable and quiet when I lie on it all day in the shop?

Welded joints and a wide 0.98 in square-tube base prevent tipping, and there are no moving parts to generate noise during extended use.

What tools or parts do I need on hand before I can start using the creeper?

The package includes the reclining plate assembly, base, regulating lever, adjusting seat, four M6×20 bolts and a user manual — no extra components are required.
