Compact silver hydraulic pump with foot treadle, oil reservoir, and long reinforced hose

VEVOR

VEVOR TL-A5102 10000PSI 0.42Gal Air Hydraulic Pump

SKU CH-V2P2-HRYJJ

Foot-operated air hydraulic pump delivers up to 10,000 PSI with a factory-filled 0.42 gal reservoir and 6.56 ft steel-reinforced hose for heavy-duty pressing and lifting

  • TypeOther Appliances
  • Width9.06
  • Delivers up to 10000 PSI for heavy-duty pressing and lifting
  • Factory-filled 0.42 gal reservoir lets you start work immediately
  • 56 ft steel-wire reinforced hose handles 125 MPa without leaks
  • Foot-operated treadle gives hands-free hydraulic control
  • Compact 10.31 x 5.35 x 7.32 in frame fits tight workspaces

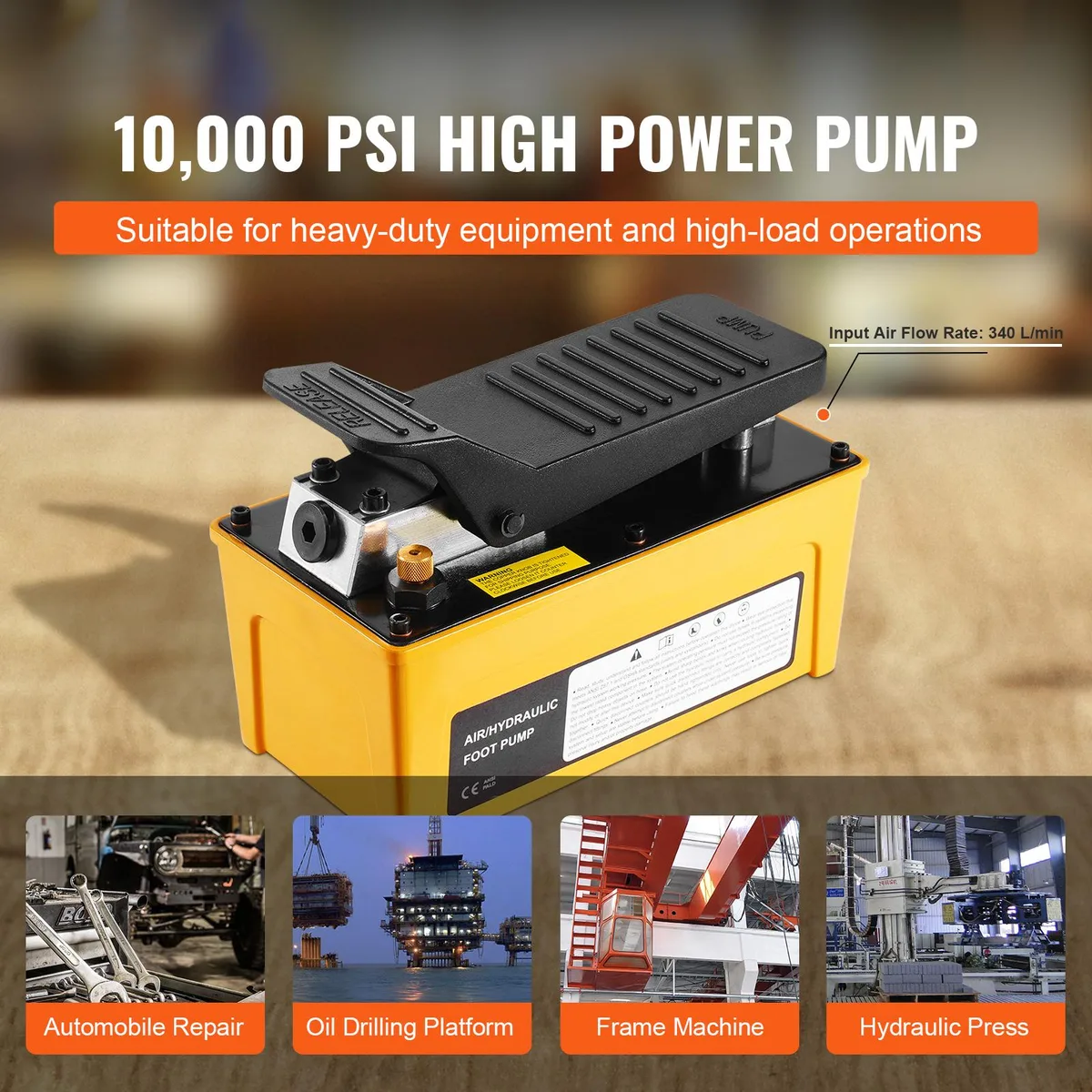

10000 PSI Air Hydraulic Pump

The VEVOR TL-A5102 is an air-actuated foot pump that delivers up to 10000 PSI hydraulic pressure for lifting, pressing, bending and cutting tasks. It runs on a shop air supply of 110 to 145 PSI and provides a no-load flow of 0.8 L/min and a loaded flow of 0.16 L/min. The aluminium shell houses a 1.6 L reservoir that comes factory-filled with #13 hydraulic oil.

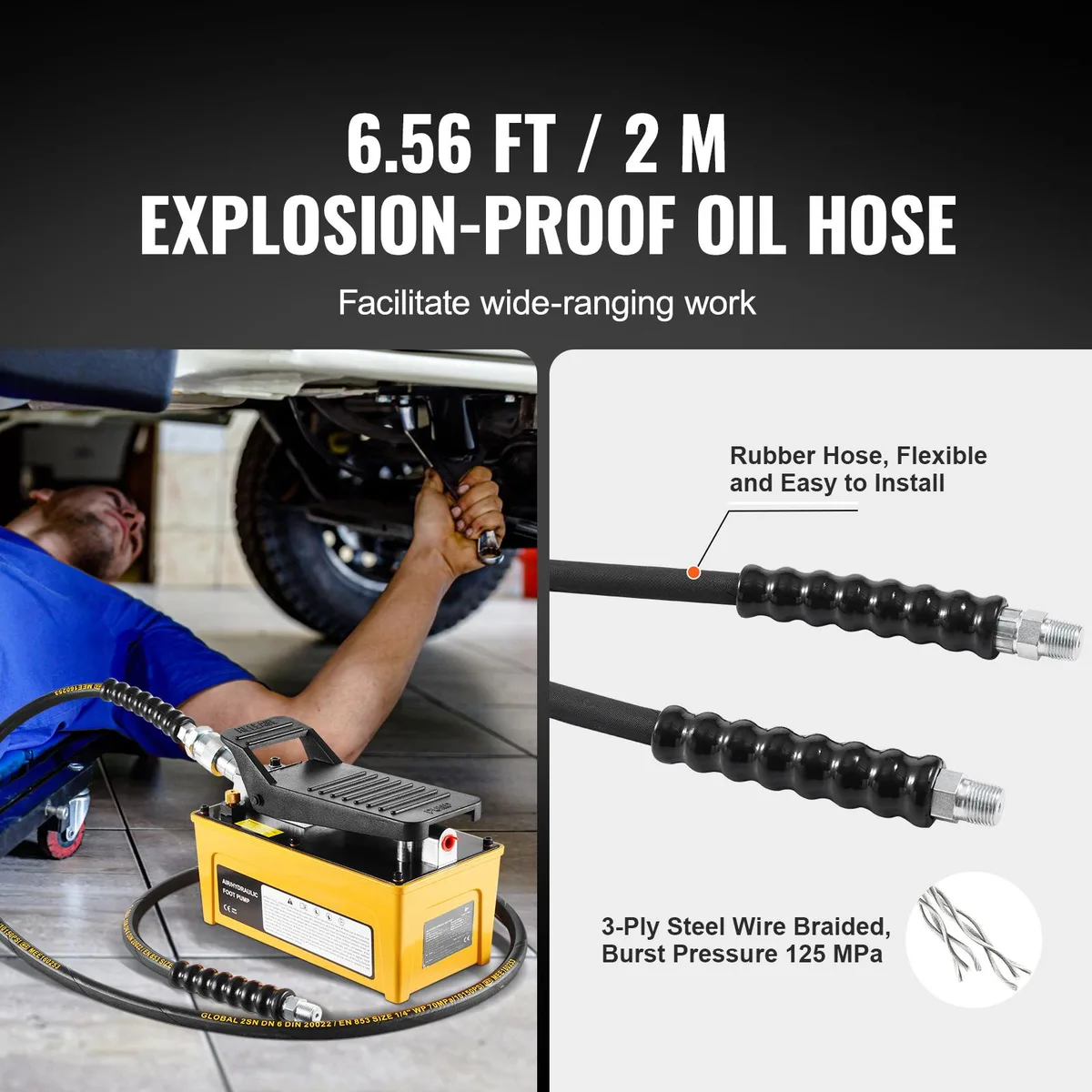

NPT 3/8 Outlet and 2 m Hose

This unit replaces hand pumps and smaller electric units when higher force and faster cycle times are required. The jump is worth it for shops that already run compressed air at 340 L/min and need a 125 MPa-rated steel-wire hose for remote operation. The NPT 3/8 in high-pressure outlet and included 6.56 ft hose allow flexible placement on frame machines or hydraulic presses.

Air Supply and Fitting Check

Before ordering, verify that your compressor can sustain 110 to 145 PSI input pressure at the required airflow. Confirm that the NPT 1/4 in air inlet and NPT 3/8 in oil outlet match your existing couplers or that you have the supplied hermaphrodite connector and cross-over sub for adaptation. Ensure bench space for the 262 x 136 x 186 mm footprint and 8 kg weight.

Highlights

  • Delivers up to 10000 PSI for heavy-duty pressing and lifting
  • Factory-filled 0.42 gal reservoir lets you start work immediately
  • 56 ft steel-wire reinforced hose handles 125 MPa without leaks
  • Foot-operated treadle gives hands-free hydraulic control
  • Compact 10.31 x 5.35 x 7.32 in frame fits tight workspaces

Specifications

TypeOther Appliances
Width9.06

Questions about this item

What are the exact inlet and outlet thread sizes on the TL-A5102 pump?

The pump has an NPT 1/4 in air inlet and an NPT 3/8 in high-pressure oil outlet for direct connection to your air supply and hydraulic tool.

How do I connect the air supply and prime the pump before first use?

Attach the supplied hermaphrodite connector and crossover sub to the NPT 1/4 in inlet using the Teflon tape, connect to a 110–145 PSI air line, then operate the treadle to bleed air from the 2 m hose before applying load.

When should I change the hydraulic oil and what capacity does the reservoir hold?

The 1.6 L reservoir is factory-filled; replace the oil when it appears contaminated or after extended heavy use, refilling to the same 0.42 gal level with compatible hydraulic fluid.
