Grey metal enclosure with two outlet covers and full front door, IP54 rated

VEVOR

VEVOR Temporary Power Outlet Panel 20 50 Amp NEMA GFCI IP54

SKU CH-KYQM-HH0K8

Pre-wired IP54 weatherproof panel with NEMA 50 A and GFCI 20 A outlets for RV, EV and site power

  • TypeOther Appliances
  • Width9.84
  • Charge your EV or RV anywhere with NEMA 50 A and GFCI 20 A outlets
  • Pre-wired IP54 weatherproof box resists rain and dust on site or at camp
  • Heavy-duty iron enclosure operates from 0 to 40 °C and stores down to -20 °C
  • Generous wiring space with 5 AWG, 9 AWG and 13 AWG cables for flexible installation
  • Compact 250 x 190 x 140 mm panel weighs just 4.4 kg for easy transport

Temporary Power Outlet Panel

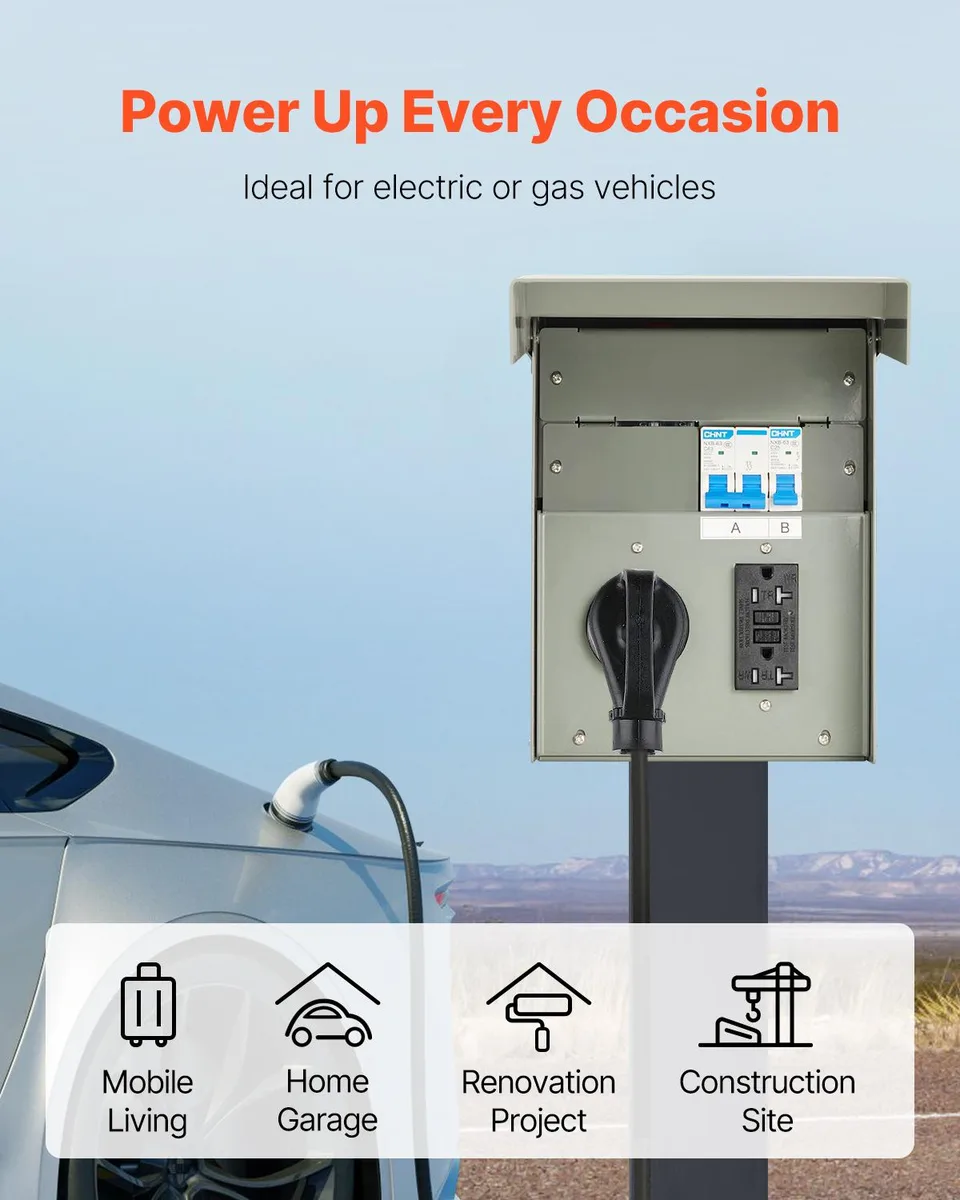

This VEVOR panel combines a NEMA 50 Amp outlet with a GFCI 20 Amp receptacle in a pre-wired IP54 weatherproof enclosure. It is built for electric-vehicle charging, RV hookups and temporary site power where a single robust unit must serve both high-current and standard loads.

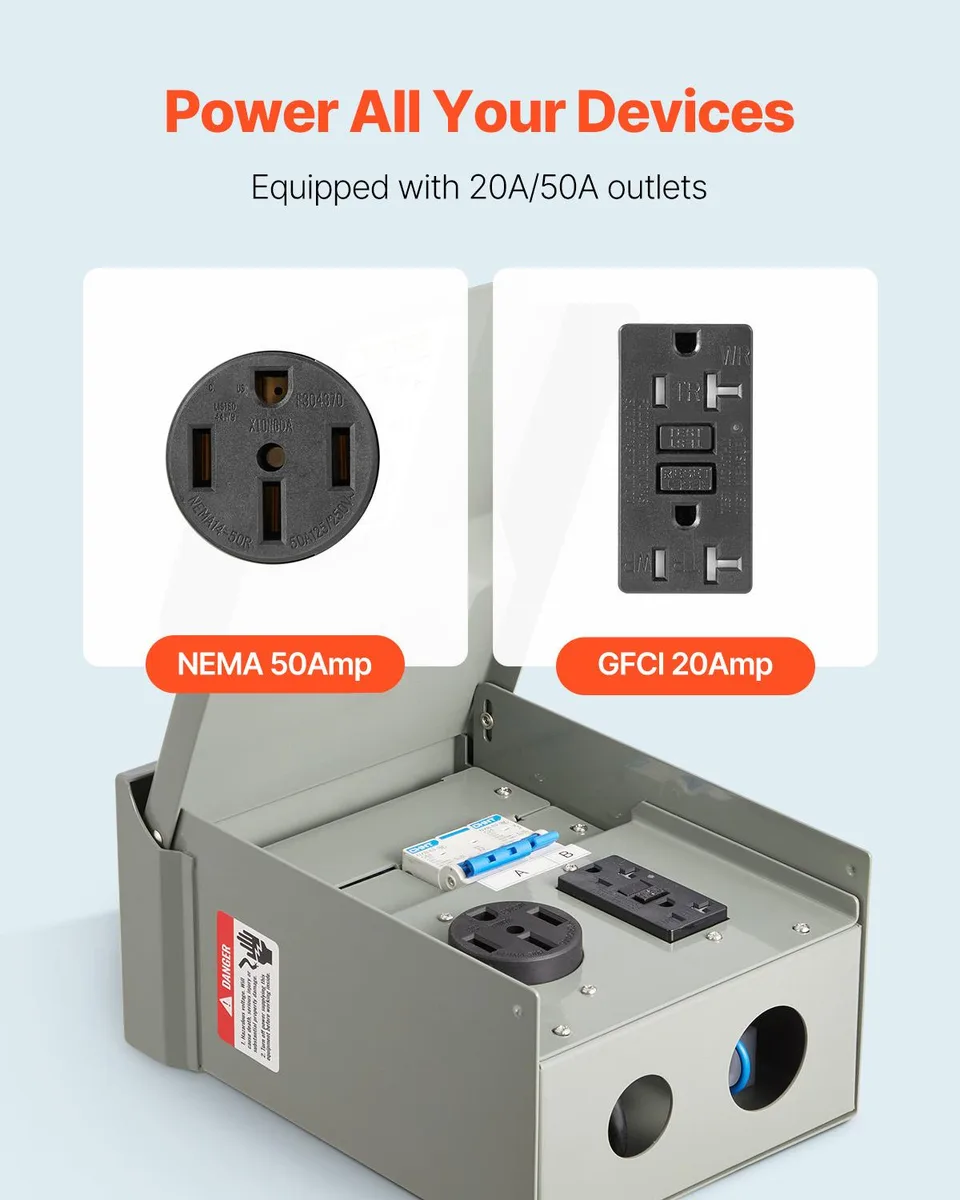

Interface limits: NEMA 50 Amp and GFCI 20 Amp

The panel supplies up to 50 amps through the NEMA outlet and 20 amps through the GFCI-protected socket. Cables are sized at 5 AWG, 9 AWG and 13 AWG to match those ratings. The IP54 rating protects against dust and splashing water, while the operating range of 0 to 40 degrees Celsius defines the ambient conditions for continuous use.

Capacity and headroom

The iron enclosure and copper conductors handle sustained loads at the rated currents without overheating. At 9.7 lbs the unit is portable enough for temporary deployment yet sturdy enough for repeated site moves. It runs out of capacity when a single load exceeds 50 amps or when combined draw trips the GFCI at 20 amps.

Highlights

  • Charge your EV or RV anywhere with NEMA 50 A and GFCI 20 A outlets
  • Pre-wired IP54 weatherproof box resists rain and dust on site or at camp
  • Heavy-duty iron enclosure operates from 0 to 40 °C and stores down to -20 °C
  • Generous wiring space with 5 AWG, 9 AWG and 13 AWG cables for flexible installation
  • Compact 250 x 190 x 140 mm panel weighs just 4.4 kg for easy transport

Specifications

TypeOther Appliances
Width9.84

Questions about this item

Should I pick the 50 A NEMA or the 20 A GFCI outlet for my RV?

The panel includes both a 50 A NEMA receptacle and a 20 A GFCI receptacle pre-wired in the same box, so you can use either depending on the cord you have.

What does the IP54 rating mean when the panel is mounted outside?

IP54 means the enclosure is protected against dust ingress and water splashing from any direction, suitable for outdoor use in rain.

What wire gauges are used for the 50 A and 20 A circuits?

The 50 A circuit uses 5 AWG (16 mm²) conductors, while the 20 A circuit uses 13 AWG (2.5 mm²) conductors inside the panel.
