Red hydraulic strut spring compressor on metal base with two adjustable clamps and vertical column

VEVOR

VEVOR Strut Spring Compressor 4.5 Ton Hydraulic 1 Ton Force

SKU CH-2PHF-C3MBG

A 4.5 ton hydraulic jack with 1 ton compression force compresses coil springs from 4.3 to 6.7 inches using two included clasps and a 12.6 inch stroke

  • TypeOther Appliances
  • Width10.43
  • 5 ton hydraulic capacity handles heavy vehicle springs
  • 1 ton rated compression force removes coils safely
  • Two clasp sizes cover 4.3 to 6.7 inch springs
  • 320 mm stroke with 8 positioning holes adjusts height
  • Stable suspension prevents bounce during compression

What this compressor is

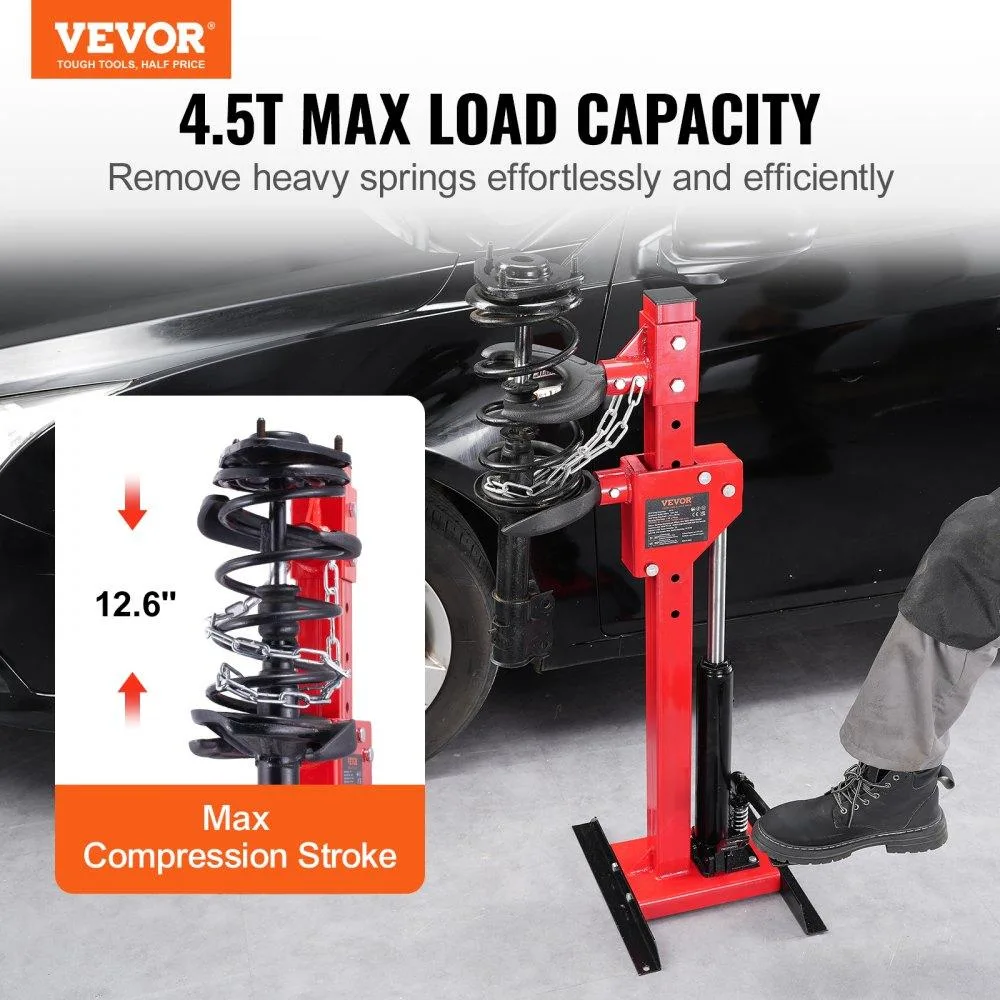

The VEVOR Strut Spring Compressor is a hydraulic tool rated at 4.5 ton jack capacity and 1 ton compression force for removing coil springs on sedans, SUVs, off-road vehicles and pickup trucks. It ships with two interchangeable clasps and a 12.6 inch maximum compression stroke to handle a range of spring heights. The unit weighs 57.3 lbs and measures 18.9 x 15.8 x 40.9 inches.

Clasp ranges and adjustment limits

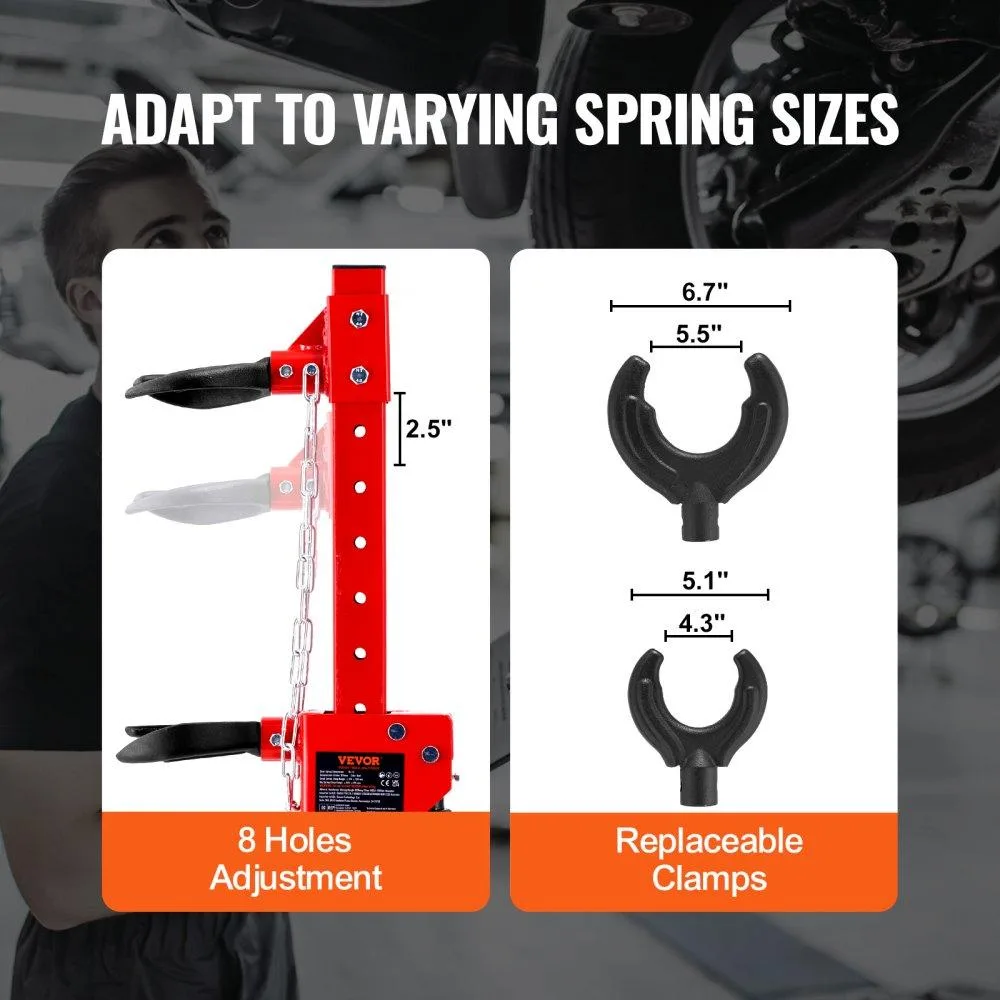

The small clasp fits springs from 4.3 to 5.1 inches while the big clasp covers 5.5 to 6.7 inches. Eight positioning holes on the column let you set the clasp height in discrete steps. A pressure release valve controls descent so the spring lowers slowly instead of bouncing under tension.

When to choose a different tool

This compressor does not suit springs smaller than 4.3 inches or larger than 6.7 inches in diameter. It also cannot compress springs that require more than 1 ton of force or exceed the 12.6 inch stroke. Workshops needing lighter weight or a smaller footprint for mobile service should look elsewhere.

Highlights

  • 5 ton hydraulic capacity handles heavy vehicle springs
  • 1 ton rated compression force removes coils safely
  • Two clasp sizes cover 4.3 to 6.7 inch springs
  • 320 mm stroke with 8 positioning holes adjusts height
  • Stable suspension prevents bounce during compression

Specifications

TypeOther Appliances
Width10.43

Questions about this item

Should I use the small clasp or the big clasp for my spring?

The small clasp fits springs from 4.3" to 5.1" and the big clasp fits 5.5" to 6.7". Measure your spring diameter and choose the matching range.

What does the 1 ton rated compression force mean when I am compressing a spring?

The tool applies up to 1000 kg of force to compress the coil, while the hydraulic jack itself supports a 4.5 ton load capacity for the assembly.

How does the hydraulic release valve control the compression speed?

The valve lets the ram descend slowly only when opened, and the column has 8 positioning holes with a 320 mm stroke to lock the clasp height.
