Rectangular gray-white steel enclosure with hinged door and lock, 25 x 20 x 15 cm

VEVOR

VEVOR SPT NEMA 4X IP66 Electrical Box 10 x 8 x 6'' Gray White RAL7035

SKU CH-RPA1-025DA

A 10 x 8 x 6 inch steel enclosure rated IP66 and NEMA 4X with a lockable hinged door and detachable galvanized mounting plate

  • TypeOther Appliances
  • IP66 and NEMA 4X rating protects equipment from water and dust ingress

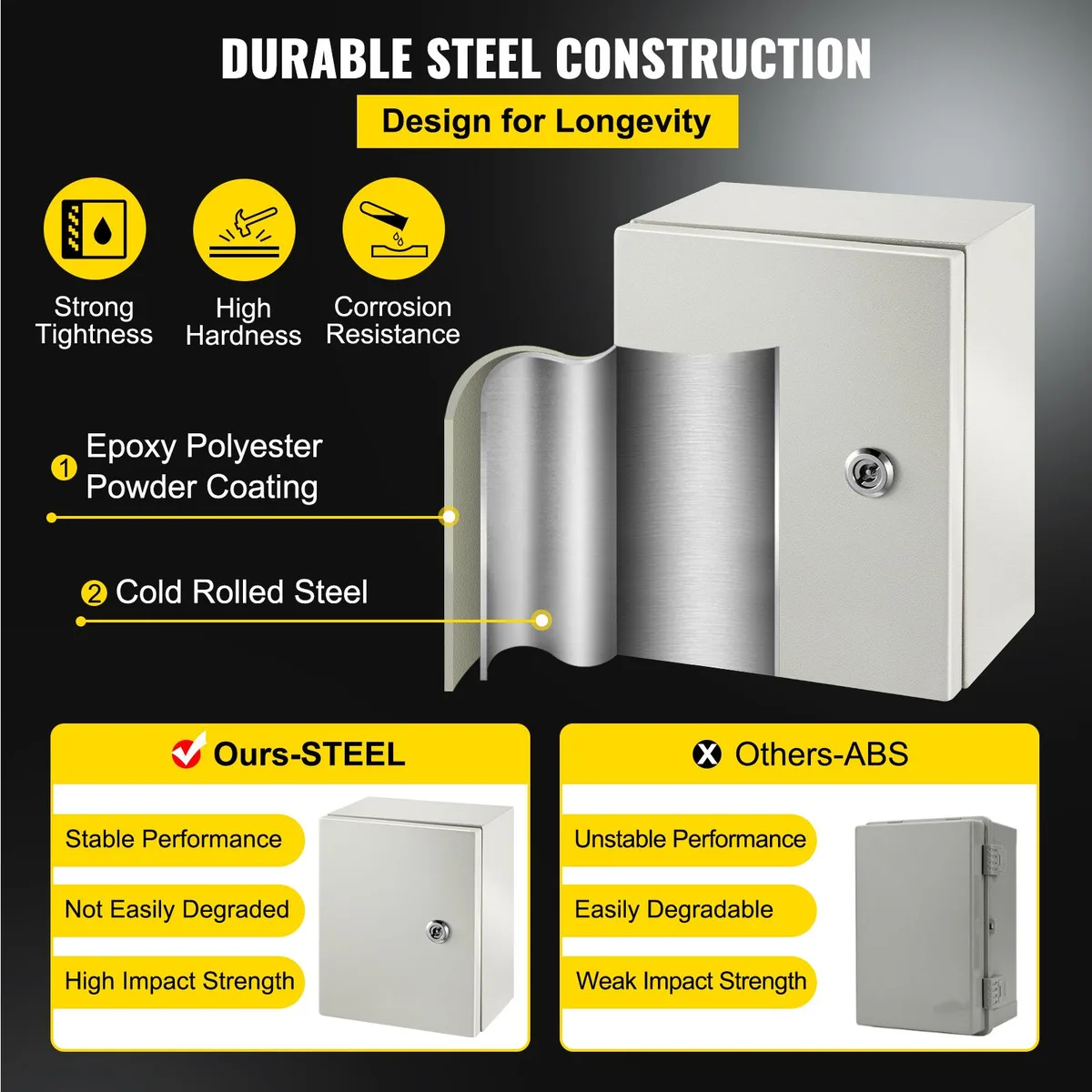

  • 5 mm cold-rolled steel body with epoxy polyester coating resists corrosion in harsh environments
  • Lockable hinged door with reinforced hinge prevents unauthorised access and withstands mechanical stress
  • Detachable 2 mm galvanised mounting plate simplifies component installation inside the enclosure
  • CE and RoHS certified, suitable for indoor and outdoor use across industrial and commercial sites

Industrial Electrical Enclosure

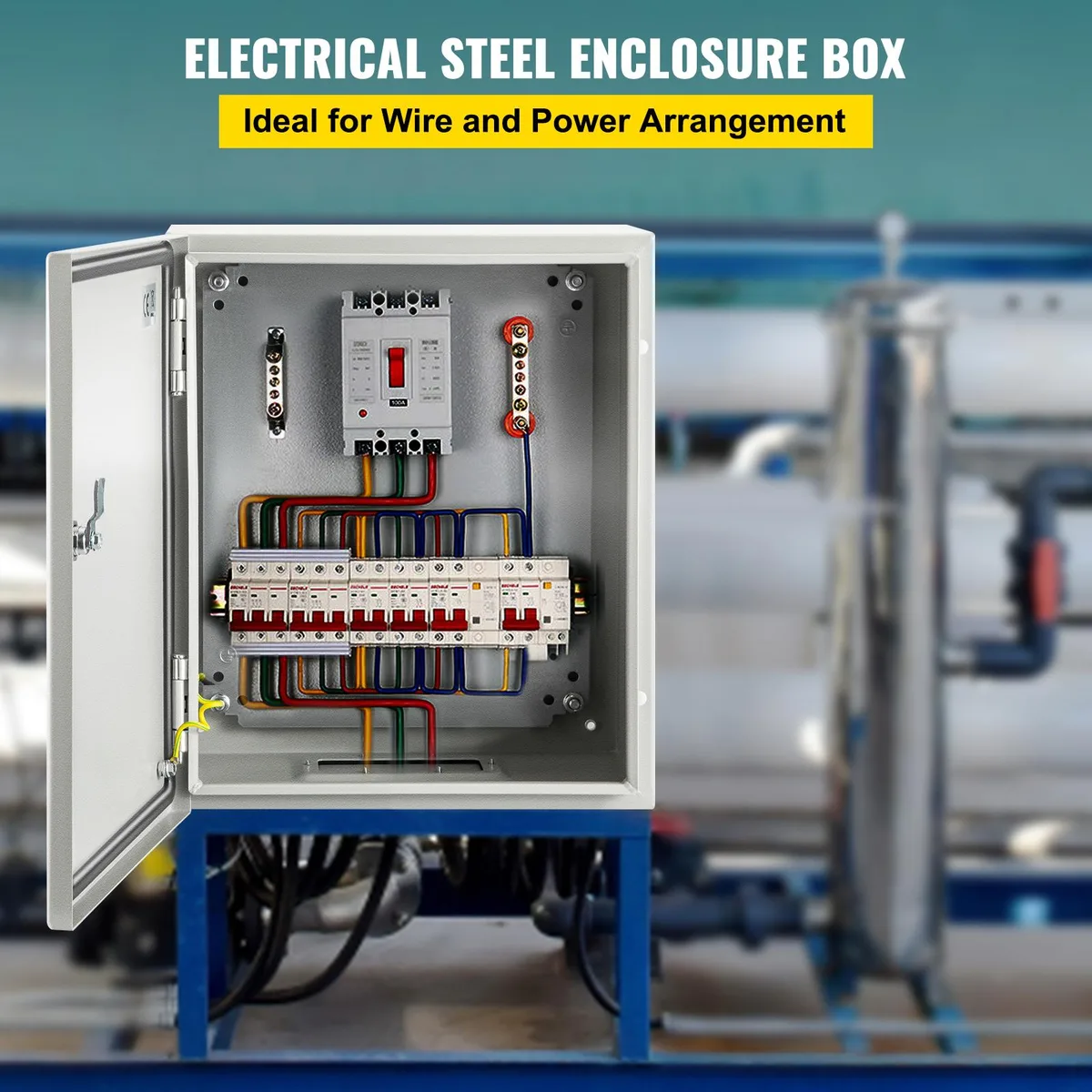

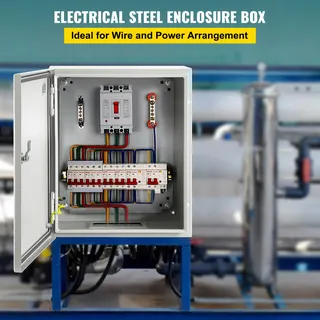

The VEVOR SPT is a wall-mountable steel enclosure rated NEMA 4X and IP66 for indoor or outdoor use. It suits installers who need a lockable cabinet to protect wiring, controls or instruments from water jets and dust in factories, construction sites or exposed residential areas.

IP66 and NEMA 4X Rating

The single specification that decides fit is the combined IP66 and NEMA 4X rating, meaning the foam-gasketed door withstands powerful water jets and prevents dust ingress. If the installation only requires splash protection or indoor dust cover, a lower-rated box would suffice.

Hinged Door with Mounting Plate

The 1.5 mm carbon-steel body carries a pre-fitted 2 mm galvanised backplate measuring 7.9 x 6 inches, so components can be wired on the bench before the assembly is hung on the supplied wall pendants. The only common issue is forgetting to reseat the foam sealing strip after opening the lockable hinged cover, which compromises the IP66 seal.

Highlights

  • IP66 and NEMA 4X rating protects equipment from water and dust ingress
  • 5 mm cold-rolled steel body with epoxy polyester coating resists corrosion in harsh environments
  • Lockable hinged door with reinforced hinge prevents unauthorised access and withstands mechanical stress
  • Detachable 2 mm galvanised mounting plate simplifies component installation inside the enclosure
  • CE and RoHS certified, suitable for indoor and outdoor use across industrial and commercial sites

Specifications

TypeOther Appliances

Questions about this item

How much usable depth does the 10 x 8 x 6 inch enclosure actually give me once the door and back-plate are fitted?

The inner cavity measures 9.7 x 7.8 x 4.6 inches, so you have 4.6 inches of clear depth for components behind the 2 mm galvanized back-plate.

What does the IP66 and NEMA 4X rating cap in real-world use?

The foam gasket and hinged lockable door are tested to block powerful water jets and wind-blown dust, making the box suitable for outdoor wash-down areas and indoor corrosive atmospheres.

What hardware do I need to mount the 9.48 lb steel box on a wall?

A set of wall-mounting pendants is included; you only supply the lag bolts or anchors appropriate for your wall material.
