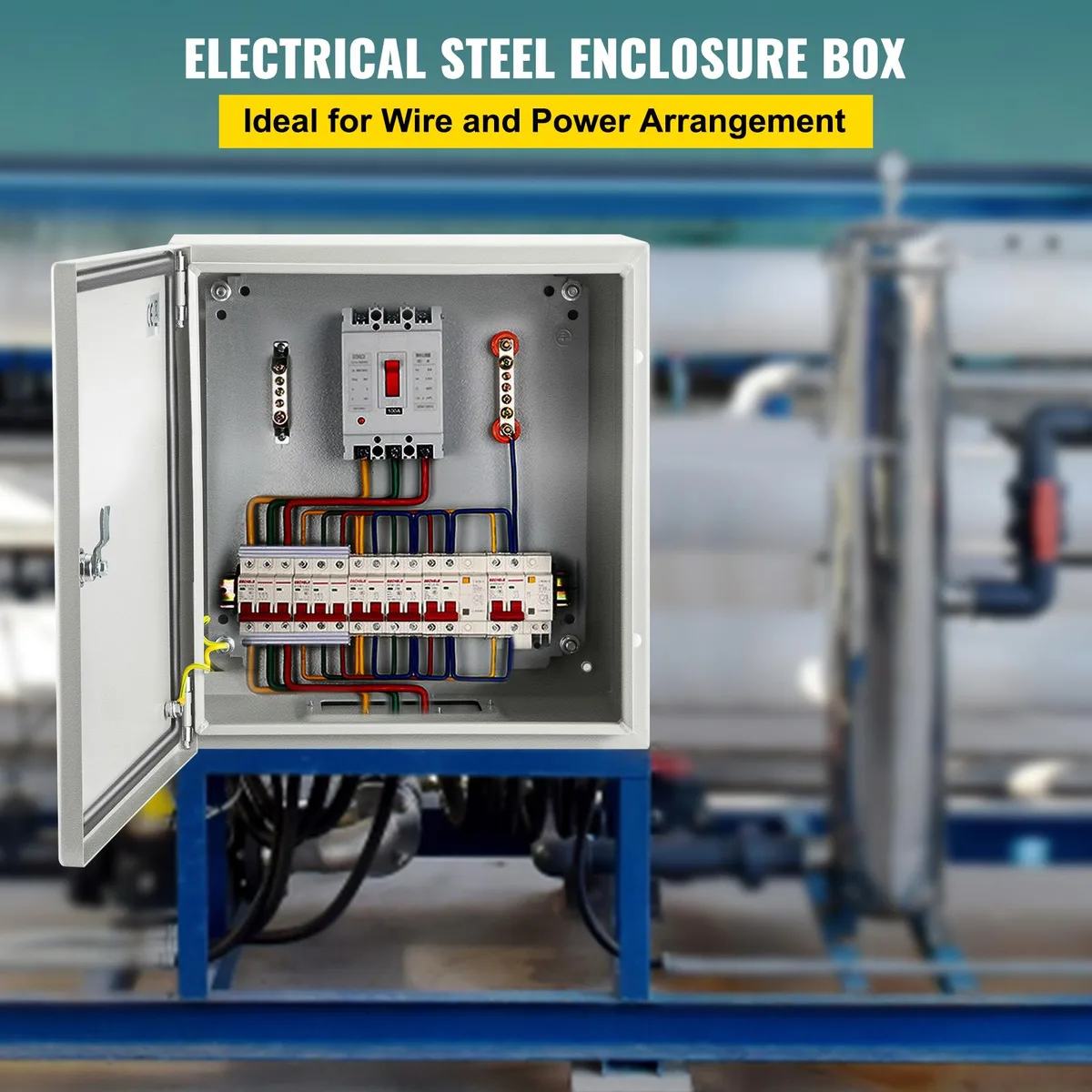

Gray-white steel electrical enclosure, hinged door with lock, 8 by 8 by 6 inches

VEVOR

VEVOR SPT 8x8x6" IP66 NEMA 4X Steel Electrical Box

SKU CH-M6WN-E06R7

IP66 and NEMA 4X rated steel enclosure with lockable hinged door and detachable galvanised backplate

  • TypeOther Appliances
  • IP66 and NEMA 4X rated enclosure keeps dust and water out of electrical connections
  • 5 mm cold-rolled steel body with epoxy-polyester powder coating resists corrosion in harsh environments
  • Detachable 2 mm galvanised backplate simplifies component mounting inside the box
  • Lockable hinged cover with reinforced hinge prevents unauthorised access and door damage
  • CE and RoHS certified, weighing 3.5 kg for secure indoor or outdoor installation

Sturdy Steel Electrical Enclosure

The VEVOR SPT enclosure is a cold-rolled steel box finished in epoxy polyester powder coating. It measures 20 x 20 x 15 cm externally and provides an inner cavity of 19.7 x 19.7 x 11.65 cm. The unit ships with a detachable galvanized backplate, wall-mounting pendants, a bottom sealing plate and two keys for the lockable hinged door.

Indoor and Outdoor Installations

This enclosure suits electricians and facility managers who need a wall-mounted junction box rated for both indoor and outdoor use. The IP66 and NEMA 4X ratings protect wired connections against dust and powerful water jets. Buyers requiring a non-metallic housing, a higher IP rating, or a different mounting style should consider other options.

IP66 and NEMA 4X Protection

The foam sealing strip and precision-welded body are designed to meet IP66 and NEMA 1, 2, 4, 4X and 12 specifications. This rating is the deciding factor for installations exposed to rain, hose-down cleaning or heavy dust. The lockable hinge and 1.5 mm steel construction add physical security to the environmental seal.

Highlights

  • IP66 and NEMA 4X rated enclosure keeps dust and water out of electrical connections
  • 5 mm cold-rolled steel body with epoxy-polyester powder coating resists corrosion in harsh environments
  • Detachable 2 mm galvanised backplate simplifies component mounting inside the box
  • Lockable hinged cover with reinforced hinge prevents unauthorised access and door damage
  • CE and RoHS certified, weighing 3.5 kg for secure indoor or outdoor installation

Specifications

TypeOther Appliances

Questions about this item

What size mounting plate is included for installing electrical components?

A detachable galvanized backplate measuring 6 inches by 6 inches (15 cm by 15 cm) and 2 mm thick is supplied and pre-assembled inside the enclosure.

Will the IP66 seal hold if I drill cable entries in the box walls?

The enclosure is designed to meet IP66 when intact; any field-drilled openings must be fitted with suitably rated glands or fittings to maintain the ingress protection level.

How can I verify the enclosure meets its IP66 and NEMA ratings after installation?

Check that the foam sealing strip sits evenly, the hinged cover closes fully, the lock engages securely, and the supplied bottom sealing plate is fitted; the unit carries CE and ROHS certification confirming compliance.
