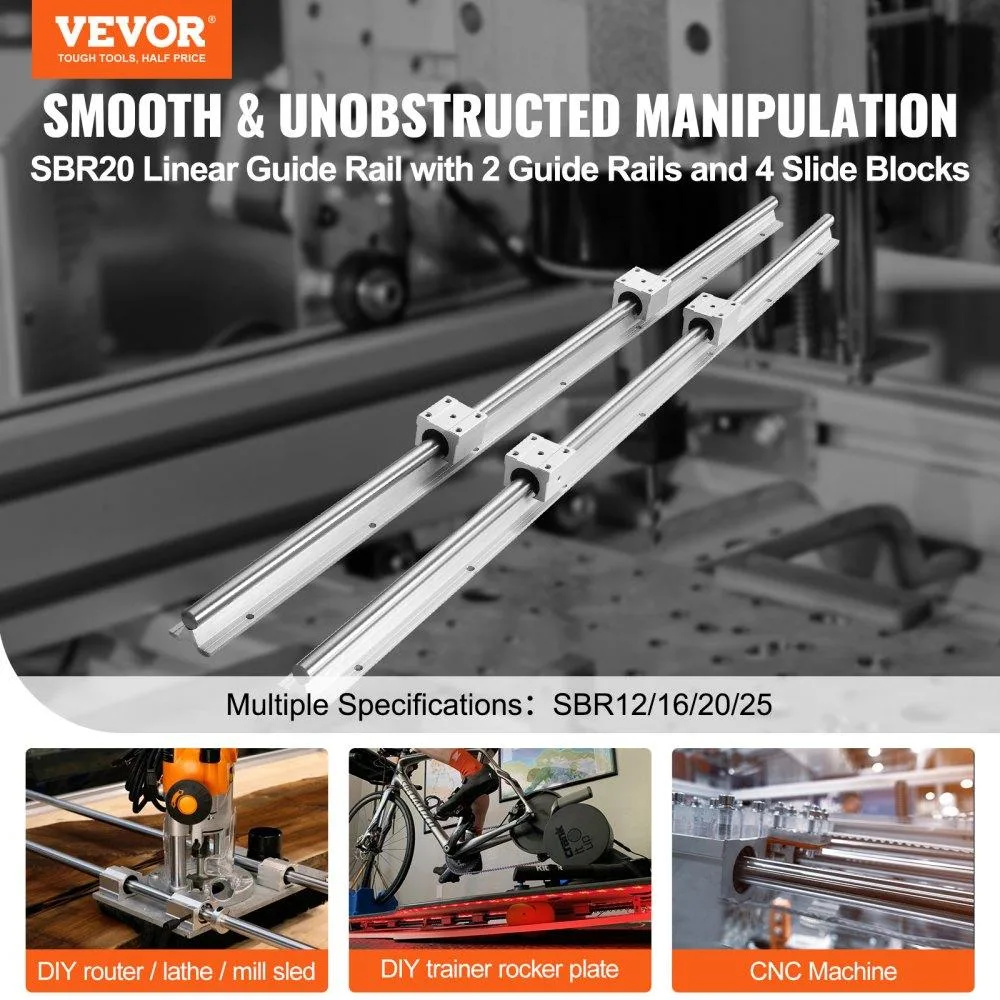

Two silver 1200 mm steel rails with four chrome slide blocks

VEVOR

VEVOR SBR20-C 1200mm Linear Guide Set 2 Rails 4 Blocks

SKU CH-0891-55K96

Two 1200 mm carbon-steel rails with four SBR20UU blocks deliver 882 N dynamic and 1370 N static load per block for precise CNC motion

  • TypeOther Appliances
  • Width5.91
  • Smooth motion with 882 N dynamic load per block
  • Rust-resistant chrome-plated carbon steel and aluminium construction
  • Low-friction ball bearings for quiet sliding
  • High precision from 35 mm mounting-hole spacing and straight shaft
  • Ready-to-install set includes two 1200 mm rails and four SBR20UU blocks

Linear Guide Set for CNC Builders

This SBR20-C kit supplies two 1200 mm supported rails and four SBR20UU slide blocks. It is aimed at hobbyists and small-shop engineers assembling CNC routers, 3D printers or linear automation rigs who need ready-to-mount motion components.

Four Pre-Fitted Blocks Remove Assembly Steps

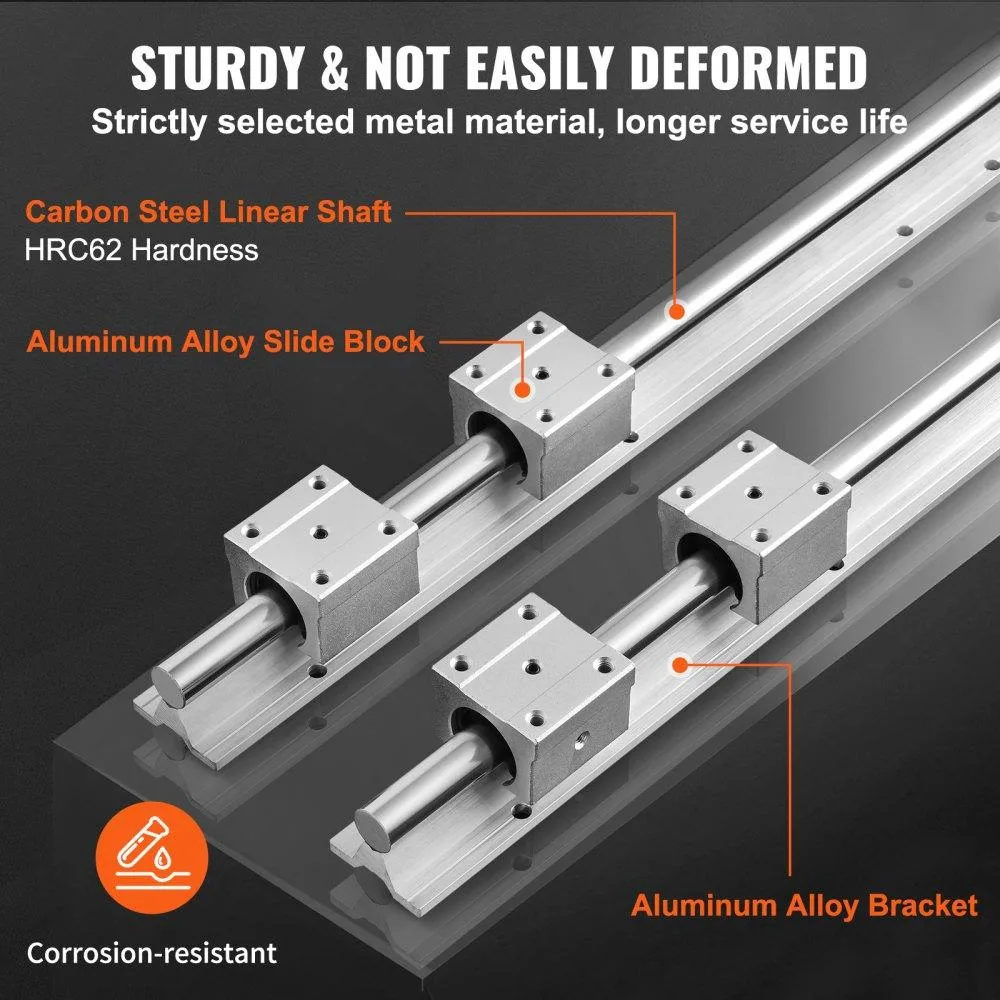

Each rail arrives with two blocks already installed, so there is no separate bearing press or alignment procedure. The chrome-plated carbon-steel shafts and aluminum blocks deliver 882 N dynamic and 1370 N static load per block for smooth, low-friction travel.

Rigid Aluminium Base Simplifies Mounting

The supported rail profile measures 90 mm wide by 36.3 mm high with mounting holes on a 35 mm pitch, letting you bolt the assembly directly to a machine frame without extra brackets. At 20.3 lbs the set stays stable under load while the corrosion-resistant finish withstands workshop conditions.

Highlights

  • Smooth motion with 882 N dynamic load per block
  • Rust-resistant chrome-plated carbon steel and aluminium construction
  • Low-friction ball bearings for quiet sliding
  • High precision from 35 mm mounting-hole spacing and straight shaft
  • Ready-to-install set includes two 1200 mm rails and four SBR20UU blocks

Specifications

TypeOther Appliances
Width5.91

Questions about this item

What upkeep do the four SBR20UU blocks need over time?

The carbon-steel shafts have a chrome-plated finish for rust resistance; periodically re-lubricate the ball bearings inside each SBR20UU block to maintain smooth, low-friction motion.

Which limit appears first when the 1200 mm rails run continuously under load?

Each SBR20UU block is rated for 882 N dynamic load and 1370 N static load; exceeding the dynamic figure will cause accelerated wear before the static capacity is reached.

How much noise and heat do the rails and blocks produce during all-day operation?

Aluminum blocks on chrome-plated carbon-steel shafts with built-in ball bearings give low-friction, quiet sliding; no active cooling is required and heat generation remains minimal.
