Two 1000 mm chrome-plated steel rails on aluminium supports with four rectangular slide blocks

VEVOR

VEVOR SBR16 Linear Guide Rail Set 1000mm 2 Rails 4 Blocks

SKU CH-59Y2-R9XZT

Two one-metre carbon-steel rails with four SBR16UU slide blocks deliver 774 N dynamic and 1180 N static load per block for CNC or automation builds

  • TypeOther Appliances
  • Width5.51
  • 1000 mm rails give long travel range for CNC and automation builds
  • 774 N dynamic and 1180 N static load per block handle heavy moving parts

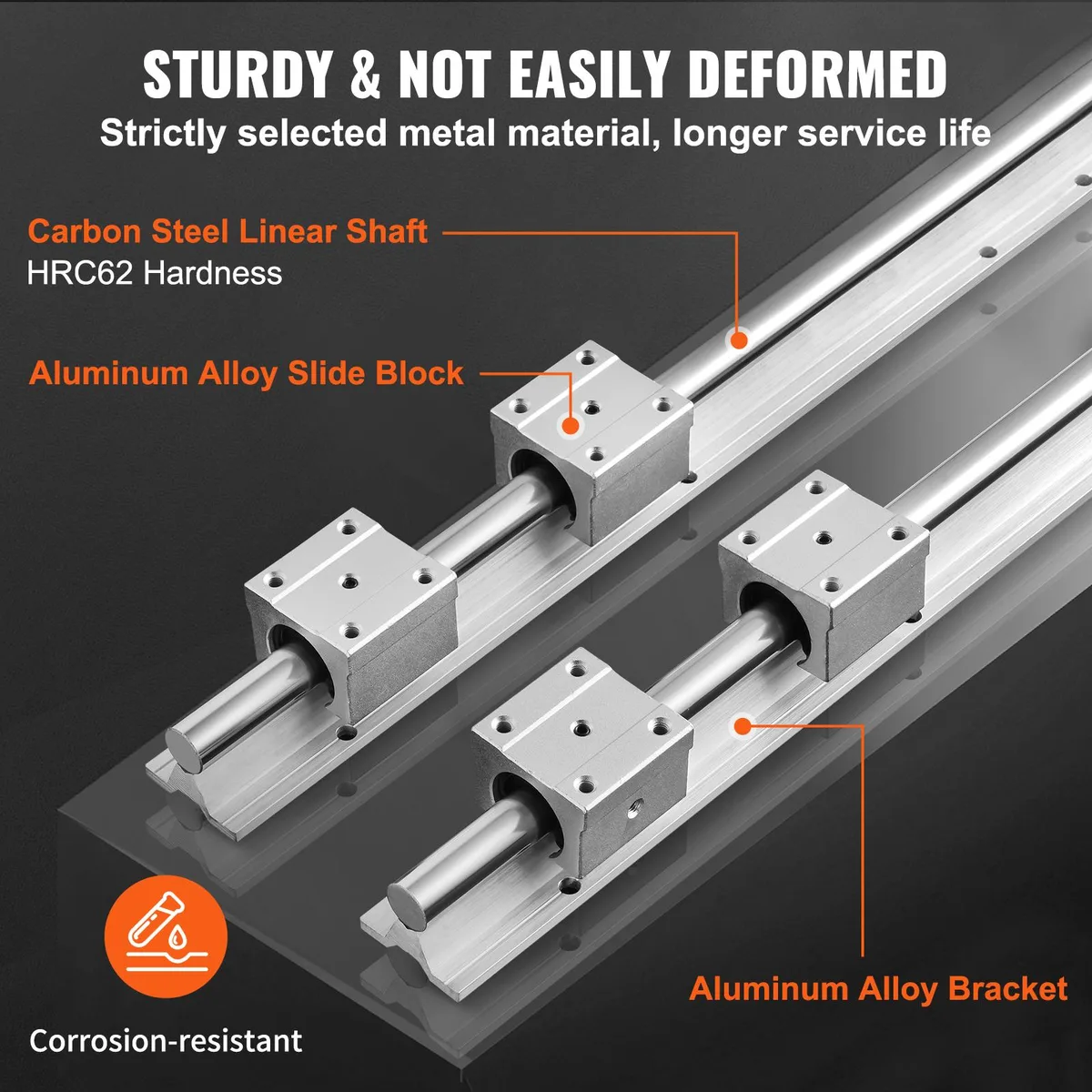

  • Chrome-plated carbon steel shafts and aluminum blocks resist rust and wear
  • Ball-bearing slides deliver low-friction, quiet motion
  • 32 mm and 30 mm mounting-hole spacing simplifies accurate installation

Linear Motion Kit for CNC and Automation

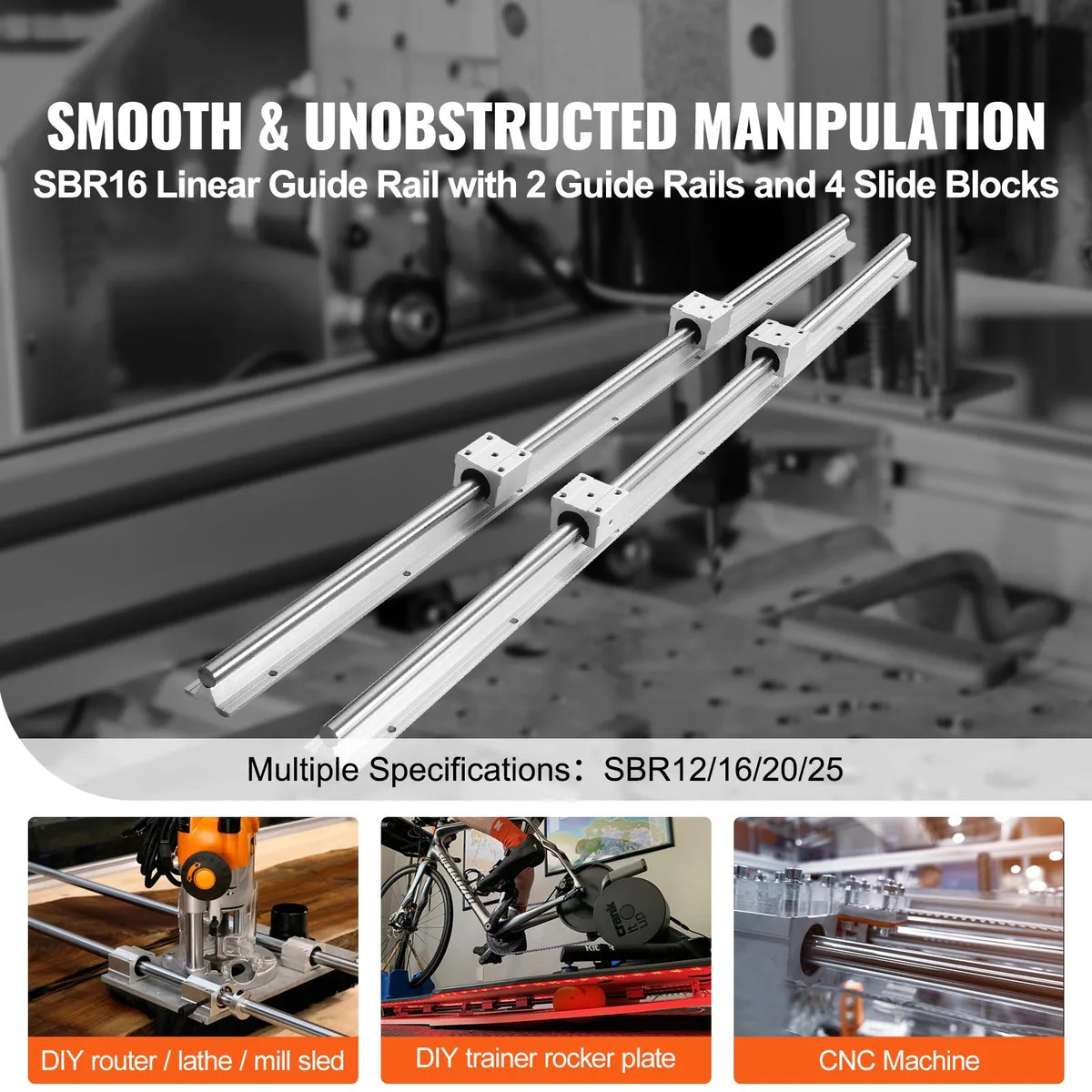

This VEVOR SBR16 set delivers two 1000 mm supported guide rails and four matching SBR16UU slide blocks for precise linear motion. It suits builders of CNC routers, 3D printers, laser cutters and other automated machines who need a ready-to-mount rail kit. The carbon-steel shafts and aluminium supports are chrome-plated for corrosion resistance in workshop environments.

16 mm Shaft Diameter with 774 N Dynamic Load

Each SBR16UU block carries a dynamic load of 774 N and a static load of 1180 N on the 16 mm hardened shafts. This load rating is the key figure for deciding whether the kit can handle the forces in your specific axis design without excessive deflection or premature wear.

Mounts on 30 mm and 32 mm Hole Patterns

The aluminium supports and blocks use mounting-hole spacings of 30 mm and 32 mm, so the frame or gantry must provide matching tapped holes or slots. The kit includes the rails, supports and blocks only; you supply the drive system, motor mounts and limit switches to complete the axis.

Highlights

  • 1000 mm rails give long travel range for CNC and automation builds
  • 774 N dynamic and 1180 N static load per block handle heavy moving parts
  • Chrome-plated carbon steel shafts and aluminum blocks resist rust and wear
  • Ball-bearing slides deliver low-friction, quiet motion
  • 32 mm and 30 mm mounting-hole spacing simplifies accurate installation

Specifications

TypeOther Appliances
Width5.51

Questions about this item

How much load can each SBR16UU slide block handle while the machine is running?

Each SBR16UU block is rated for 774 N of dynamic load and 1180 N of static load, so the four blocks share the force across the 1000 mm rails.

What mounting pattern do the rails use and how far apart are the holes?

The rails have mounting holes spaced 32 mm apart in one direction and 30 mm apart in the other, matching the SBR16 standard for aluminum bases.

What are the exact dimensions of the slide blocks so I can design the mounting plate?

Each SBR16UU block measures 45 mm long, 45 mm wide and 33 mm high, with mounting holes that align to the rail's 32 mm and 30 mm pitch.
