Two 2000 mm chrome-plated steel shafts on aluminium bases with four matching slide blocks

VEVOR

VEVOR SBR16 2000 mm Linear Guide Rail Set 2 Rails 4 Blocks

SKU CH-THNK-KH803

Two 2000 mm carbon-steel rails with four SBR16UU blocks handle 774 N dynamic and 1180 N static load per block for precise linear motion

  • TypeOther Appliances
  • Width5.51
  • 2 m travel length from two 2000 mm rails
  • 774 N dynamic load per block for reliable motion
  • 1180 N static load per block holds position firmly
  • Carbon steel shafts with chrome plating resist corrosion
  • Four SBR16UU blocks with ball bearings enable smooth sliding

SBR16 2000 mm Linear Motion Kit

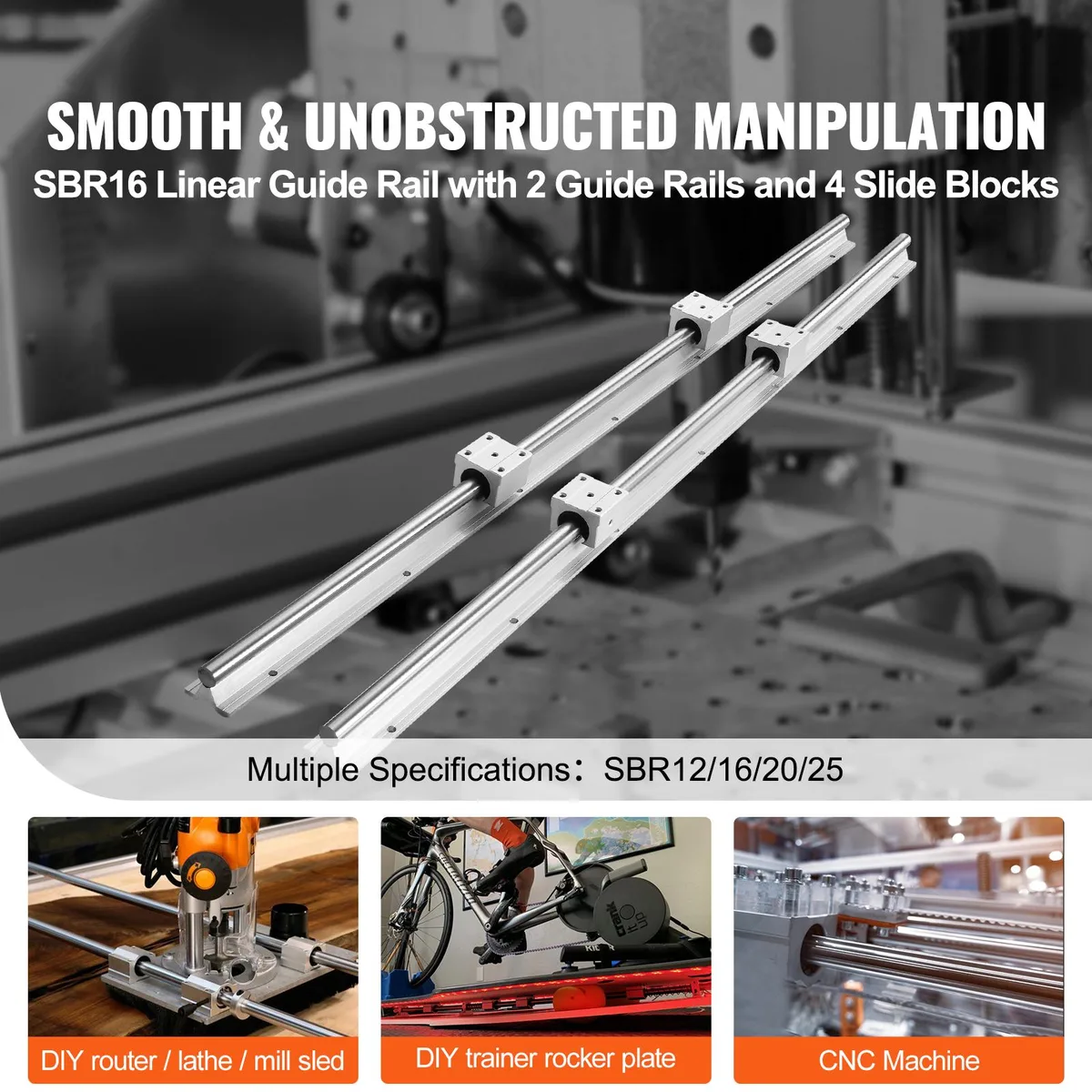

This kit provides two 2000 mm carbon steel shafts with aluminium supports and four SBR16UU slide blocks. It is intended for builders of CNC routers, automated machines and other DIY linear motion projects who need long, supported travel.

774 N Dynamic Load Per Block

Each slide block is rated for 774 N of dynamic load and 1180 N of static load. That per-block figure is the single specification that determines whether the kit can handle the forces in your application.

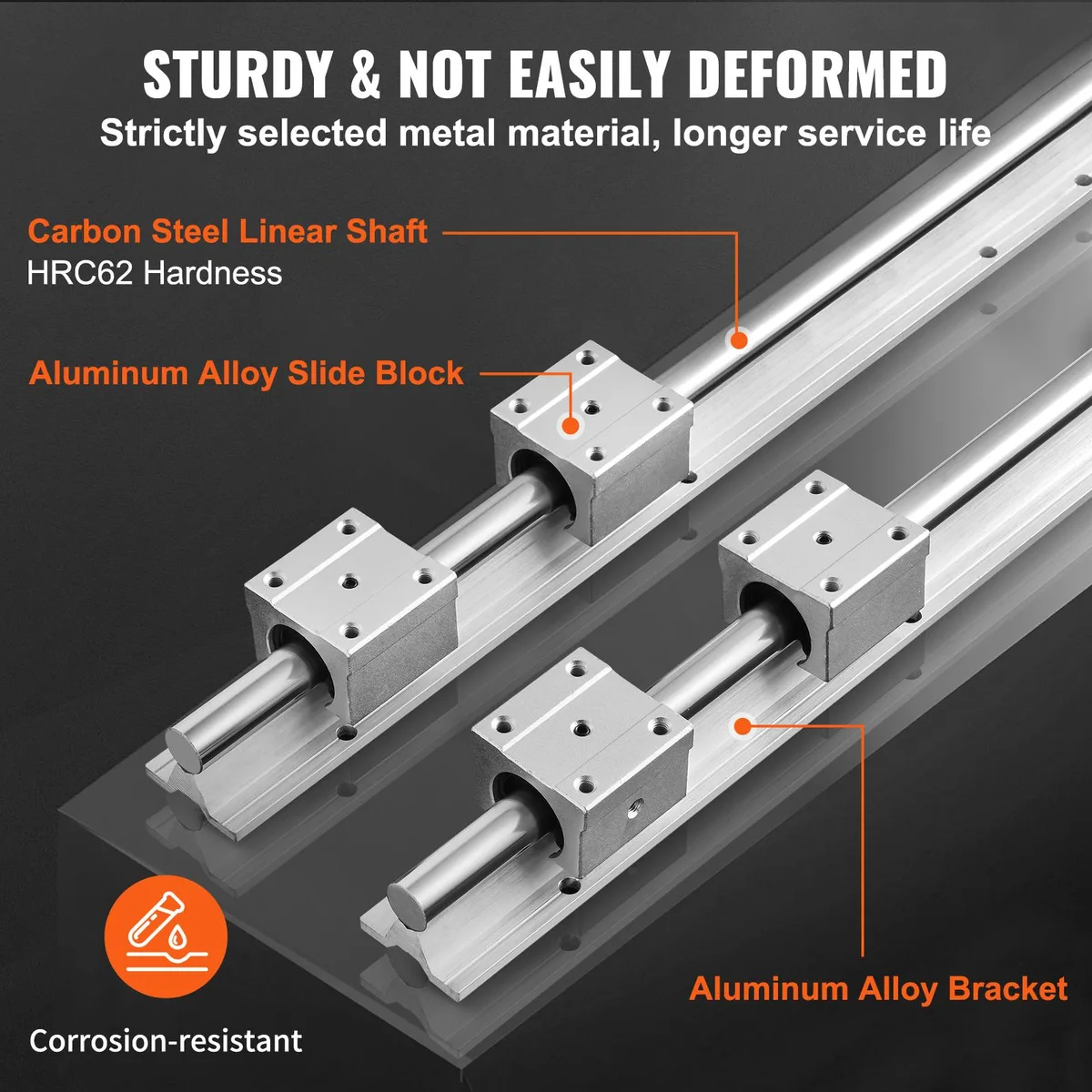

Chrome-Plated Shafts With Ball-Bearing Blocks

The chrome-plated carbon steel shafts and aluminium blocks with built-in ball bearings deliver low-friction, low-noise movement. The precise shaft straightness and accurate mounting holes on the 80 mm wide supports maintain repeatability and stability during continuous operation.

Highlights

  • 2 m travel length from two 2000 mm rails
  • 774 N dynamic load per block for reliable motion
  • 1180 N static load per block holds position firmly
  • Carbon steel shafts with chrome plating resist corrosion
  • Four SBR16UU blocks with ball bearings enable smooth sliding

Specifications

TypeOther Appliances
Width5.51

Questions about this item

How much load can each SBR16UU slide block handle when the machine is moving?

Each block is rated for 774 N dynamic load and 1180 N static load, so the four blocks together share the moving force and the stationary weight of the gantry or table.

What shaft diameter and mounting-hole spacing does the SBR16 rail use?

The rail runs on a 16 mm diameter shaft with mounting holes spaced 32 mm apart along the rail length and 30 mm across the block.

What are the overall dimensions of each rail and block so I can check clearance in my frame?

Each rail is 2000 mm long, 80 mm wide and 32.2 mm high; each slide block measures 45 mm long, 45 mm wide and 33 mm high.
