White powder-coated steel return air grille with angled fins, detachable face, screw holes visible, rectangular 22.6 by 27.6 inches

VEVOR

VEVOR Return Air Filter Grille 20 x 25 in

SKU CH-GV44-GQW5P

Fits a 19.7 by 24.8 inch wall opening and holds a one-inch filter with an angled fin design for quiet airflow

  • TypeOther Appliances
  • Width30.31
  • Quiet, efficient airflow from angled fin design
  • Rust-resistant powder-coated steel withstands pressure and scratches
  • Detachable face simplifies filter changes and cleaning
  • Fits 19.7 x 24.8 inch wall opening for 1-inch filters
  • Includes mounting base and four screws for quick installation

Fits 20 x 25 Inch Duct Opening

This return air filter grille is designed for a wall opening of 19.7 by 24.8 inches. It accepts a one-inch filter measuring 19.6 by 24.7 by 1.3 inches, which is not included. The powder-coated steel frame resists rust and has no sharp edges. It suits residential or light-commercial HVAC systems needing a standard-size return vent.

Simple Four-Step Mounting

The package includes a mounting base, a detachable grille face and four M4 by 50 cross-head screws. Installation proceeds in four steps: secure the base to the wall opening, insert the filter, attach the grille and tighten the screws. Ensure the opening thickness matches the 1.06 inch specification so the base seats flush. Misaligned screw holes or an oversized opening are the most common issues.

Verify Opening and Filter Size

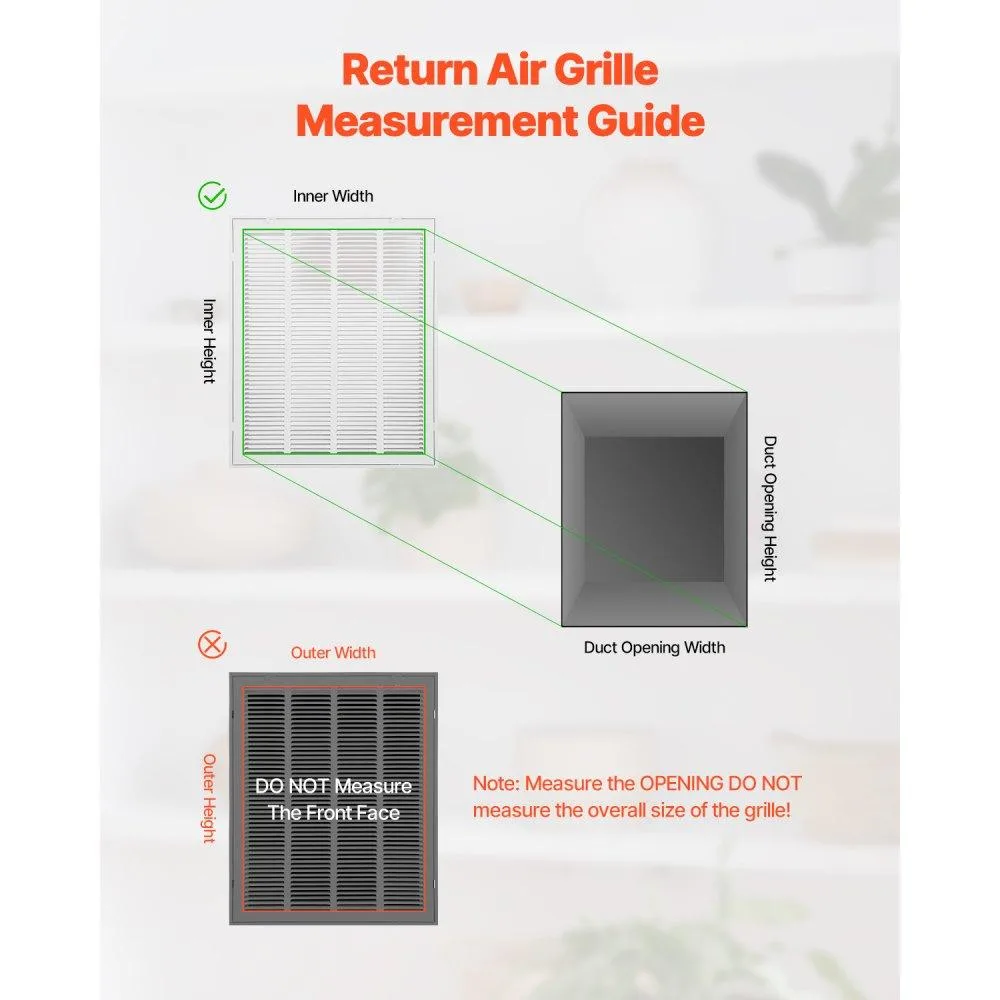

Measure the existing duct cutout before ordering; it must be exactly 19.7 inches wide by 24.8 inches high. Confirm the wall depth can accommodate the 1.6 inch overall product depth and the 2.7 cm installation opening thickness. Check that you have a one-inch filter with the exact 19.6 by 24.7 inch face dimensions. This unit does not suit openings larger or smaller than the stated size.

Highlights

  • Quiet, efficient airflow from angled fin design
  • Rust-resistant powder-coated steel withstands pressure and scratches
  • Detachable face simplifies filter changes and cleaning
  • Fits 19.7 x 24.8 inch wall opening for 1-inch filters
  • Includes mounting base and four screws for quick installation

Specifications

TypeOther Appliances
Width30.31

Questions about this item

How can I verify the grille is moving air properly after I mount it?

Hold a lightweight tissue near the angled fins while the HVAC fan runs; steady deflection shows the 19.6 x 24.7 in filter slot is drawing air through the 1.3 in depth as designed.

What hardware and parts arrive in the package, and what must I supply?

The box contains the vent mounting base, detachable grille door, user manual, and four M4 x 50 cross-head screws; you must purchase a 1-inch thick filter separately.

Which size option matches a 19.7 x 24.8 inch wall opening?

Choose the 20 x 25 inch model — its installation opening dimensions are 19.7 x 24.8 in, product dimensions 22.6 x 27.6 x 1.6 in, and it accepts a 19.6 x 24.7 x 1.3 in filter.
