VEVOR
VEVOR PSG100 Trench Drain System 6 Pack 39.4"L
Six interlocking HDPE channels with built-in outlets and removable grates create 39.4-inch runs for driveways, patios or gardens
- TypeOther Appliances
- Low-profile design fits tight spaces with 5.1" width and 3.1" height channels
- Interlocking sections join without tools for leak-free runs up to 39.4" each
- Built-in outlets in 48mm, 78mm and 96mm connect pipe directly without extra fittings
- HDPE construction handles A125 loads and temperatures from -40 to 120 °C
- Removable grate allows quick cleaning without screws or bolts
Compact Drainage System

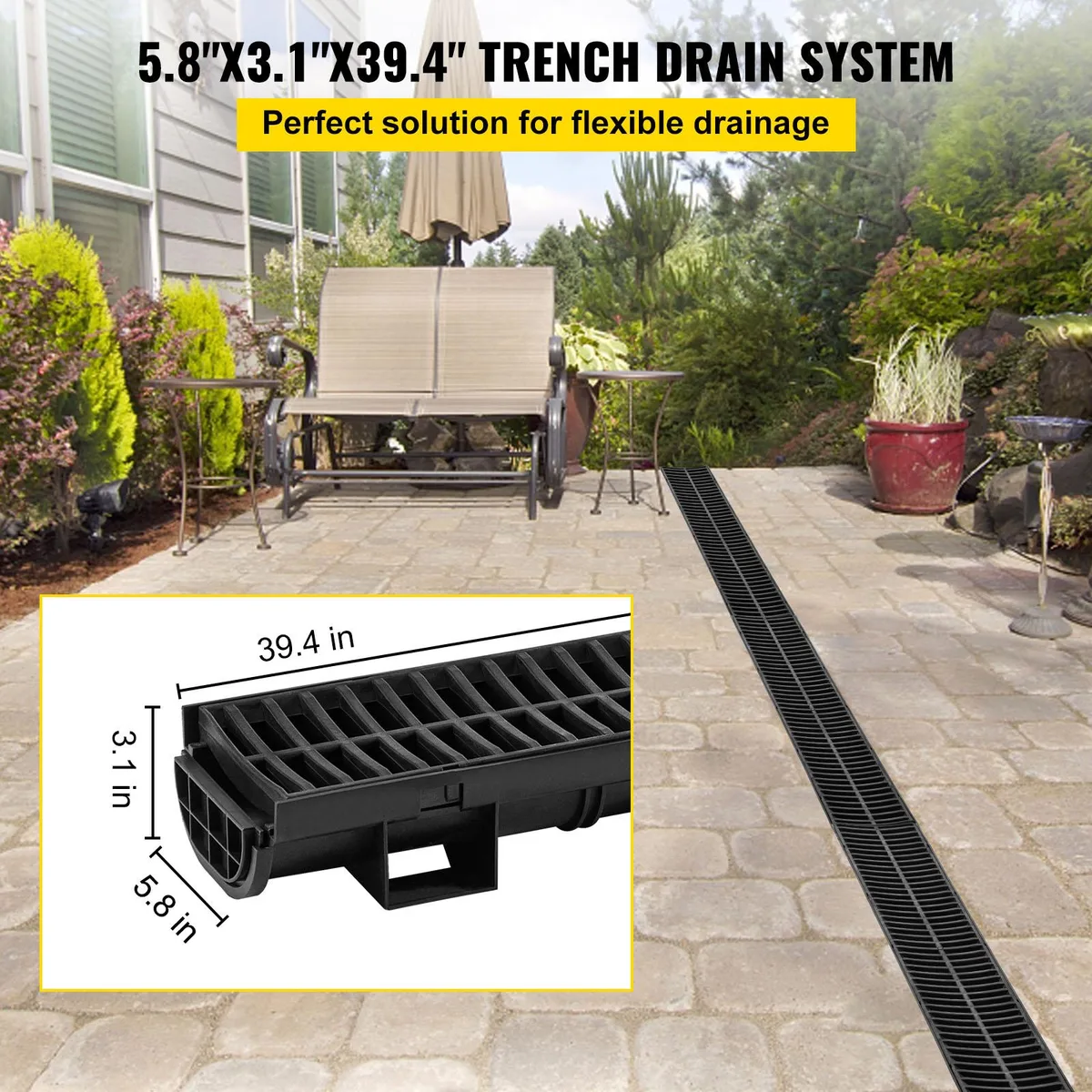

The VEVOR PSG100 trench drain system ships as a six-pack of 39.4-inch HDPE channels rated to Load Class A125. Each unit measures 5.7 inches wide by 3.1 inches high externally, with a 3.9-inch internal width that suits residential driveways, patios, gardens and light commercial floors where pedestrian or light vehicle traffic is expected.

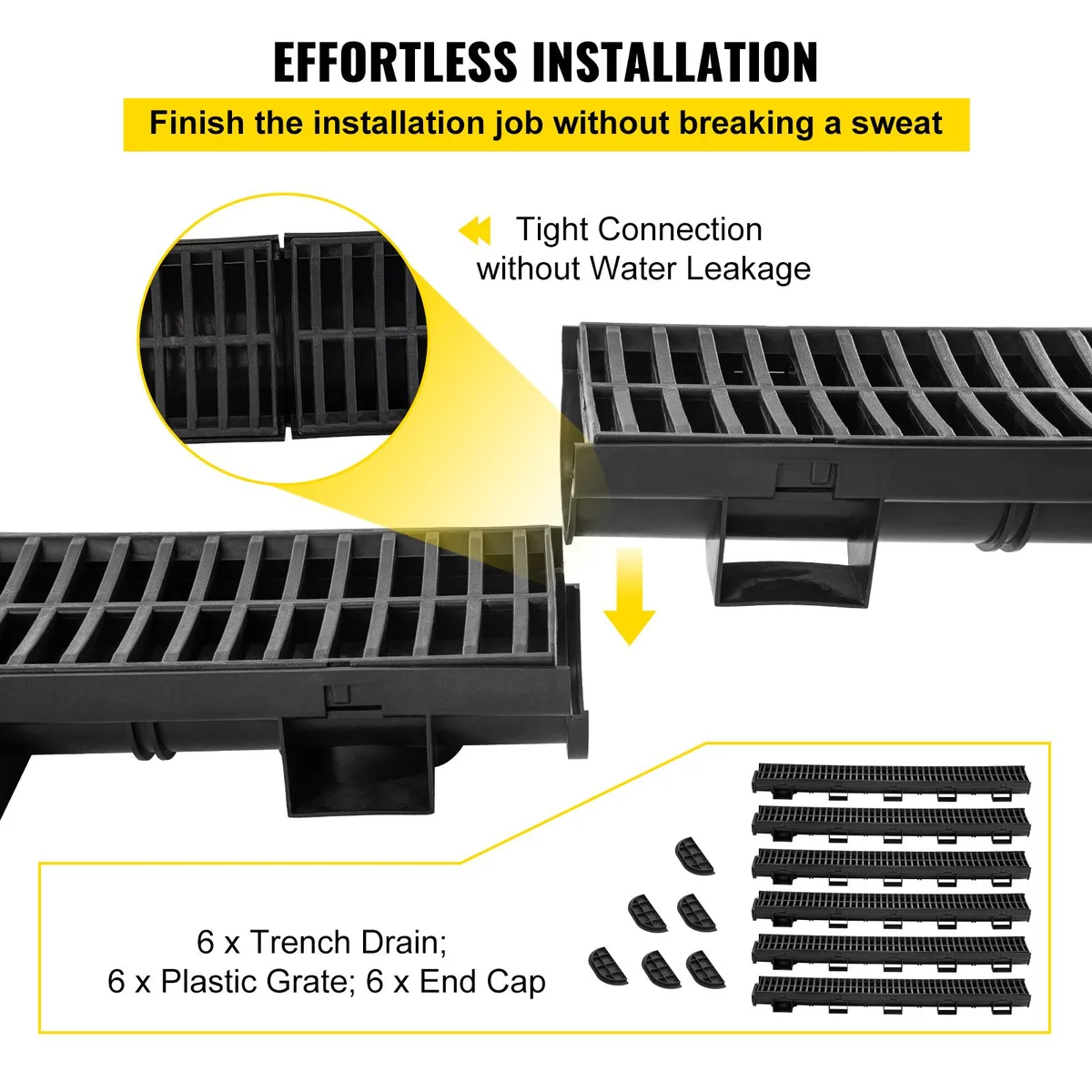

Interlocking Build and Outlet Options
Channels lock together without tools to create continuous runs, and the anti-flotation ribs keep them stable during concrete pours. A built-in bottom outlet offers three selectable diameters — 48 mm, 78 mm and 96 mm — so the installer can match existing pipework directly. The removable black plastic grate lifts off by hand for debris clearance and drops back in without screws or bolts.
Included End Caps for Termination
Six end caps are supplied in the box, letting the installer close the run at both ends or at intermediate points without sourcing extra parts. The HDPE material withstands continuous service from -40 °C up to 120 °C, so the assembled line remains dimensionally stable through seasonal temperature swings.
Highlights
- Low-profile design fits tight spaces with 5.1" width and 3.1" height channels
- Interlocking sections join without tools for leak-free runs up to 39.4" each
- Built-in outlets in 48mm, 78mm and 96mm connect pipe directly without extra fittings
- HDPE construction handles A125 loads and temperatures from -40 to 120 °C
- Removable grate allows quick cleaning without screws or bolts
Specifications
| Type | Other Appliances |
|---|
Questions about this item
What outlet sizes does the bottom drain hole support?
The built-in bottom outlet accepts 48 mm, 78 mm, or 96 mm pipes directly without a separate connector.
What are the external dimensions of each channel for concrete planning?
Each channel measures 5.7 inches wide, 3.1 inches high, and 39.4 inches long externally.
How do the channels join together and what common mistake should be avoided?
Channels interlock tightly for leak-free runs; the mistake is forgetting to seat the interlock fully before pouring concrete.
