Advance Tabco
Advance Tabco FC-1-1818-X Wall Mounted Sink 18 in x 18 in, 304
- Silver
$790.99
0.00932342BTC
In stock
VEVOR
VEVOR PSG100 Trench Drain System 3-Pack 5.9x5.1x39.4in
Three interlocking HDPE channels with stainless-steel grates and end caps form a 39.4-inch A15-rated trench drain for driveways and patios
- TypeOther Appliances
- Low-profile design fits shallow concrete pours at 5.1 inch height

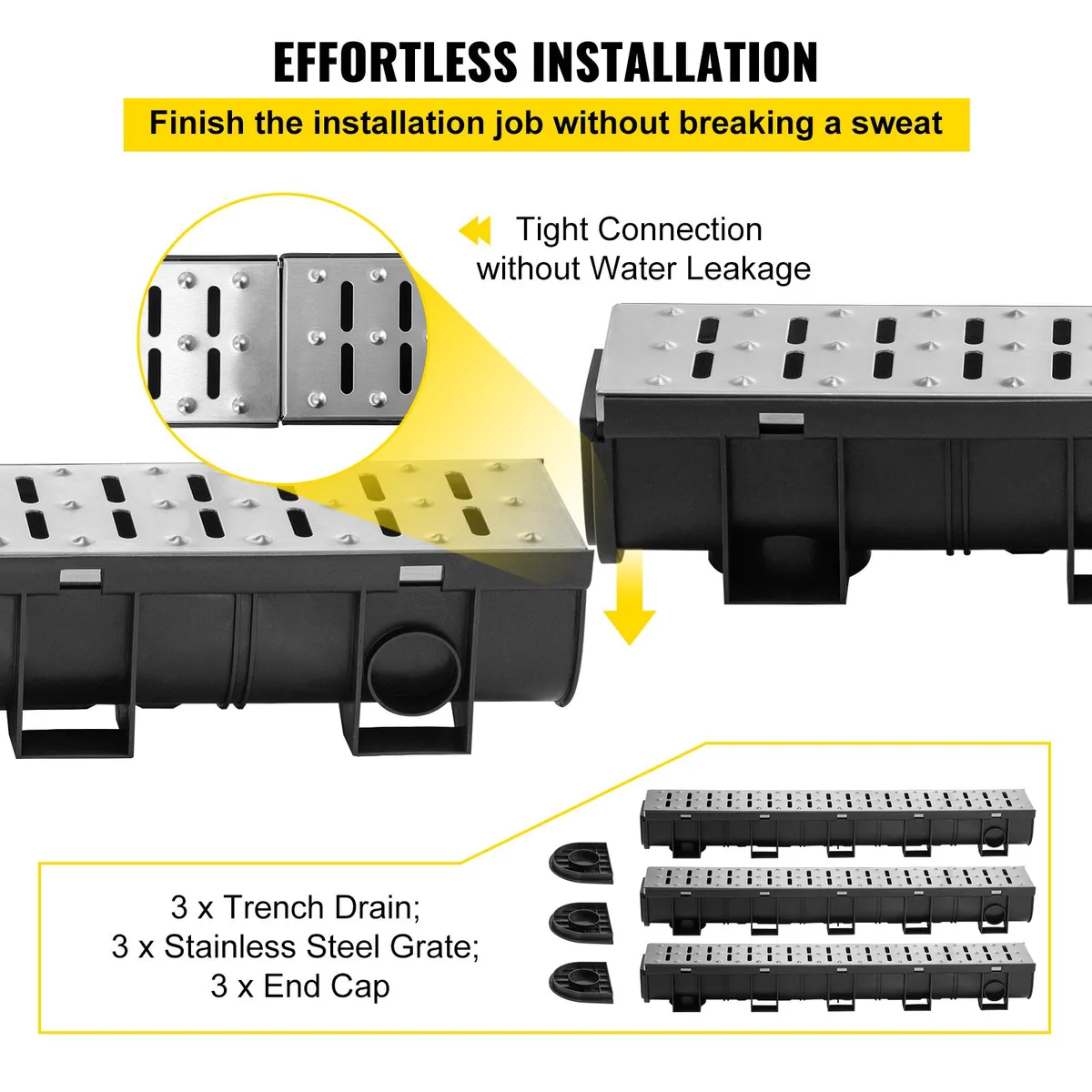

- Interlocking channels join without tools for leak-free runs
- Built-in bottom and side outlets accept 3.1 inch and 2.2 inch pipe directly
- Stainless steel grate supports A15 pedestrian loads
- HDPE body withstands -40 to 120 temperature range
Three-Pack Trench Drain System

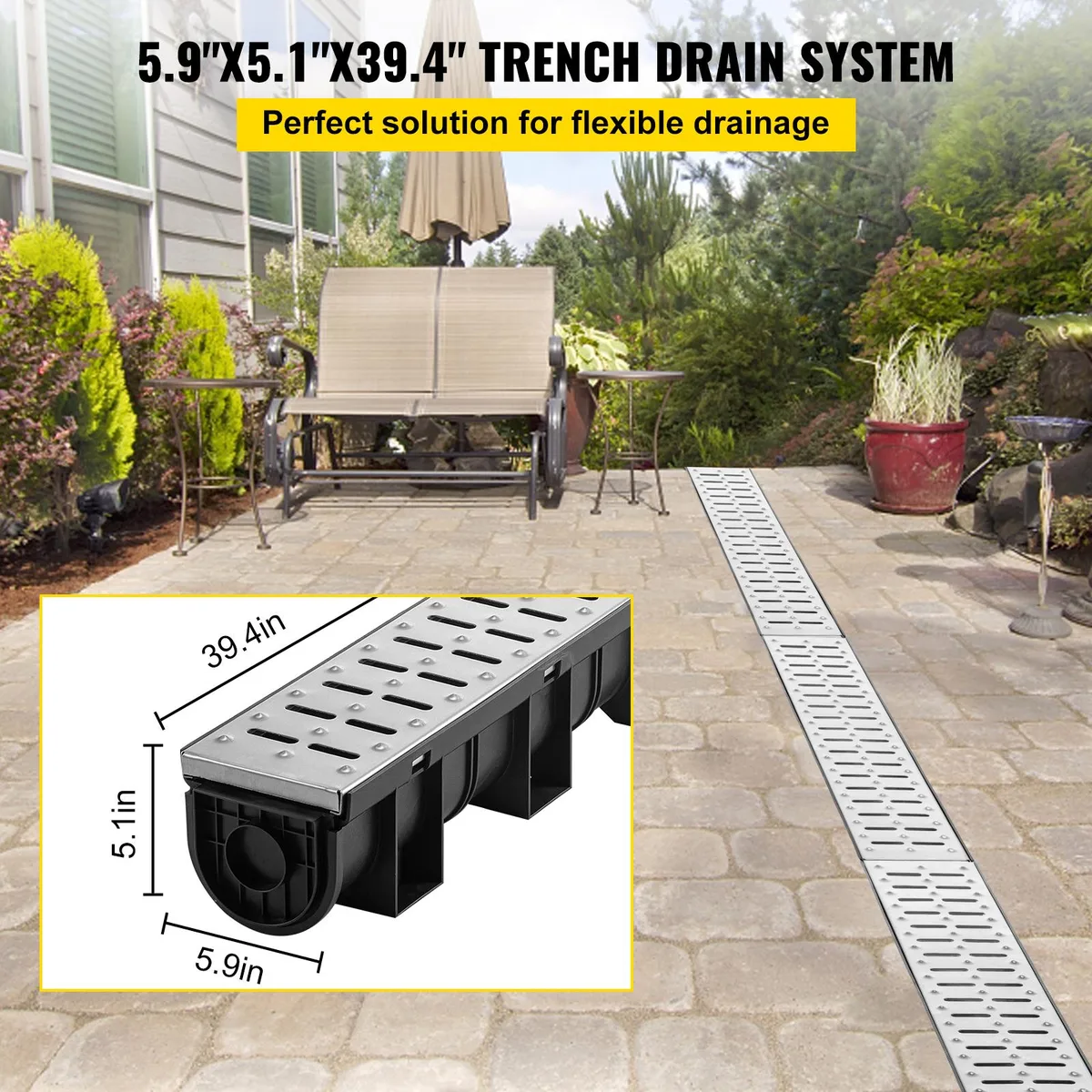

The VEVOR PSG100 kit supplies three one-metre HDPE channels with stainless-steel grates and end caps. Each unit measures 15 centimetres wide, 13 centimetres high and 100 centimetres long for linear drainage runs. The A15 load rating suits pedestrian areas such as patios, pool surrounds and garden paths. Interlocking ends join without tools to create continuous lengths.
A15 Load Rating and 10-Centimetre Internal Width
The channels carry an A15 classification, limiting use to foot traffic and light wheel loads. Internal dimensions of 10 by 10 centimetres set the hydraulic capacity for each metre section. Buyers needing vehicle-rated drainage or larger flow cross-sections must select a different system.
Built-In Outlet Options and Removable Grate
Every channel includes a bottom outlet of either 3.1 or 3.6 inches plus a 2.2-inch side outlet, allowing direct pipe connection without extra fittings. The stainless-steel grate lifts off by hand for debris clearance, and three supplied end caps terminate runs cleanly.
Highlights
- Low-profile design fits shallow concrete pours at 5.1 inch height
- Interlocking channels join without tools for leak-free runs
- Built-in bottom and side outlets accept 3.1 inch and 2.2 inch pipe directly
- Stainless steel grate supports A15 pedestrian loads
- HDPE body withstands -40 to 120 temperature range
Specifications
| Type | Other Appliances |
|---|
Questions about this item
What does the 39.4-inch channel length mean when the drain is installed in a driveway?
Each 39.4-inch channel covers that linear run; the interlocking ends let you join multiple units for longer continuous drainage without gaps.
How do the 3.1-inch and 2.2-inch outlet sizes limit the pipe I can connect?
The built-in bottom outlet accepts 3.1-inch or 3.6-inch pipe, while the side outlet takes 2.2-inch pipe; no separate connector is needed for either size.
What clearance and base preparation does the 5.9-inch wide by 5.1-inch high channel require?
Excavate a trench at least 15 cm wide and 13 cm deep, then bed the HDPE channel in concrete; the anti-flotation ribs hold it without extra staking.
