Five black HDPE channels with silver metal grates and end caps

VEVOR

VEVOR PSG100 5-Pack Trench Drain System 5.7x3.1x39.4in

SKU CH-VSKK-8239N MPN PSG100

Five interlocking HDPE channels with stainless-steel grates and built-in 48/78/96 mm outlets create a 39.4 in modular drainage run rated to A15 load class

  • TypeOther Appliances
  • Efficient drainage across driveways and patios with low-profile 5.7x3.1x39.4in channels
  • Interlocking sections join without leaks for custom run lengths
  • Removable stainless-steel grate allows tool-free cleaning access
  • Built-in bottom outlets in 48, 78 and 96mm fit pipes directly
  • HDPE construction withstands -40 to 120°C and A15 load rating

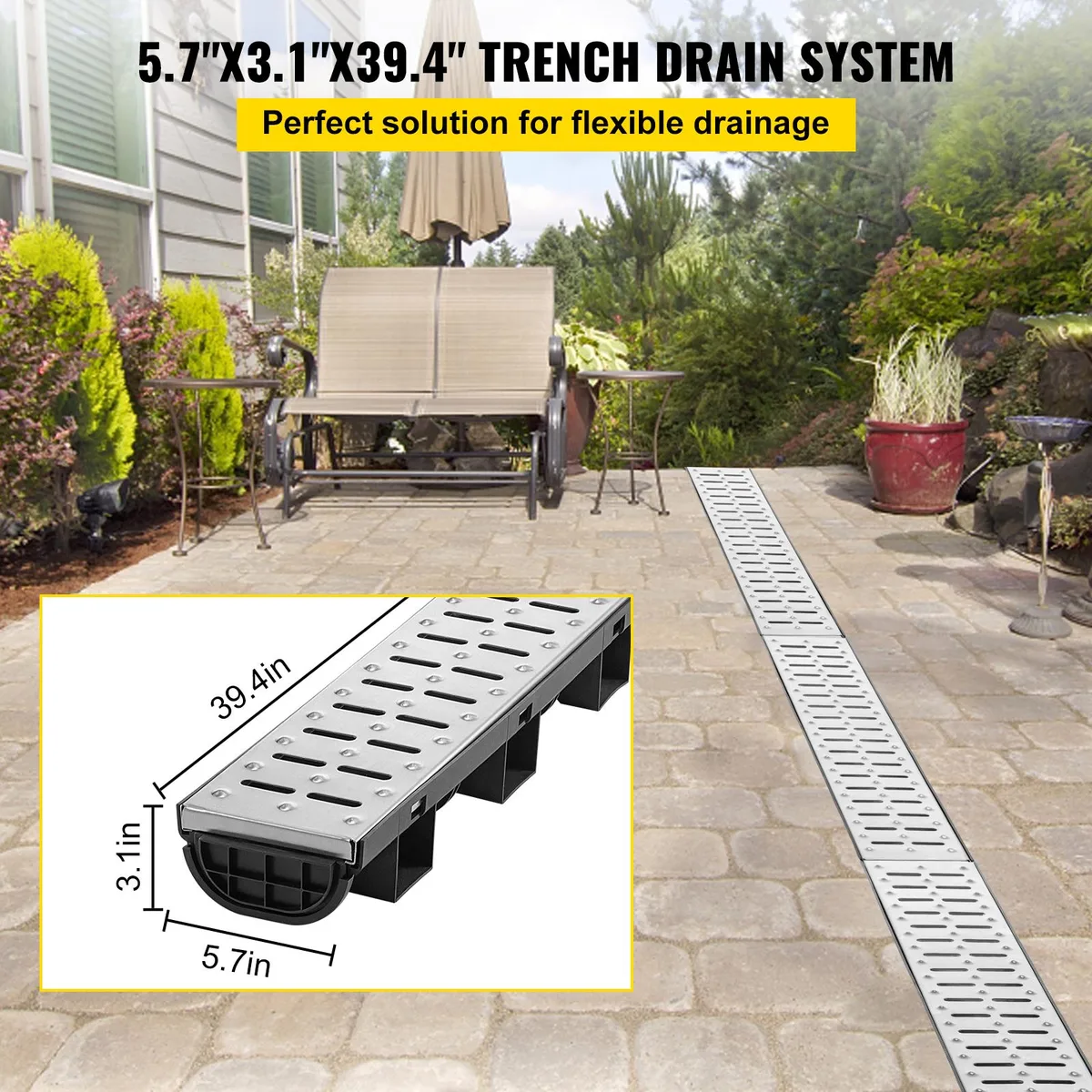

Low-Profile Trench Drain System

The VEVOR PSG100 pack contains five HDPE channels measuring 5.7 inches wide by 3.1 inches high by 39.4 inches long. Each unit includes a stainless-steel grate and an end cap. The A15 load rating suits pedestrian areas such as gardens, patios, pool sides and driveways. An anti-flotation design keeps channels stable in concrete without extra staking.

Drainage Capacity and Outlet Limits

Internal dimensions of 3.9 by 1.8 inches set the maximum water volume each channel can carry. The built-in bottom outlet offers three fixed diameters of 48, 78 and 96 millimetres; no other sizes can be connected without an adapter. Operating temperatures range from -40 to 120 degrees Celsius, so the system cannot handle fluids outside that window.

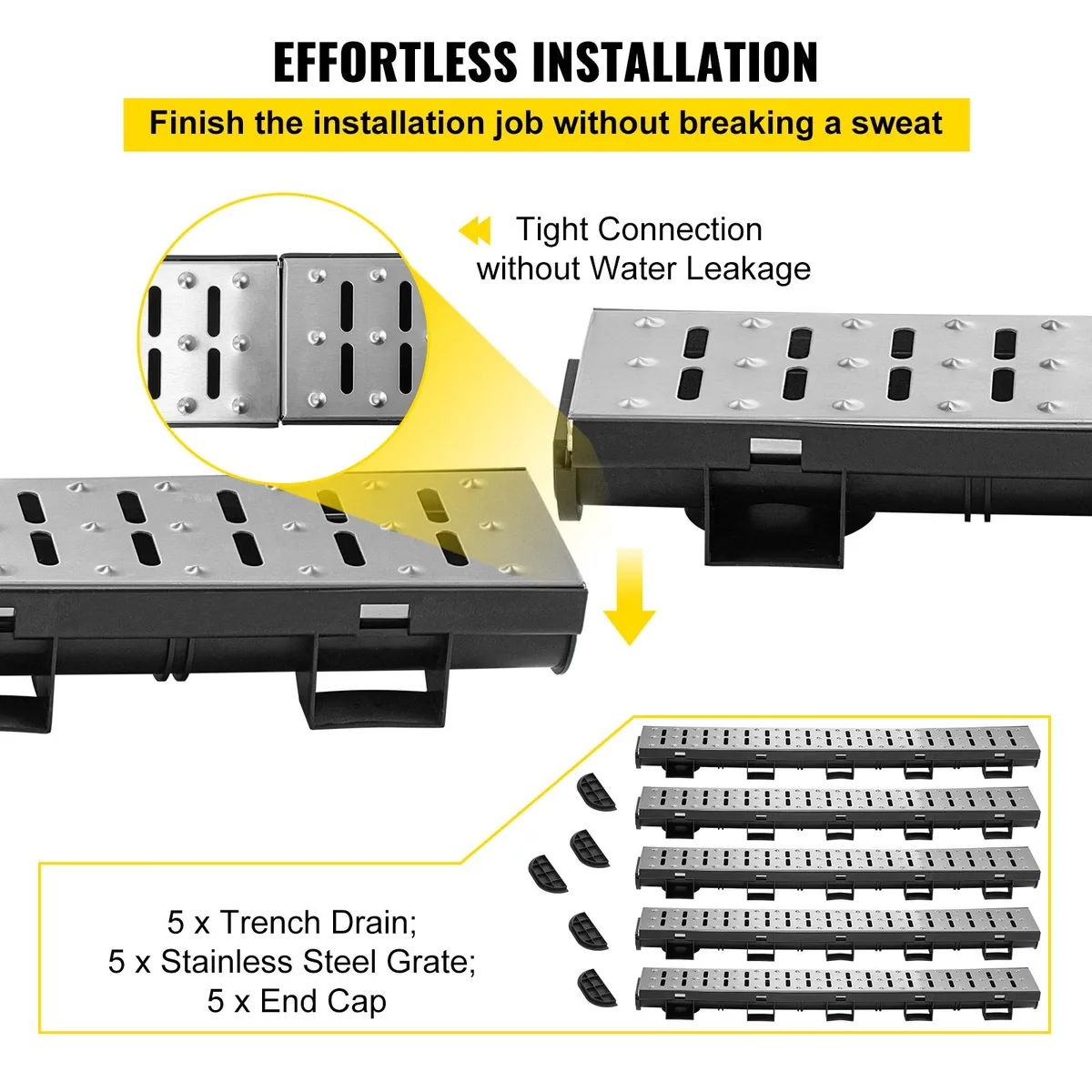

Interlocking Installation and Common Issues

Channels lock together end-to-end for longer runs and the grates lift off by hand for cleaning. The tight interlock reduces leaks, yet debris can still jam the grate slots if the drain is not cleared regularly. Each channel weighs 2.84 kilograms, so handling the five-piece pack requires some effort during layout.

Highlights

  • Efficient drainage across driveways and patios with low-profile 5.7x3.1x39.4in channels
  • Interlocking sections join without leaks for custom run lengths
  • Removable stainless-steel grate allows tool-free cleaning access
  • Built-in bottom outlets in 48, 78 and 96mm fit pipes directly
  • HDPE construction withstands -40 to 120°C and A15 load rating

Specifications

TypeOther Appliances

Questions about this item

Should I buy the 5-pack or look for a single channel if I only need 39.4 inches of length?

The product is sold as a 5-pack; each channel is 39.4 inches long and they interlock for longer runs, so you cannot purchase a single unit from this listing.

What does the A15 load rating mean when the drain is installed in a driveway?

A15 supports up to 1.5 tonnes per wheel, making it suitable for pedestrian areas, gardens and light vehicle traffic such as residential driveways.

How do the 48 mm, 78 mm and 96 mm bottom outlets affect the pipe I can connect?

Each channel has a built-in bottom outlet with three diameter options — 48 mm, 78 mm and 96 mm — so you can match the outlet to your existing drainage pipe without extra adapters.
