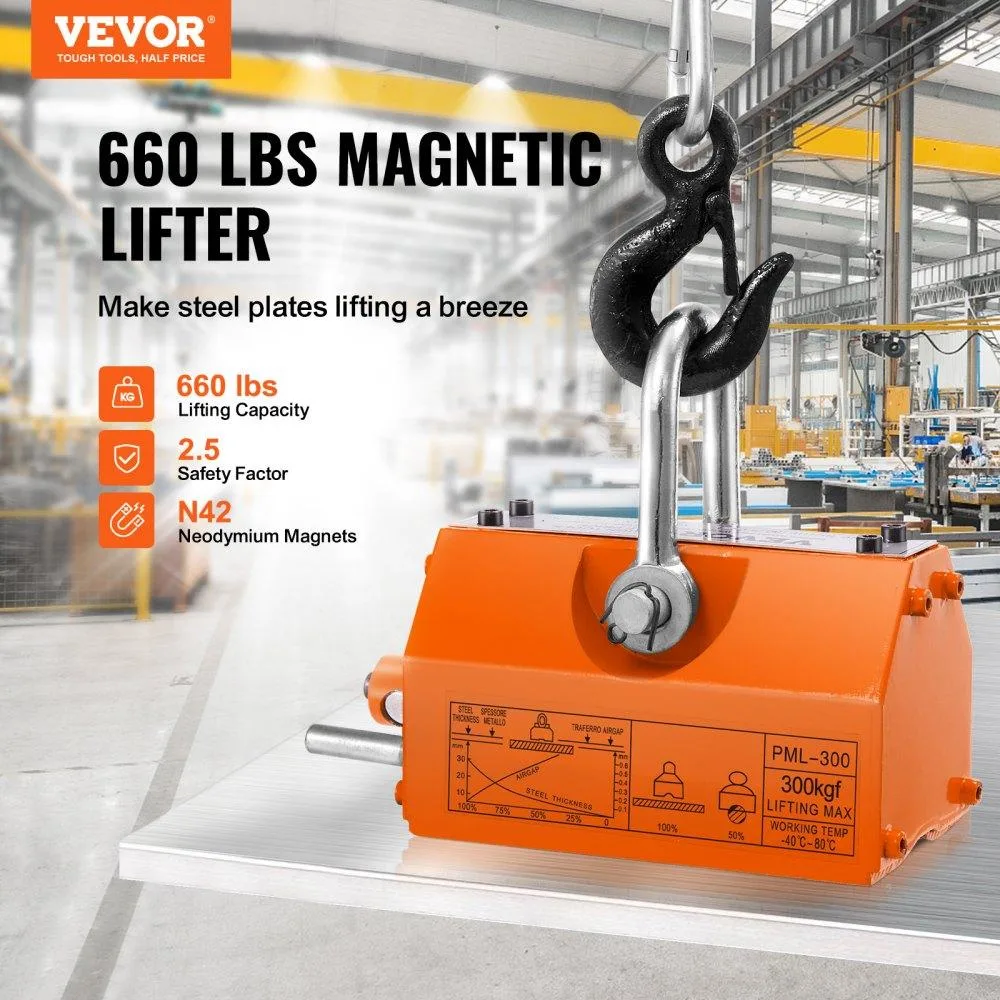

Compact red magnetic lifter with chrome handle and steel hook, rectangular steel body

VEVOR

VEVOR PML-300 Magnetic Lifter 660 lbs 300 kg

SKU CH-HVSR-BW4M2

Lifts up to 660 lbs of steel with N42 neodymium magnets, a 2.5 safety factor, and a secure release handle

  • TypeOther Appliances
  • Width8.27
  • Lifts 660 lbs with N42 neodymium magnets
  • 5 safety factor exceeds pull-off force of 1650 lbs
  • Handles steel sheets 0.2 to 2.2 inches thick
  • Safety switch handle prevents accidental activation
  • CE certified for -40 to 176 °F operation

VEVOR PML-300 Magnetic Lifter

This permanent magnetic lifter handles ferrous materials up to 660 lbs with a 2.5 safety factor. It suits workshops, warehouses and fabrication shops moving steel sheets, blocks, rods and cylindrical stock. The N42 neodymium magnet assembly delivers a pull-off force greater than 1650 lbs. It is not for non-magnetic metals, loads exceeding the rated capacity or applications requiring powered operation.

Installation and common issues

Mount the lifter to a hoist or crane using the chrome-plated hook, then engage the handle to activate the magnetic field. The safety switch must be pressed before rotating the handle to prevent accidental release. Operation fails if the workpiece is thinner than .2 inches, has an air gap from rust or paint, or has a curved surface reducing contact area. The operating range spans -40 to +176 degrees Fahrenheit.

Limits of permanent magnetic lifting

Holding force drops sharply on material thinner than 5 mm or when surface roughness creates gaps. The lifter cannot switch off without manual handle rotation, so it cannot be used where remote release is required. Maximum sheet thickness is 2.2 inches, and the base measures 6.1 by 3.6 by 3.9 inches. There is no electrical supply, so the magnet remains active until mechanically disengaged.

Highlights

  • Lifts 660 lbs with N42 neodymium magnets
  • 5 safety factor exceeds pull-off force of 1650 lbs
  • Handles steel sheets 0.2 to 2.2 inches thick
  • Safety switch handle prevents accidental activation
  • CE certified for -40 to 176 °F operation

Specifications

TypeOther Appliances
Width8.27

Questions about this item

How do I verify the lifter is holding correctly after engaging the handle?

The safety switch must click into the locked position and the handle should rotate fully without resistance. With a 2.5 safety factor the pull-off force exceeds 1650 lbs, so the load will not release until the handle is deliberately returned to the off position.

What comes in the package and is any accessory sold separately?

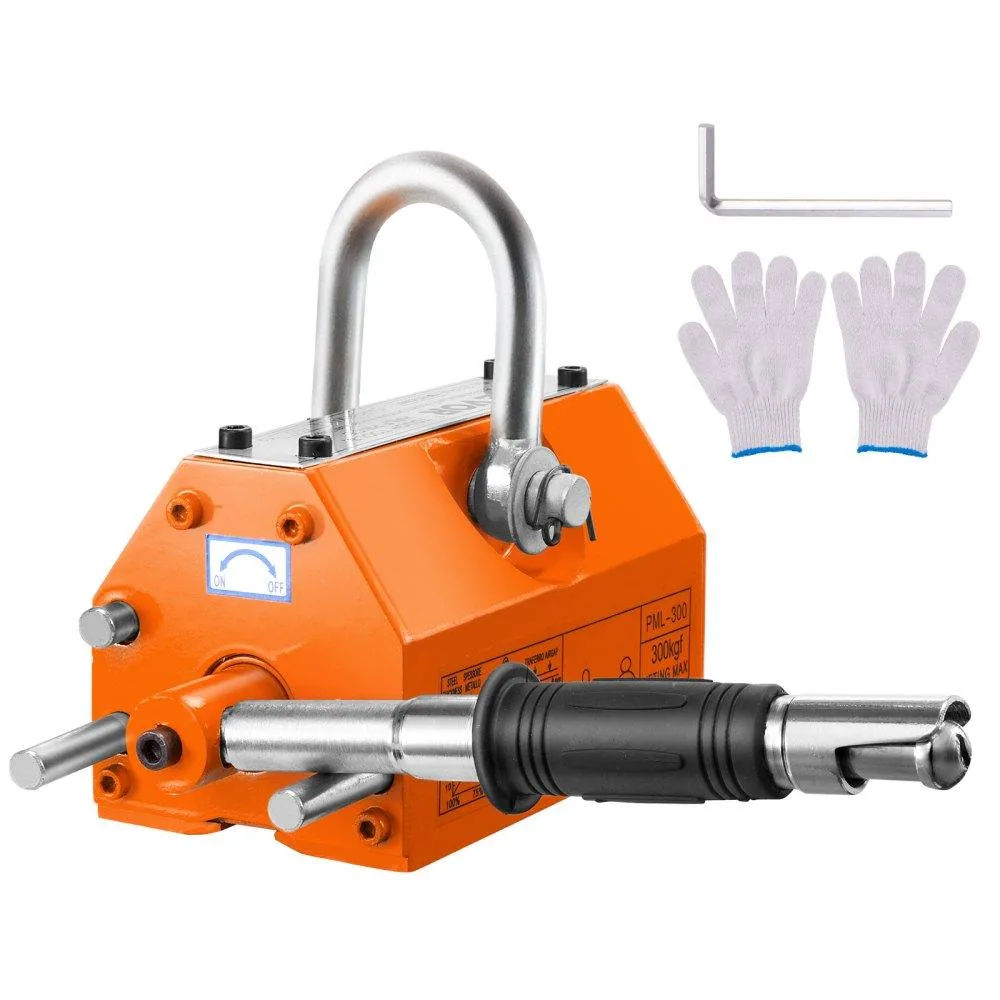

The box contains the PML-300 magnetic lifter, one pair of gloves and one hex wrench. No additional items are required for basic lifting operation.

Which version should I choose for 10 mm thick steel plate versus 50 mm thick round bar?

The PML-300 is a single model rated for sheet thickness from 5 mm to 55 mm. It uses ten N42 neodymium magnets and covers both flat plate and cylindrical material within that range.
