Gray-white steel enclosure with hinged door and lock, 20 by 16 by 8 inches

VEVOR

VEVOR NEMA 4X Steel Electrical Box 20x16x8" IP66 Gray White RAL7035

SKU CH-QJ7Y-JZZQ8

IP66-rated steel enclosure measuring 20×16×8 inches with lockable hinged door and galvanized mounting plate included

  • TypeOther Appliances
  • IP66 rated enclosure keeps dust and water out in harsh environments
  • NEMA 4X certified steel case resists corrosion for indoor or outdoor use

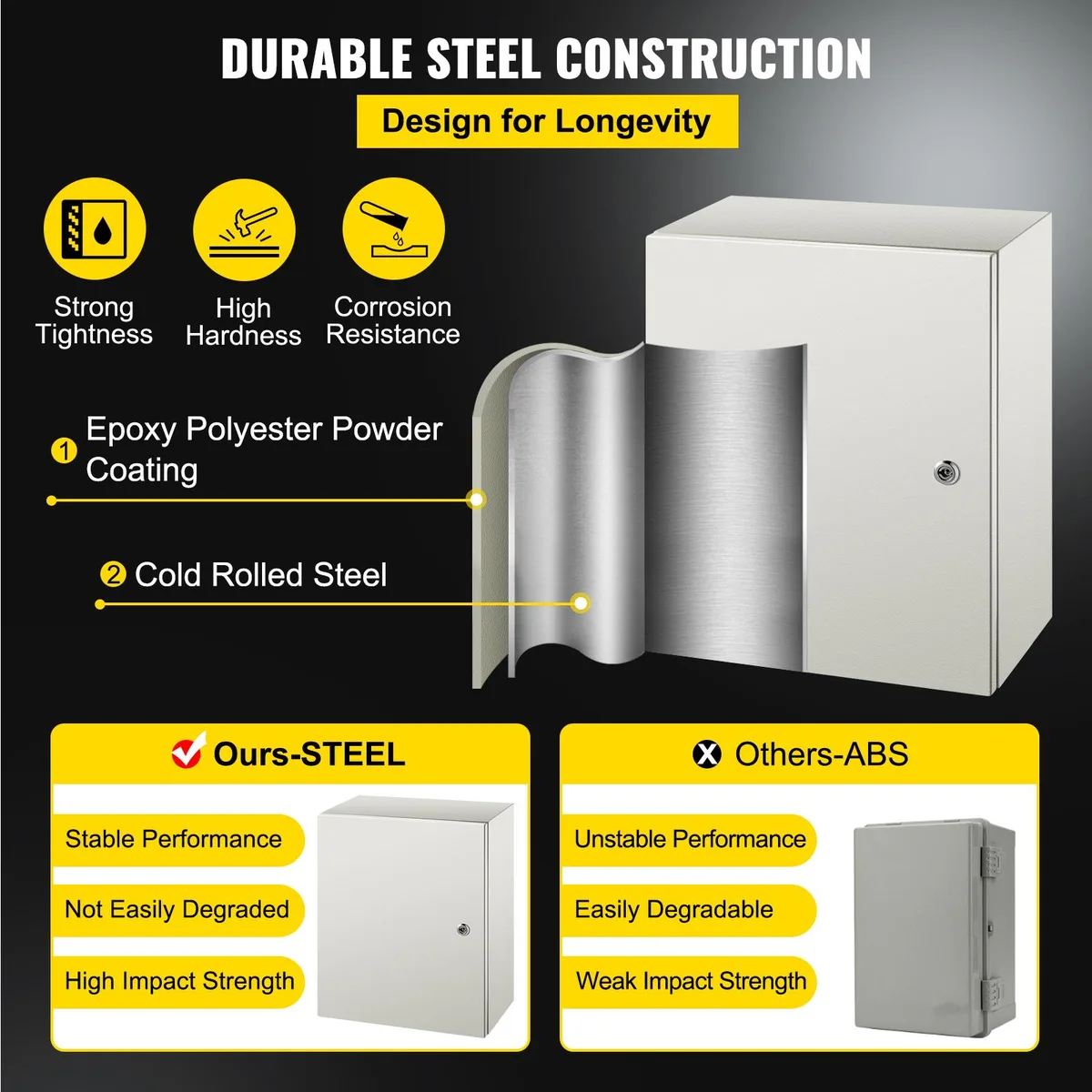

  • 5 mm cold-rolled steel with epoxy polyester coating protects equipment from impact
  • Detachable 2 mm galvanised backplate simplifies component mounting inside the box
  • Lockable hinged door with high-strength hinge secures contents against unauthorised access

20x16x8 inch IP66 steel enclosure

The VEVOR NEMA 4X electrical box is a 1.5 mm cold-rolled steel cabinet finished in RAL 7035 epoxy polyester powder coating. It targets installers who need a lockable, hinged-door enclosure for outdoor or indoor power distribution and control gear. CE and ROHS certifications confirm compliance with European safety and substance restrictions.

49.7 x 39.7 x 16.65 cm internal volume

The detachable 2 mm galvanised backplate measures 45 x 35 cm, providing a solid mounting surface for DIN-rail terminals, contactors or small PLCs. IP66-rated foam sealing keeps out powerful water jets and dust, so the box performs in wash-down zones or exposed façades. Depth of 6.6 cm limits the height of components that can be fitted behind the door.

Upgrade from open-frame or NEMA 1 boxes

This unit replaces unsealed panels when the installation moves to wet, dusty or public-access areas where IP66 and a lockable door are mandatory. The jump is worth it when regulatory inspection demands NEMA 4X construction or when vandal resistance becomes a requirement. It is not for applications needing deeper enclosures, cut-out windows or integrated climate control.

Highlights

  • IP66 rated enclosure keeps dust and water out in harsh environments
  • NEMA 4X certified steel case resists corrosion for indoor or outdoor use
  • 5 mm cold-rolled steel with epoxy polyester coating protects equipment from impact
  • Detachable 2 mm galvanised backplate simplifies component mounting inside the box
  • Lockable hinged door with high-strength hinge secures contents against unauthorised access

Specifications

TypeOther Appliances

Questions about this item

Will the 20x16x8 inch NEMA 4X enclosure fit alongside my existing 12-inch wide DIN rail gear?

The inner width is 15.6 inches, so 12-inch wide DIN rail equipment will fit with clearance on each side.

How can I confirm the IP66 seal is effective after mounting the box outdoors?

Inspect the foam sealing strip for continuous contact, ensure the hinged door latches fully with the lock, and verify no water or dust enters after exposure to heavy rain or wash-down.

Does the package include the galvanized backplate and wall-mount hardware, or must I buy them separately?

The box ships with a 17.7 x 13.8 inch detachable galvanized backplate already assembled, two keys, and a set of wall mounting pendants; no extra purchase is required for those items.
