Gray-white steel electrical enclosure 16 by 12 by 8 inches hinged door lockable IP66

VEVOR

VEVOR NEMA 4X Steel Electrical Box 16x12x8 IP66 Gray White

SKU CH-RD86-YXSGP

IP66-rated steel enclosure measuring 40 × 30 × 20 cm with a detachable galvanised backplate and lockable hinged door

  • TypeOther Appliances
  • IP66-rated enclosure keeps dust and water out in harsh environments
  • 5 mm cold-rolled steel with epoxy polyester powder coating resists corrosion and impact
  • Detachable 2 mm galvanized mounting plate simplifies component installation inside the box
  • Reinforced hinge and lockable latch secure the door against tampering and accidental opening
  • Meets NEMA 1, 2, 4, 4X and 12 specifications for indoor and outdoor use

Sturdy Steel Enclosure

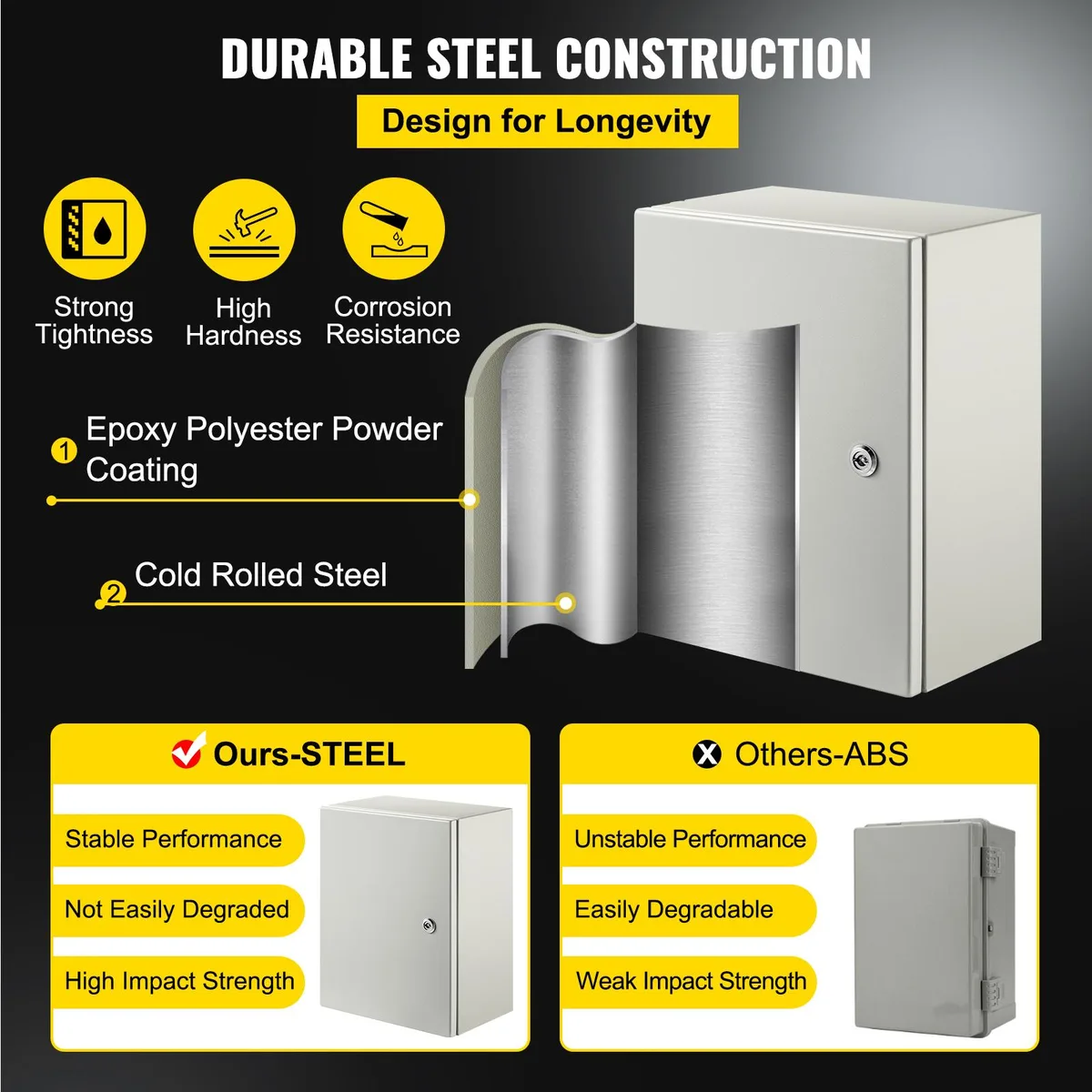

The VEVOR NEMA 4X electrical box is built from 1.5 mm cold-rolled carbon steel with an epoxy polyester powder coating in Gray White RAL7035. It carries CE and ROHS certifications and meets IP66 plus NEMA 1, 2, 4, 4X and 12 specifications. The hinged cover uses a reinforced lock core and high-strength hinges for secure, durable closure in harsh environments.

Build Integration

Outer dimensions are 16 x 12 x 8 inches (40 x 30 x 20 cm) with inner space of 15.6 x 11.7 x 6.6 inches (39.7 x 29.7 x 16.65 cm). A detachable 2 mm galvanized mounting plate measuring 13.8 x 9.8 inches (35 x 25 cm) is included for component mounting. The package also supplies two keys, wall mounting pendants and a bottom sealing plate for complete installation.

Upgrade Path

This enclosure replaces lighter-duty boxes that lack IP66 sealing or NEMA 4X corrosion resistance. The jump is worth it when equipment must survive directed water jets, heavy dust or outdoor exposure without ingress. It is not suited for applications requiring larger internal volume, different material grades or non-hinged access styles.

Highlights

  • IP66-rated enclosure keeps dust and water out in harsh environments
  • 5 mm cold-rolled steel with epoxy polyester powder coating resists corrosion and impact
  • Detachable 2 mm galvanized mounting plate simplifies component installation inside the box
  • Reinforced hinge and lockable latch secure the door against tampering and accidental opening
  • Meets NEMA 1, 2, 4, 4X and 12 specifications for indoor and outdoor use

Specifications

TypeOther Appliances

Questions about this item

What internal depth limits component height in the 16×12×8 enclosure?

The inner depth is 6.6 inches (16.65 cm), so any mounted device must fit within that space.

Does the 1.5 mm steel body with epoxy-polyester coating stay cool during continuous outdoor exposure?

The powder-coated carbon steel dissipates heat passively; no active cooling is fitted, so internal temperature follows ambient conditions.

Which mounting hardware is already included for wall installation?

The package supplies a detachable 2 mm galvanized backplate (13.8″×9.8″), a set of wall-mounting pendants and a bottom sealing plate.
