VEVOR Macerator Pump 500W 29 GPM 26 ft Head 4 Inlets

Compact macerator for below-grade bathrooms

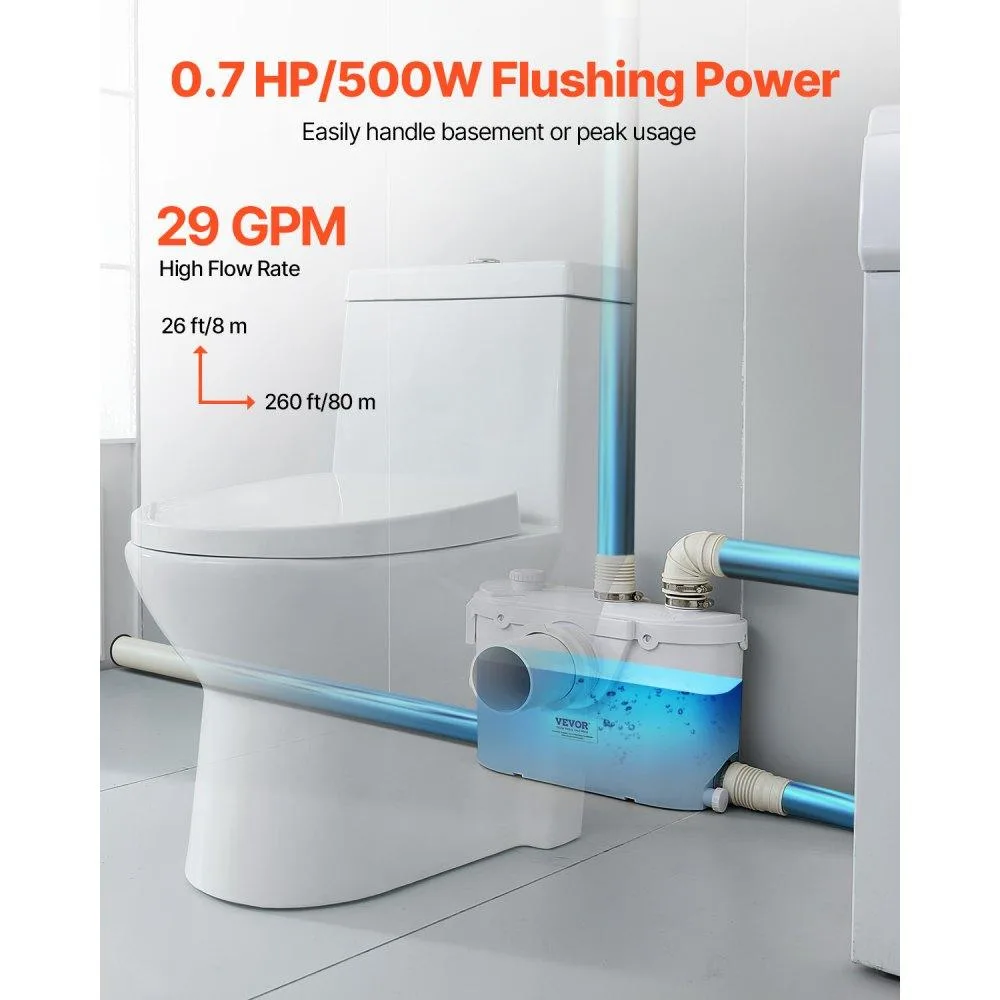

This 500W macerator pump handles wastewater from toilets, showers, sinks and laundry fixtures in basements or other spaces below the main sewer line. Its 0.7 HP motor delivers a 29 GPM flow rate and 26 ft of head lift to move waste upward and horizontally. The unit accepts four inlets — one 89 mm and three 40 mm — so a complete bathroom group can connect to a single pump. An IPX8-rated, oil-filled copper motor runs at wastewater temperatures up to 75/167 without external cooling.

Fits behind a toilet or inside a cabinet

The pump measures 16.54 x 6.3 x 11.02 in and weighs 13.23 lbs, allowing it to sit on the floor behind a standard toilet or inside a vanity base. A 40 mm outlet connects to small-discharge pipework, reducing the need for large-diameter drainage runs through finished walls. The box includes an outlet connection kit, three inlet hoses, seven clamps, a toilet connection ring, a large lid and an activated carbon filter for odour control. No separate tank or venting assembly is required.

Stainless steel blades resist clogging under

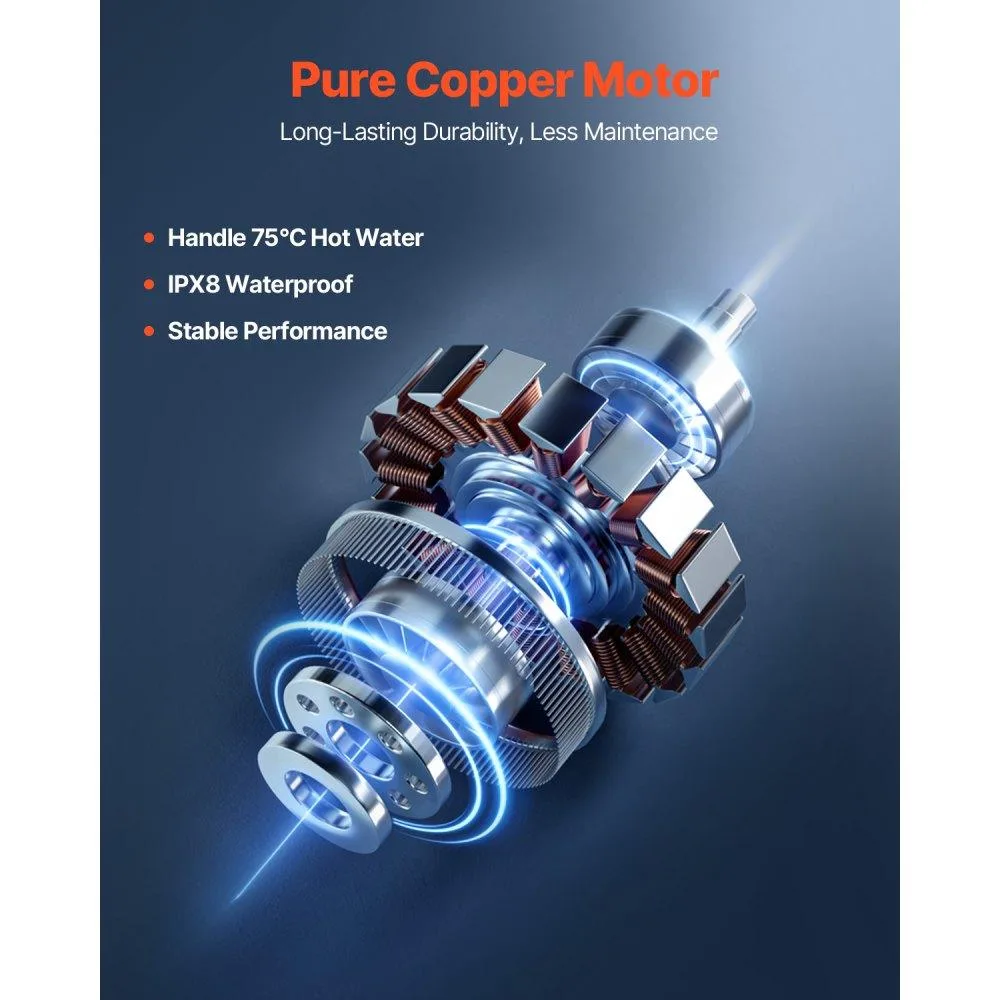

Stainless steel cutting blades macerate solids before discharge, keeping the 40 mm outlet clear during repeated flush cycles and high-temperature appliance drainage. The oil-filled copper motor is sealed to IPX8, so prolonged immersion or splash exposure does not degrade insulation. Maintenance-free operation means no scheduled blade sharpening or seal replacement. Builders needing a gravity-fed connection or a larger discharge diameter should plan a different system.
