Silver aluminium linear actuator 22.63 inch long with two mounting brackets

VEVOR

VEVOR Linear Actuator 12V 18" 330lbs 0.19"/s IP54 Bracket

SKU CH-V6SQ-CE2Q2

A 12 V linear actuator delivers 18 inch stroke, 330 lbs force and 0.19 in/s speed with IP54 protection and included mounting brackets

  • TypeOther Appliances
  • Width4.72
  • Precise positioning with 0.19 inch per second speed and 330 lbs force
  • IP54 rated for dust and splashing water protection
  • Quiet operation below 60 dB noise level
  • 18 inch stroke length for extended linear motion
  • All-metal transmission with aluminum alloy construction

Precise Linear Motion for Automation

This 12V linear actuator delivers 330lbs of force at a steady 0.19"/s speed across an 18 inch stroke. It suits projects that need repeatable positioning such as robotic arms, adjustable beds or laboratory equipment. The IP54 rating allows operation in dusty or damp environments.

Aluminium Build with Ready-to-Mount Brackets

An aluminium alloy body keeps weight to 3.15lbs while handling the 1500N load rating. Two mounting brackets, two screw rods and two R-type pins are included so the unit can be bolted into frames or furniture without extra hardware. Noise stays below 60dB during travel.

Upgrade from Lower-Force or Unsealed Units

The jump is worthwhile when an existing actuator cannot sustain 330lbs or lacks IP54 protection against splashing water and dust. Builders needing longer stroke than shorter models provide will also benefit from the 450mm travel. It is not for applications requiring faster cycling speeds or wireless control.

Highlights

  • Precise positioning with 0.19 inch per second speed and 330 lbs force
  • IP54 rated for dust and splashing water protection
  • Quiet operation below 60 dB noise level
  • 18 inch stroke length for extended linear motion
  • All-metal transmission with aluminum alloy construction

Specifications

TypeOther Appliances
Width4.72

Questions about this item

What does the IP54 rating on this 12 V actuator protect against?

The IP54 rating means the unit is protected against dust ingress and water splashing from any direction, making it suitable for outdoor or workshop environments where moisture and debris are present.

What are the mounting dimensions and hardware included with the 18 inch stroke model?

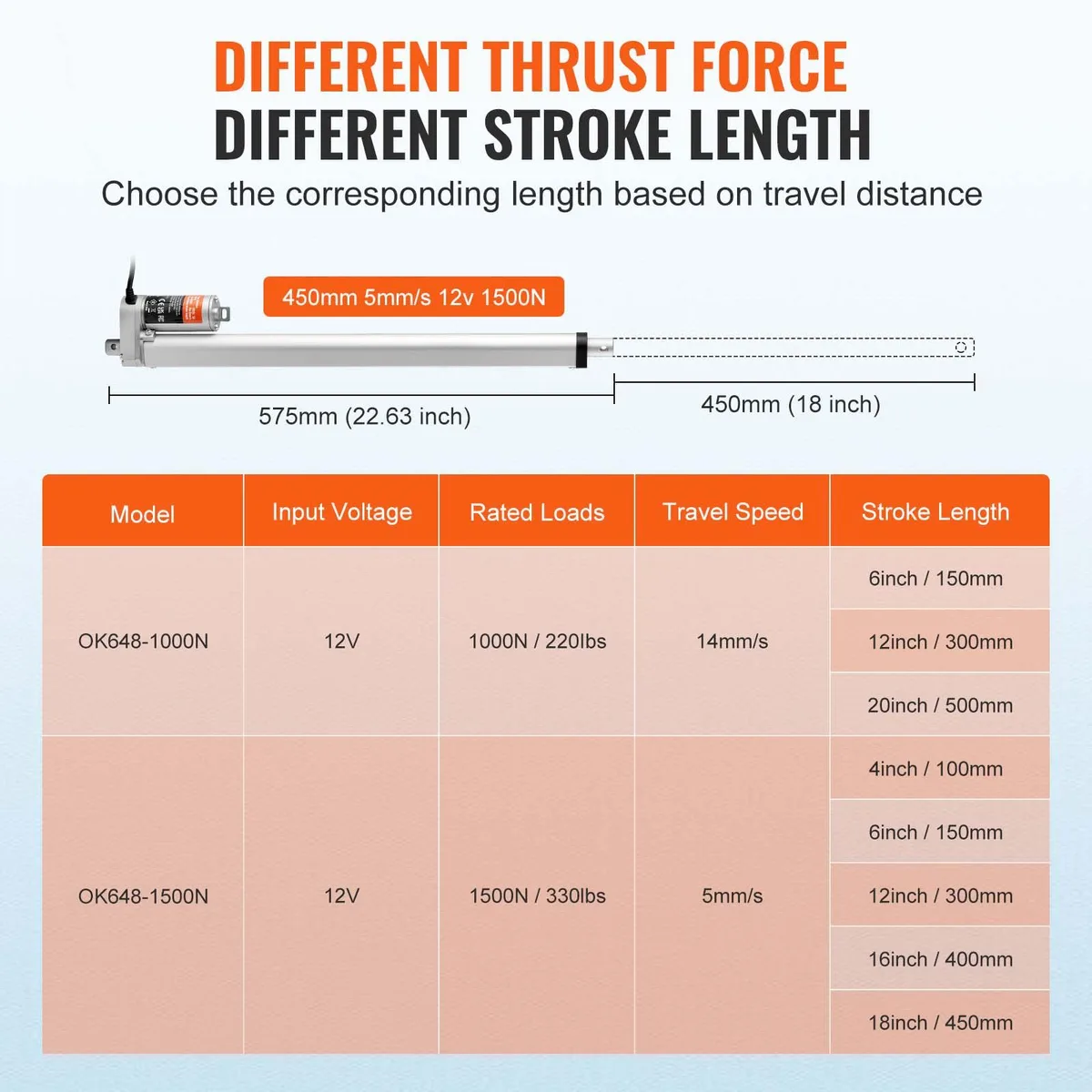

The actuator body measures 22.63 x 2.95 x 1.57 inches and ships with two mounting brackets, two screw rods and two R-type pins for clevis-style installation.

How do I wire the DC 12 V motor and which stroke-end behaviour should I expect?

Connect the two leads to a 12 V DC supply; extending and retracting is controlled by reversing polarity. The unit has internal limit switches that stop the motor automatically at each end of the 450 mm stroke.
