Silver aluminium cylinder linear actuator with mounting brackets visible

VEVOR

VEVOR Linear Actuator 12V 16 Inch 6000N IP44 0.19"/s

SKU CH-BYR6-0TA79

12 V linear actuator delivers 6000 N force over a 16 inch stroke at 0.19 in/s with IP44 protection and 50 dB noise

  • TypeOther Appliances
  • Width6.69
  • Powerful 6000 N force handles heavy industrial loads
  • 16 inch stroke provides 400 mm linear travel
  • IP44 protection resists dust and water splashes
  • Quiet 50 dB operation suits home automation
  • All-metal aluminium alloy build ensures long durability

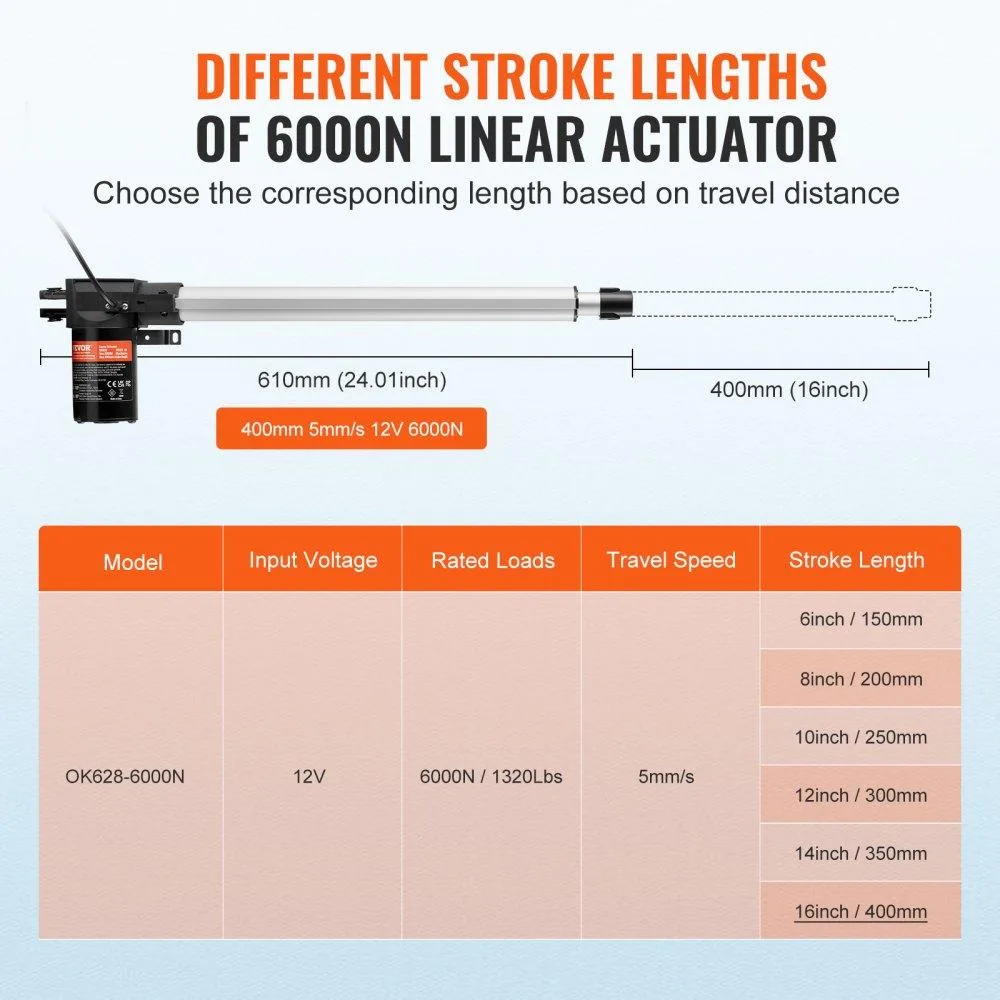

12 V 16 inch 6000 N linear actuator

The VEVOR linear actuator delivers 6000 N of thrust at 12 V DC with a 16 inch stroke. Its 0.19 inch per second travel speed suits controlled positioning tasks in industrial machinery, vessel equipment and cargo systems. The IP44 rating protects internals from splashing water and solid particles larger than 1 mm. Mounting brackets and screw rods are included for direct installation.

Aluminium alloy construction with IP44 sealing

The housing uses aluminium alloy for strength and corrosion resistance while keeping the unit to 5.59 lbs. An all-metal transmission mechanism maintains rigidity under full load. Operational noise stays below 50 dB, allowing use in noise-sensitive automation or furniture adjustment. Two R-type pins and two mounting brackets provide secure pivot points without extra fabrication.

Replaces lower-force or slower actuators

Builders upgrading from actuators rated below 6000 N or with slower travel gain higher lifting capacity and consistent 0.19 inch per second motion. The 16 inch stroke covers longer travel needs that shorter-stroke units cannot meet. Buyers needing faster cycling or wireless control will need a different solution.

Highlights

  • Powerful 6000 N force handles heavy industrial loads
  • 16 inch stroke provides 400 mm linear travel
  • IP44 protection resists dust and water splashes
  • Quiet 50 dB operation suits home automation
  • All-metal aluminium alloy build ensures long durability

Specifications

TypeOther Appliances
Width6.69

Questions about this item

What voltage does the 6000N linear actuator require?

The actuator runs on DC 12V, which is the only rated voltage listed for this model.

How much space do the mounting brackets add to the overall width?

The unit measures 80 mm wide; the two included brackets bolt to the sides without changing that 80 mm envelope.

Which step is most often missed when wiring the 12V actuator?

Connect the two leads directly to a 12V DC supply — reversing polarity reverses direction, so verify polarity before securing the connections.
