Silver aluminum linear actuator with mounting brackets and screw rods

VEVOR

VEVOR Linear Actuator 12V 16 Inch 330lbs 0.19"/s IP54 Mounting Bracket

SKU CH-283J-J16E7

A 12 V linear actuator delivers 16 inch stroke at 0.19 inch per second with 330 lbs thrust and IP54 protection

  • TypeOther Appliances
  • Width4.72
  • Precise positioning at 0.19 inch/s with 330lbs force
  • IP54 rating resists dust and splashing water
  • Quiet operation below 60dB suits indoor use
  • 16 inch stroke length for extended travel
  • All-metal aluminium alloy build with mounting brackets

12 V Linear Actuator for Precision Motion

This 12 V linear actuator delivers a 16 inch stroke with a rated force of 330 lbs and a constant speed of 0.19 inches per second. It suits automation projects, adjustable furniture and laboratory rigs that require repeatable positioning. The IP54 rating allows use in dusty or damp environments. Mounting brackets and hardware are included for immediate installation.

Sustained Load Behaviour and Thermal Limits

The all-metal transmission and aluminium alloy body maintain the 1500 N thrust without speed drop during continuous cycles. Operating noise stays at or below 60 dB even under full load. The IP54 seal protects internal components from dust ingress and water splashes during extended runs. No duty-cycle restriction is specified by the manufacturer.

Installation Notes and Common Pitfalls

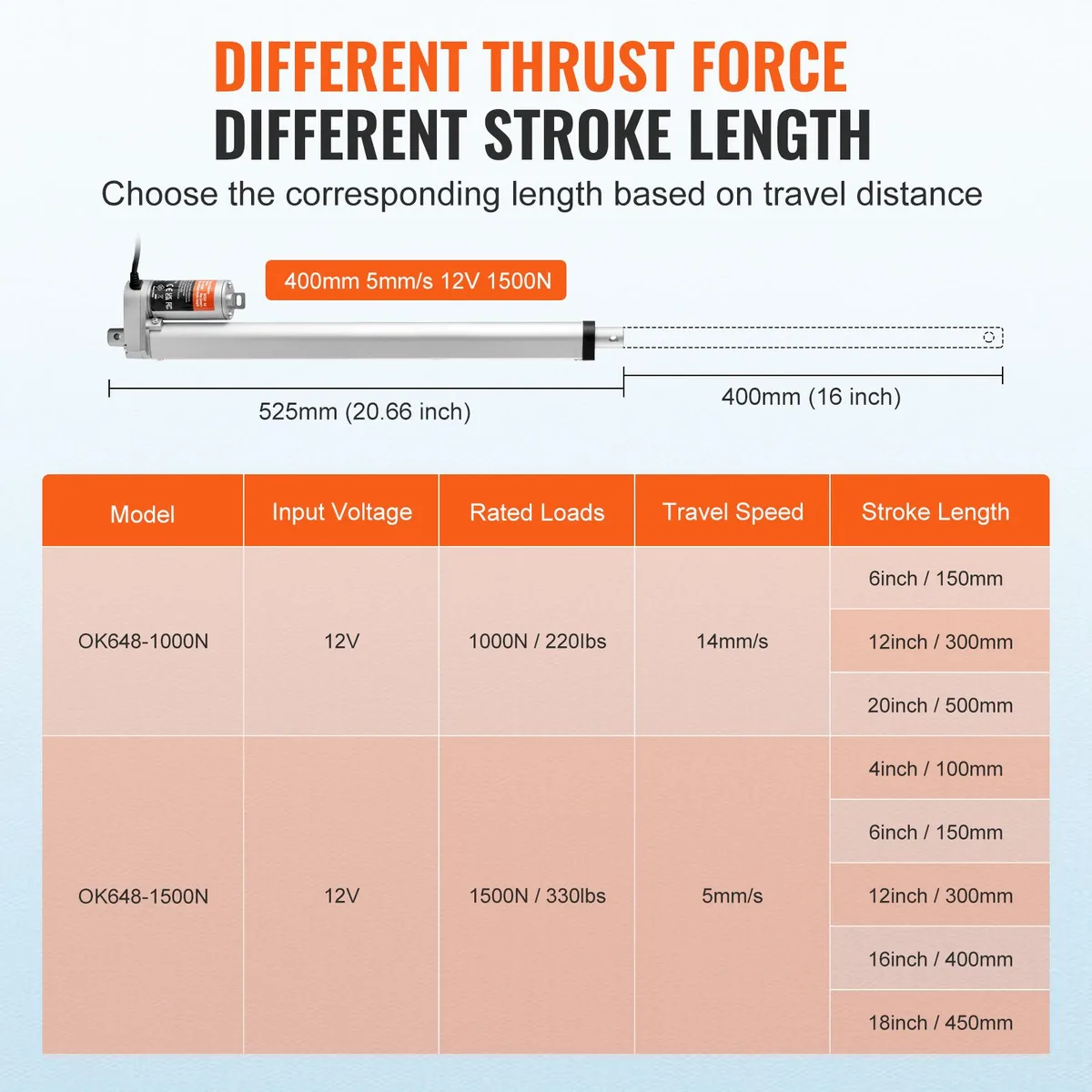

Two R-type pins and two screw rods let you secure the unit with the supplied brackets in minutes. The 20.66 inch retracted length and 2.95 inch width require adequate clearance in tight frames. Wiring must accommodate a 12 V DC supply capable of the actuator’s peak current. The 2.97 lb weight adds minimal stress to mounting surfaces.

Highlights

  • Precise positioning at 0.19 inch/s with 330lbs force
  • IP54 rating resists dust and splashing water
  • Quiet operation below 60dB suits indoor use
  • 16 inch stroke length for extended travel
  • All-metal aluminium alloy build with mounting brackets

Specifications

TypeOther Appliances
Width4.72

Questions about this item

How loud is the actuator at 60 dB when running all day?

The unit operates below 60 dB, so it stays quiet enough for continuous use in furniture or automation without becoming intrusive.

What power source must I already have to run this 12 V actuator?

You need a DC 12 V supply capable of delivering the current required for the 1500 N load rating.

Will the IP54 rating and 16 inch stroke work with my existing aluminium mounting points?

Yes, the IP54 housing resists dust and splashes, and the two included brackets with R-type pins fit standard mounting patterns for the 400 mm stroke.
