Silver aluminium linear actuator with two mounting brackets, compact cylindrical form

VEVOR

VEVOR Linear Actuator 12V 10 Inch 1320lbs 6000N 0.19"/s IP44 Bracket

SKU CH-FFDM-8JKW9

A 12 V linear actuator delivers 10 inch stroke at 0.19 in/s with 1320 lbs force, IP44 protection and 50 dB noise

  • TypeOther Appliances
  • Width6.69
  • Delivers 1320 lbs force for heavy-duty lifting
  • 10 inch stroke extends reach in automation setups
  • Runs on 12 V DC for simple wiring
  • IP44 rating resists dust and splashing water
  • Operates below 50 dB for quiet environments

Industrial Linear Actuator 12V 10 Inch Stroke

This 12 V DC linear actuator delivers 6000 N of thrust across a 250 mm stroke at 0.19 inch per second. The IP44-rated aluminium alloy body suits industrial automation, heavy-duty lifting and marine cargo systems where reliable linear motion is required.

Bracket Mounting and Wiring Notes

Two mounting brackets, two screw rods and two R-type pins are included for direct bolting to the application. Allow clearance for the 460 mm overall length and 80 mm width; the unit weighs 2.23 kg so fasteners and structure must handle the load. Wiring is simple two-wire DC — reverse polarity to change direction — but the 50 dB operating noise means it is not silent enough for quiet living spaces.

Pre-Installation Checklist

Confirm a 12 V DC supply capable of sustaining the actuator’s peak current under 6000 N load. Verify the 10 inch stroke matches the required travel and that the mounting points align with the supplied brackets. Ensure the operating environment stays within IP44 limits — protected against splashing water but not submersion — and that the 18.11 inch retracted length fits the available space.

Highlights

  • Delivers 1320 lbs force for heavy-duty lifting
  • 10 inch stroke extends reach in automation setups
  • Runs on 12 V DC for simple wiring
  • IP44 rating resists dust and splashing water
  • Operates below 50 dB for quiet environments

Specifications

TypeOther Appliances
Width6.69

Questions about this item

How do I confirm the actuator is running at the rated 0.19"/s after installation?

Measure the time it takes to travel the full 10 inch stroke; at 0.19"/s the movement should be smooth and consistent with the 50 dB noise ceiling.

What accessories are included and what must I source separately?

The package contains the actuator, two mounting brackets, two screw rods and two R-type pins; a 12 V DC power supply and wiring are not included.

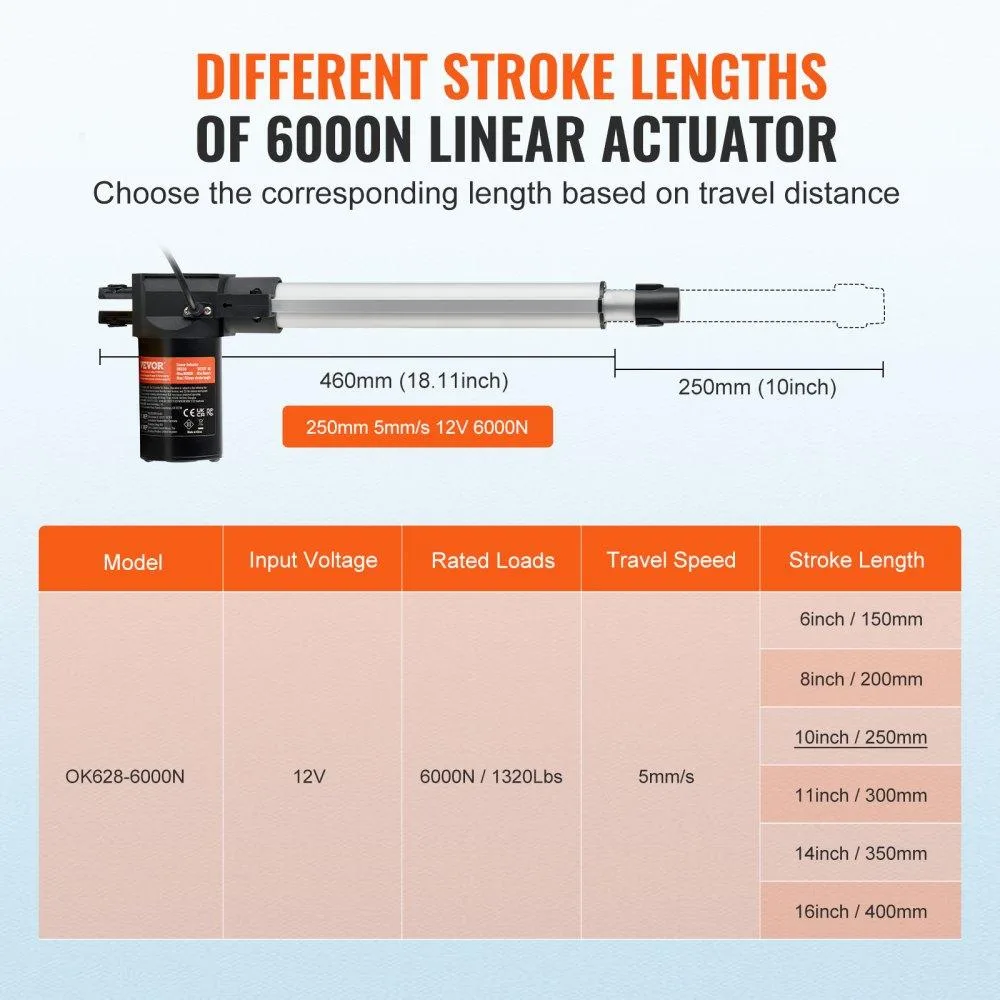

Which stroke length matches the 10 inch / 250 mm specification in the listing?

This unit is the 10 inch / 250 mm stroke version; other stroke lengths are different models.
