Wide silver vinyl cutter with LCD panel and three pinch rollers on a sturdy frame

VEVOR

VEVOR KI-720 die cutting plotter 28.3 in feed 24.8 in cut

SKU CH-NYX8-9QCV2 MPN KI-720

Cuts vinyl up to 24.8 in wide with ±0.004 in precision using stepper motor and three pinch rollers, includes SignMaster software for Windows via USB or serial

  • TypeOther Appliances
  • Wide 28.3 in feed handles large rolls
  • Precise ±0.004 in cutting accuracy for detailed work
  • LCD control adjusts speed and force instantly
  • Three double-spring rollers prevent jams during operation
  • SignMaster software included with Windows compatibility

Cutting capacity and control

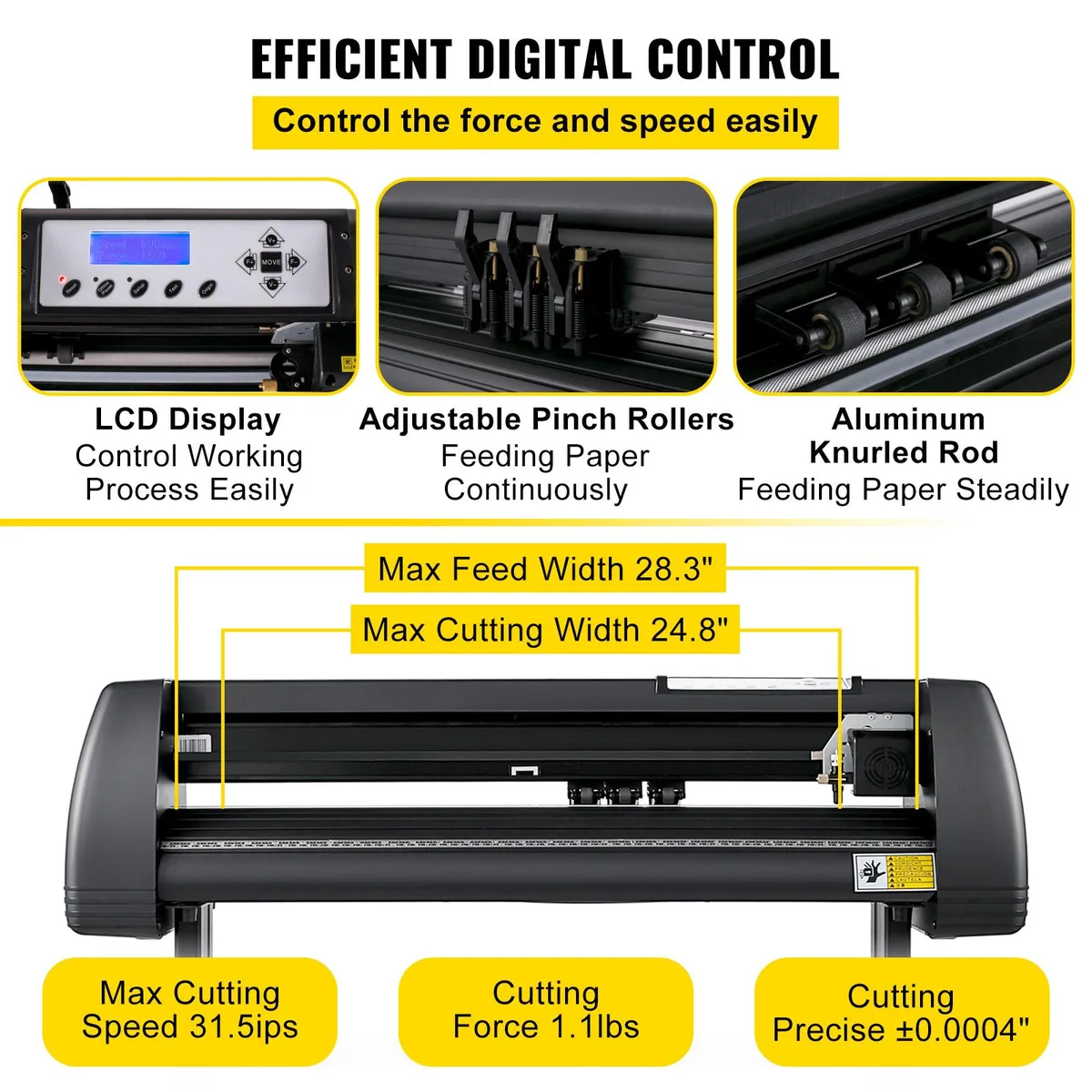

The VEVOR KI-720 die cutting plotter handles a maximum feed width of 28.3 in and a maximum cutting width of 24.8 in. It uses a stepper motor with three adjustable double-spring pinch rollers on aluminium knurled rods for steady media feeding. An LCD panel provides direct control of speed and force settings. The machine includes SignMaster software and supports Signcut and Flexi via USB or serial connection.

Power and software checks

The unit operates on AC 90-264V input with a fused power supply and an emergency stop function. Verify that your computer runs a compatible Windows version from XP through 10 and has an available USB or COM port. Ensure sufficient bench space for the 37.8 x 13 x 16.5 in footprint and 21.4 lb weight before installation.

Sustained operation behaviour

Maximum cutting force reaches 1.1 lbs with a precision of ±0.004 in at speeds up to 31.5 ips. The stepper motor and rigid aluminium frame maintain consistent tracking during long runs. The fused supply and emergency stop protect the mechanism if resistance exceeds design limits during extended cutting sessions.

Highlights

  • Wide 28.3 in feed handles large rolls
  • Precise ±0.004 in cutting accuracy for detailed work
  • LCD control adjusts speed and force instantly
  • Three double-spring rollers prevent jams during operation
  • SignMaster software included with Windows compatibility

Specifications

TypeOther Appliances

Questions about this item

What accessories are included with the KI-720 plotter and what must I purchase separately?

The box contains the cutter plotter, SignMaster software on a USB flash drive, three blades, a blade holder, pen holder, two cables, power cable, two fuses, five 9.84 ft sticker rolls, graver, scraper, crepe paper, soft tape, hex wrench and manual. Vinyl or other cutting media is not included.

Which cutting width should I choose for my projects, 24.8 in or a smaller size?

The KI-720 offers a maximum cutting width of 24.8 in (630 mm) and a maximum feed width of 28.3 in (720 mm). This single model handles any project up to those dimensions; there are no alternative width versions to select.

What does the 31.5 ips cutting speed mean for daily production work?

The 31.5 ips (800 mm/s) maximum cutting speed lets the machine complete long contour cuts quickly, while the stepper motor and ±0.004 in precision maintain accuracy. Actual throughput depends on design complexity and the 1.1 lb (500 g) force setting used.
