Black and orange steel rolling mill with hand crank and adjustable rollers

VEVOR

VEVOR KD-Y4554 45 mm 3-in-1 Jewelry Rolling Mill

SKU CH-CC29-8X6E5

A 45 mm hand-cranked rolling mill presses sheet, square wire and half-round profiles from 0 to 6 mm thick with a 1:2.4 gear ratio

  • TypeOther Appliances
  • 3-in-1 mill rolls sheet, square wire and half-round profiles
  • Adjustable rollers set from 0 to 6 mm for precise thickness control
  • 45 mm hardened 45# steel rollers give a smooth mirror finish
  • 1:2.4 gear ratio reduces hand effort when forming metal
  • Rust-resistant oil coating protects the iron frame from corrosion

45 mm 3-in-1 Rolling Mill

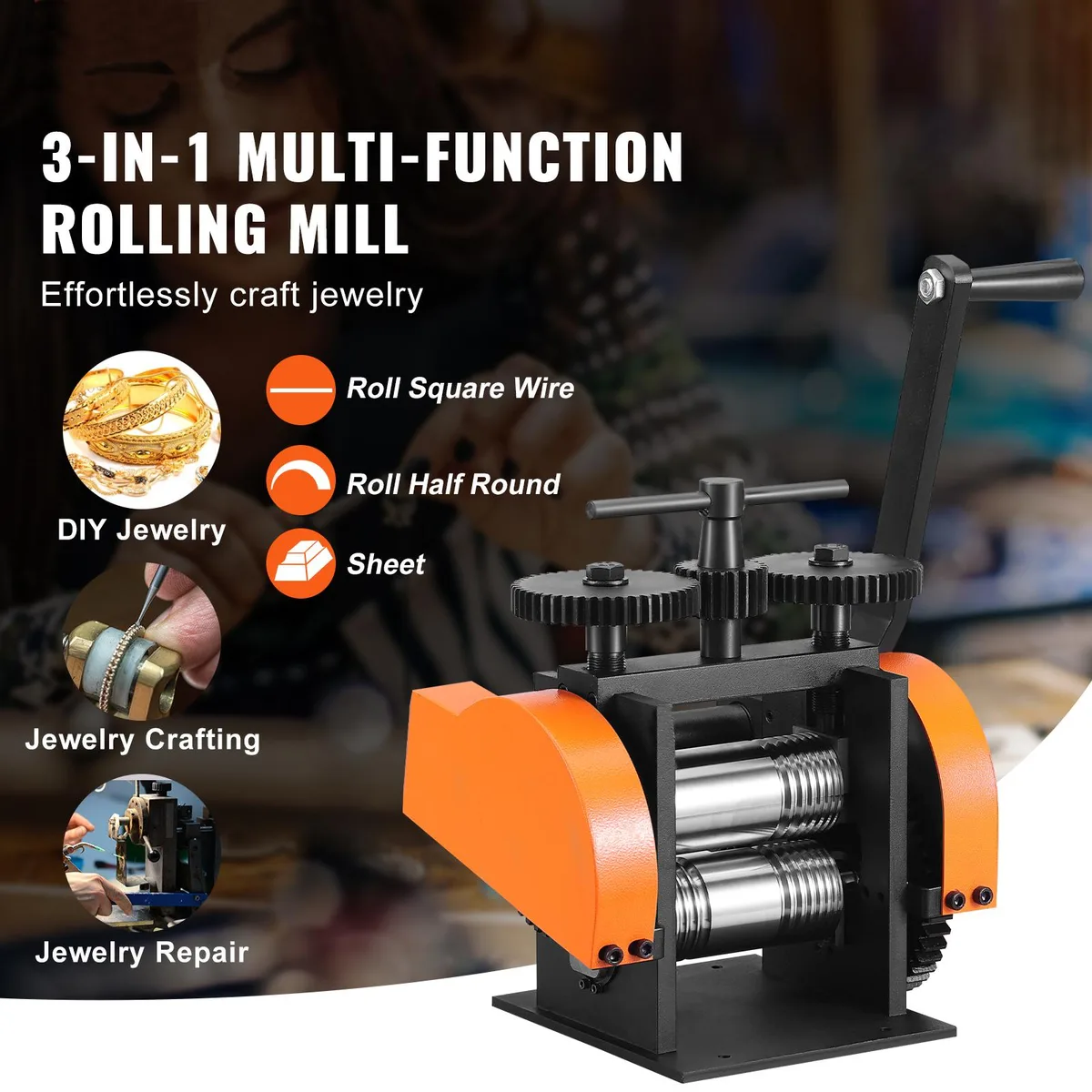

The VEVOR KD-Y4554 is a bench-top rolling mill built for jewellers and metalsmiths who need to form gold, silver, platinum, brass or aluminium into sheet, square wire and half-round profiles. Its 45 mm roller width and three interchangeable functions cover the core shaping tasks in a small workshop or studio.

Adjustable 0-6 mm thickness

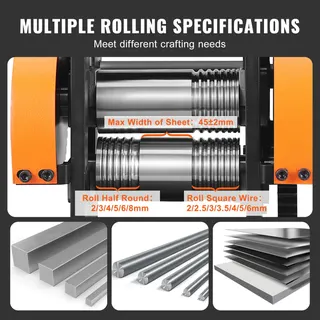

The T-bar adjustment sets roller spacing precisely from 0 to 6 mm, while the half-round grooves offer six diameter choices from 2 to 8 mm and the square grooves provide seven sizes from 2 to 6 mm. This range handles most sheet and wire reduction work, but the 45 mm maximum rolling width limits the size of larger blanks.

45# steel rollers with heat-treated iron frame

Rollers made from 45# steel resist wear and deliver a mirror-like finish on processed metal. The machine body uses heat-treated iron plates coated with rust-resistant oil for corrosion protection. A 1:2.4 hand-crank gear ratio drives the rolls, and the unit mounts on a bench via the included M8 bolt, weighing 18.6 kg for stability during operation.

Highlights

  • 3-in-1 mill rolls sheet, square wire and half-round profiles
  • Adjustable rollers set from 0 to 6 mm for precise thickness control
  • 45 mm hardened 45# steel rollers give a smooth mirror finish
  • 1:2.4 gear ratio reduces hand effort when forming metal
  • Rust-resistant oil coating protects the iron frame from corrosion

Specifications

TypeOther Appliances

Questions about this item

Will the 45 mm rollers accept the half-round wire sizes I already use?

The mill offers six half-round grooves at 2, 3, 4, 5, 6 and 8 mm, so you can match the profiles you currently work with.

How can I verify the gear ratio is set correctly after assembly?

Count the teeth: the hand crank uses an 18:43 ratio and the top adjustment uses a 23:47 ratio, giving an overall 1:2.4 reduction you can feel in the handle resistance.

What comes in the package and what must I supply myself?

The box includes the mill, iron hand crank rod with plastic handle, top hand crank piece, M8×10 hexagonal bolt with washer, a small bar and an instruction manual; you will need to provide your own metal stock and lubrication.
