Large metal frame straightener with hydraulic pump, chains and 16-piece tool kit

VEVOR

VEVOR JT-20 Auto Body Frame Puller Straightener 6T 6000PSI 16 Tools

SKU CH-42NW-DZW65

A 6-ton hydraulic frame straightener with a foot-operated pump, adjustable post swinging ±60° and tilting 35°, plus a 16-piece tool kit and reinforced chains

  • 6-ton pulling force repairs heavy collision damage

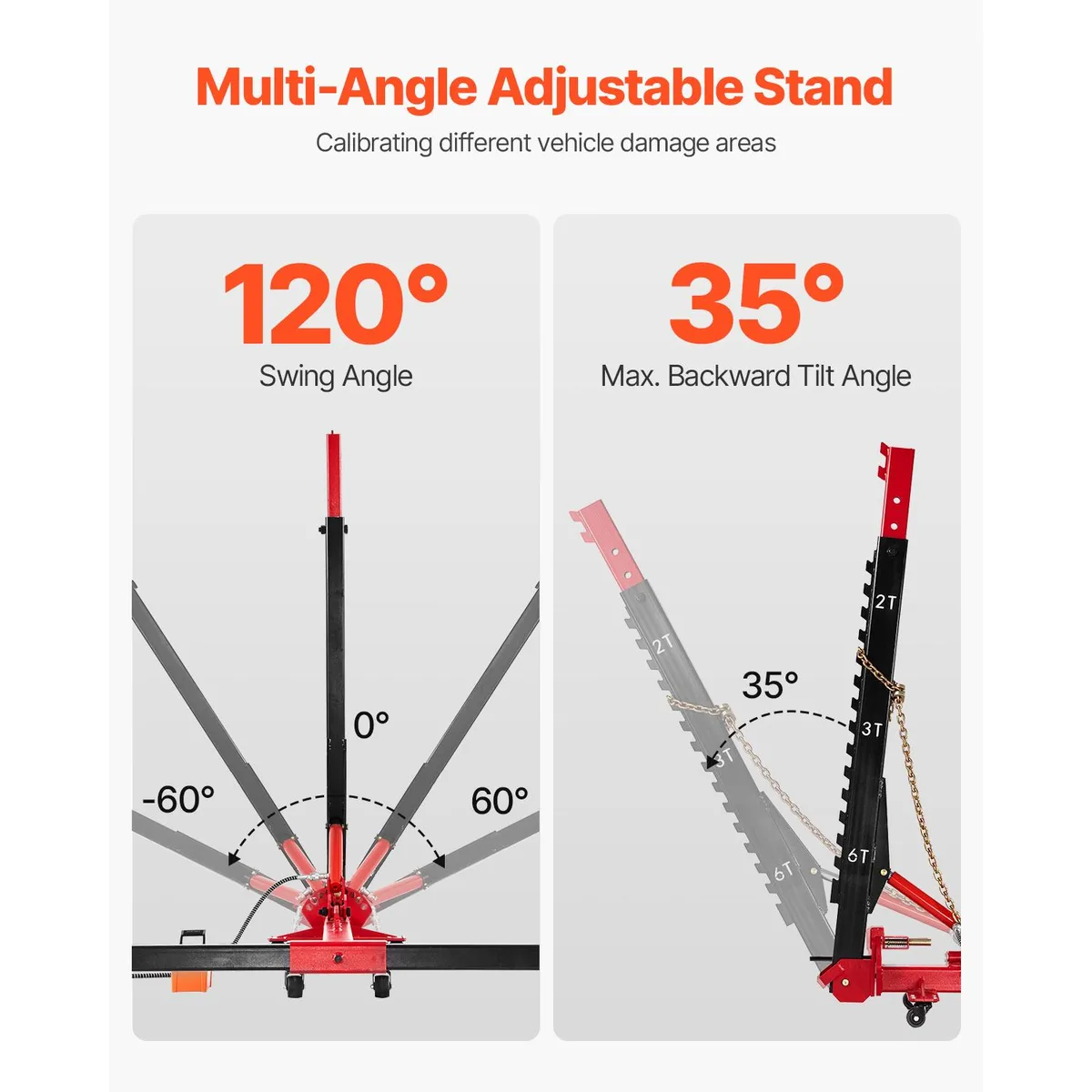

  • Post adjusts -60° to +60° and tilts 35° for precise alignment
  • Foot-operated hydraulic pump runs at 0.6-1Mpa air pressure for hands-free control
  • 16-piece tool kit includes clamps and dual-head fixing clamp for secure straightening
  • 118-inch reinforced chain with 3-ton hook reaches wide frame sections

Industrial frame repair for heavy collision work

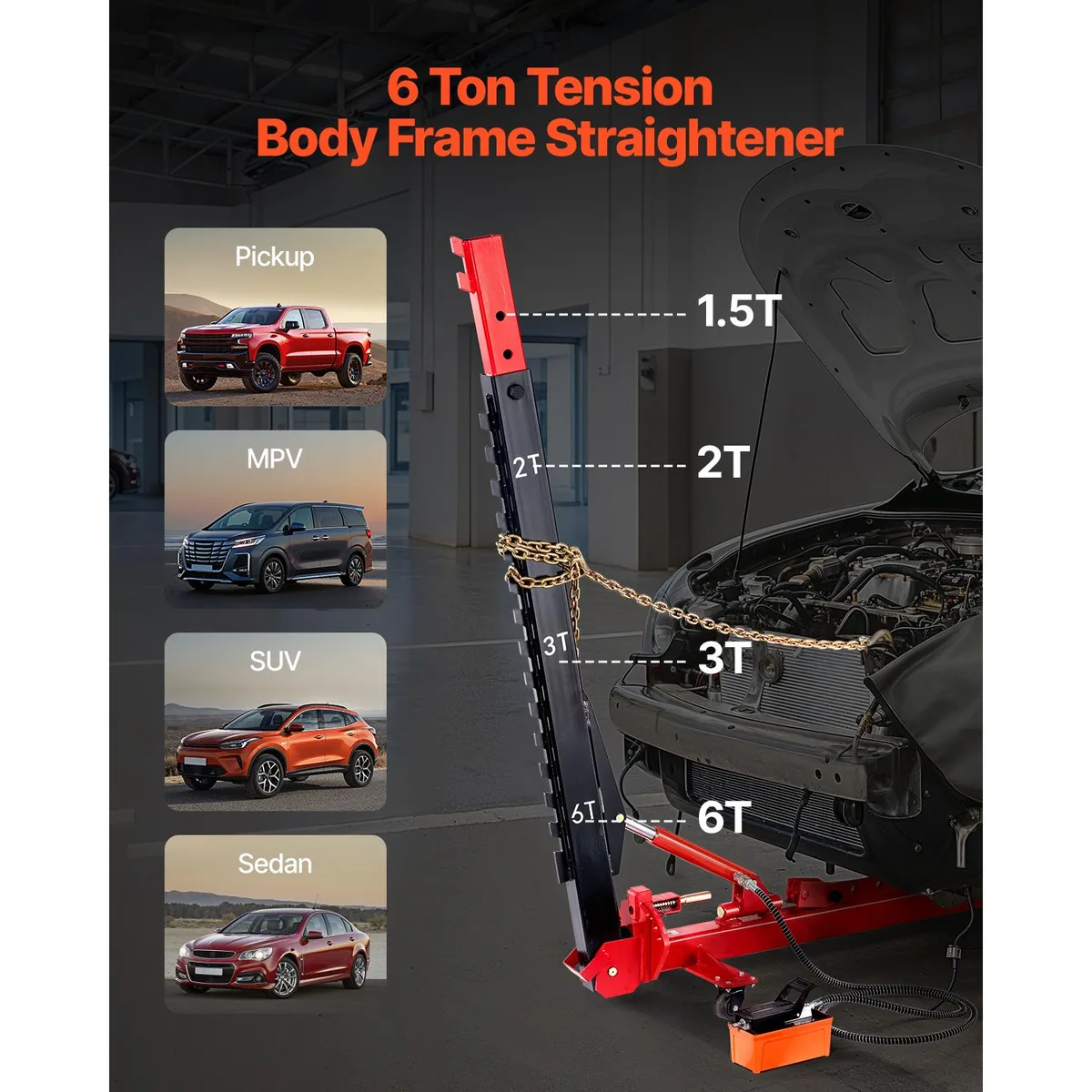

The VEVOR JT-20 delivers six tons of pulling force for straightening accident-damaged sedans, SUVs and pickups. A hydraulic foot pump running at 0.6 to 1Mpa air pressure drives the cylinder, while an 8-pin swivel post adjusts from minus sixty to plus sixty degrees and tilts thirty-five degrees. The package includes a hundred eighteen inch chain, a thirty-nine inch chain and a sixteen-piece tool kit with sheet-metal clamps and a dual-head fixing clamp.

Replaces manual chain pulls

Shops moving up from hand-operated come-alongs or lower-capacity straighteners gain the consistent 6000PSI pressure needed for structural frame rails. The jump is worth it when repair volume justifies a dedicated 270kg frame machine that anchors the vehicle while the post swings into position. It is not suited for mobile technicians who need a lightweight portable kit or for shops that only handle cosmetic panel dents.

Check shop space, air supply and floor capacity

The unit footprint measures ninety-eight point four by seventy-four point eight by eighty-eight point six inches, so verify bay clearance before ordering. A compressed-air source capable of sustaining 0.6 to 1Mpa at the G3/8 connector is required to run the pneumatic-hydraulic pump. Confirm the concrete floor can support five hundred ninety-five point two pounds of concentrated weight plus the vehicle load.

Highlights

  • 6-ton pulling force repairs heavy collision damage
  • Post adjusts -60° to +60° and tilts 35° for precise alignment
  • Foot-operated hydraulic pump runs at 0.6-1Mpa air pressure for hands-free control
  • 16-piece tool kit includes clamps and dual-head fixing clamp for secure straightening
  • 118-inch reinforced chain with 3-ton hook reaches wide frame sections

Specifications

No published specifications for this item yet.

Questions about this item

How much floor space and ceiling clearance does the 98.4 × 74.8 × 88.6 in frame puller need?

The unit measures 98.4 in long, 74.8 in wide and 88.6 in high, so allow at least that footprint plus room to swing the post and route the 118 in chain around the vehicle.

What air supply does the foot-operated hydraulic pump require, and which quick-connect fits my shop hose?

The pump needs 0.6-1 Mpa air pressure and ships with both a US-type and a European-type pneumatic quick connect for the 3 m hydraulic hose.

Which parts of the 16-piece straightening kit and hydraulic system wear out and need periodic replacement?

The 118 in and 39 in chains, hydraulic hose, dual-head fixing clamp and sheet-metal clamps are the consumable items; inspect them after each job and replace any stretched links, cracked fittings or deformed clamp jaws.
