Red H-frame hydraulic press with gauge and adjustable work table

VEVOR

VEVOR Hydraulic Shop Press 10 T H-Frame with Press Plate & H-shaped Base

SKU CH-4SXR-S51K0

A 10-tonne H-frame hydraulic press with an adjustable worktable, pressure gauge and safety valve for bending, straightening and stamping metal parts

  • TypeOther Appliances
  • Width10.55
  • 10 ton capacity handles bushings, joints and metal forming
  • Safety regulator valve stops over-pressure damage automatically
  • Worktable adjusts to four heights from 2.3 to 15.1 inches
  • 1 inch cylinder stroke gives deep pressing reach
  • H-frame base and 87.4 lb weight keep the press stable

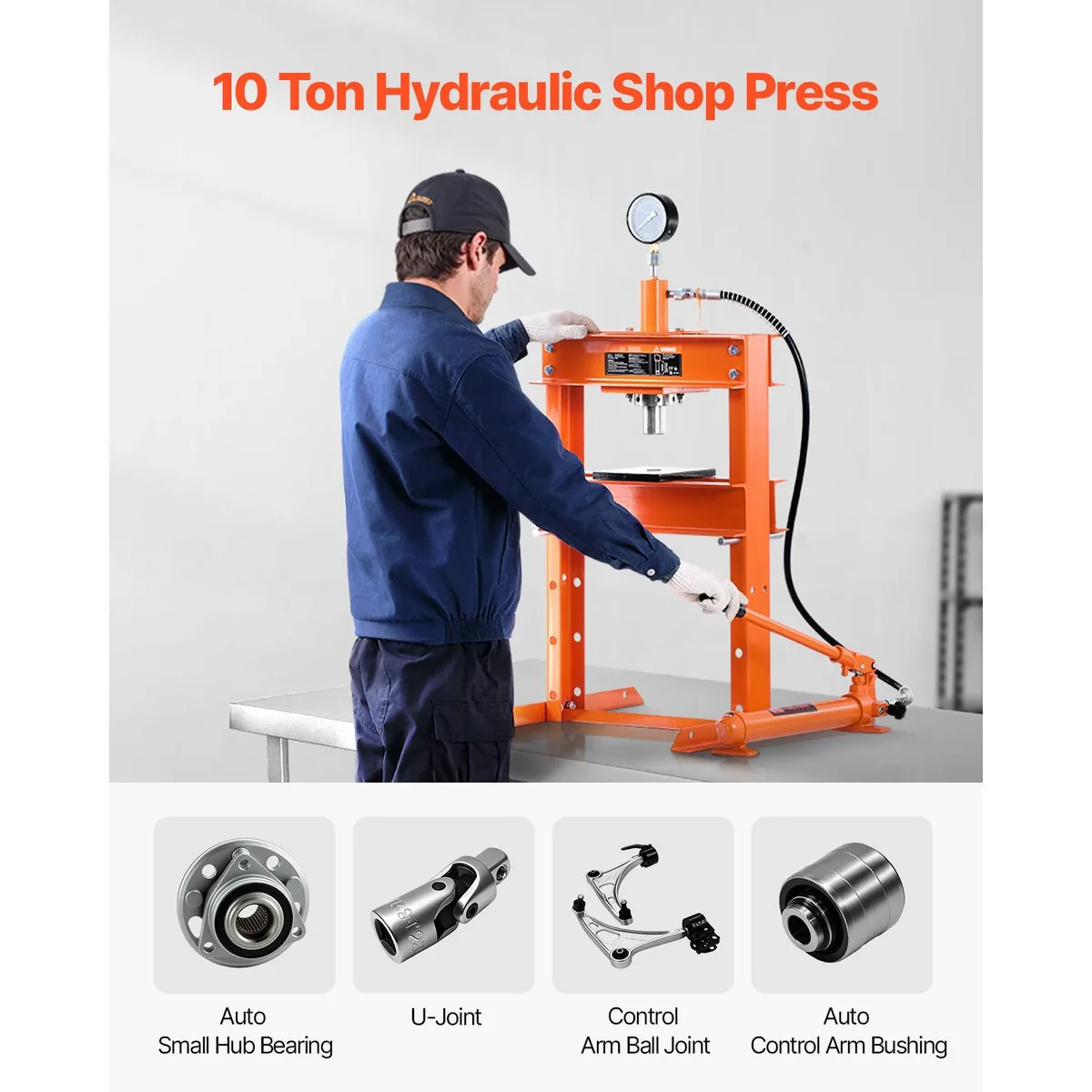

10-Ton Hydraulic Shop Press

The VEVOR 10-ton H-frame press handles bending, straightening and stamping tasks in a garage or workshop. It suits professional mechanics and DIY enthusiasts who need to remove or install bushings, ball joints and U-joints. The rated load is 10 tonnes and the cylinder stroke measures 5.1 inches.

Assembly and Safety Valve

The press arrives in multiple pieces including upper beams, vertical columns, base feet and a crossbar that bolt together with M10 and M12 hardware. A pre-installed oil cylinder and pump unit reduce hydraulic connections. The built-in relief valve stops further lowering when pressure exceeds the rated capacity, protecting seals from over-pressure damage.

Workspace and Height Checks

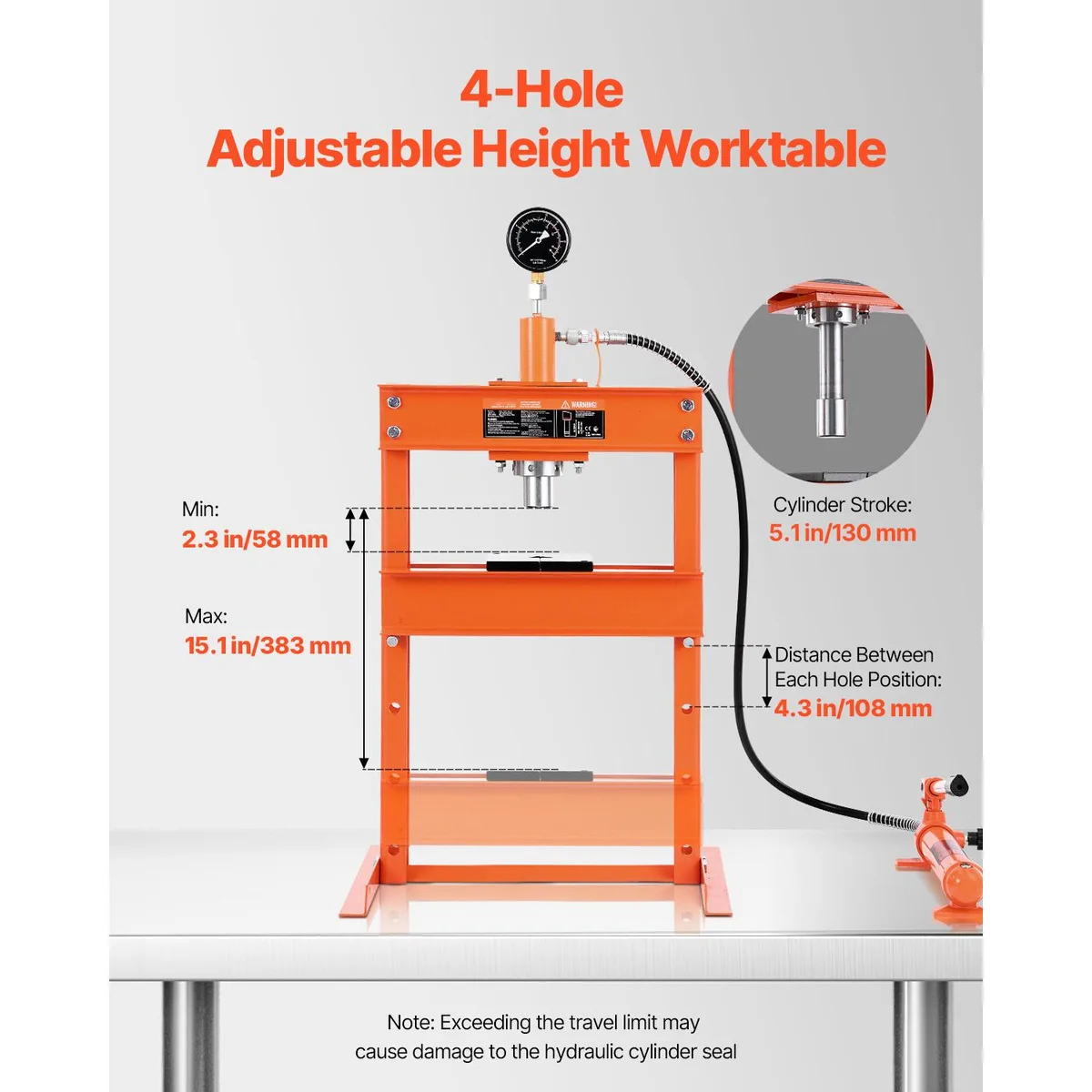

The assembled frame stands 69.8 inches tall, 30.2 inches wide and 23.6 inches deep, so confirm ceiling clearance and floor space before ordering. The work table adjusts through four pin positions from 2.3 to 15.1 inches above the base, and the cylinder stroke is limited to 5.1 inches. Hydraulic oil type 15# is required for operation.

Highlights

  • 10 ton capacity handles bushings, joints and metal forming
  • Safety regulator valve stops over-pressure damage automatically
  • Worktable adjusts to four heights from 2.3 to 15.1 inches
  • 1 inch cylinder stroke gives deep pressing reach
  • H-frame base and 87.4 lb weight keep the press stable

Specifications

TypeOther Appliances
Width10.55

Questions about this item

How can I verify the 10 T press is operating correctly after assembly?

Apply a known load and watch the 10T pressure gauge; the needle should rise smoothly and the security regulator valve must stop further lowering once rated capacity is reached.

What components are included and what must I supply myself?

The box contains the H-frame, oil cylinder, pump, handle, press plate, 10T pressure gauge, all bolts, washers, nuts, pins and a user manual; you must purchase 15# hydraulic oil separately.

Which work-table height setting should I select for my job?

Choose one of the four pin positions between 2.3 and 15.1 inches so the workpiece sits close to the ram without exceeding the 5.1 inch cylinder stroke.
