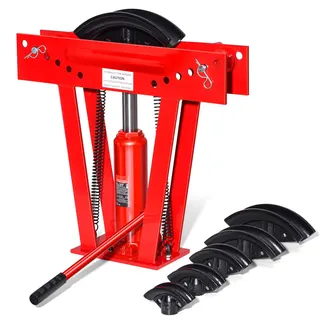

Heavy-duty steel hydraulic pipe bender with six dies and adjustable rollers

VEVOR

VEVOR Hydraulic Pipe Bender 12 Ton 6 Dies 1/2"-2" 90-180° Adjustable Rollers

SKU CH-TRZA-5J6SP

Manual 12-ton hydraulic pipe bender with six dies covering 13-51 mm pipe and adjustable rollers for 90-180° angles

  • TypeOther Appliances
  • Width23.43
  • 12-ton hydraulic force bends thick pipe up to 2 in
  • six precision dies cover 13 mm to 51 mm sizes
  • adjustable rollers enable 90° to 180° bending angles
  • 243 mm stroke and 342–585 mm height suit varied jobs
  • steel frame with hydraulic return spring ensures durable operation

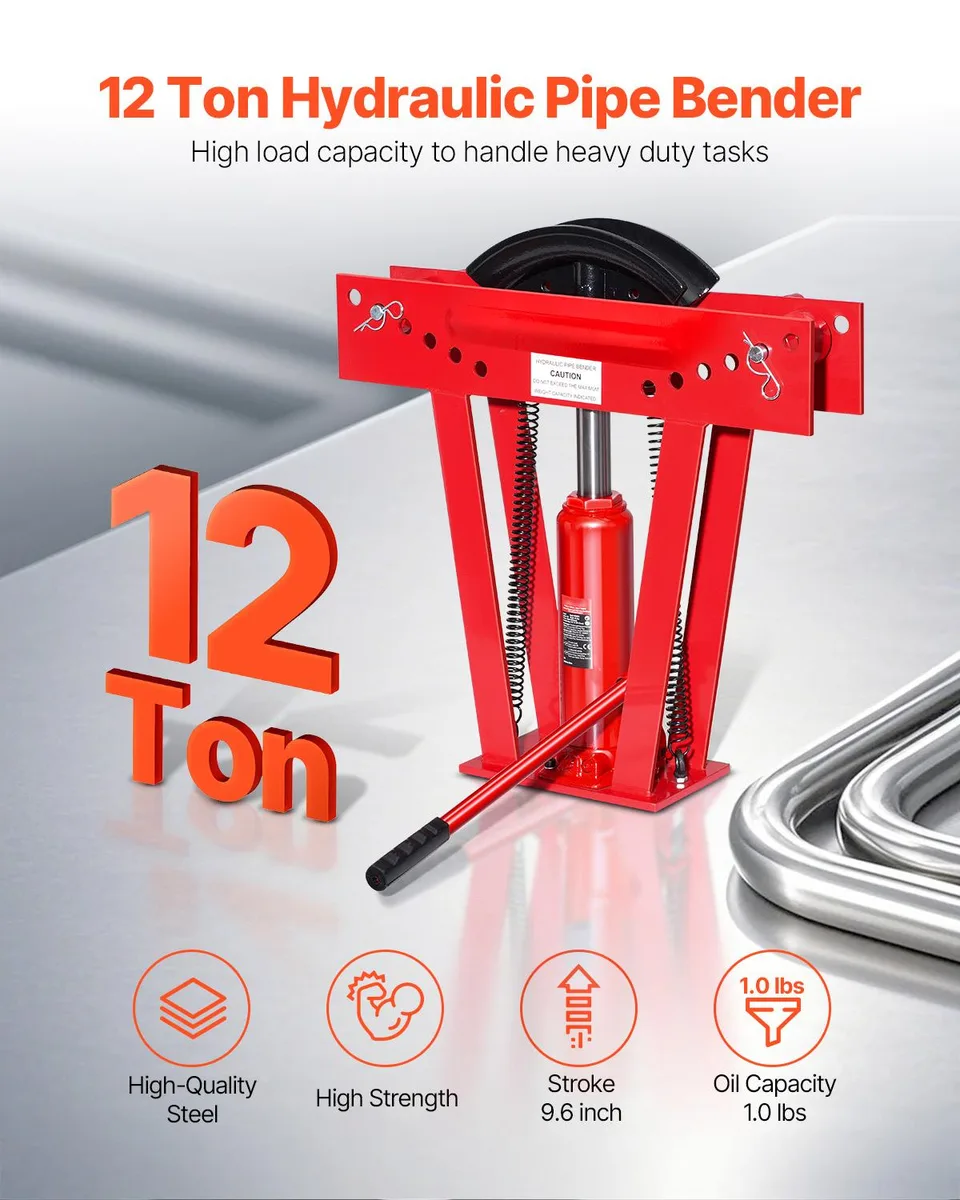

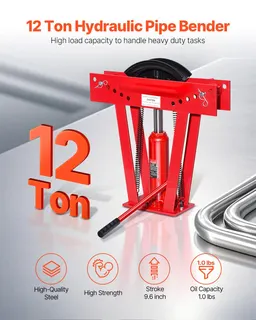

12-Ton Hydraulic Pipe Bender for Piping Work

This 12-ton manual hydraulic pipe bender handles copper and steel pipe from 13 mm to 51 mm. It ships with six precision-cast dies covering 1/2 inch through 2 inch sizes. The unit suits plumbing, exhaust fabrication and railing construction where controlled bends are required.

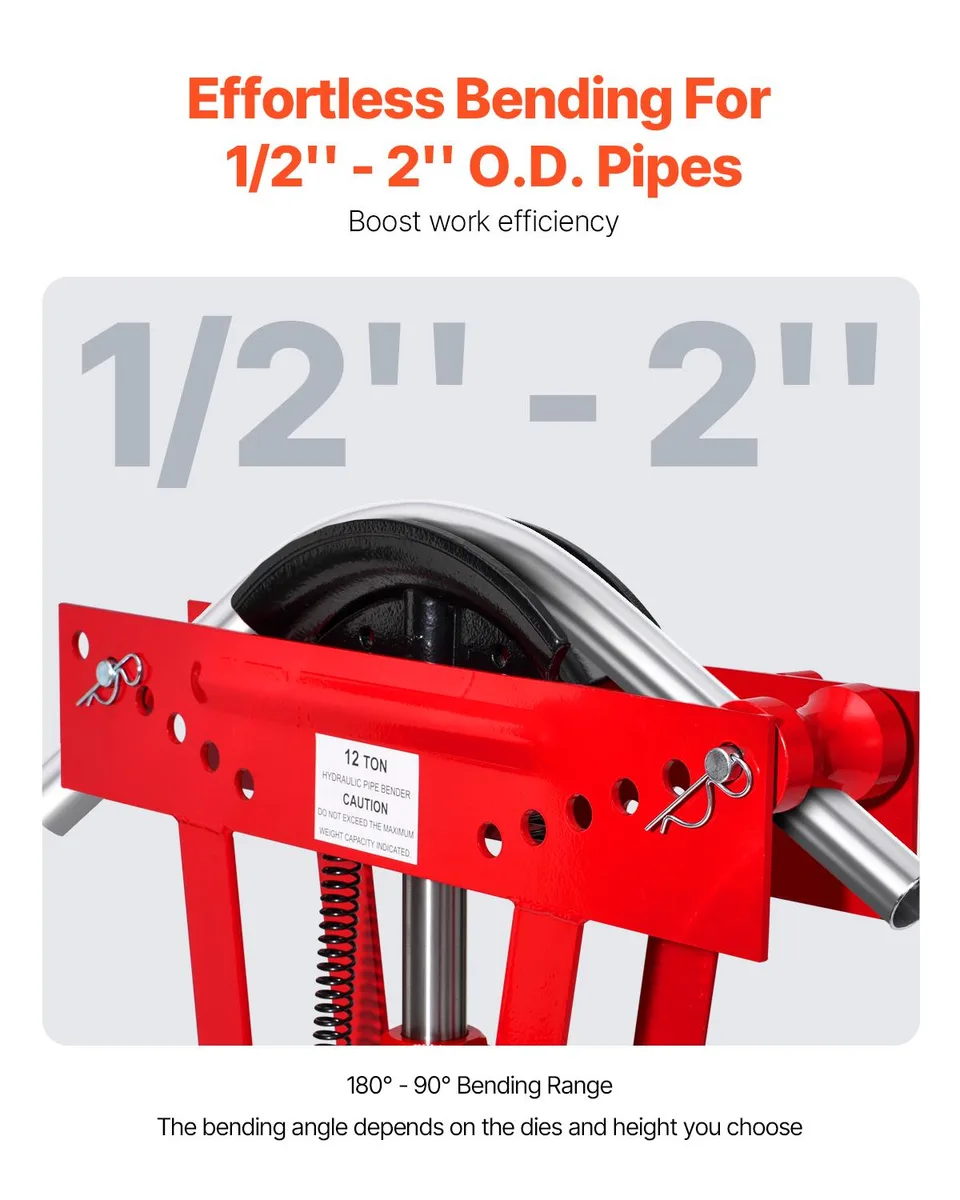

Gradual Bending Within 90-180° Range

Pipes cannot reach a 90° angle in a single pass; they must be bent gradually in sections. The 243 mm stroke and adjustable rollers with six position slots let you set angles between 90° and 180°. The adjustable working height spans 342 mm to 585 mm to match bench or floor setups.

Steel Frame With Spring Return

The heavy steel frame weighs 31.3 kg and measures 610 mm by 160 mm by 550 mm. A hydraulic cylinder with spring return eases the ram back after each bend. Oil capacity is 450 g. The package includes the six dies and a user manual.

Highlights

  • 12-ton hydraulic force bends thick pipe up to 2 in
  • six precision dies cover 13 mm to 51 mm sizes
  • adjustable rollers enable 90° to 180° bending angles
  • 243 mm stroke and 342–585 mm height suit varied jobs
  • steel frame with hydraulic return spring ensures durable operation

Specifications

TypeOther Appliances
Width23.43

Questions about this item

Which die size should I pick for a 1-1/4 inch pipe?

The set includes a 1-1/4 inch die among the six supplied sizes from 1/2 to 2 inches.

How far can the ram travel in one stroke?

The hydraulic ram provides a 9.6 inch (243 mm) stroke per pump cycle.

What is the maximum pipe diameter the bender can handle?

The bending range tops out at 2 inches (51 mm) with the largest supplied die.
