Black cast-iron hydraulic valve with single lever and NPT ports

VEVOR

VEVOR Hydraulic Log Splitter Valve 1 Spool 25 GPM 3626 PSI

SKU CH-SVPK-9X3G3

Single-spool hydraulic directional valve rated at 25 GPM and 3626 PSI maximum pressure for log splitters and small loaders

  • TypeOther Appliances
  • Width6.5
  • High flow 25 GPM powers through heavy logs efficiently
  • Spring-return spool resets to neutral for smoother joystick control
  • Safety valve withstands 3626 PSI maximum pressure for durability
  • Vermicular graphite cast iron body resists wear in tough conditions
  • 1/2" and 3/4" NPT ports fit common hydraulic systems

Replacement Valve for Log Splitters

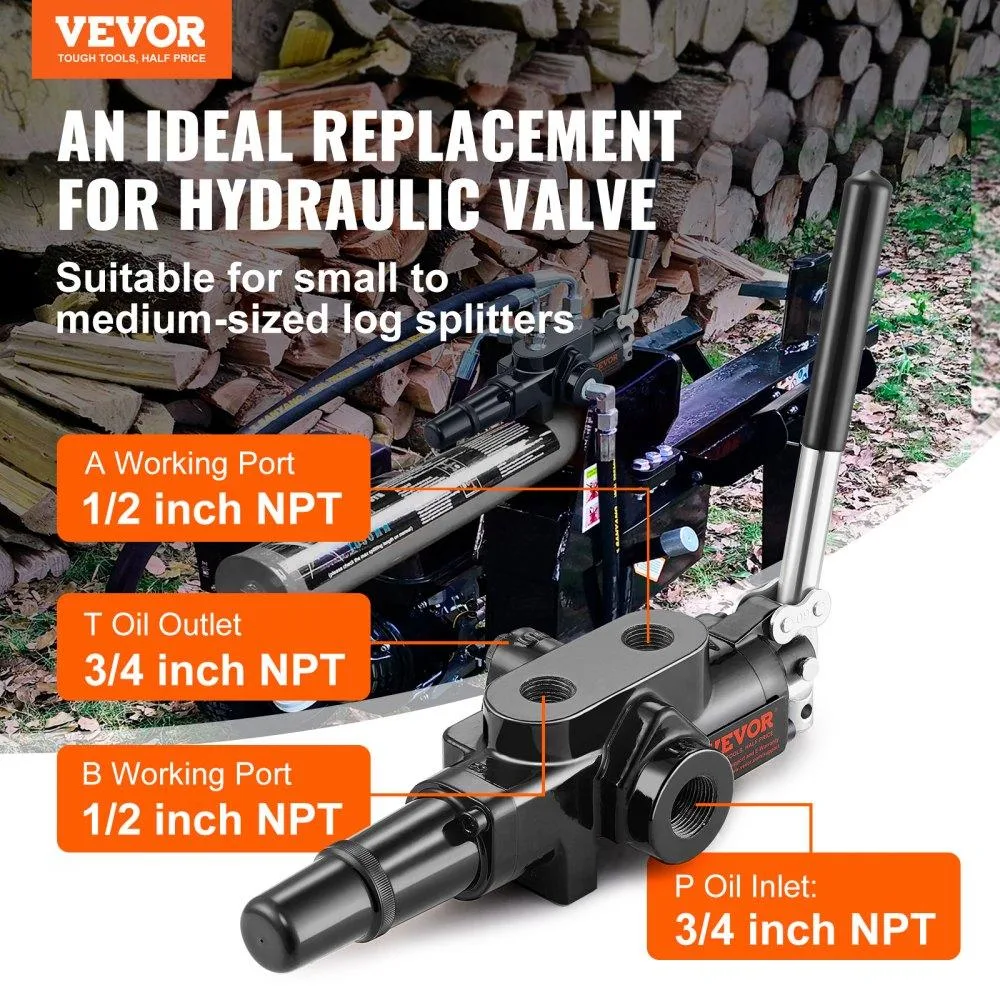

This single-spool hydraulic directional control valve fits small to medium log splitters and replaces leaking or failed units in agricultural, forestry, construction and industrial hydraulic systems. It uses a 3/4 inch NPT inlet and outlet with 1/2 inch NPT work ports.

Sustained Load Behaviour

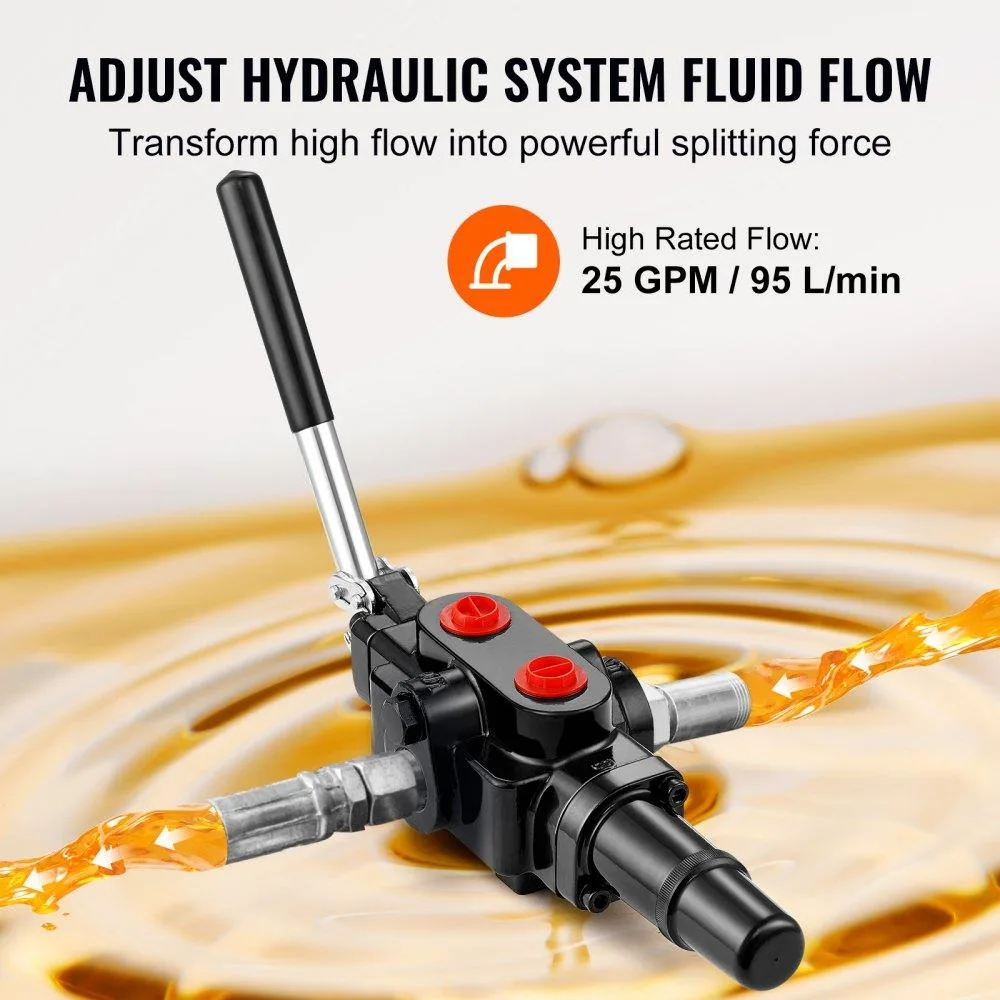

Rated flow reaches 25 GPM or 95 L/min at a rated pressure of 20 MPa and 2900 PSI, while the built-in safety valve allows peaks up to 25 MPa and 3626 PSI without damage. A spring-return spool automatically centres to neutral, and a second spring at the handle base keeps joystick action smooth during long splitting sessions.

Upgrade Path and Limits

The valve upgrades any compatible system that uses a single-spool, NPT-ported directional control with the same port sizes and flow rating. It does not suit machines that need multiple spools, higher flow capacity, or different port thread standards.

Highlights

  • High flow 25 GPM powers through heavy logs efficiently
  • Spring-return spool resets to neutral for smoother joystick control
  • Safety valve withstands 3626 PSI maximum pressure for durability
  • Vermicular graphite cast iron body resists wear in tough conditions
  • 1/2" and 3/4" NPT ports fit common hydraulic systems

Specifications

TypeOther Appliances
Width6.5

Questions about this item

How much hydraulic pressure can the 1-spool valve handle continuously without overheating?

The valve is rated for 2900 PSI working pressure and can tolerate peaks up to 3626 PSI, so sustained operation at or below 2900 PSI keeps heat in check.

Which hoses and fittings must I already have to connect the 3/4 inch NPT inlet and 1/2 inch NPT work ports?

You need a 3/4 inch NPT hose for the pump feed, a 3/4 inch NPT hose for the tank return, and two 1/2 inch NPT hoses for the cylinder lines.

Will the spring-return spool work with an older two-stage pump that delivers 25 GPM at 2900 PSI?

Yes — the valve’s 25 GPM rated flow and 2900 PSI rated pressure match that pump’s output, and the spring-centre spool returns to neutral automatically.
